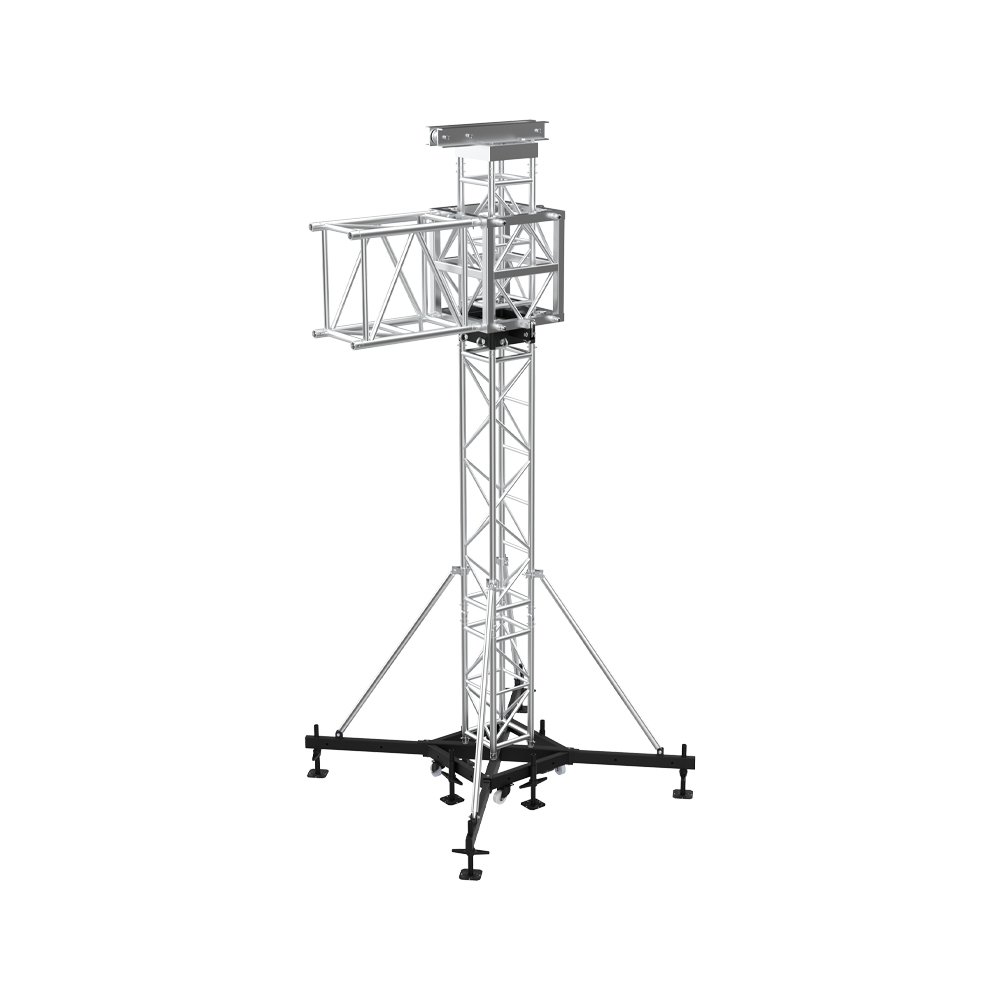

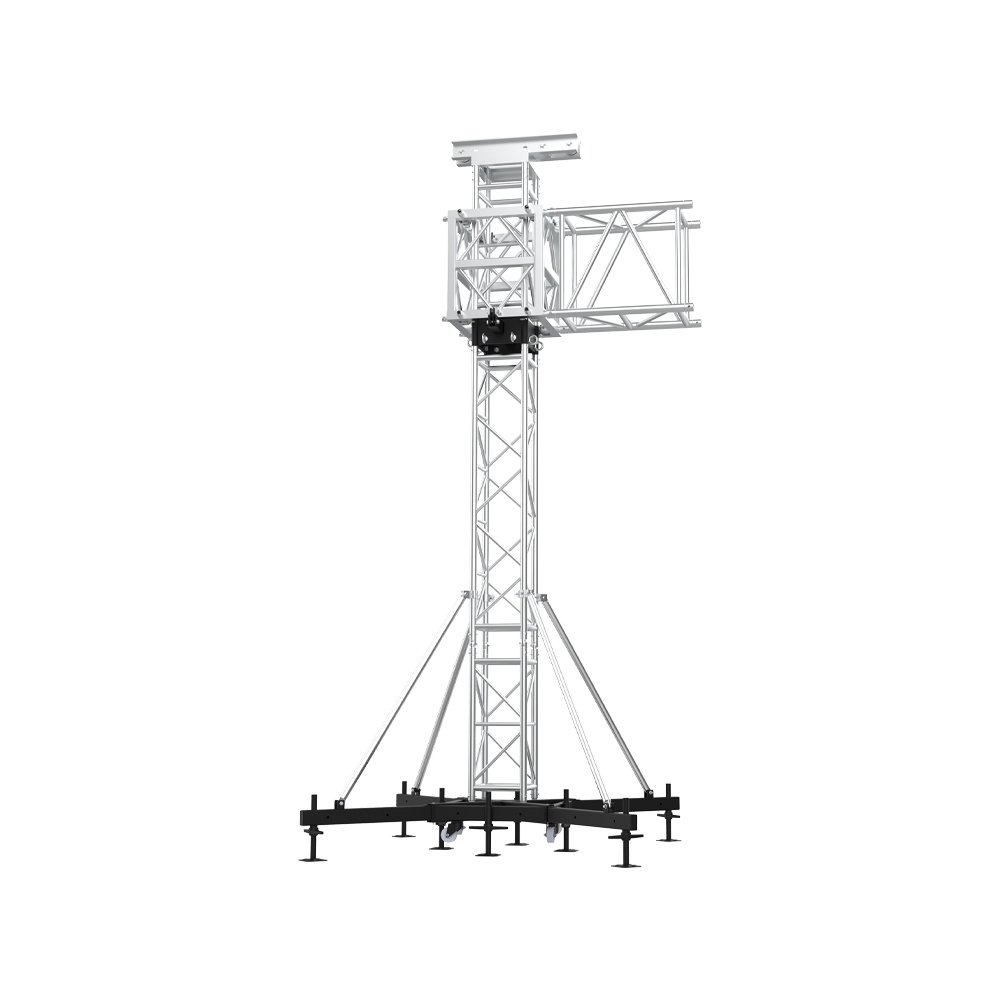

SST40
The SST-40 Tower System is a compact vertical lifting tower designed for applications requiring controlled and safe elevation of truss structures. It is suitable for a wide range of professional event applications where reliable lifting performance and efficient handling are required, and its design provides dependable structural performance for medium- to heavy-duty lifting.
The system is based on a 400 × 400 mm LD40 aluminium tower truss with Ø50 × 3 mm main tubes and Ø25 × 3 mm diagonals, giving a balanced combination of strength, stability and manageable system weight of approximately 11.5 kg/m. It is made from EN AW-6082 T6 aluminium with an SG2 (50 mm) connection.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – SST40 | |
|---|---|
| Height | 400 mm |
| Width | 400 mm |
| Weight | ~11.5 kg/m |
| Main Tube | 50 × 3 mm |
| Braces | 25 × 3 mm |
| Material | EN AW-6082 T6 |
| Connection | SG2 (50 mm) |
| Max. working height | up to 13 m |
| Max. load capacity | up to 2,000 kg* |
Advantages – SST40
- Balanced Strength and Weight
- Up to 13 m Working Height
- 2,000 kg Load Capacity
- Guy Wire Load Upgrade
- Lock Support at Full Height
- Dedicated BBST40 Ballast Base
No downloads are available for this product yet. Contact our sales team for details.
