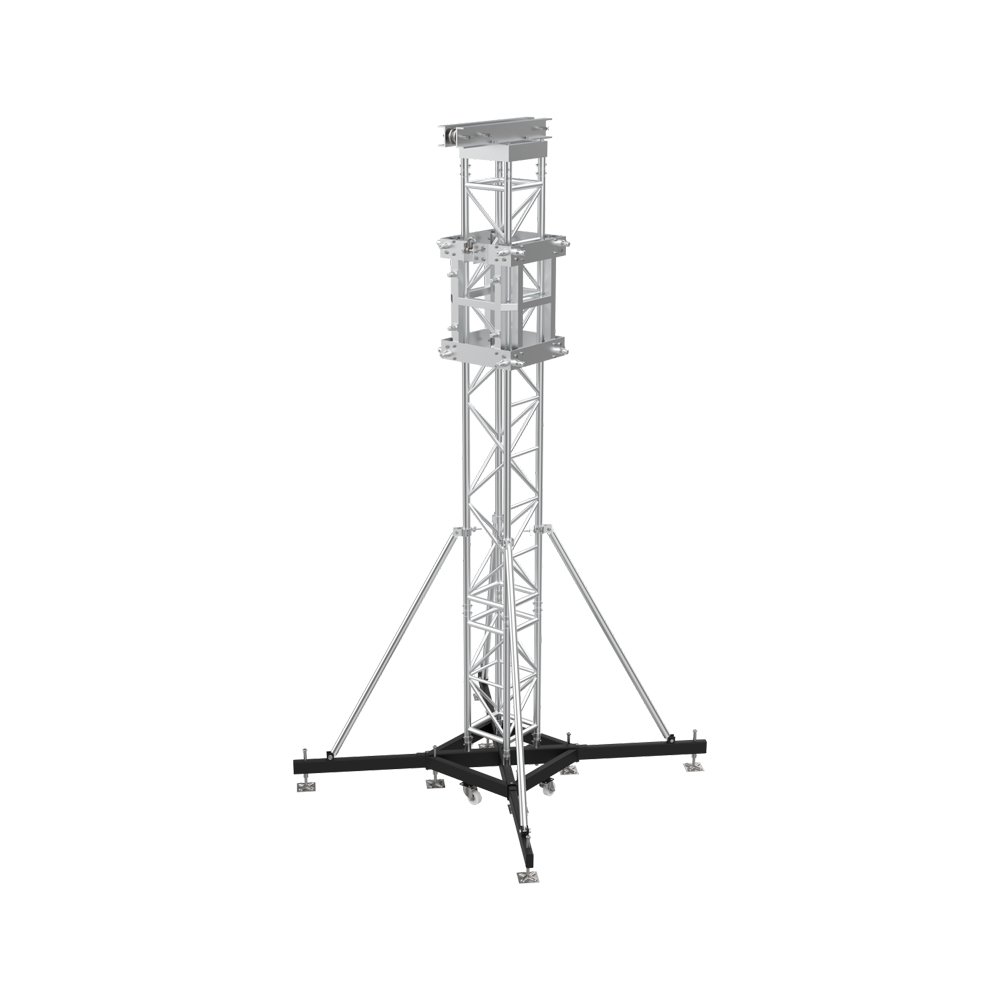

SST38R
The SST-38R Tower System is the reinforced version of the SST-38, developed for applications requiring higher load capacity, increased stability and compatibility with roof systems. It is designed for the controlled and safe elevation of truss structures in more demanding professional event applications, and SST38R towers are the towers specified for the DDR-64 pitch roof system.
It is based on a 380 × 380 mm HD38R aluminium tower truss with Ø50 × 4 mm main tubes, Ø25 × 3 mm diagonals and internal bracing, giving significantly enhanced strength and rigidity compared with the standard SST-38.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – SST38R | |
|---|---|
| Height | 380 mm |
| Width | 380 mm |
| Weight | ~13 kg/m |
| Main Tube | 50 × 4 mm |
| Braces | 25 × 3 mm |
| Material | EN AW-6082 T6 |
| Connection | SG2 (50 mm) |
| Max. working height | up to 15 m |
| Max. load capacity | up to 2,250 kg* |
Advantages – SST38R
- Reinforced Main Tubes
- Up to 15 m Working Height
- 2,250 kg Load Capacity
- Roof System Compatible
- Guy Wire Load Upgrade
- Lock Support at Full Height
No downloads are available for this product yet. Contact our sales team for details.
