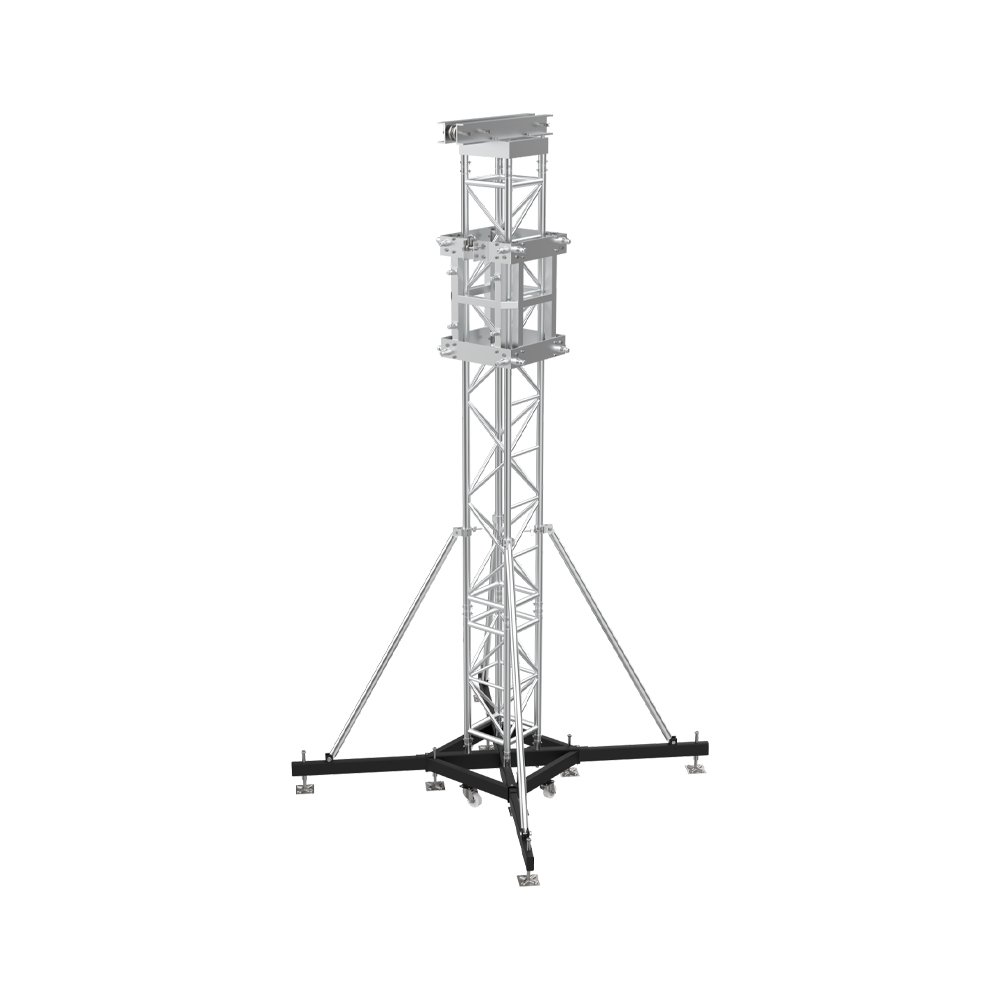

SST40R
The SST-40R Tower System is the reinforced version of the SST-40, developed for applications requiring higher load capacity, increased stability and compatibility with roof systems. Designed for the controlled and safe elevation of truss structures, the SST-40R is suited to demanding professional event and roof-supported applications, as well as roof and large-span truss systems.
It is based on a 400 × 400 mm HD40R aluminium tower truss with Ø50 × 4 mm main tubes, Ø25 × 3 mm diagonals and internal bracing, delivering enhanced strength and rigidity. Weight is approximately 13.5 kg/m, material is EN AW-6082 T6 and the connection is SG2 (50 mm).
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – SST40R | |
|---|---|
| Height | 400 mm |
| Width | 400 mm |
| Weight | ~13.5 kg/m |
| Main Tube | 50 × 4 mm |
| Braces | 25 × 3 mm |
| Material | EN AW-6082 T6 |
| Connection | SG2 (50 mm) |
| Max. working height | up to 15 m |
| Max. load capacity | up to 2,250 kg* |
Advantages – SST40R
- Reinforced Main Tubes
- Up to 15 m Working Height
- 2,250 kg Load Capacity
- Roof and Large-Span Ready
- Guy Wire Load Upgrade
- Lock Support at Full Height
