PA TOWER

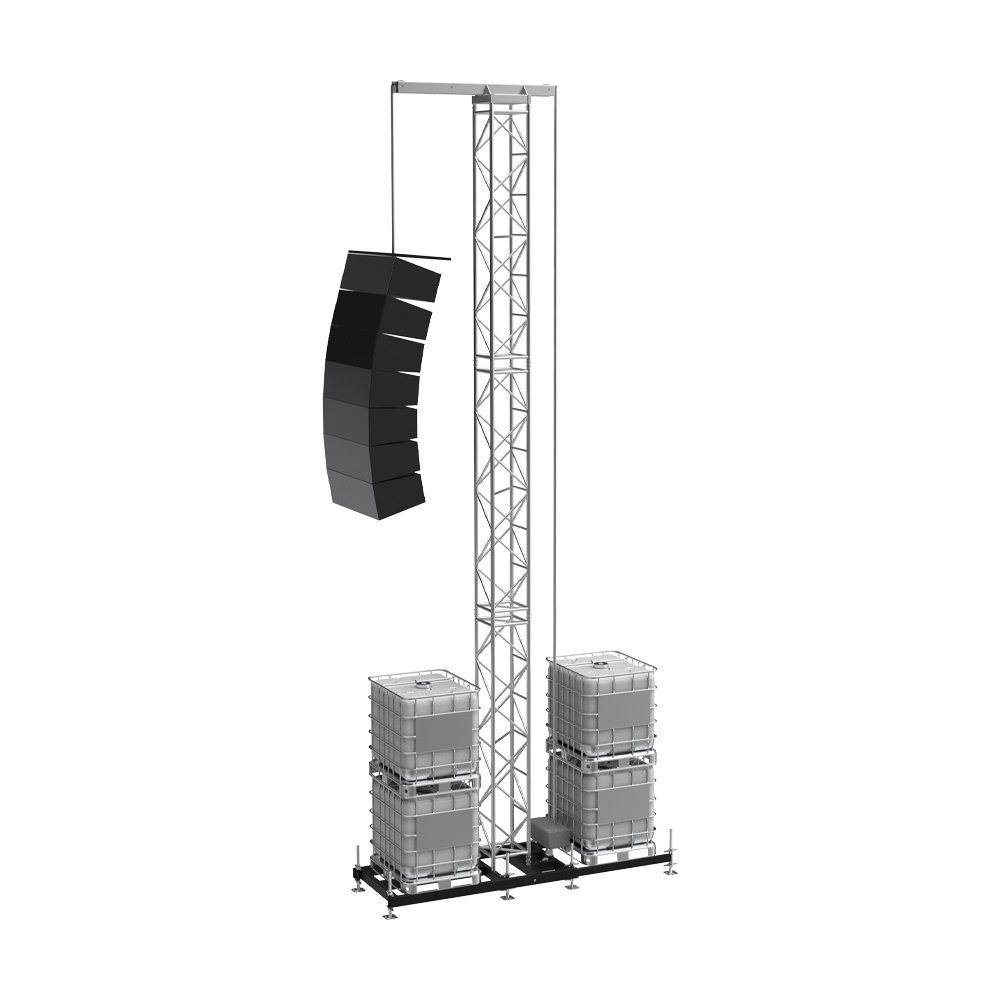

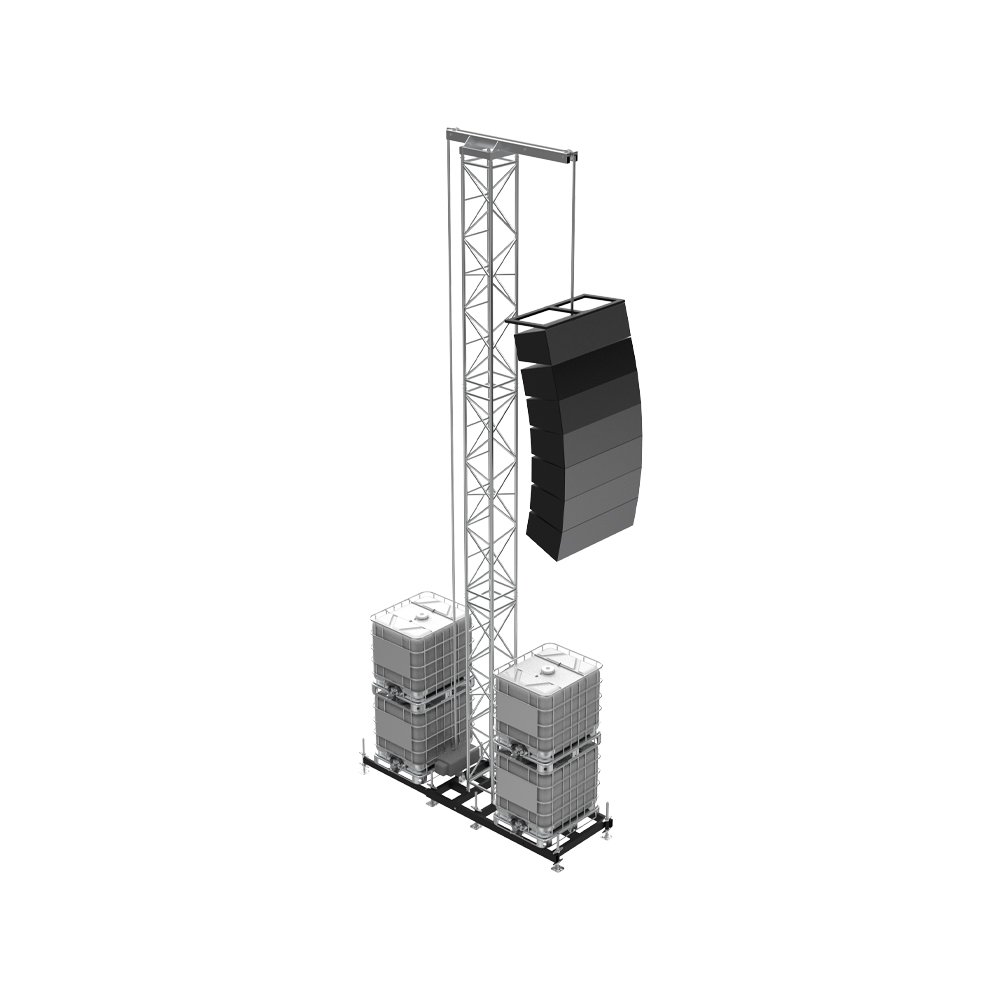

The PA / Delay Tower is a dedicated support structure for sound systems positioned away from the main stage. It is used to suspend line array speakers or PA systems in delay positions, helping to maintain consistent audio coverage across large audience areas. The tower is designed for both outdoor and indoor use.
The tower system integrates with Giant Truss main truss ranges and roof systems, allowing flexible use across different event layouts. Its modular configuration suits standalone applications as well as integration into larger stage and roof structures.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – PA TOWER | |
|---|---|
| Max height | 10 m (32.8 ft) |
| WLL | 1,000 kg (2,204 lbs) |
| Self weight | 475 kg (937 lbs) |
| Footprint | 3.5 × 1.2 m |
| Ballast required | 4,000 kg |
| Construction | Steel base with outriggers |
| Application | PA lifting for professional event use |
Advantages – PA TOWER
- 1,000 kg Working Load Limit
- 10 m Maximum Height
- Compact 3.5 × 1.2 m Footprint
- Steel Base With Outriggers
- Indoor and Outdoor Use
- Chain Hoist Lifting
No downloads are available for this product yet. Contact our sales team for details.
