Electrical

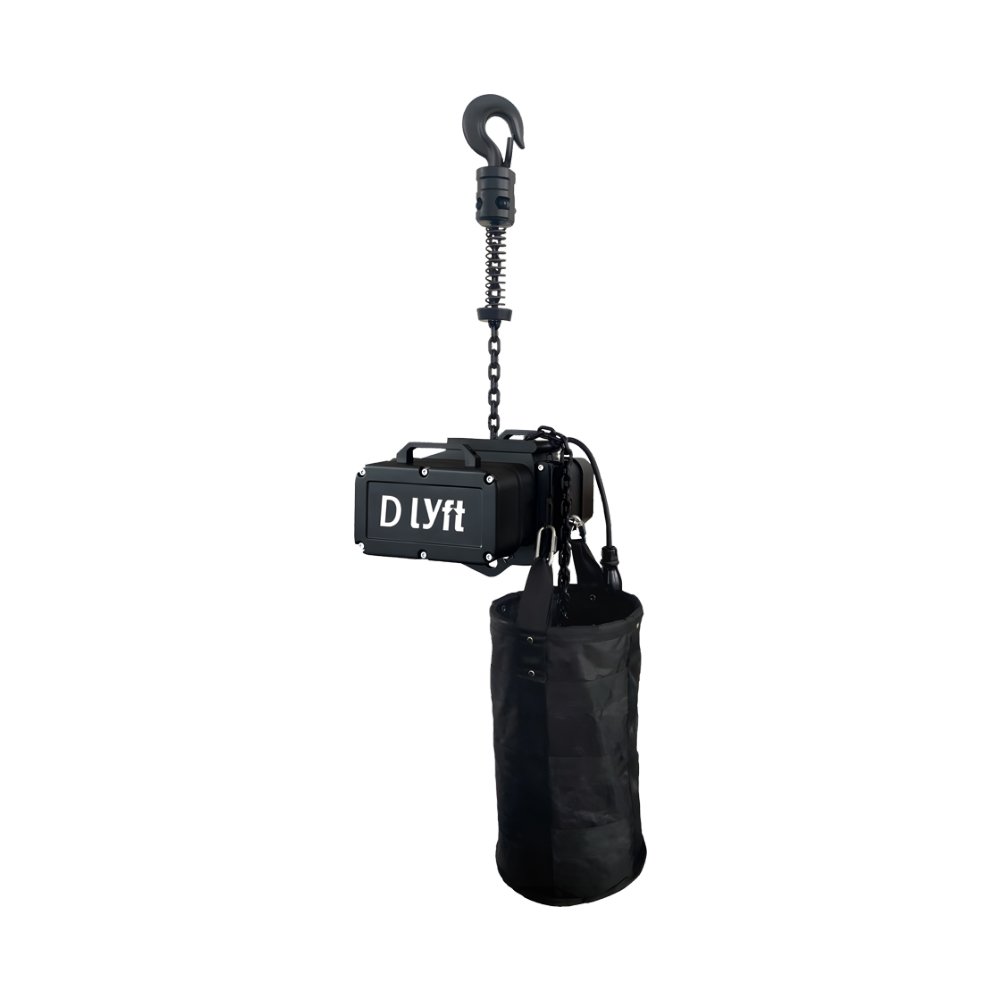

The D-LYFT electric chain hoist by Giant Truss is built for demanding rigging environments in live events, venues and industrial applications. The range covers three models: the DEH 125 (1 ton), the DEH 230 (2 ton) and the compact DEH 100 (320 kg). The hoists are designed for smooth, accurate control, plug-and-play setup and rugged, portable use in tough environments.
The hoists feature a dual brake safety system, an IP65-rated motor and smooth, quiet operation, with flexible 360° swivel rigging and full CE and international compliance.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – Electrical | |
|---|---|
| Models | DEH 125 (1 ton) / DEH 230 (2 ton) / DEH 100 (320 kg) |
| DEH 125 | Capacity 1 t; H/min 394; A 426 mm; B 262 mm; C 136 mm; D 50 mm; K 216 mm |
| DEH 230 | Capacity 2 t; H/min 430; A 507 mm; B 280 mm; C 150 mm; D 70 mm; K 296 mm |
| DEH 100 | Capacity 0.32 t; H/min 4; A 285 mm; B 186 mm; C 171 mm; D 102 mm; K 132 mm |
| Brake | Dual brake safety system |
| Motor protection | IP65 |
| Rigging | 360° swivel |
| Compliance | CE and international |

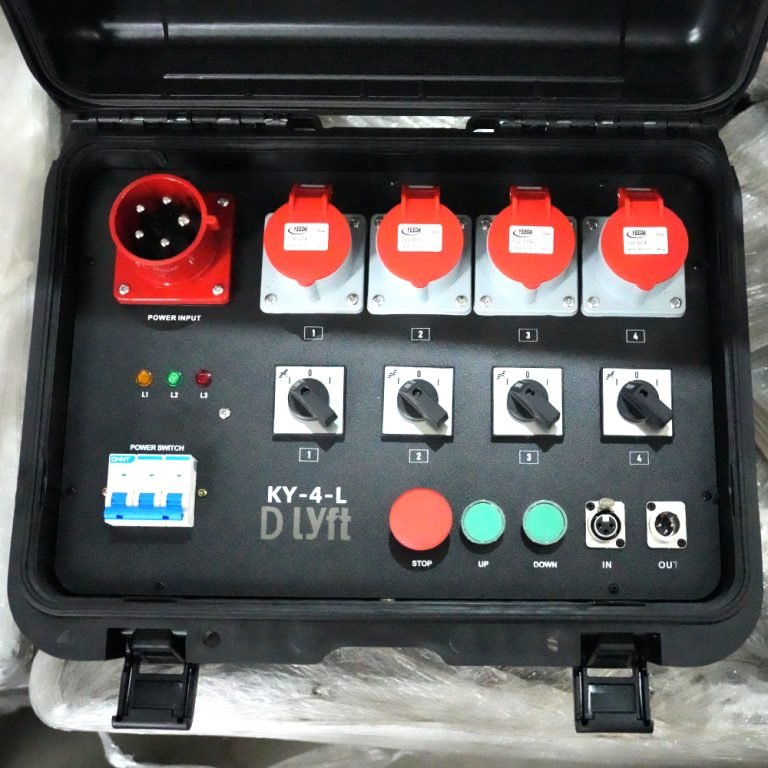

| Controllers | 4-way / 6-way / 8-way |
| Supplied with | Flight case and chain bag |
Advantages – Electrical
- Dual Brake Safety System
- IP65-Rated Motor
- Three Capacities: 320 kg To 2 t
- 360° Swivel Rigging
- Plug And Play Setup
- 4, 6 And 8-Way Controllers
- CE Compliant
No downloads are available for this product yet. Contact our sales team for details.
