SST38

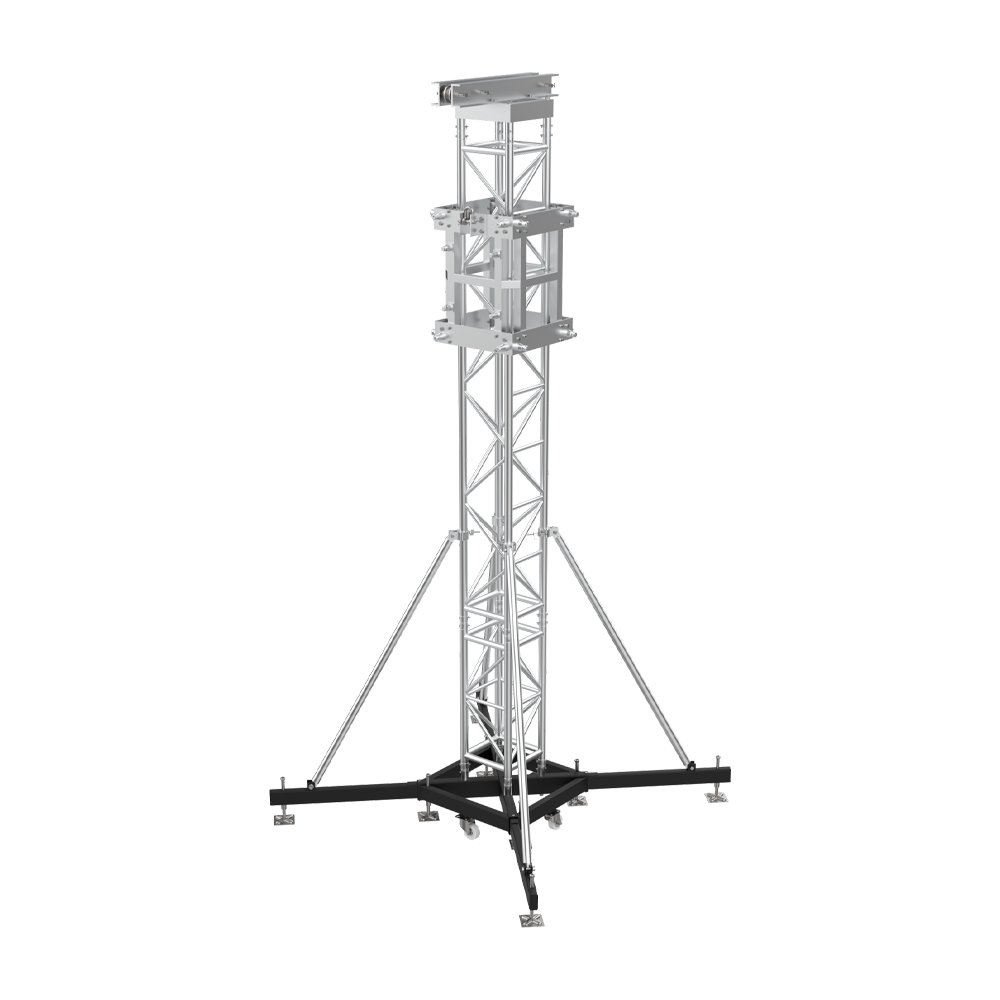

The SST-38 Tower System is a compact vertical lifting tower for the controlled and safe elevation of truss structures. It is based on a 380 × 380 mm LD38 aluminium tower truss and is engineered to lift JT-H and JT-X truss systems smoothly to their working height. SST38 towers are the vertical towers used in the SR-64 saddle roof.
The tower is manufactured from EN AW-6082 T6 aluminium with 50 × 3 mm main tubes and Ø25 × 3 mm bracing, weighing approximately 11 kg/m, with an SG2 (50 mm) connection. An integrated ladder on one side allows safe and convenient climbing.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – SST38 | |
|---|---|
| Height | 380 mm |
| Width | 380 mm |
| Weight | ~11 kg/m |
| Main Tube | 50 × 3 mm |
| Braces | 25 × 3 mm |
| Material | EN AW-6082 T6 |
| Connection | SG2 (50 mm) |
| Max. working height | up to 13 m |
| Max. load capacity | up to 2,000 kg* |
Advantages – SST38
- Integrated Climbing Ladder
- Up to 13 m Working Height
- 2,000 kg Load Capacity
- Lifts JT-H and JT-X Truss
- Guy Wire Load Upgrade
- Dedicated BBST38 Ballast Base
No downloads are available for this product yet. Contact our sales team for details.
