TT75

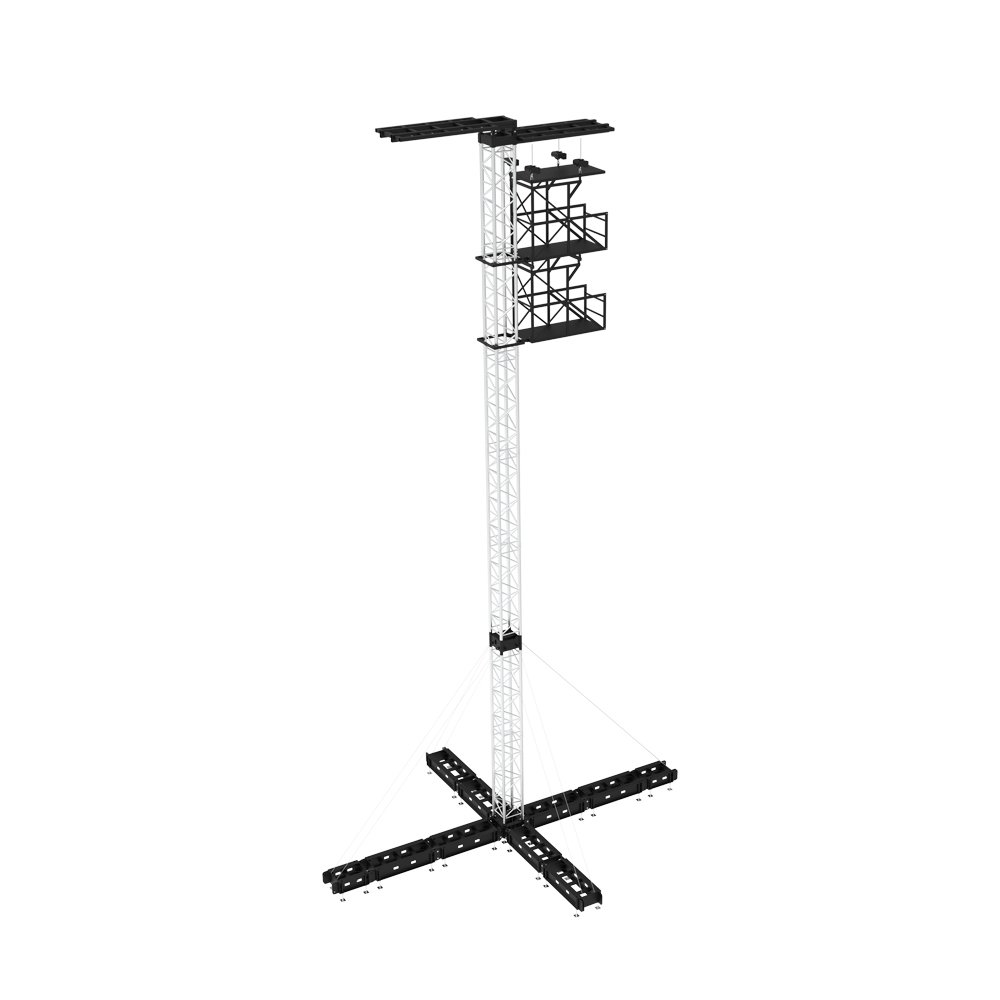

The TT75 (Titan Tower 75) is a large-format aluminium rigging tower with a 760 × 760 mm section and 100 × 8 mm main chords. Based on SQ77 mast sections, it uses a conical connection system that makes assembly easy. The mast sections have four-sided diagonal webbing, with extra horizontal bracing on one side for safe and easy climbing. The catalogue illustrates the tower at a height of 21 m (70 ft).
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – TT75 | |
|---|---|
| Height | 760 mm |
| Width | 760 mm |
| Main Tube | 100 × 8 mm |
| Sub Tube | 40 × 3 mm |
| Braces | 40 × 3 mm |
| Material | EN AW-6082 T6 |
| Connection | SG5 (100 mm) |
Advantages – TT75
- 100 × 8 mm Main Chords
- Conical Quick Connection
- Built-In Climbing Bracing
- Steel Sleeve Block on Wheels
- Grid Drop and Lift Locking
- Pairs With GT15 Truss
No downloads are available for this product yet. Contact our sales team for details.
