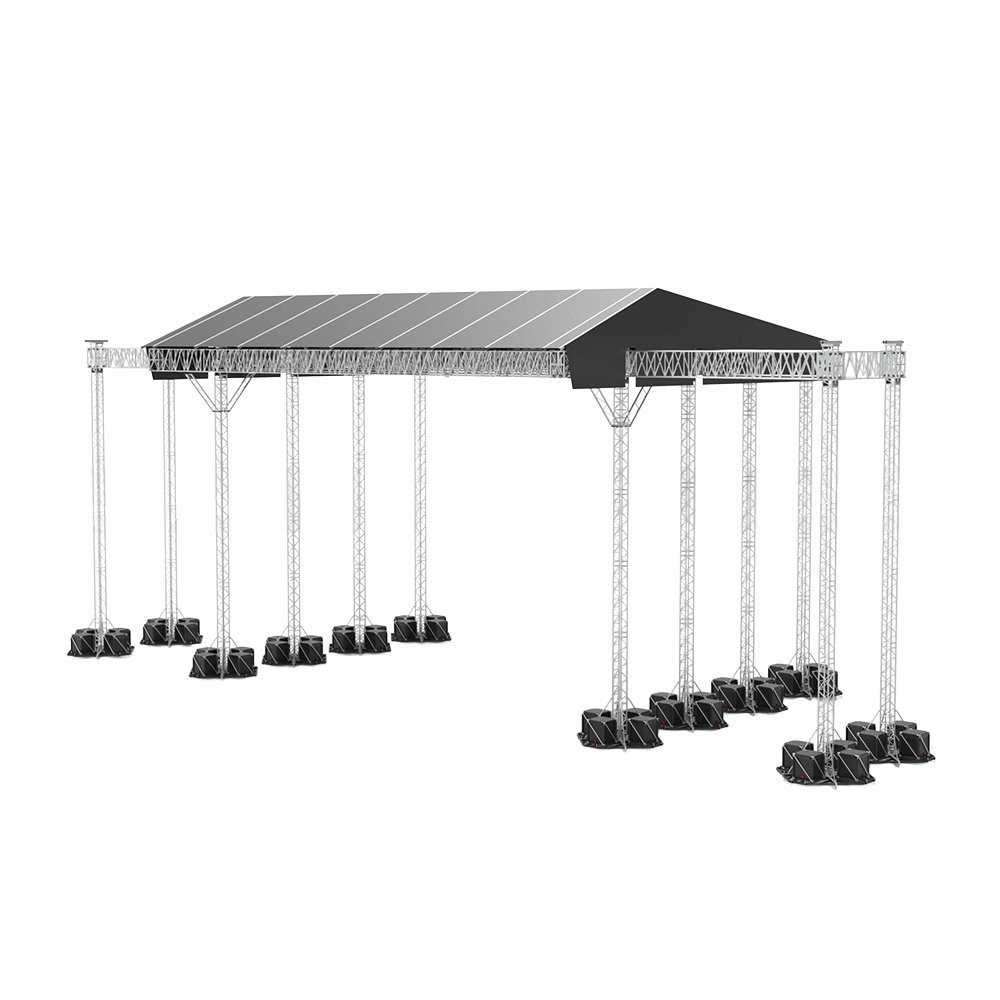

DDR-86

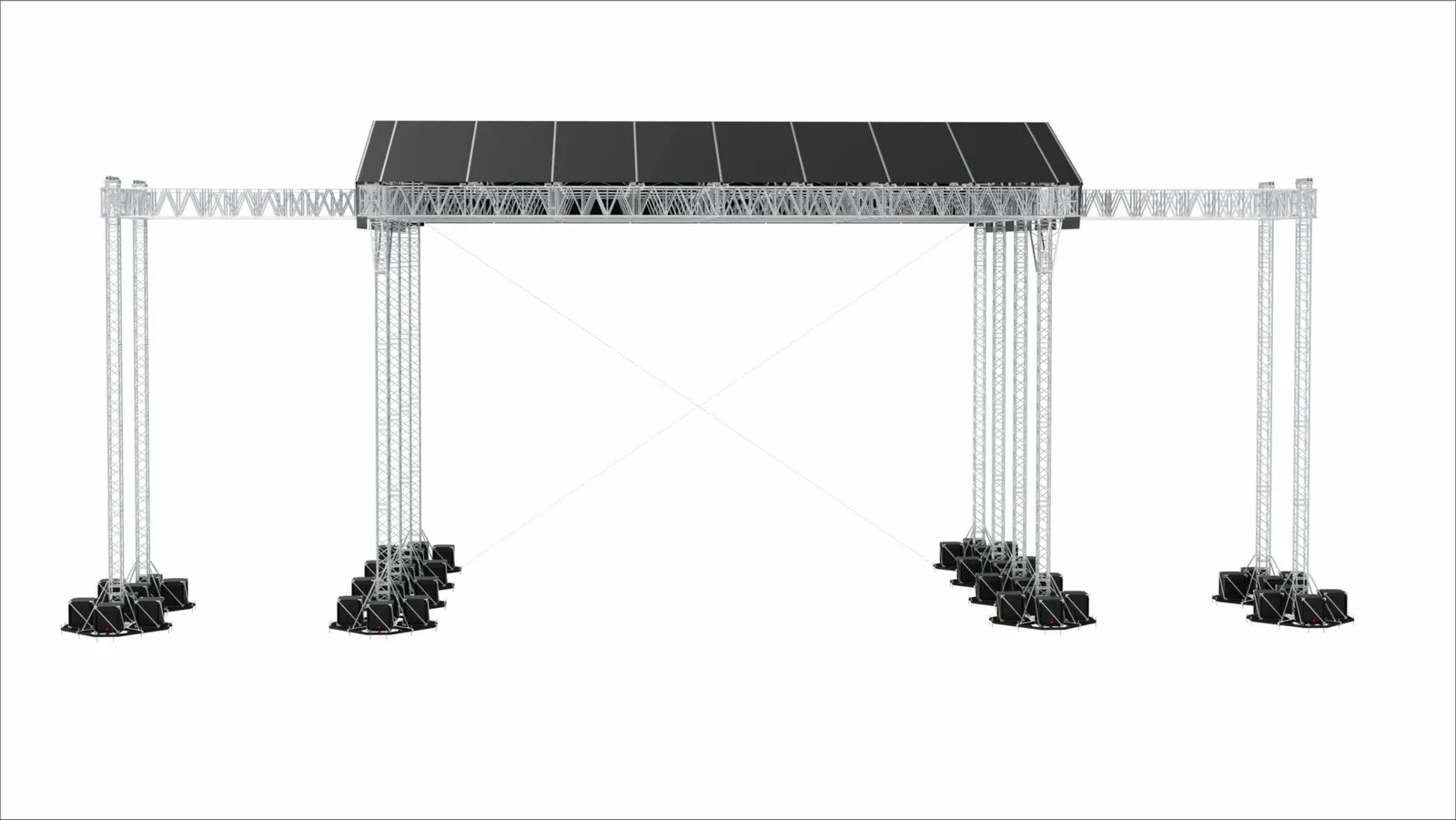

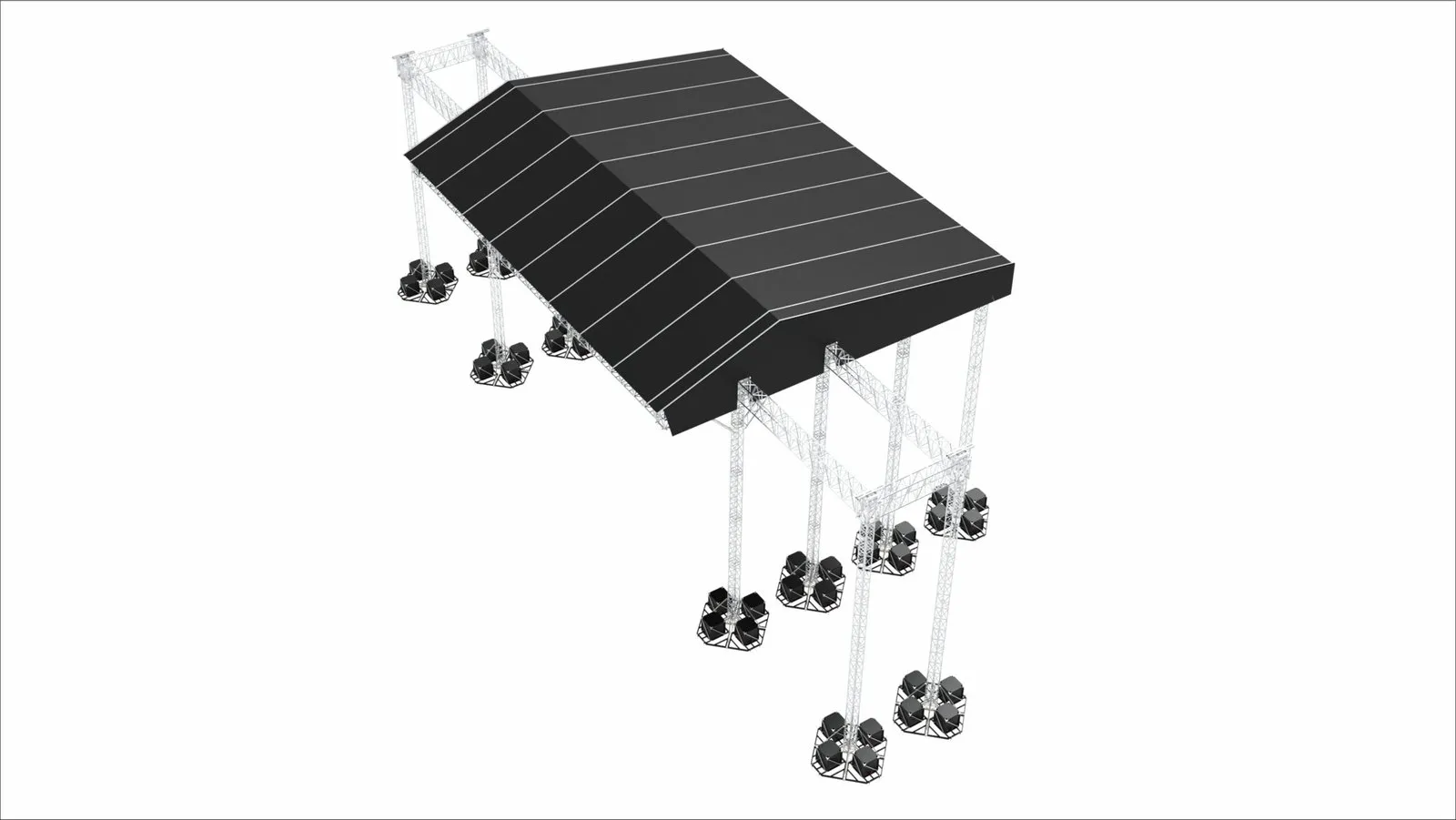

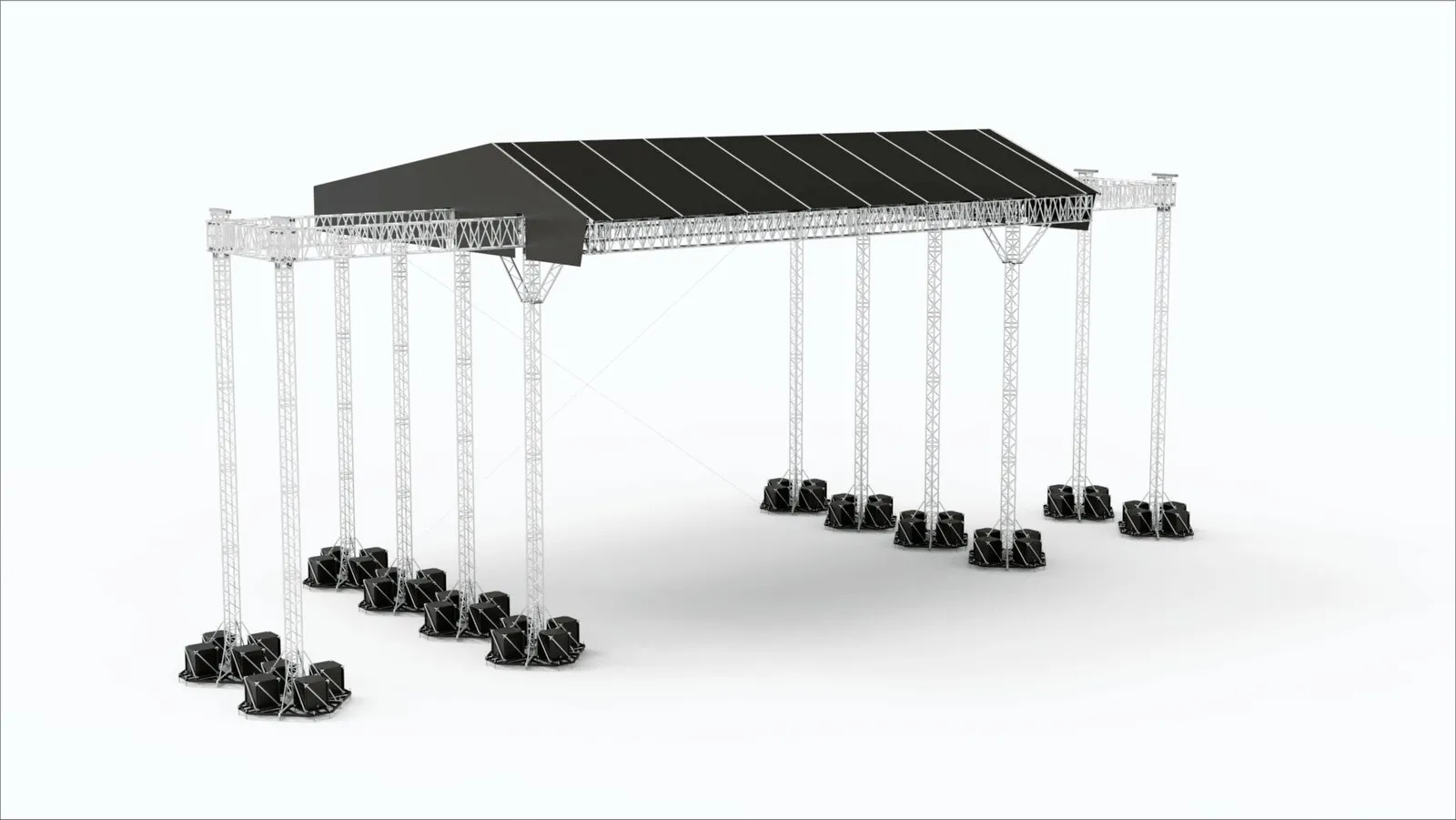

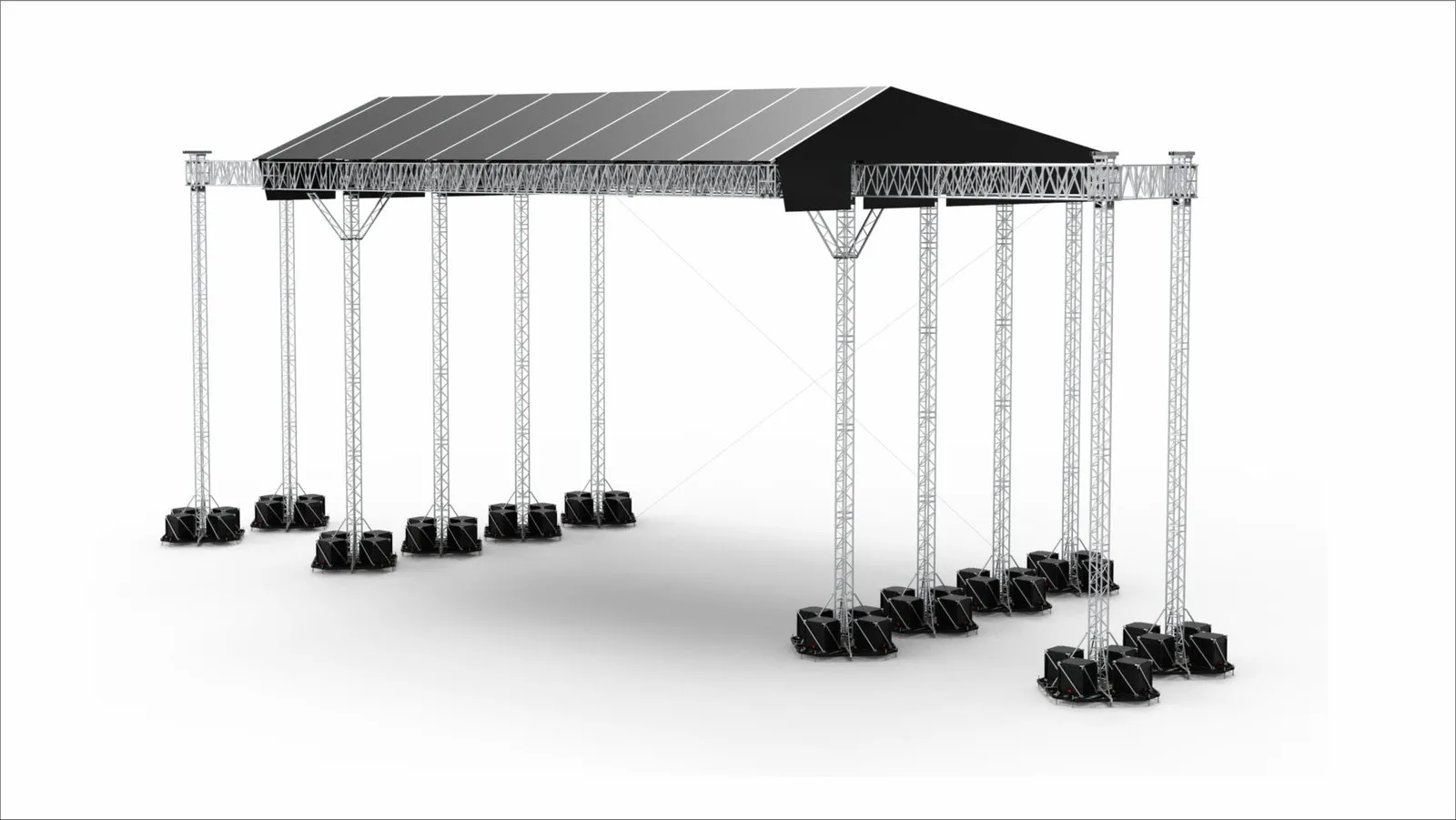

The DDR-86 is a tower-based pitched roof structure engineered for large-scale concerts, festivals and live events where high load capacity, modularity and structural reliability are critical. It is built on SST48R and SST48 towers (480 × 480 mm) with a DT-XR main grid (1100 × 610 mm). The towers are positioned directly beneath the roof structure, giving a fully enclosed, structurally efficient and balanced roof top.
The system incorporates a 24 × 4 m cantilever with PA truss integrated at the sleeve blocks of the front towers, allowing each side to carry a PA load of up to 1.8 tonnes.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – DDR-86 | |
|---|---|
| Towers | SST48R & SST48 (480 × 480 mm) |
| Main Grid | DT-XR (1100 × 610 mm) |
| Roof Structure | Tent keder profiles, PVC canopy |
| Walls | Tent keder profiles, PVC canopy |
| Stage | Integrated steel scaffold stage |
| Floor | Giant Truss stage decks |
| Size | 24 × 20 × 15 m |
| Total load capacity | 18 tonnes |
| PA load per side | up to 1.8 tonnes |
| Cantilever | 24 × 4 m |
| Width increments | 3 m (≈10 ft) |
Advantages – DDR-86
- 18 Tonne Total Capacity
- 1.8 Tonne PA Load per Side
- Width Rescalable in 3 m Steps
- 24 × 4 m Cantilever
- Fully Enclosed Roof Top
- Static Reports on Request
No downloads are available for this product yet. Contact our sales team for details.
