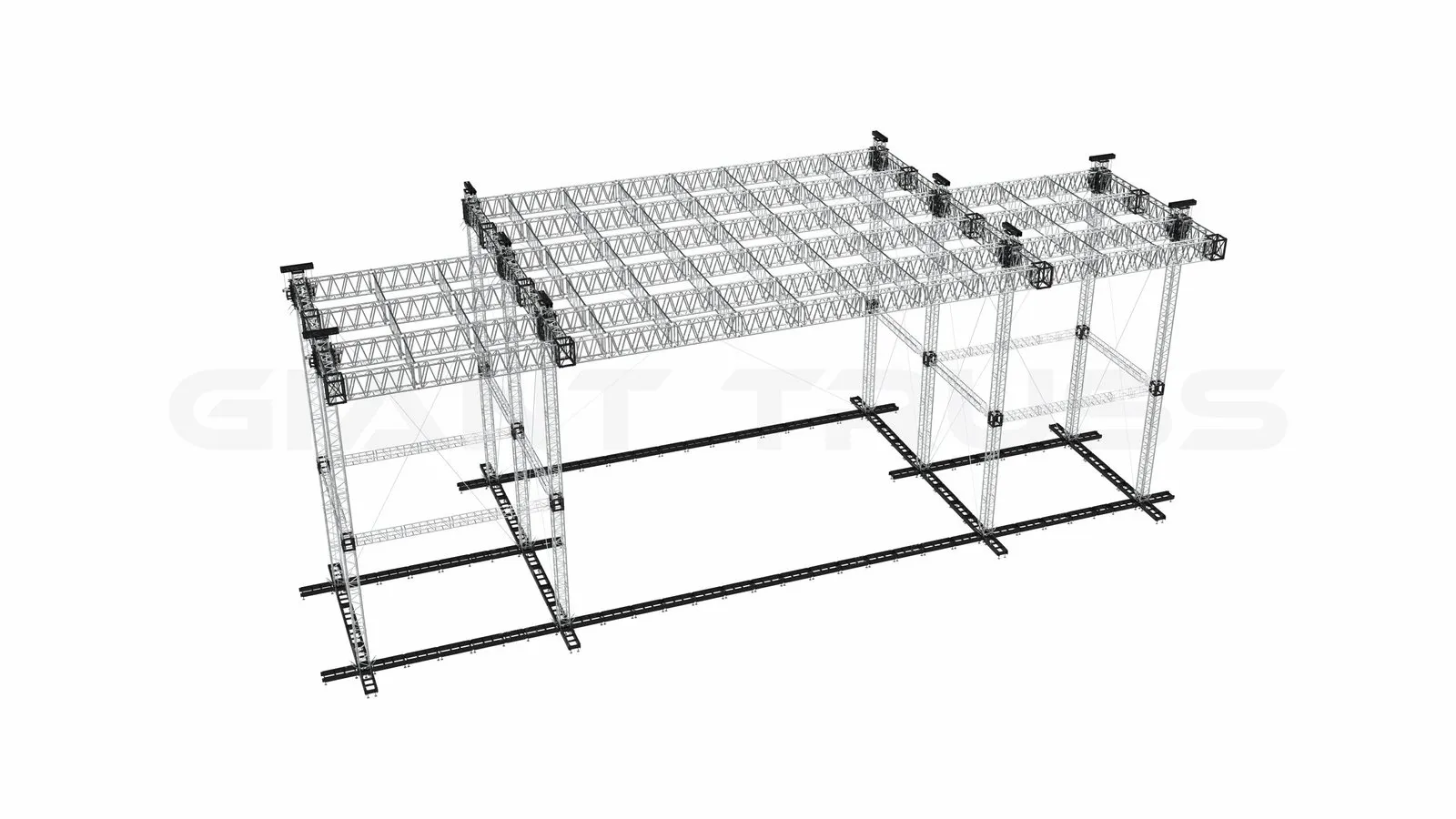

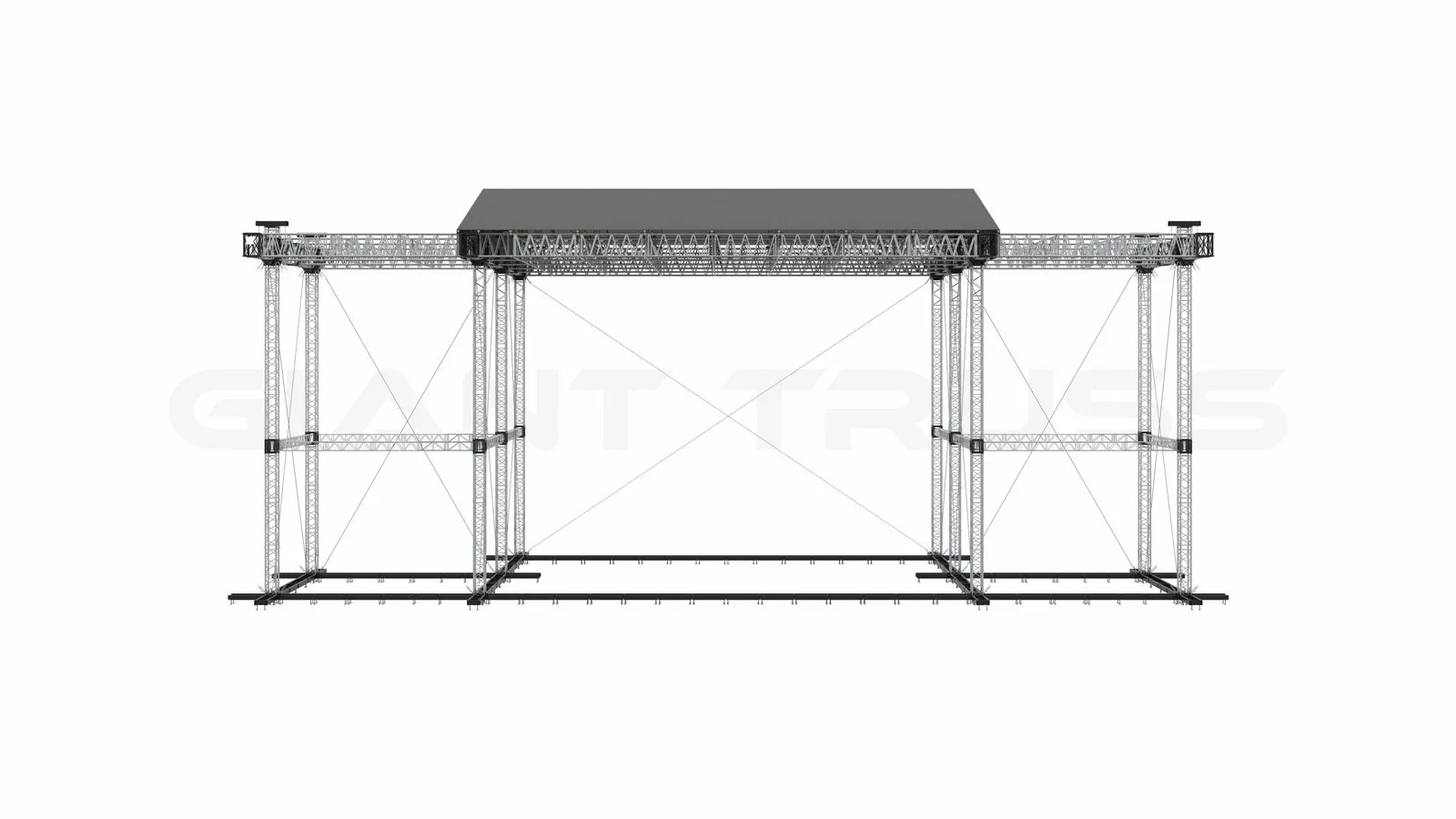

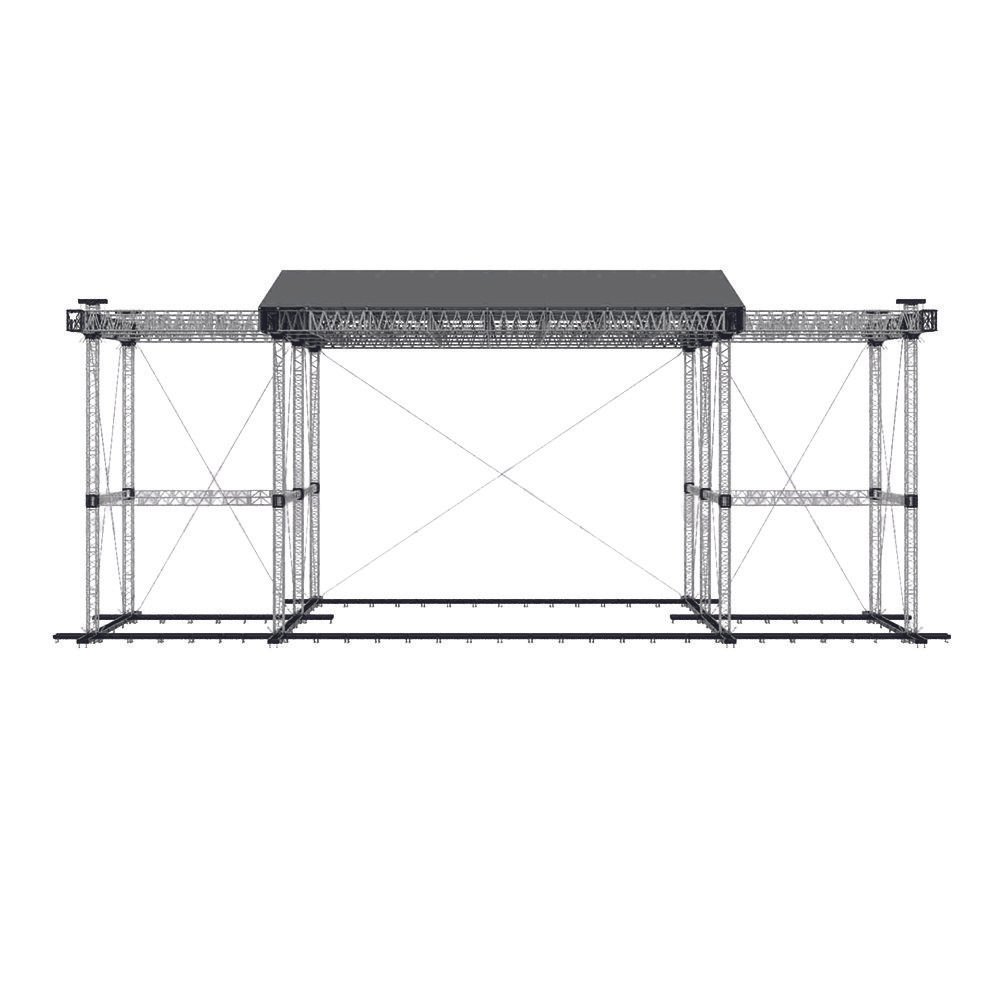

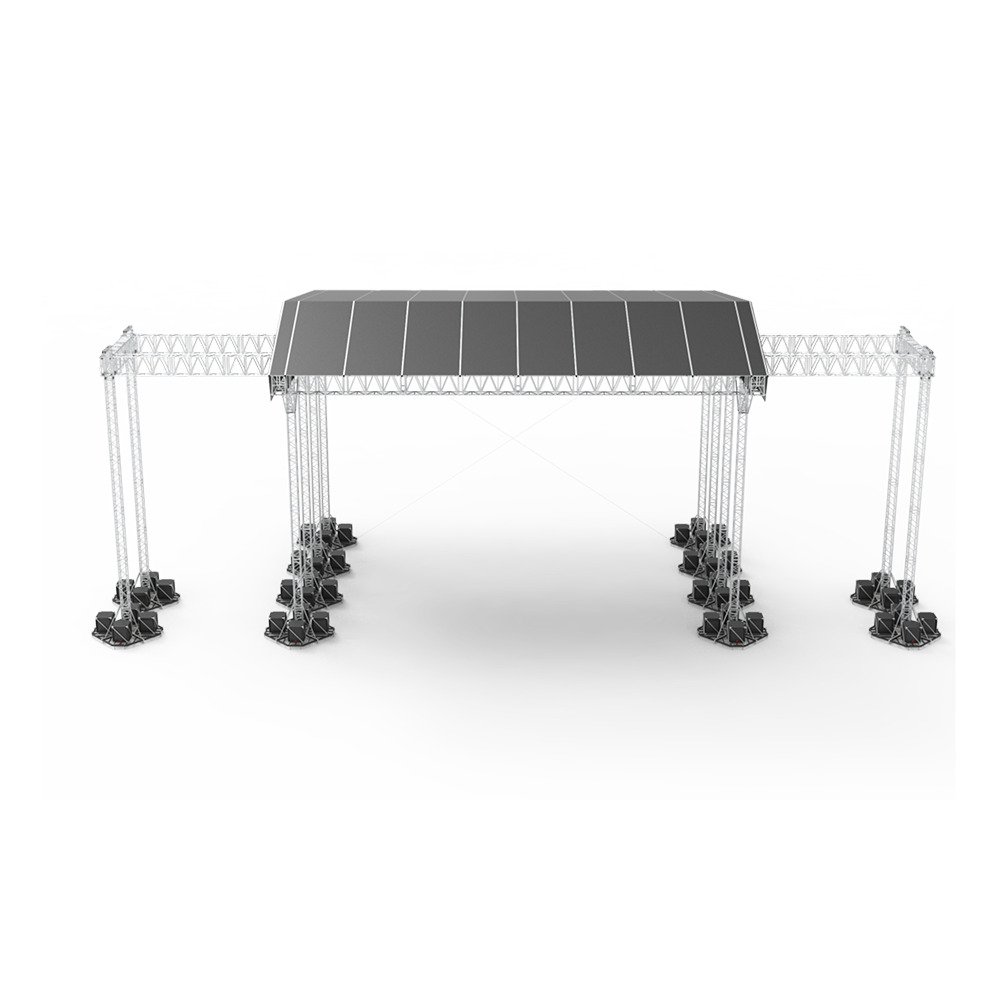

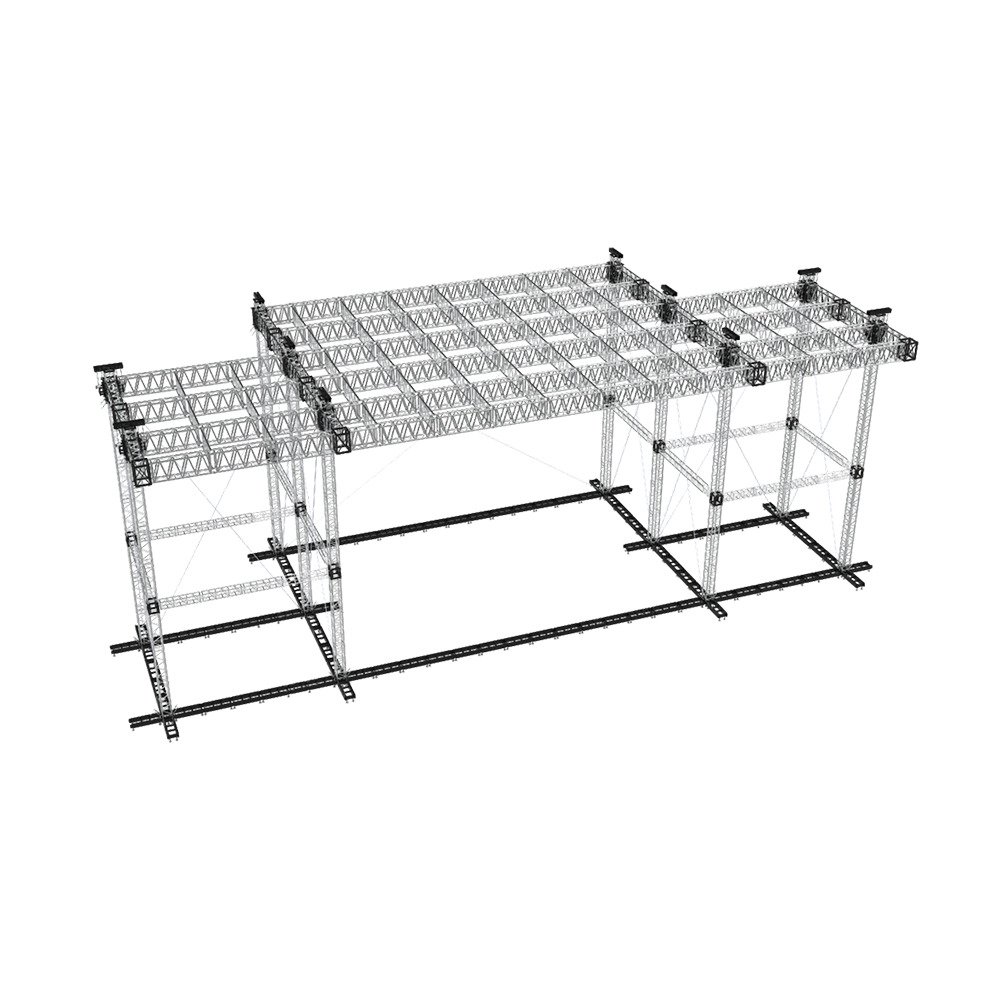

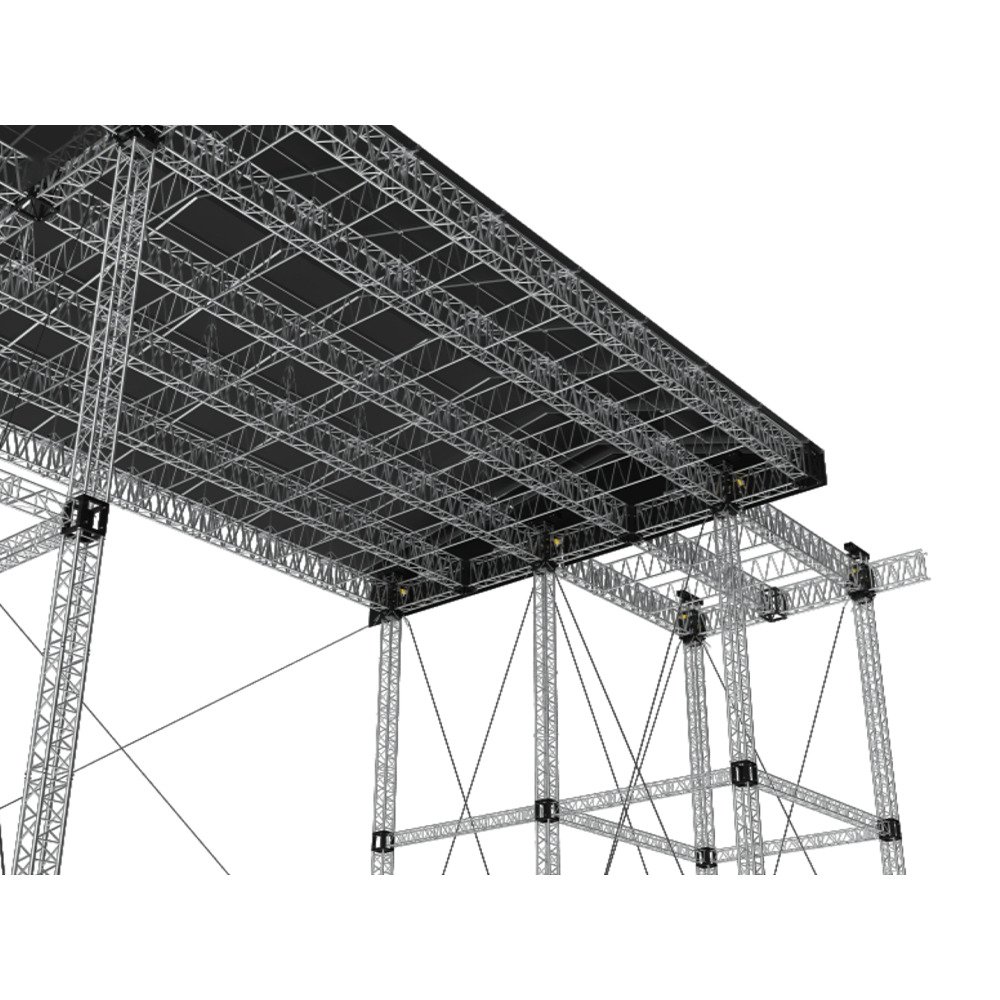

The DDR-100, presented in the catalogue as the 54 m wide Titan Roof, is a pitch roof system with an overall loading capacity of 95,000 kg UDL, intended for the demanding requirements of the largest events. Overall dimensions are 54 m wide, 26 m deep and 21 m high, with GT15 truss forming the horizontal mother grid and TT75 towers as the vertical supports.

The GT15 truss system is designed for heavy-duty applications. It is made from high-strength aluminium alloy with a 100 × 8 mm main chord and uses precision-machined joints and connections for strength and stability under dynamic loading.

Need help?

Need advice about one of our products or services? Find out contacting our Sales Team.

Contact us
German static reports DVS Zert EN 1090 EXC-3 certified
Technical Specifications – DDR-100
Width54 m
Depth26 m
Height21 m
Horizontal TrussGT15
Vertical TowerTT75
Capacity95,000 kg UDL
Stage area – Main span30 m
Stage area – Side house12 m
Stage area – Depth11 m
Stage area – Clearance20 m
Stage area – Front cantilever4 m

Advantages – DDR-100

  • 95,000 kg UDL Capacity
  • 54 m Overall Width
  • 30 m Main Stage Span
  • 20 m Clearance
  • GT15 Mother Grid
  • Locking TT75 Sleeve Blocks

No downloads are available for this product yet. Contact our sales team for details.
