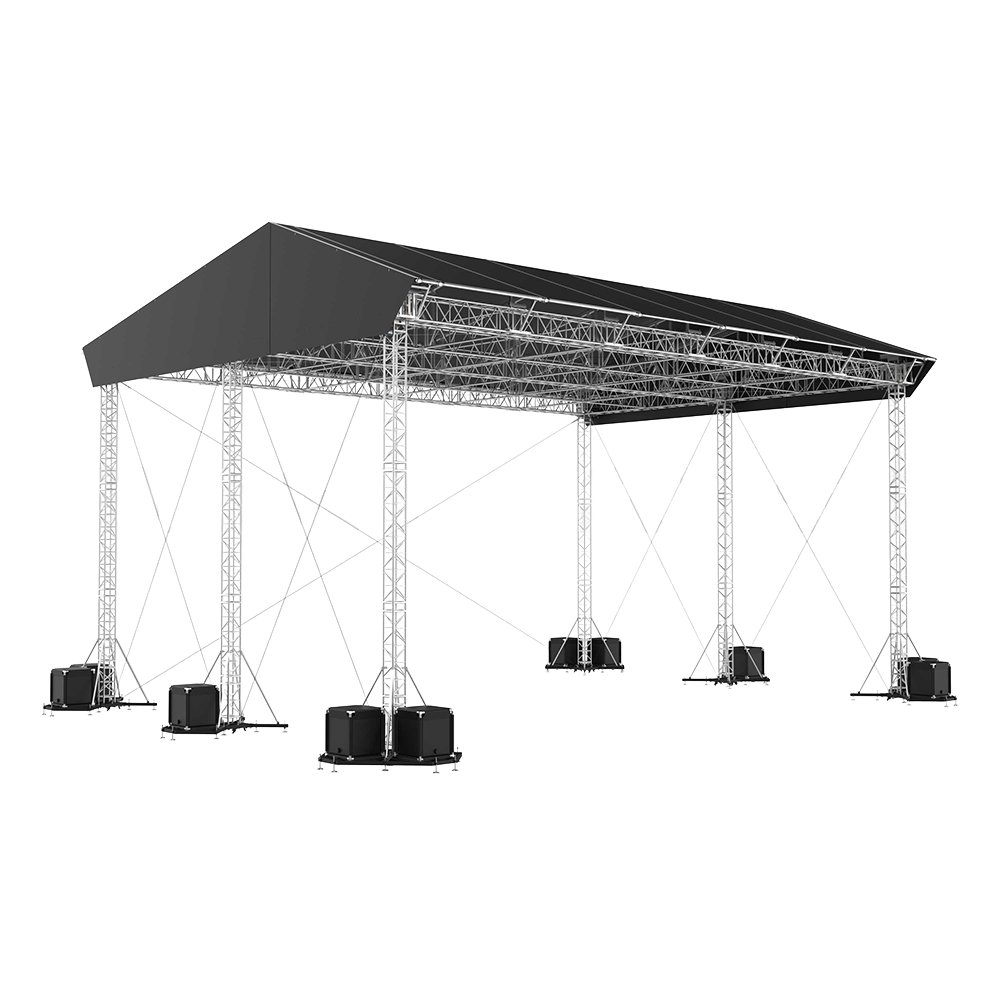

DDR-64

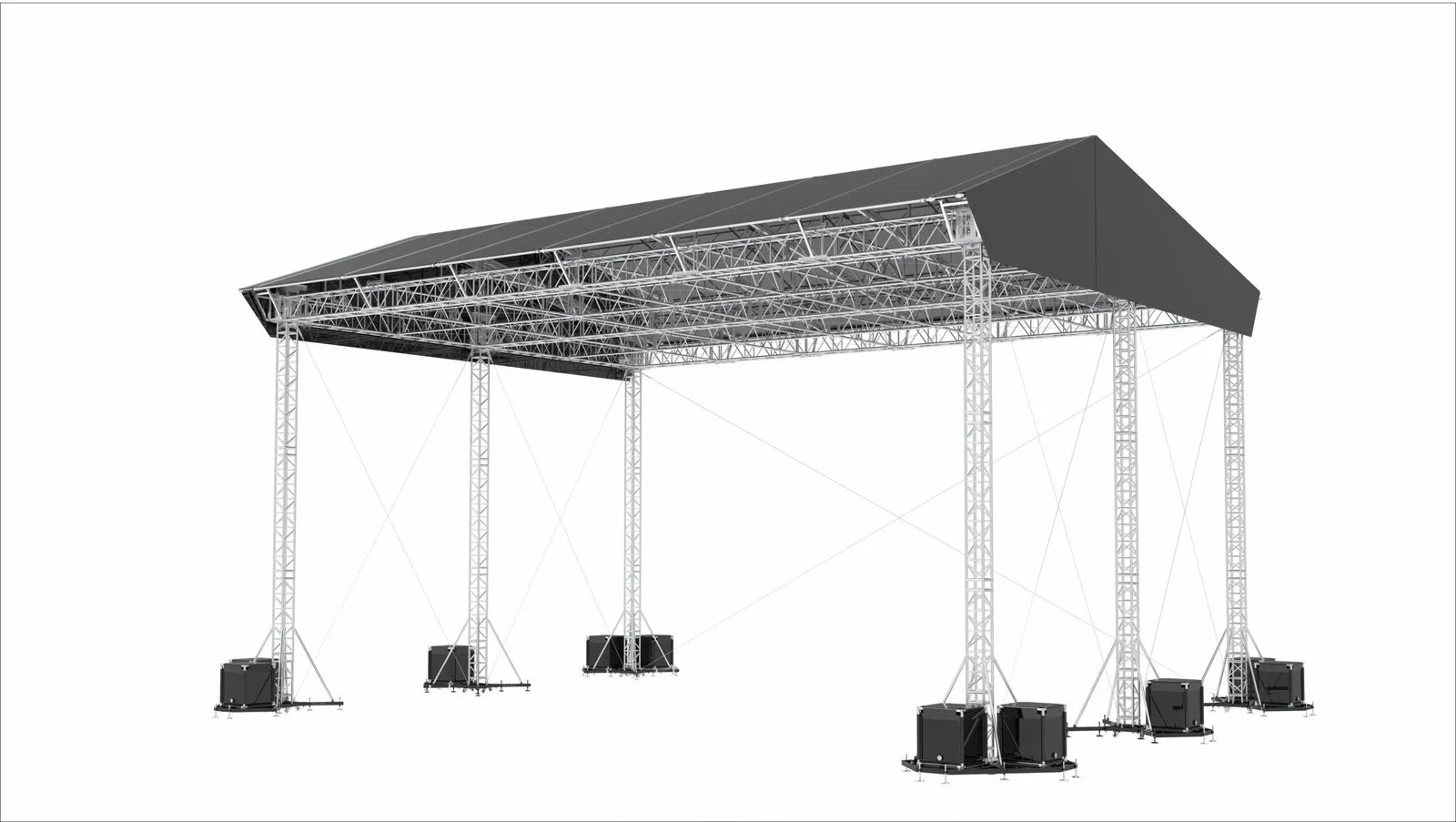

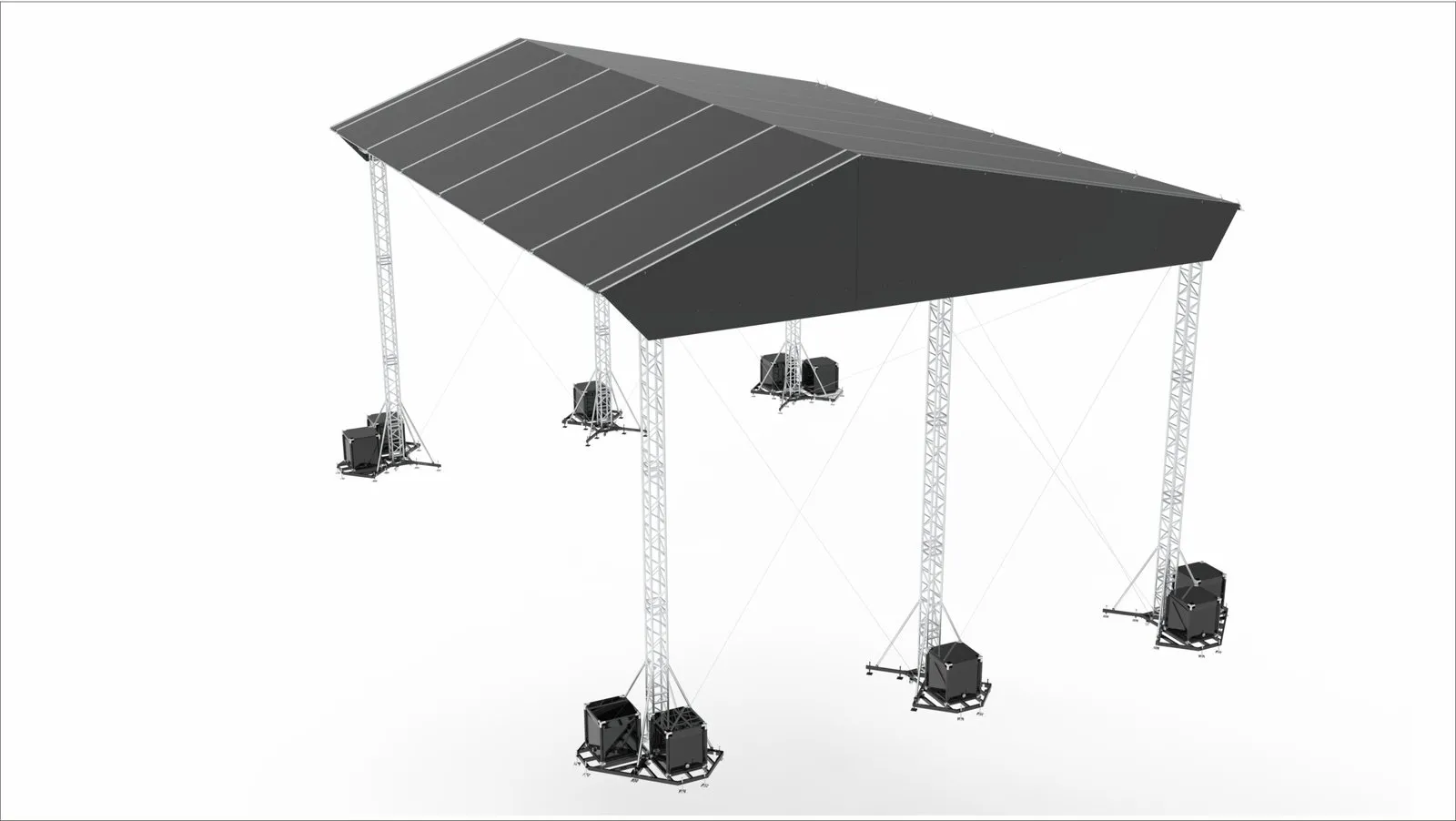

The DDR-64 is a pitch roof truss system designed and manufactured entirely in-house by Giant Truss from 6082 T6 grade aluminium alloy. The main grid is built from the JT-X / JT-EX truss system and allows a span of 24 m without the roof and 18 m with the roof. The roofed area measures 18 × 13 m with a clear height of 11 m, covering approximately 3,000 sq ft, on SST38R towers. Total load-bearing capacity of the structure is 7 tonnes.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – DDR-64 | |
|---|---|
| Towers | SST38R |
| Main Grid | JT EX / JTX |
| Roof Structure | Tent keder profiles |
| Walls | Optional / on request |
| Floor | DT ring lock scaffold stage |
| Size | 18 × 13 × 12 m |
| Fabric | Sioen translucent 600 gsm |
| Grid span | 24 m without roof, 18 m with roof |
| Roof area | 18 × 13 m (approx. 3,000 sq ft) |
| Clear height | 11 m |
| Total load capacity | 7 tonnes |
| PA load (each front tower) | up to 1,200 kg |
Advantages – DDR-64
- 7 Tonne Load Capacity
- 24 m Grid Span
- 11 m Clear Height
- 1,200 kg PA Load per Side
- Canopy Tensioning Against Pooling
- Transport-Friendly Design
- Foldable Water Ballast Tanks
