DDR-85

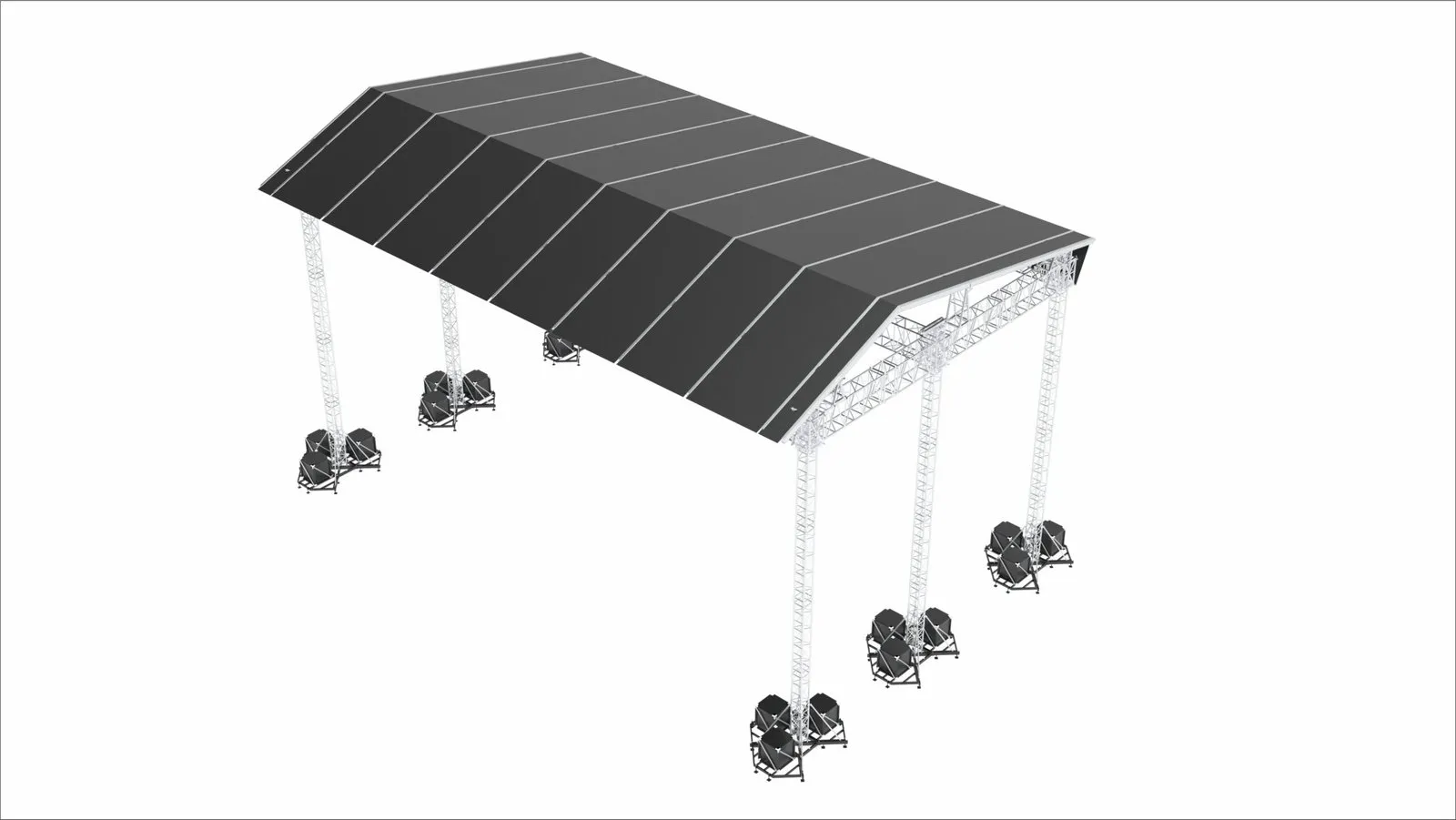

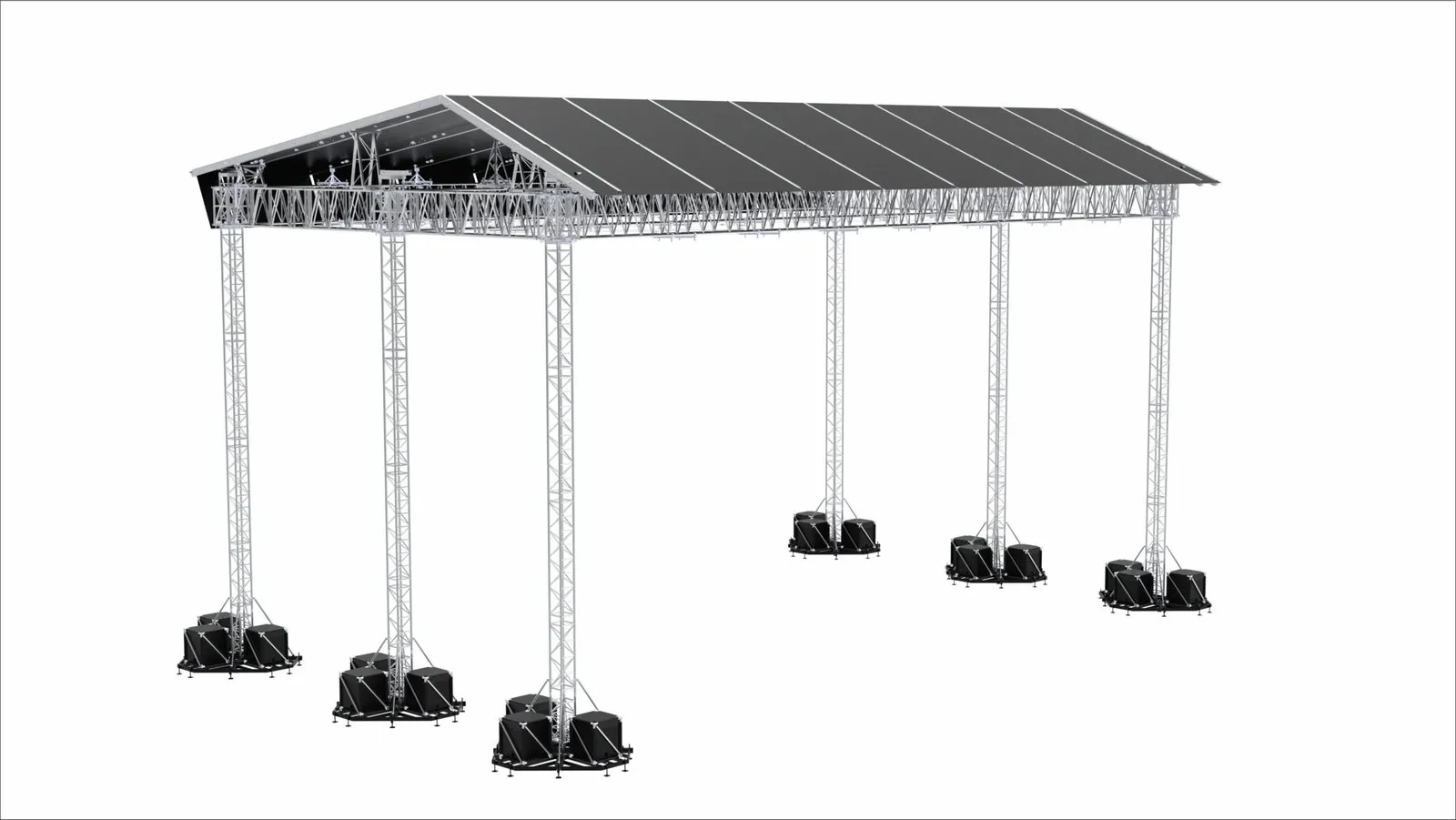

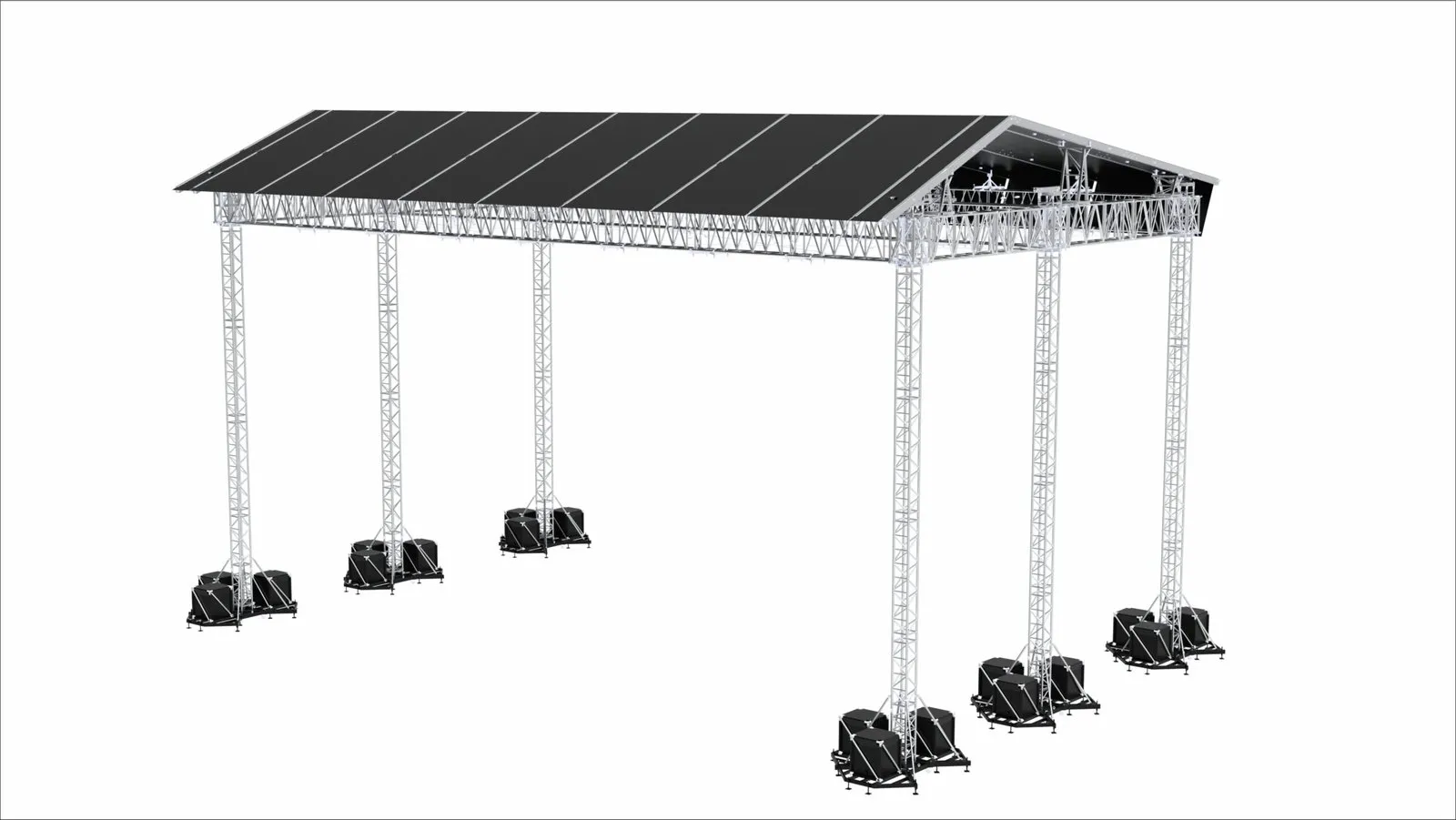

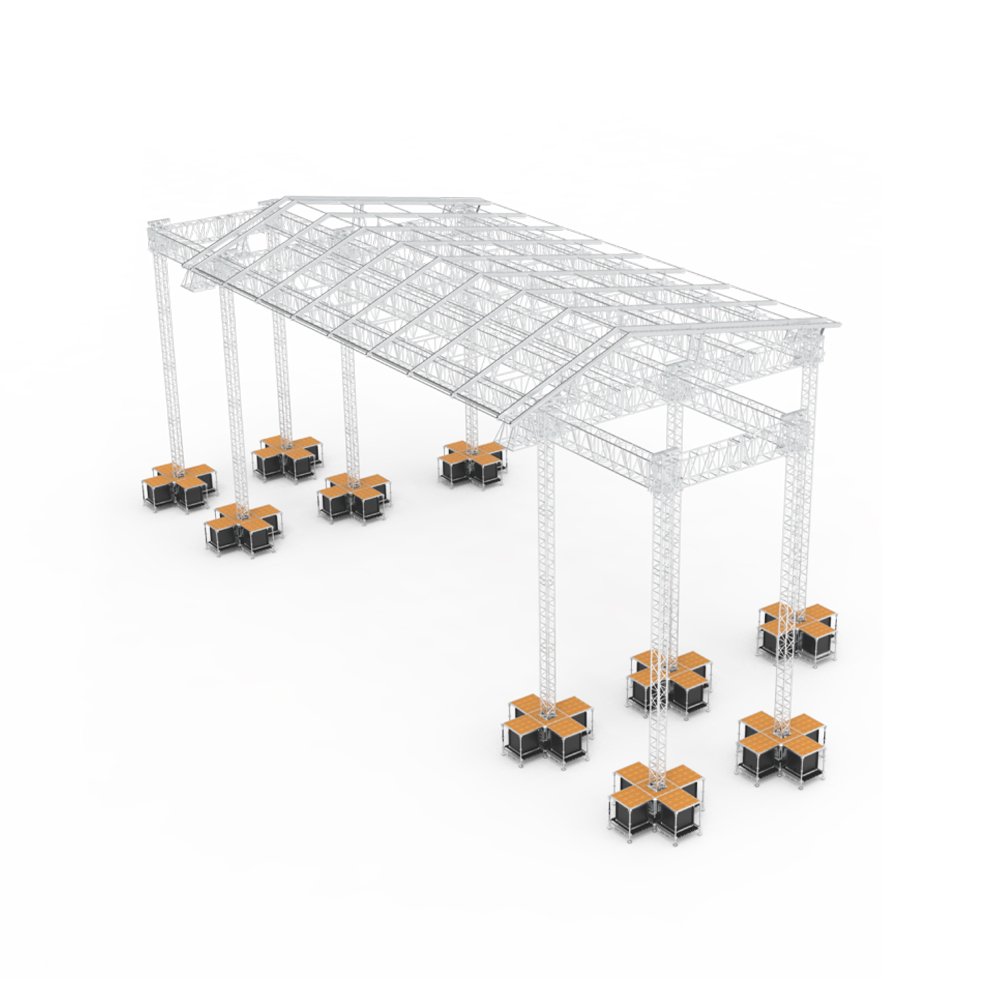

The DDR-85 is a tower-based pitch roof system consisting of DT-X ground support (1100 × 610 mm) on ten SST48 towers (480 × 480 mm), with a roof structure of special tent profiles with integrated keder profiles. Because the towers are positioned under the roof structure, the result is a fully closed roof top.
The pitched roof has a standard cantilever and PA truss at the sleeve blocks of the front towers, each able to carry a PA load of 2,000 kg (4,400 lbs). The PA truss also serves as a working platform for sliding in the outer keder canopy.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – DDR-85 | |
|---|---|
| Towers | SST48 (480 × 480 mm) |
| Main Grid | DT-X (1100 × 610 mm) |
| Roof Structure | Tent keder profiles, PVC canopy |
| Walls | Tent keder profiles, PVC canopy |

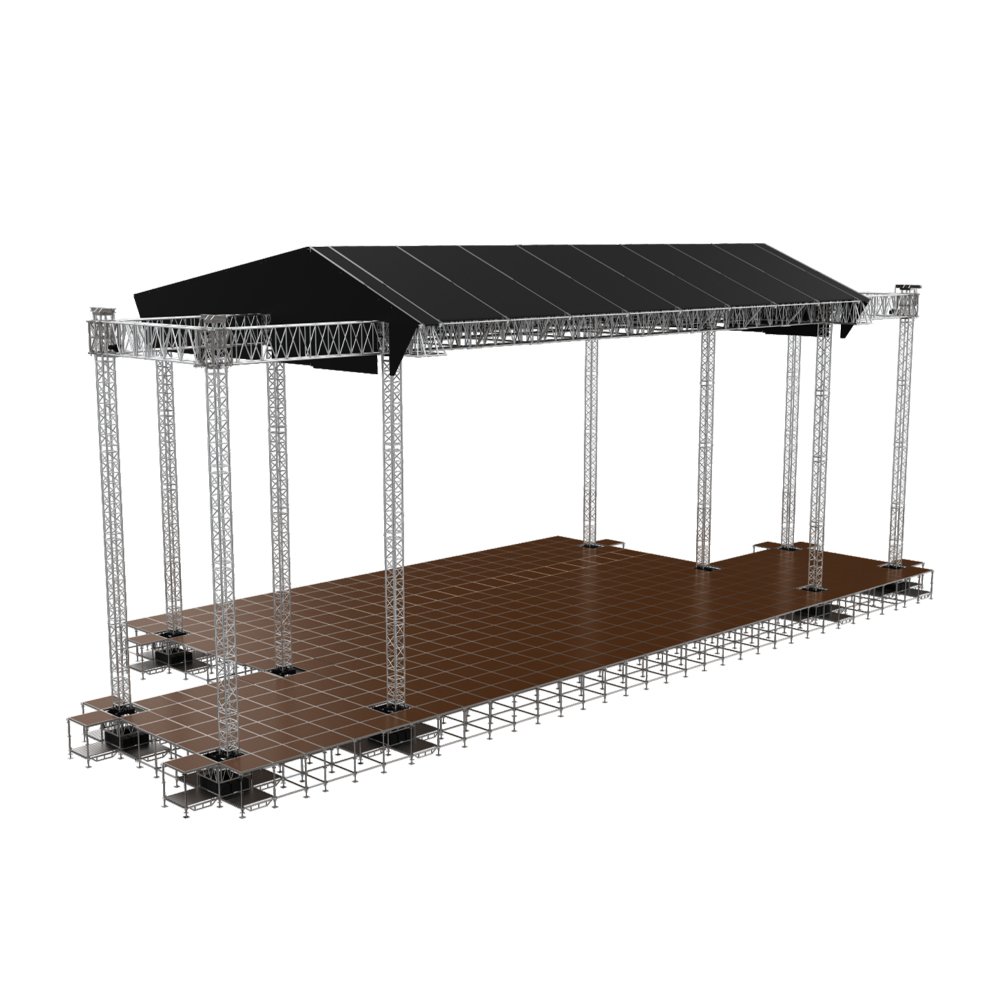

| Stage | Integrated steel scaffold stage |
| Floor | Giant Truss stage decks |
| Size | 24 × 15 m, 21 × 15 m |
| PA load (each front tower) | 2,000 kg (4,400 lbs) |
Advantages – DDR-85
- Ten SST48 Towers
- DT-X Ground Support Grid
- 2,000 kg PA Load per Side
- Fully Closed Roof Top
- Integrated Scaffold Stage
- Optional PA Wings and Side Houses
No downloads are available for this product yet. Contact our sales team for details.
