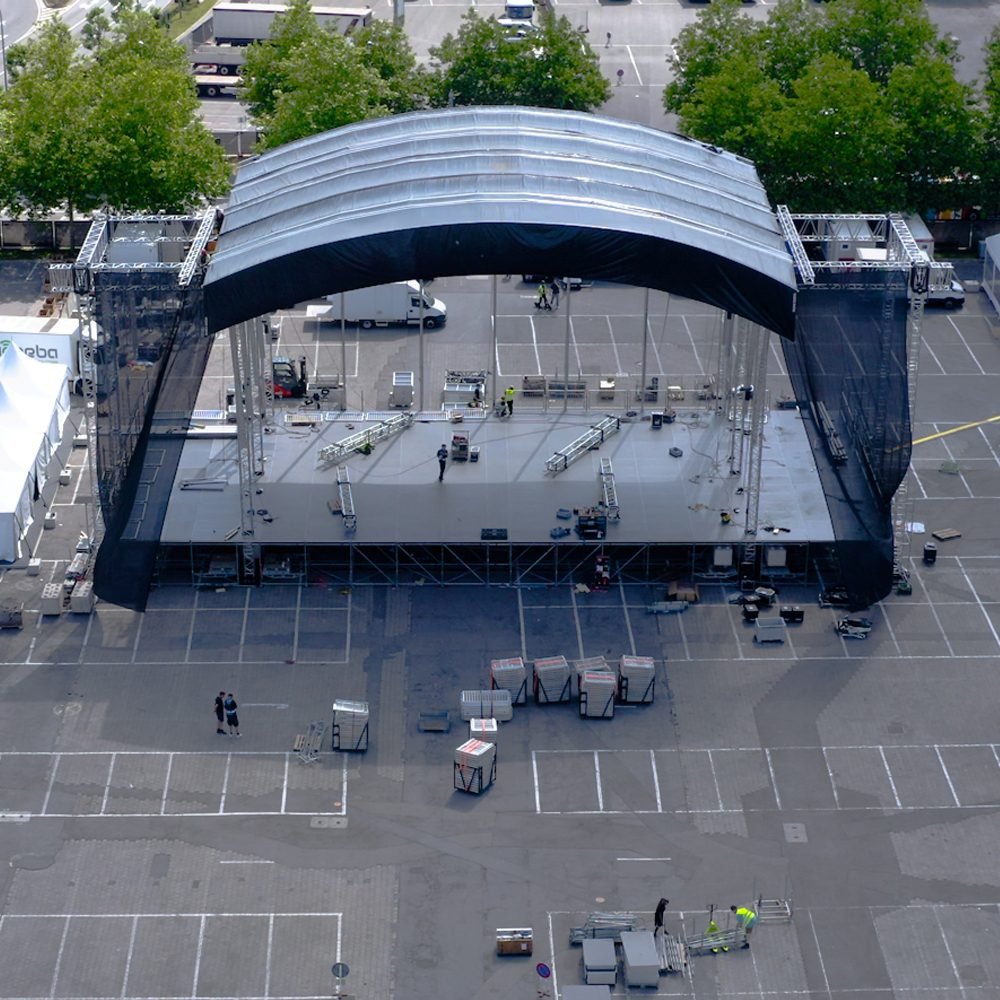

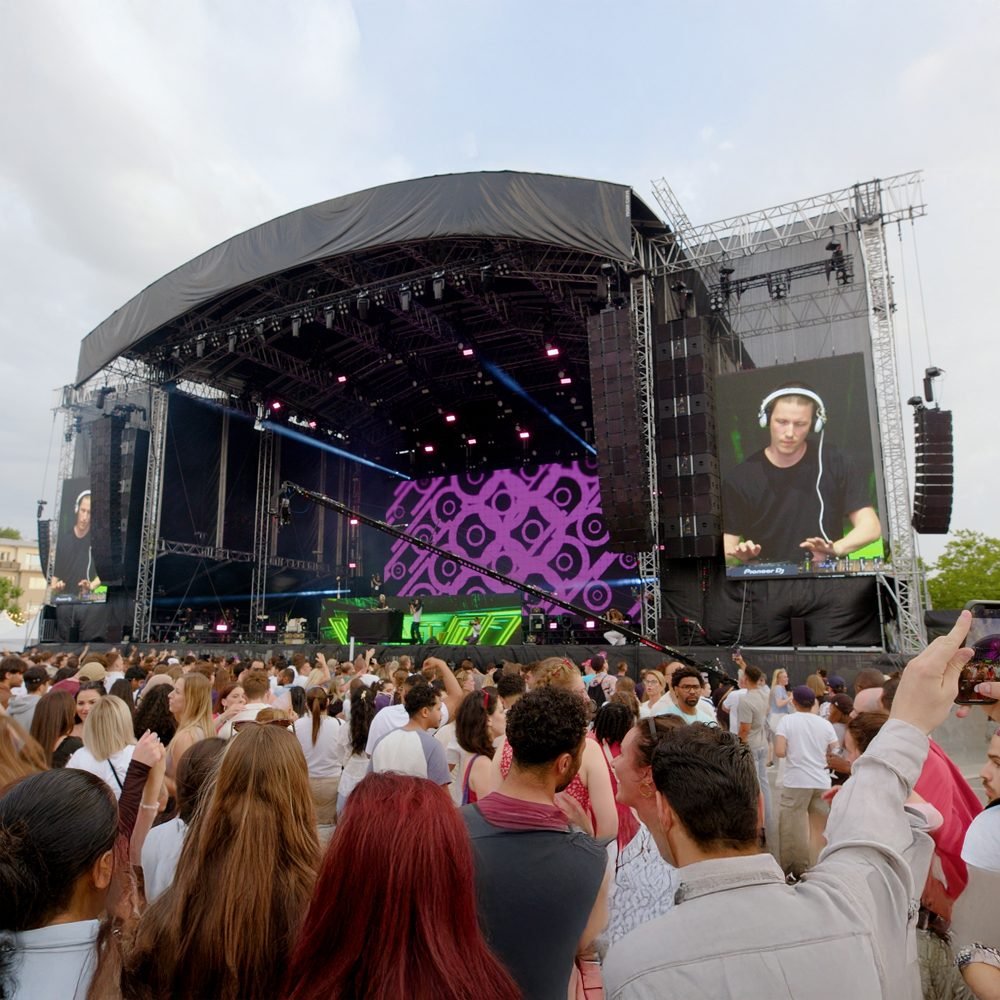

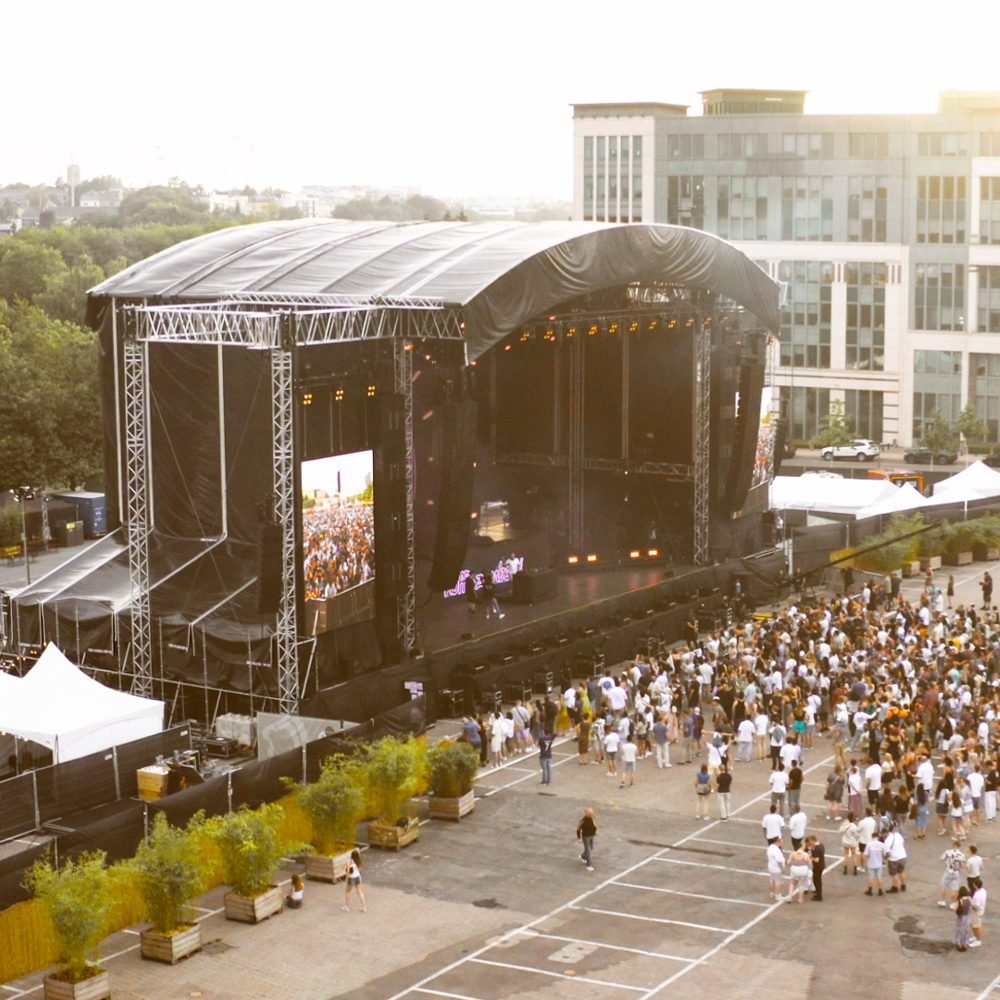

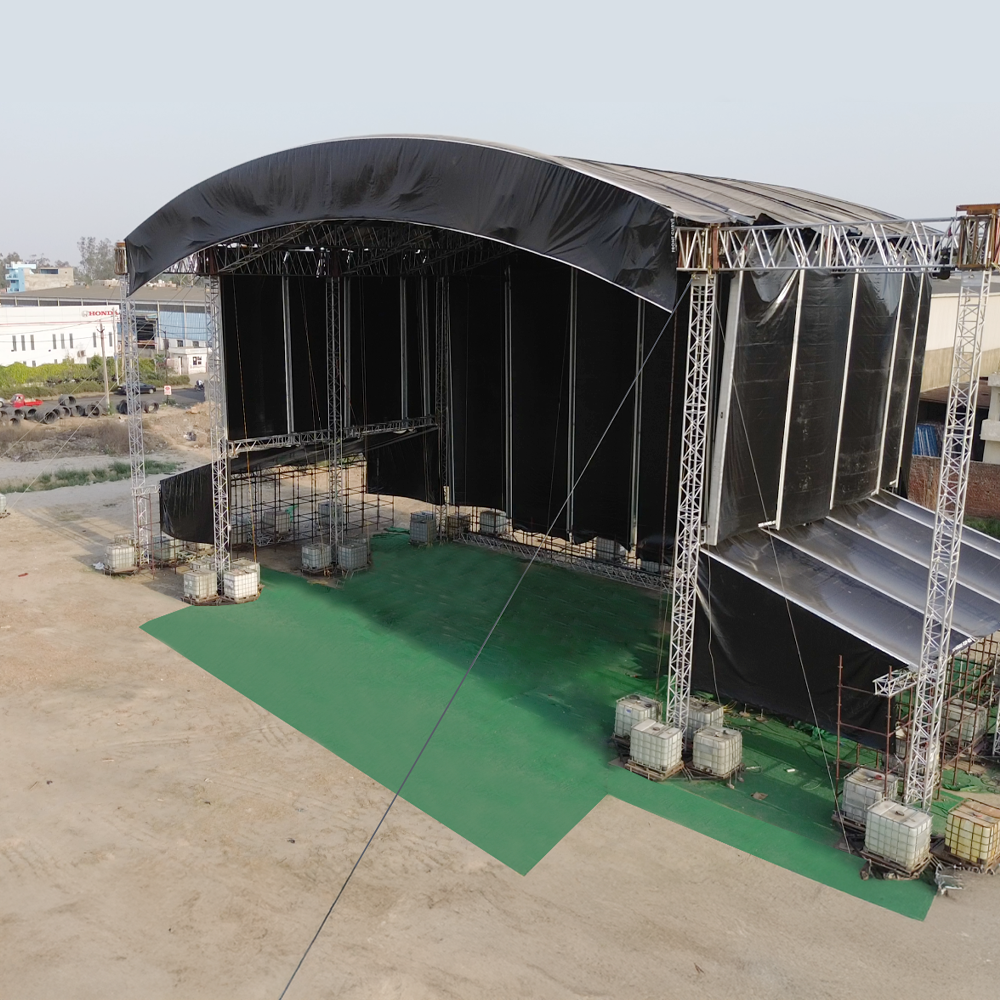

Arc Roof

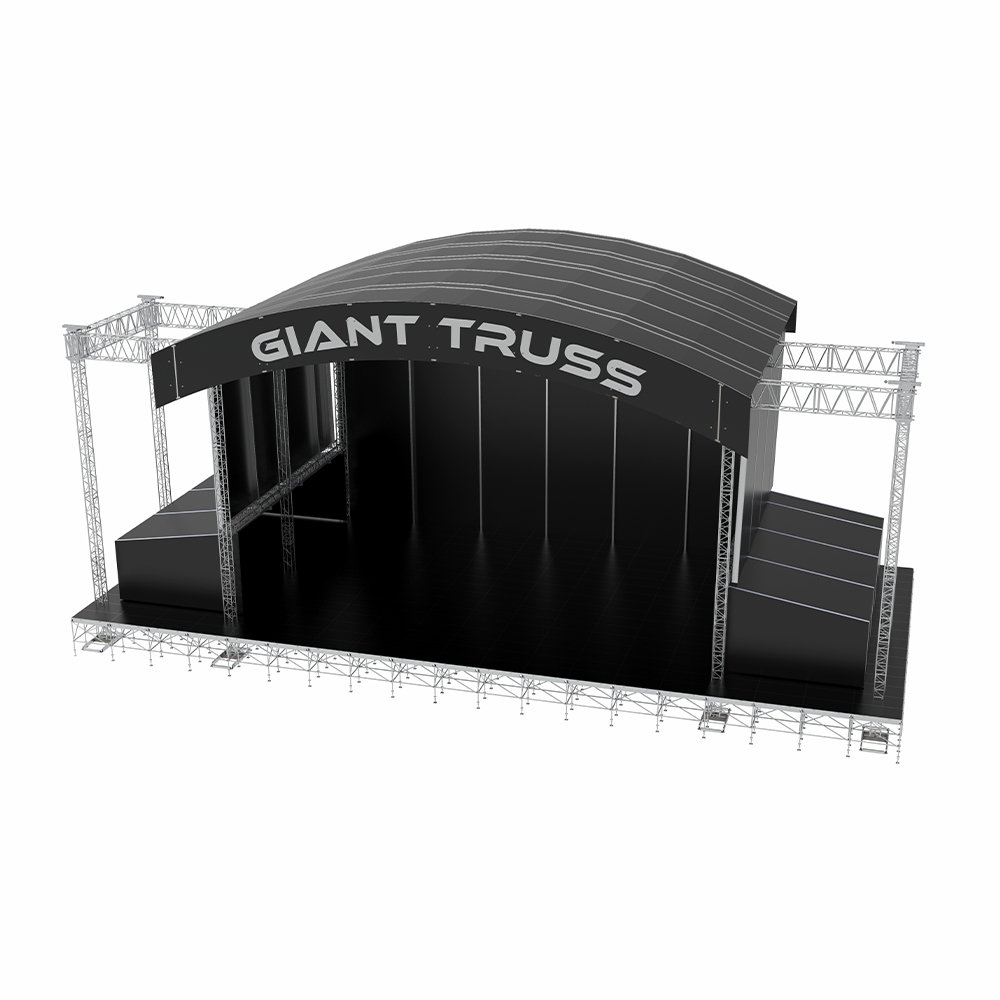

The DT FX Arc Roof Truss System is a curved roof system engineered for strength, scale and reliability. It uses a large 1100 × 610 mm DT FX truss profile with a 60 × 6 mm main tube, supported by HDR-48 vertical pillars with a 480 × 480 mm profile and 60 × 5 mm main tubes, giving stability and confidence across large spans.
The system is designed with four arcs and five main grid sections, offering versatility to meet different structural requirements. Each span supports a uniformly distributed load of up to 4 tonnes per arc, giving a total load capacity of 45 tonnes for large-scale, high-load applications.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – Arc Roof | |
|---|---|
| Roof truss | DT FX, 1100 × 610 mm |
| Truss main tube | 60 × 6 mm |
| Vertical pillars | HDR-48, 480 × 480 mm |
| Pillar main tube | 60 × 5 mm |
| Arcs | 4 |
| Main grid sections | 5 |
| UDL per arc | up to 4 tonnes |
| Total load capacity | 45 tonnes |
Advantages – Arc Roof
- 45 Tonne Total Capacity
- 4 Tonne UDL per Arc
- Four Arcs, Five Grid Sections
- Large DT FX Truss Profile
- HDR-48 Vertical Pillars
