SST48R

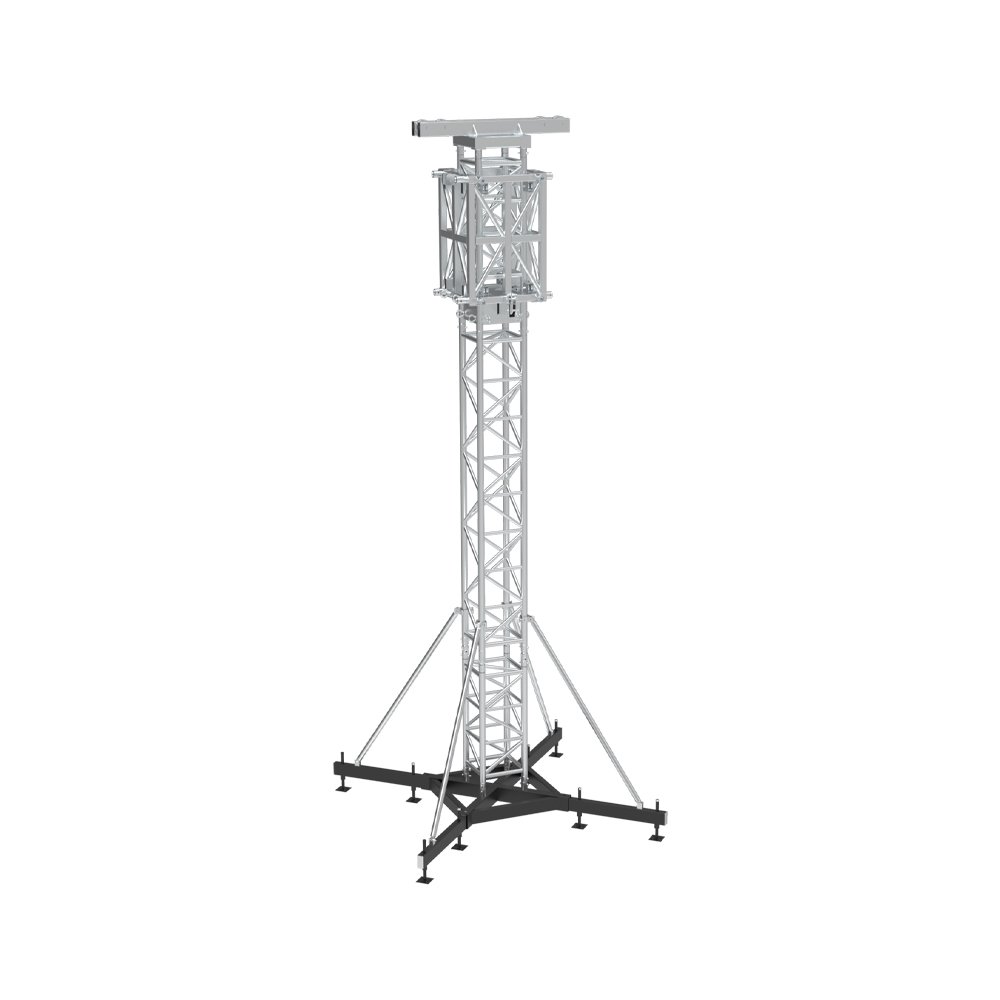

The SST-48R Tower System is a heavy-duty reinforced vertical lifting tower developed for large-scale event structures, roof systems and extreme load applications. Designed for the controlled and safe elevation of truss structures, it is suited to the most demanding professional event environments, and SST48R towers are specified for the DDR-86 pitch roof system.
It is based on a 480 × 480 mm HD48R aluminium tower truss with Ø60 × 6 mm main tubes, Ø30 × 3 mm diagonals and internal bracing, delivering high structural strength, rigidity and stability. Weight is approximately 25 kg/m, material is EN AW-6082 T6 and the connection is SG3 (60 mm).
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – SST48R | |
|---|---|
| Height | 480 mm |
| Width | 480 mm |
| Weight | ~25 kg/m |
| Main Tube | 60 × 6 mm |
| Braces | 30 × 3 mm |
| Material | EN AW-6082 T6 |
| Connection | SG3 (60 mm) |
| Max. working height | up to 20 m |
| Max. load capacity | up to 8,000 kg* |
Advantages – SST48R
- Up to 20 m Working Height
- 8,000 kg Load Capacity
- Reinforced Main Tubes
- DT-EX and DTXR Compatible
- DDR86 Front Tower Use
- Suited to Cantilever Loads
No downloads are available for this product yet. Contact our sales team for details.
