LD30

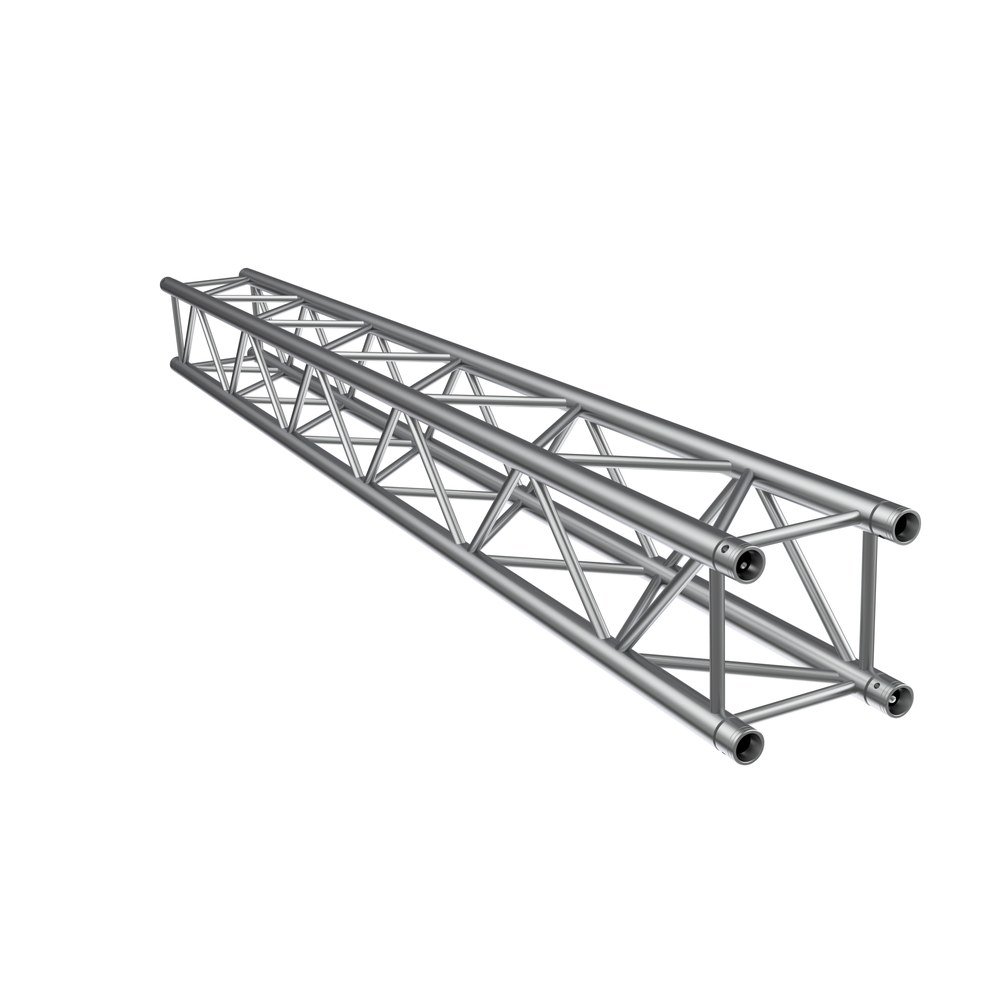

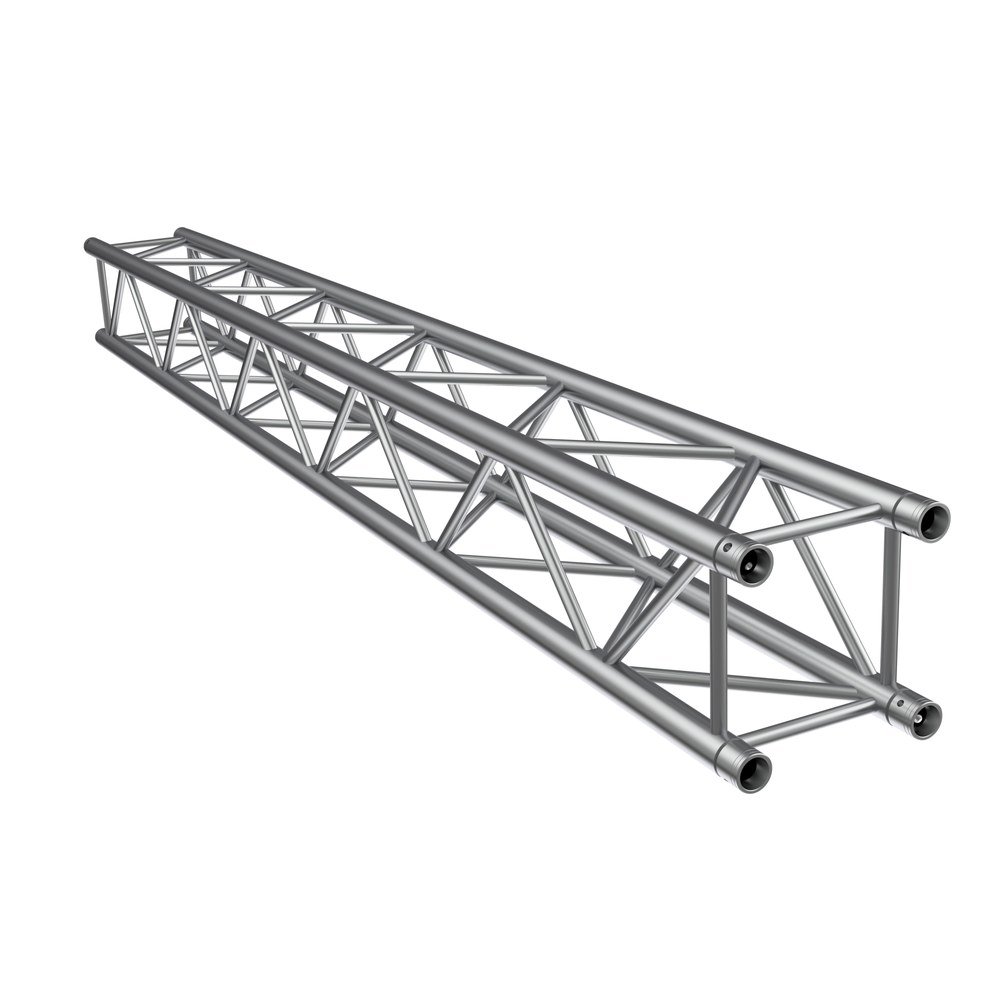

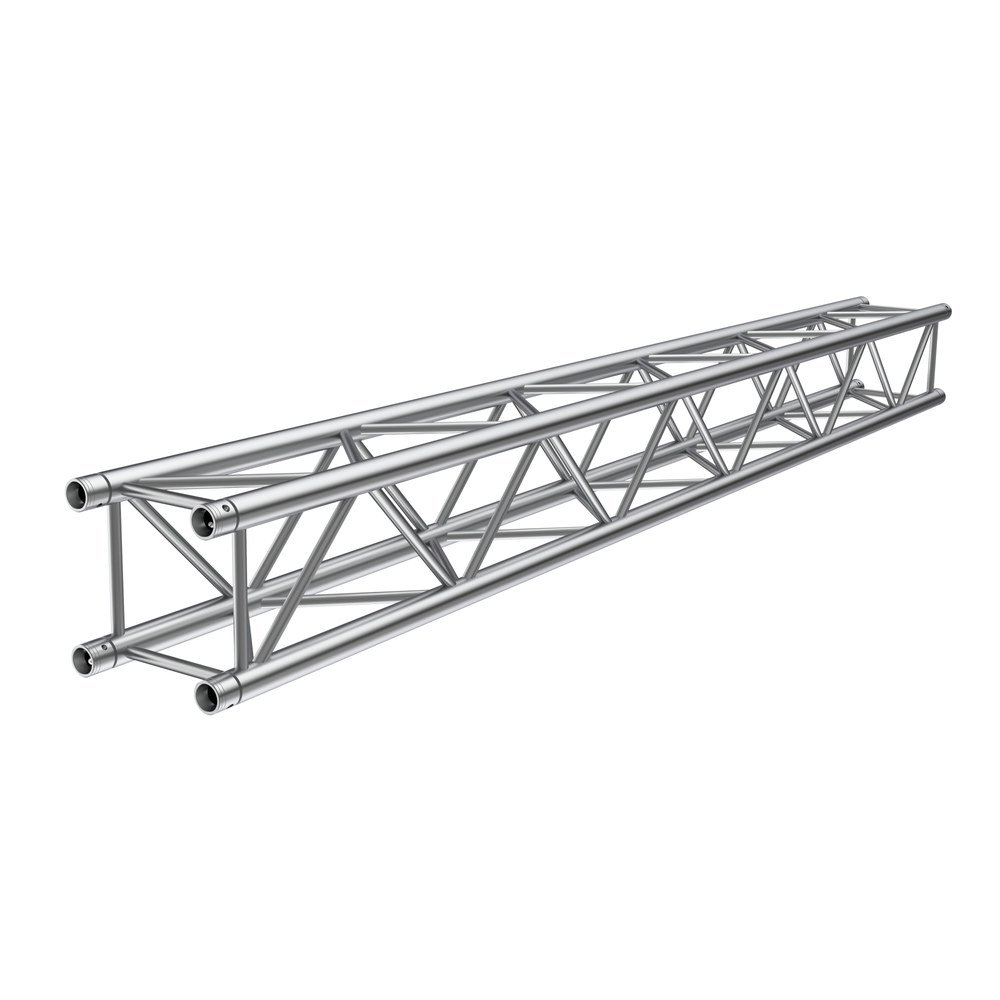

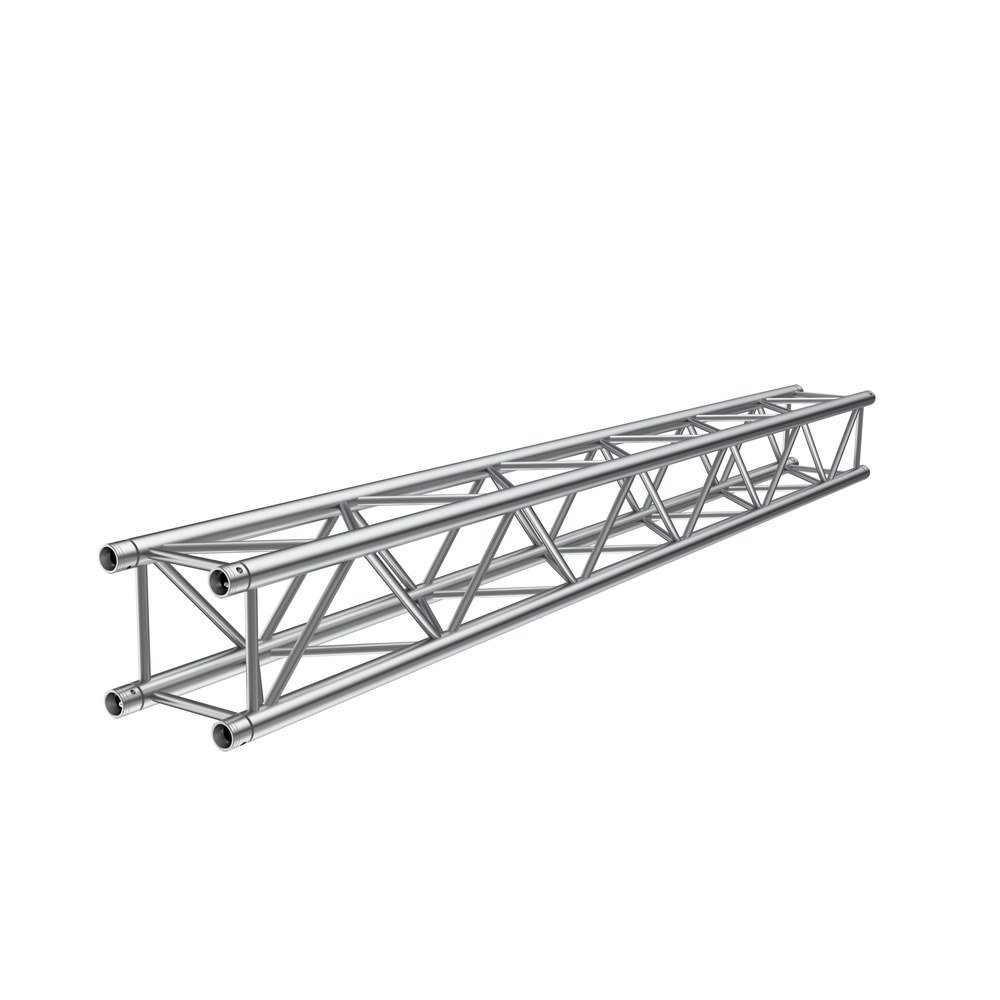

LD30 is a 300 mm square aluminium truss for small to medium-scale applications, including sub hangs, support structures and compact event setups. Its specification lists 50 × 2 mm main tubes and 20 × 2 mm braces in EN AW-6082 T6 aluminium, a weight of approximately 7.5 kg/m according to the v2 catalogue, and the Sg2 (50 mm) connection system.
HD30 and LD30 form a 30 cm range engineered exclusively within the Giant Truss systems portfolio. The precision conical connection gives smooth connectivity, accurate alignment and quick assembly, and the two variants differ in diagonal configuration to suit varying load requirements.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – LD30 | |
|---|---|
| Height | 300 mm |
| Width | 300 mm |
| Weight | ~7.5 kg/m |
| Main Tube | 50 x 2 mm |
| Braces | 20 x 2 mm |
| Material | EN-AW-6082 T6 |
| Connection | Sg2 (50 mm) |
Important Notes
- Load capacities shown are applicable only to the corresponding loading tables.
- Load values are based on static loading conditions unless otherwise specified.
- The published load data applies to single-span configurations with supports at both ends.
- Multi-span systems, custom structures, or special configurations require project-specific structural calculations.
- Self-weight of the truss has already been included in the published load calculations.
- Load ratings are valid only when the truss is installed in the orientation illustrated in the loading tables.
- Connection forces and bending moments at joints are considered within the specified loading data.
- Truss systems can be assembled using different standard section lengths to achieve the required span.
- All installations should be carried out by qualified professionals in accordance with applicable safety standards and local regulations.
- Always inspect truss components before use and replace any damaged parts immediately.
- Refer to the Installation & Assembly Manual before assembly, rigging, or loading the truss.
- For complex structures or critical applications, consult a qualified structural engineer before installation.
Advantages – LD30
- 300 mm Square Section
- Lightweight Profile
- Precision Conical Connection
- Static Reports Available
- Custom Lengths on Request
No downloads are available for this product yet. Contact our sales team for details.
