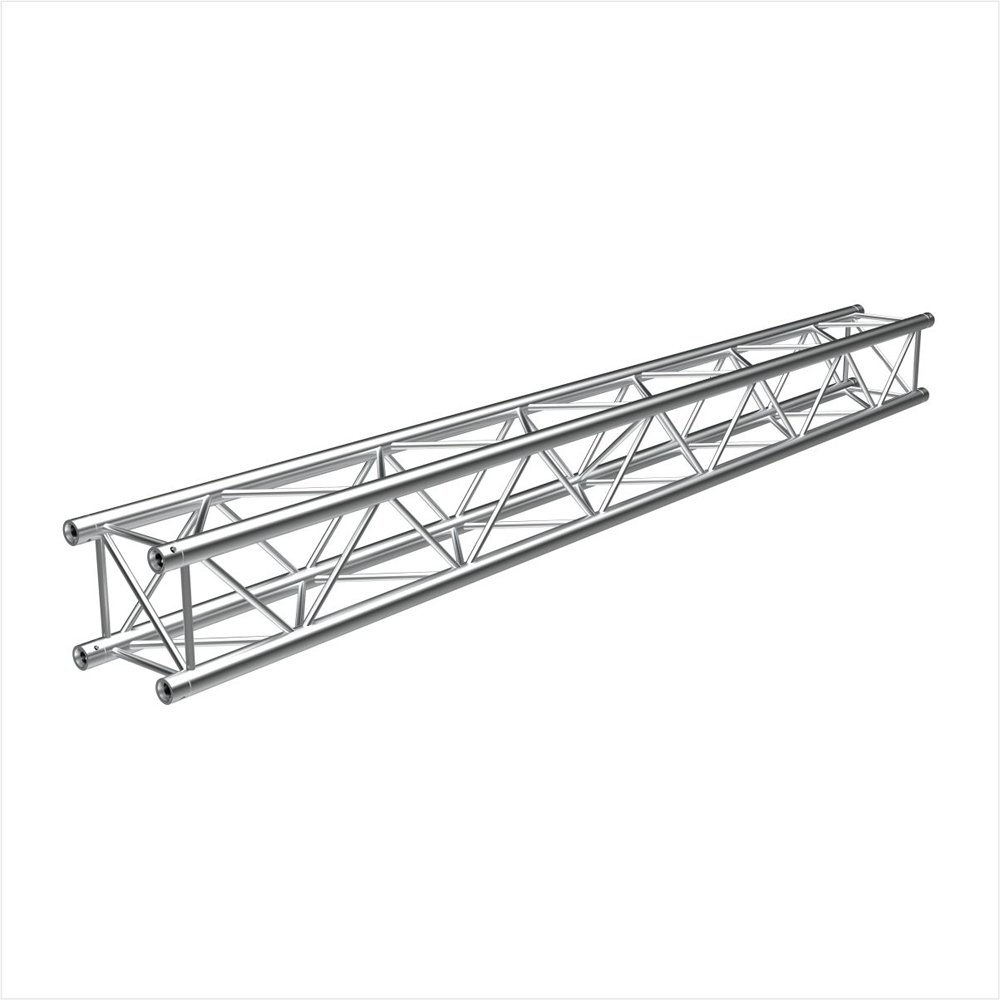

GF34G
GF34G is part of the Giant Truss compatible truss range, engineered to integrate with widely used, industry-standard truss systems so it can be added to existing inventories without compromising on safety or performance. It belongs to the GHD34E, GF44G and GF34G range, which is available in multiple variants from light-duty to heavy-duty to suit different load capacities and application requirements.
The system offers smooth connectivity, accurate alignment and reliable structural performance. Static reports are available for applicable configurations to support safe, project-specific structural planning, and the compatible range, offered in 300 mm and 400 mm formats, can be supplied in custom lengths to meet specific project requirements.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – GF34G | |
|---|---|
| Height | 290 mm |
| Width | 290 mm |
| Weight | ~8.17 kg/m |
| Main Tube | 50 x 2 mm |
| Braces | 20 x 2 mm |
| Material | EN-AW-6082 T6 |
| Connection | 50 mm |
Important Notes
- Load capacities shown are applicable only to the corresponding loading tables.
- Load values are based on static loading conditions unless otherwise specified.
- The published load data applies to single-span configurations with supports at both ends.
- Multi-span systems, custom structures, or special configurations require project-specific structural calculations.
- Self-weight of the truss has already been included in the published load calculations.
- Load ratings are valid only when the truss is installed in the orientation illustrated in the loading tables.
- Connection forces and bending moments at joints are considered within the specified loading data.
- Truss systems can be assembled using different standard section lengths to achieve the required span.
- All installations should be carried out by qualified professionals in accordance with applicable safety standards and local regulations.
- Always inspect truss components before use and replace any damaged parts immediately.
- Refer to the Installation & Assembly Manual before assembly, rigging, or loading the truss.
- For complex structures or critical applications, consult a qualified structural engineer before installation.
Advantages – GF34G
- Integrates with Industry-Standard Systems
- Smooth Connectivity
- Static Reports Available
- Custom Lengths on Request
- EN AW-6082 T6 Aluminium
