Circle Truss
Giant Truss manufactures circles and round truss systems using precision-engineered bending processes for accurate, repeatable curves and reliable fitment. Each curved segment is produced with specialised tooling so that all parts are identical, and CNC-controlled bending maintains accuracy throughout production while minimising deformation, giving smooth, clean, dent-free tube surfaces.

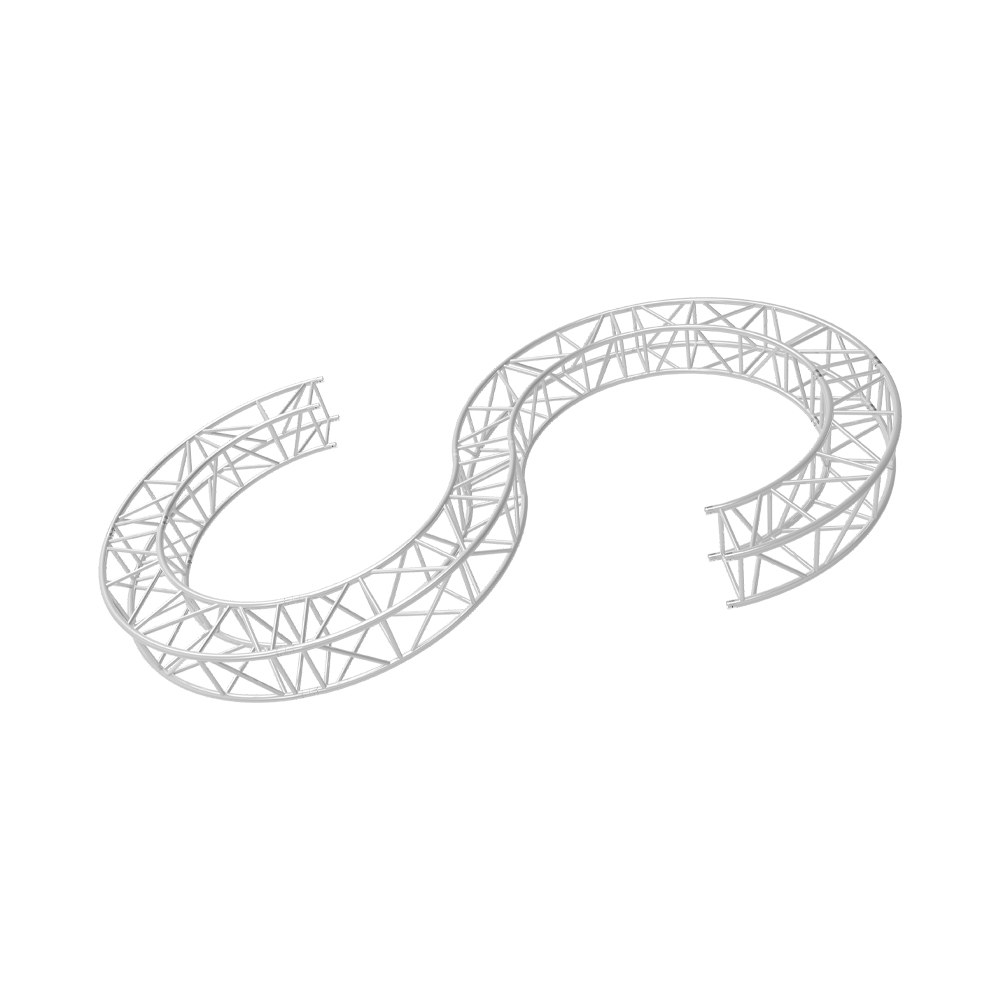

Curved truss can be configured in different diameters, degrees and segment combinations – from circular stages and suspended structures to custom architectural forms, including full circles, ovals and S-shapes. Curved elements work alongside standard truss lengths and compatible connection systems; a quarter-circle part can be treated as a large 90° corner.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – Circle Truss | |
|---|---|
| 2 m | RT-02 |
| 3 m | RT-03 |
| 4 m | RT-04 |
| 5 m | RT-05 |
| 6 m | RT-06 |
| 8 m | RT-08 |
| 10 m | RT-10 |
| 12 m | RT-12 |
| 14 m | RT-14 |
| Custom sizing | Available as per customer requirement |
| Maximum bendable tube length | 5.5 m |
| Maximum length per segment | 15 ft |
| Number of segments | Diameter × 3.14 ÷ 5 (m) |
| Recommended parts per circle | 2, 4 or 8 |
| Shapes shown | Circle, oval (1/4 circle parts + straight length X), S-shape |
| Available lengths | 2 m, 3 m, 4 m, 5 m, 6 m, 8 m, 10 m, 12 m, 14 m |
Important Notes
- Load capacities shown are applicable only to the corresponding loading tables.
- Load values are based on static loading conditions unless otherwise specified.
- The published load data applies to single-span configurations with supports at both ends.
- Multi-span systems, custom structures, or special configurations require project-specific structural calculations.
- Self-weight of the truss has already been included in the published load calculations.
- Load ratings are valid only when the truss is installed in the orientation illustrated in the loading tables.
- Connection forces and bending moments at joints are considered within the specified loading data.
- Truss systems can be assembled using different standard section lengths to achieve the required span.
- All installations should be carried out by qualified professionals in accordance with applicable safety standards and local regulations.
- Always inspect truss components before use and replace any damaged parts immediately.
- Refer to the Installation & Assembly Manual before assembly, rigging, or loading the truss.
- For complex structures or critical applications, consult a qualified structural engineer before installation.
Advantages – Circle Truss
- CNC-Controlled Precision Bending
- Identical Repeatable Segments
- Smooth Dent-Free Finish
- Works With Standard Truss Lengths
- Circles, Ovals And S-Shapes
- Custom Diameters Available
- Engineering Support
No downloads are available for this product yet. Contact our sales team for details.
