Basic Deck

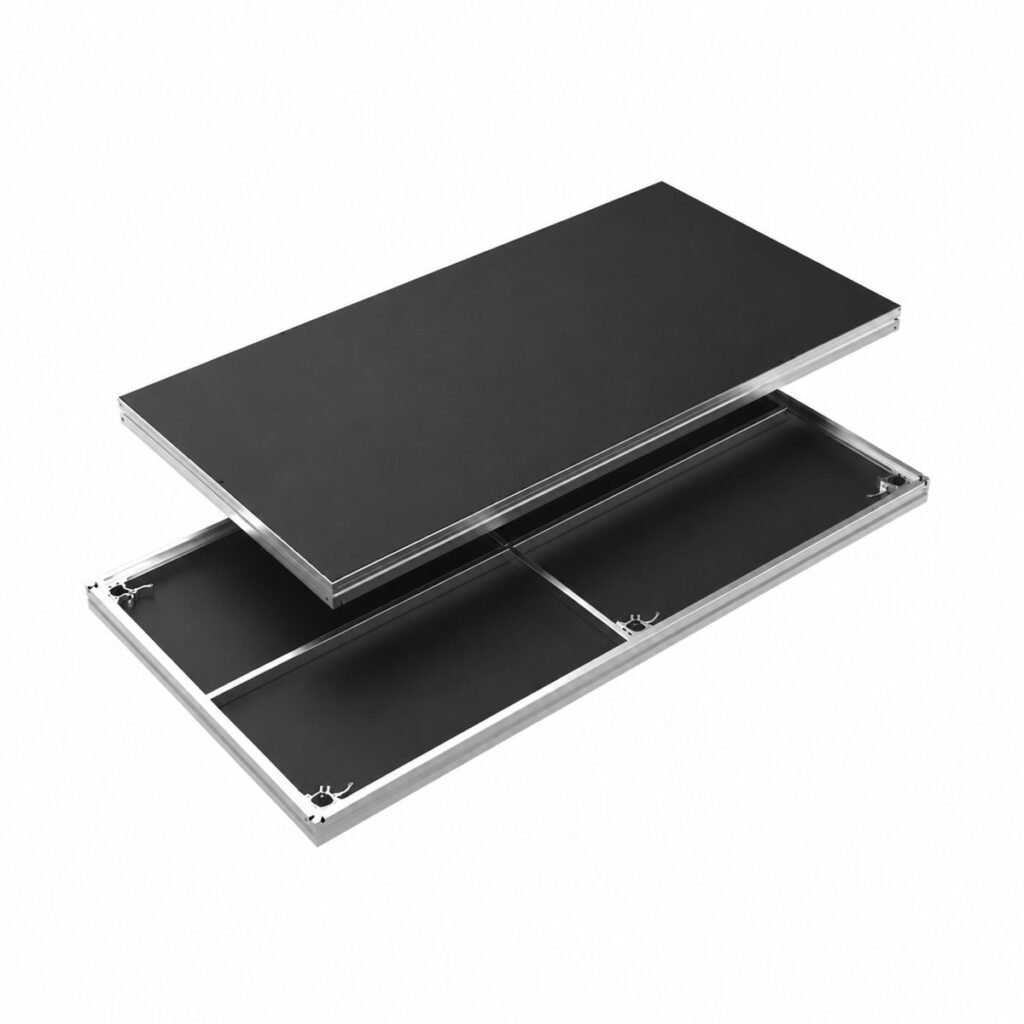

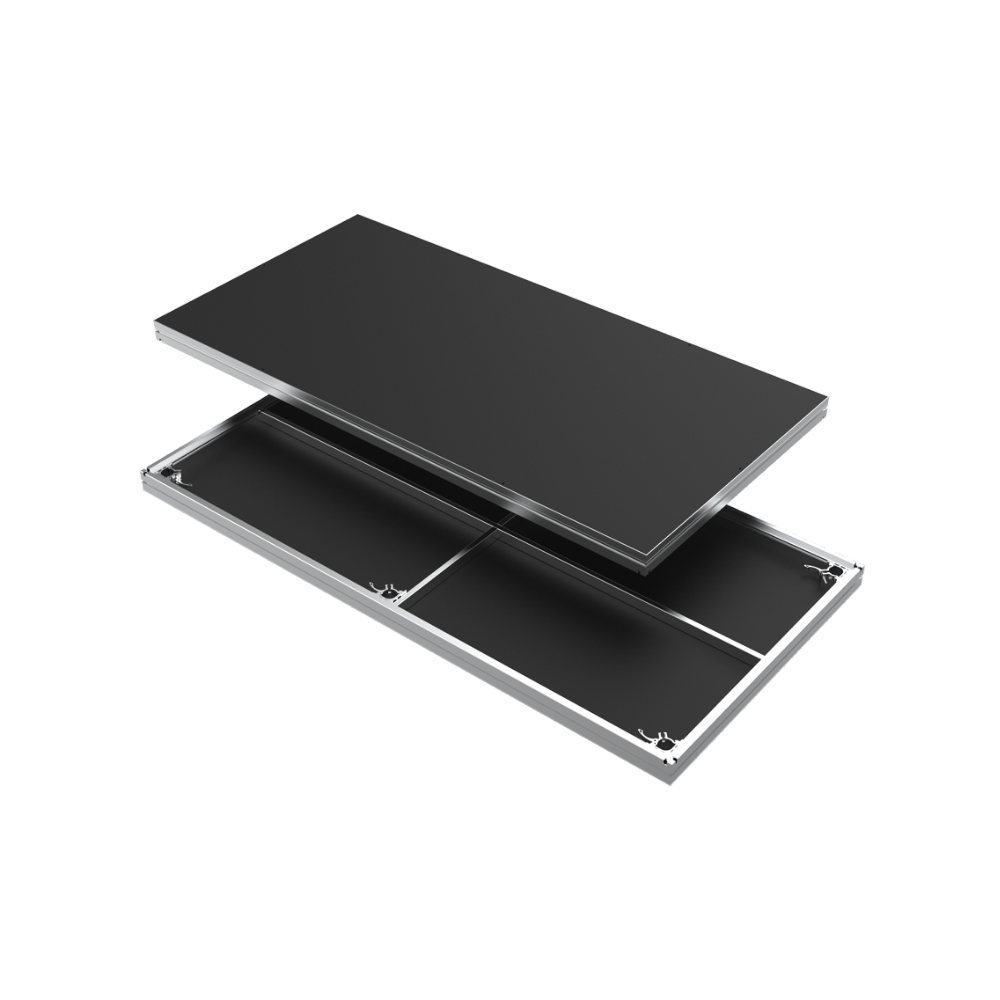

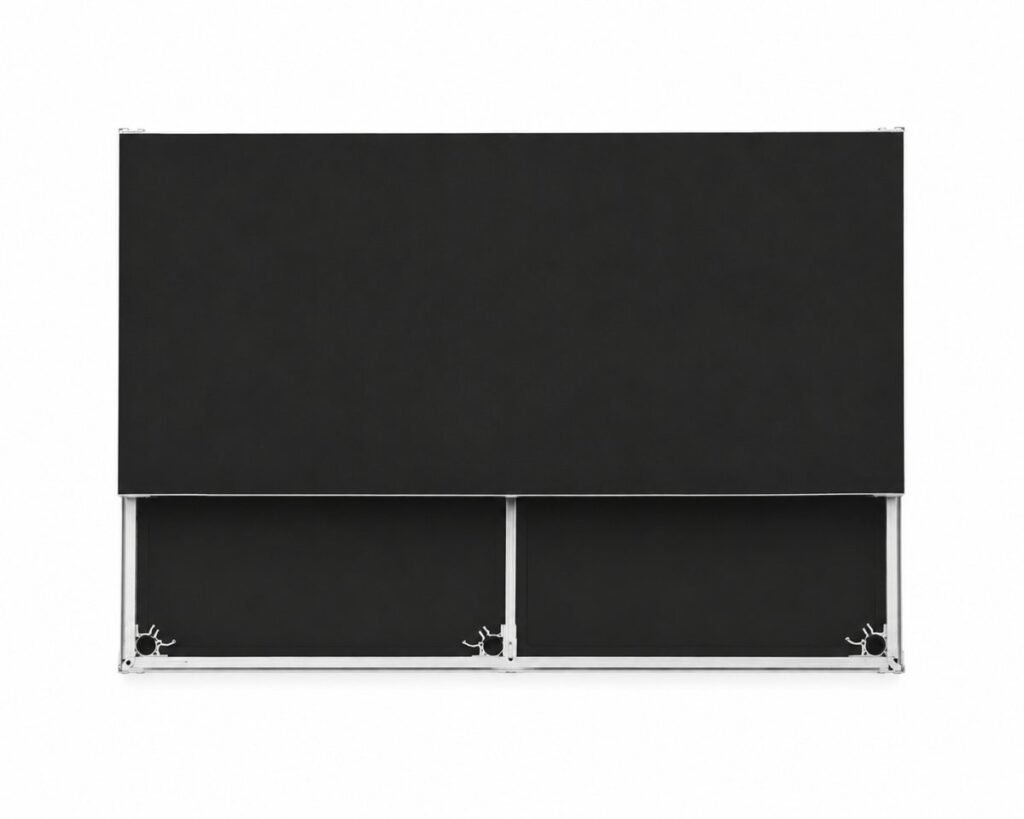

The Giant Deck (Basic Deck) is a lightweight aluminium stage deck from the Giant Aluminium Stage system. Each deck has a certified load capacity of up to 900 kg for the 4×8 ft size, and a centrally integrated aluminium reinforcement profile reduces deflection by up to 45%, improving structural stability and load distribution.
Decks are finished with an 18 mm waterproof, anti-slip Black Hexa plywood surface for weather resistance and dimensional stability. The frame is EN AW-6082 T6 aluminium, and each stage deck is welded using a robotic welding system for consistent strength and clean finishes.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – Basic Deck | |
|---|---|
| Material | EN AW-6082 T6 and plywood |
| Loading vertical | 900 kg/m² (static approved) |
| Certified load capacity | Up to 900 kg (4×8 ft deck) |
| Deck surface | 18 mm waterproof plywood (Black Hexa anti-slip) |
| Standard modules | 4×4 ft, 4×8 ft, 1×2 m |
| GT-S-800-8x4 | 32 kg - 8×4 ft Basic Deck, anti-slip plywood |
| GT-S-800-4x4 | 17 kg - 4×4 ft Basic Deck, anti-slip plywood |
| GT-S-800-1x2 | 29 kg - 1×2 m Basic Deck, anti-slip plywood |
| Available lengths | 8×4 ft, 4×4 ft, 1×2 m |
Advantages – Basic Deck
- Lightweight Aluminium Frame
- 900 kg Certified (4×8 ft)
- Deflection Reduced Up To 45%
- Waterproof Anti-Slip Plywood
- TÜV Approved, Structural Report
- Applicable On Scaffolding
- Robotic-Welded Decks
No downloads are available for this product yet. Contact our sales team for details.
