When you need High strength in challenging conditions, our DT truss is the perfect solution. The DT truss series by Giant Truss is a tested and certied truss. Its constructed of main tube (60mm x 6mm) and diagonals (40mm x 3mm) with uses the SG-3 connections system. The supported tower system is (SST-48). The DT is the main rig truss for the big roof systems like Pitch Roof (DDDR85) & Saddle Roof (SR80)
The 4mm wall thickness reduces transportation damage and guarantees extreme durability. This truss and all other Giant Truss series can be powder coated in every RAL colour
Technical Specifications
Load Chart
Downloads
Technical Specifications
| Height | 1100mm |
| Width | 610mm |
| Weight | 26Kg/m |
| Main Tube | 60x4mm |
| Sub Tube | 40x3mm |
| Braces | 40x3mm |
| Material | EN-AW-6082 T6 |
| Connection | SG3(60mm) |
Load Chart
| Span* | UDL | CPL | ||
| M | Kg/m | mm | Kg/m | mm |
| 36 | 46 | 195 | 878 | 218 |
Downloads
No Downloads Available
Compatibility

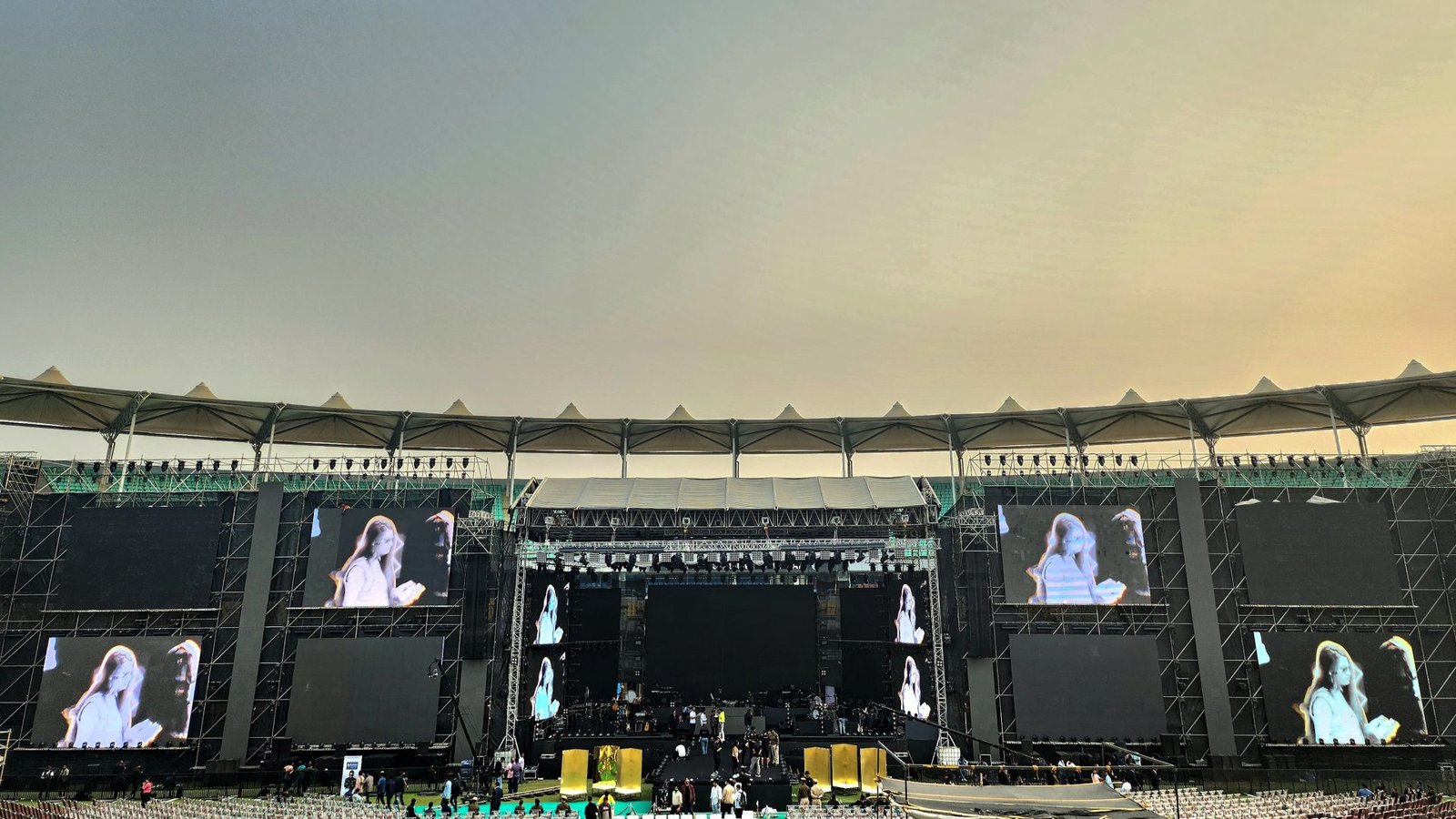

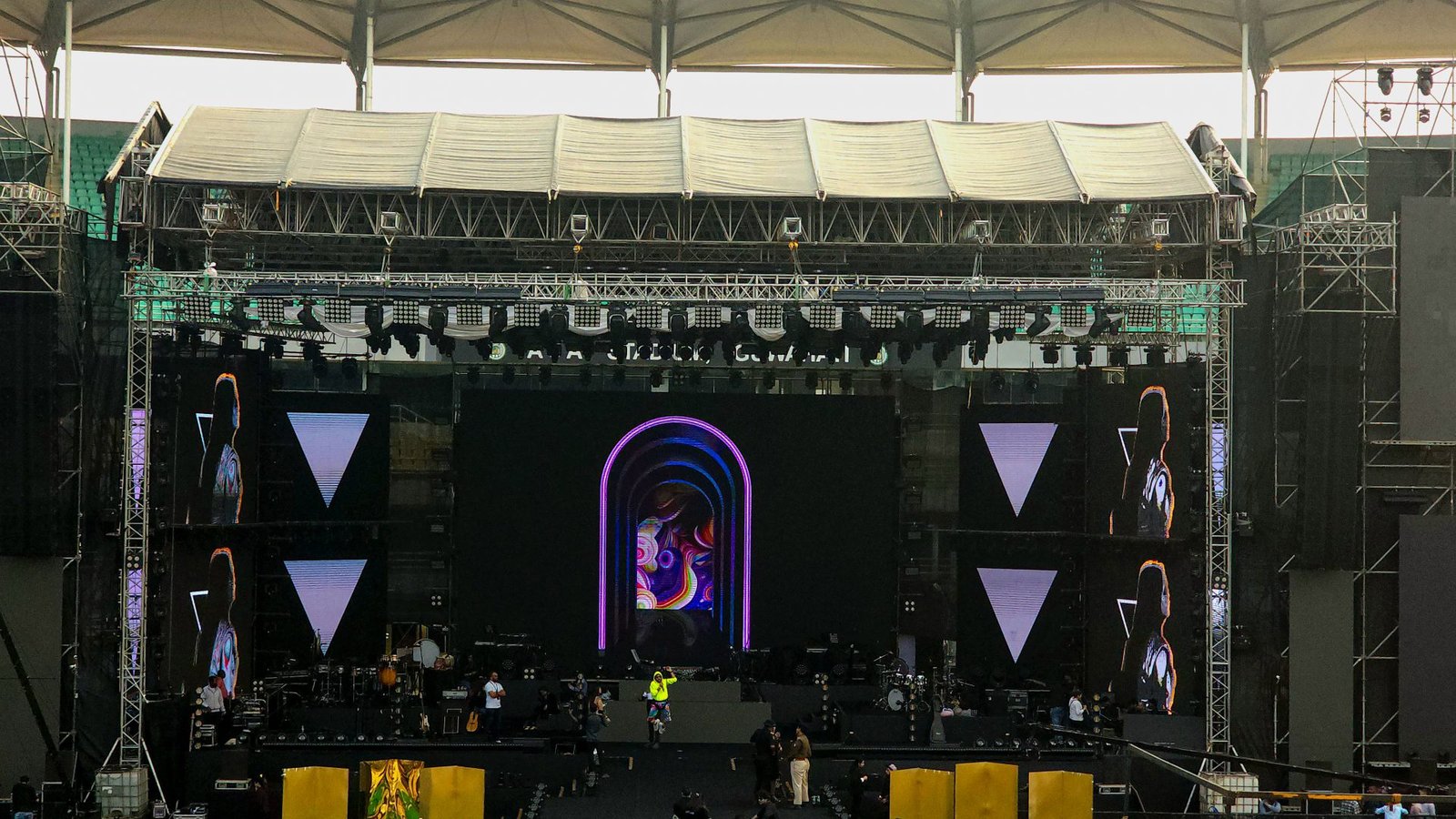

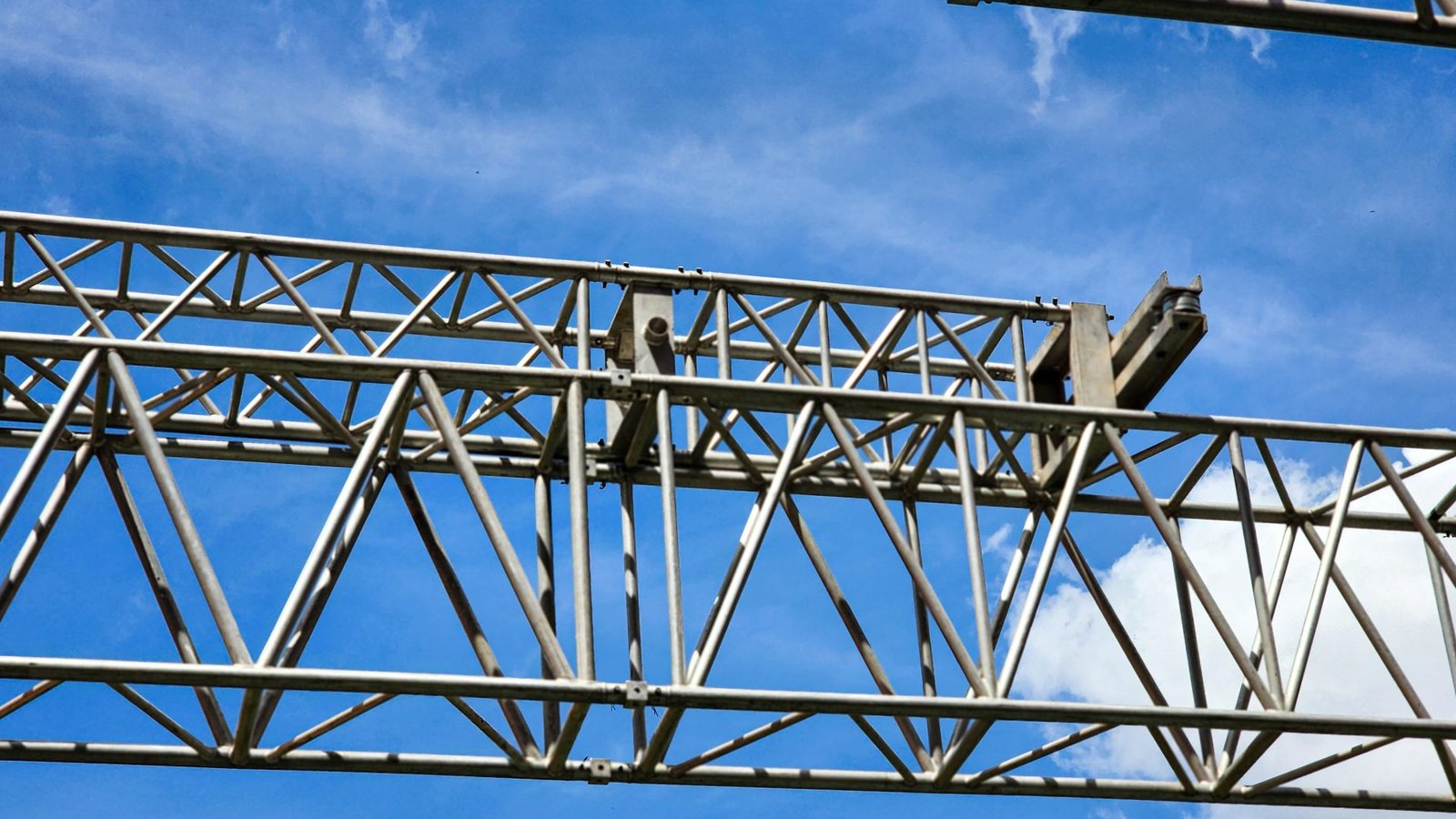

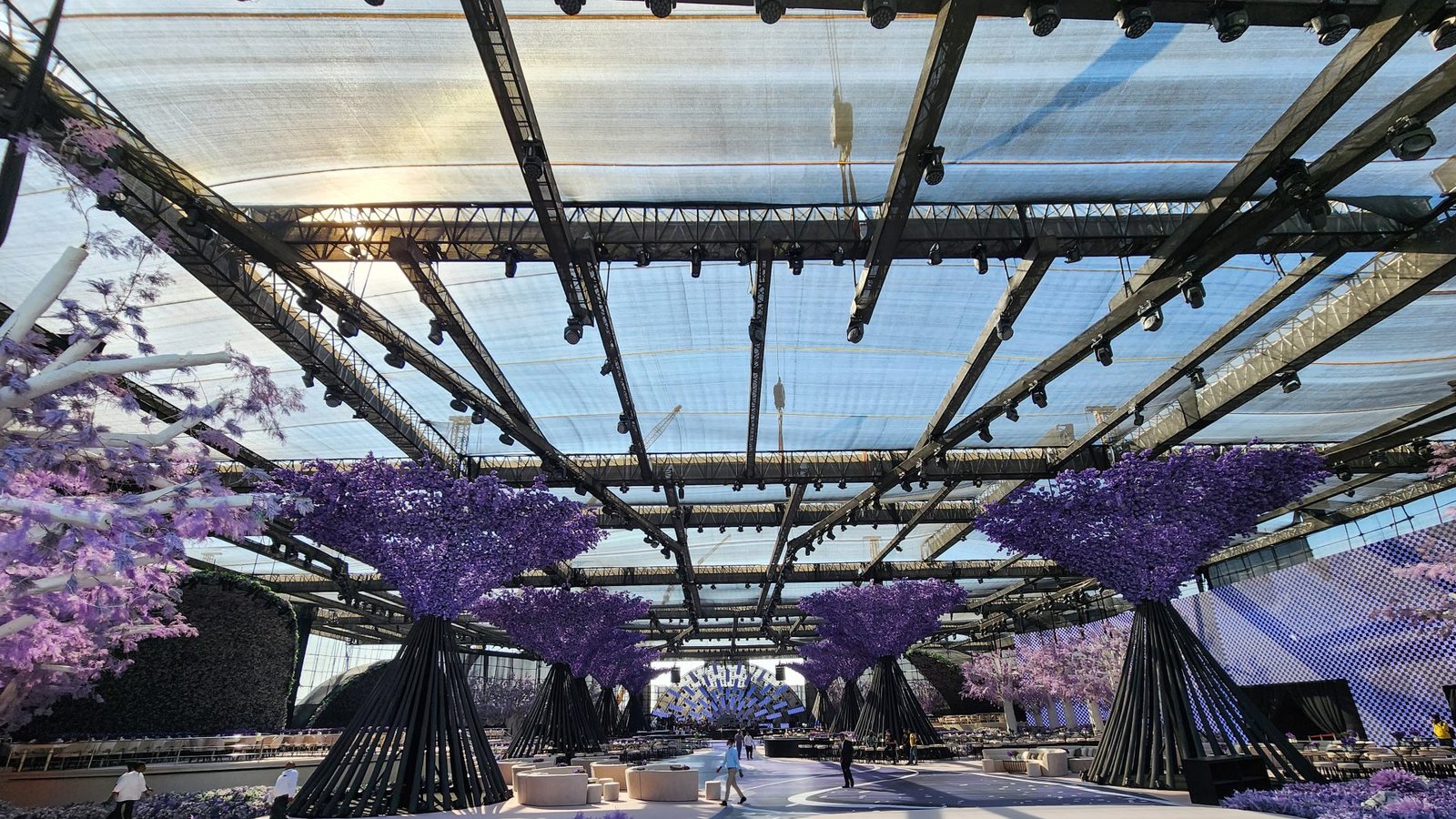

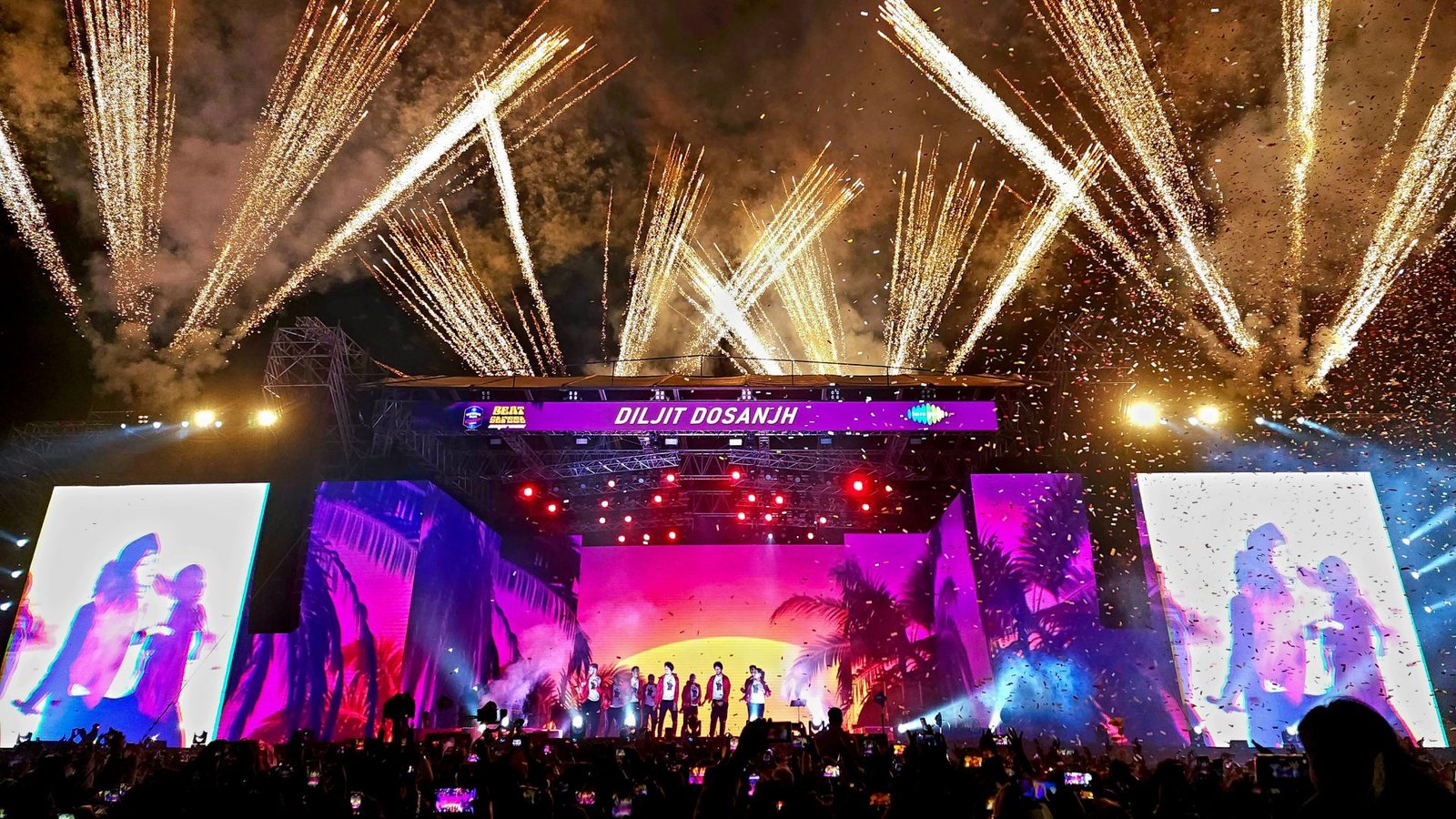

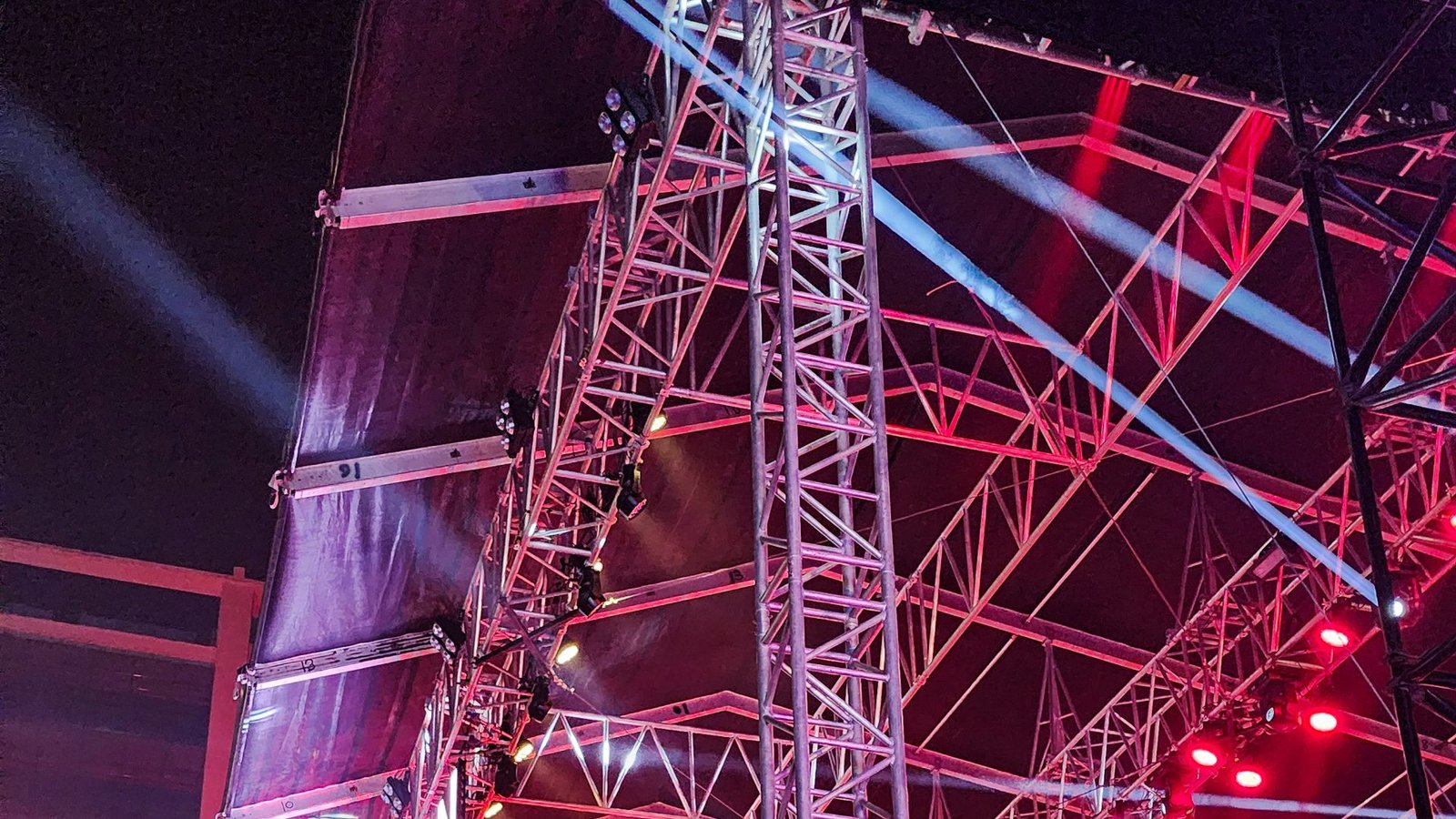

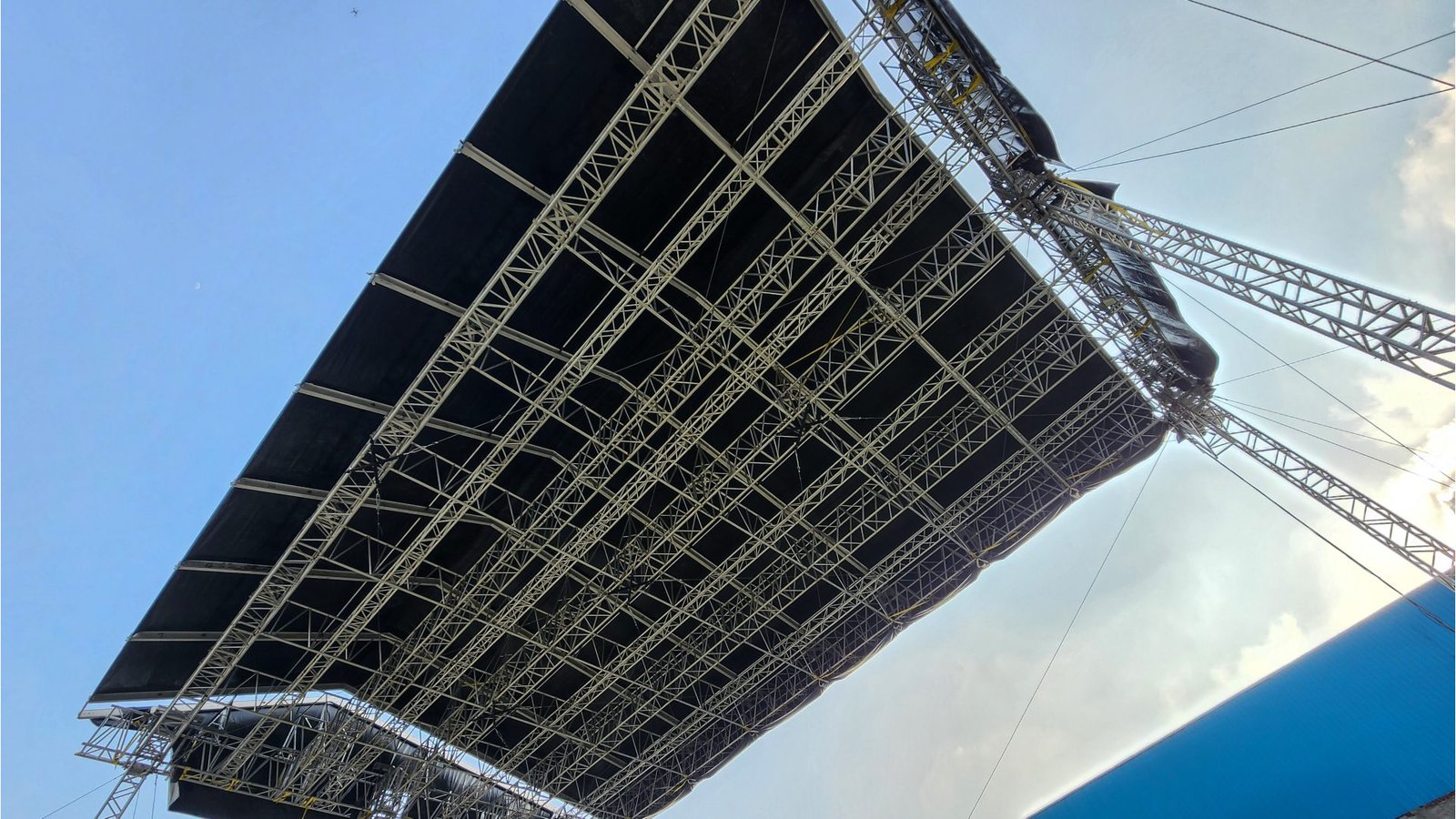

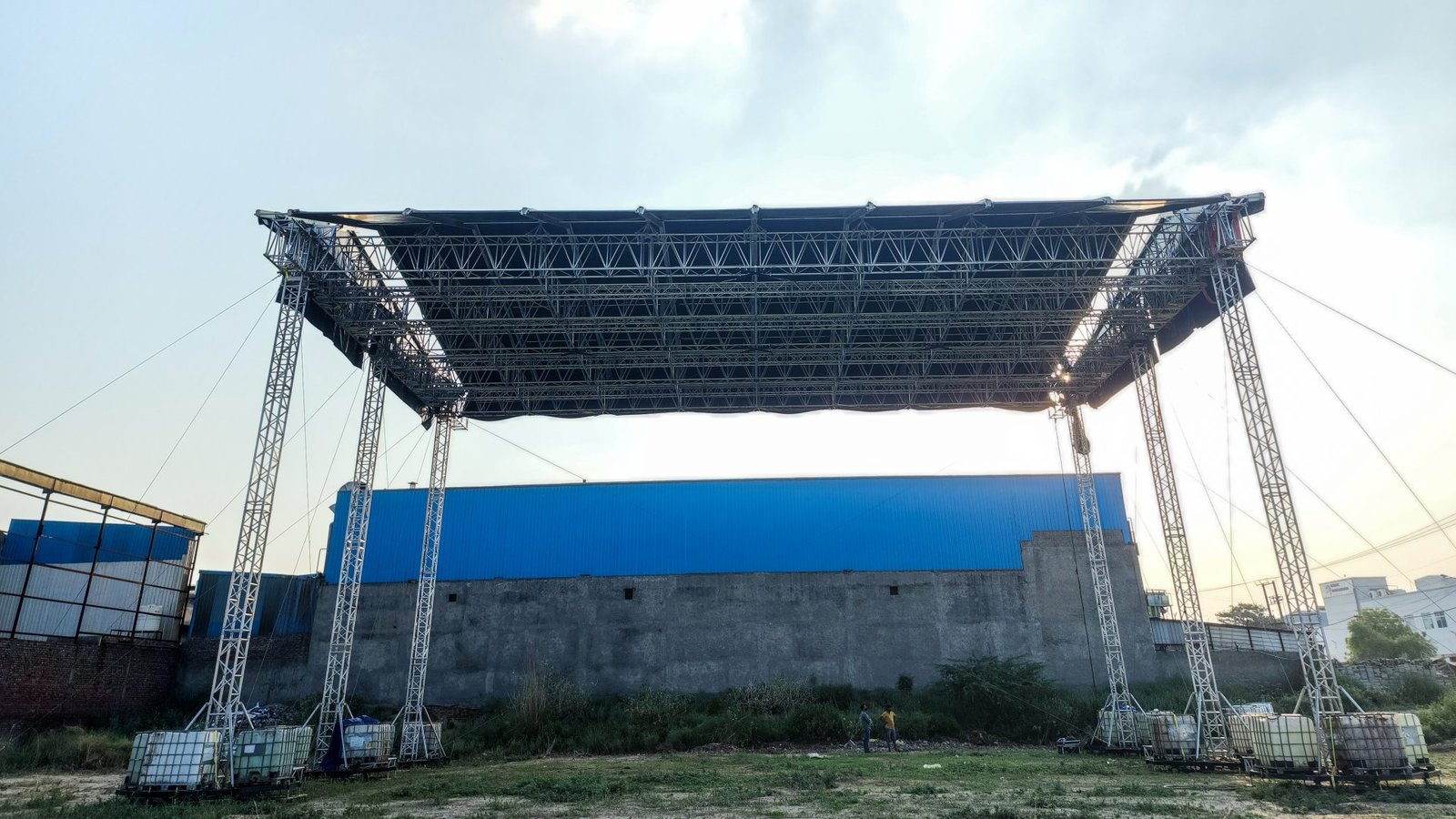

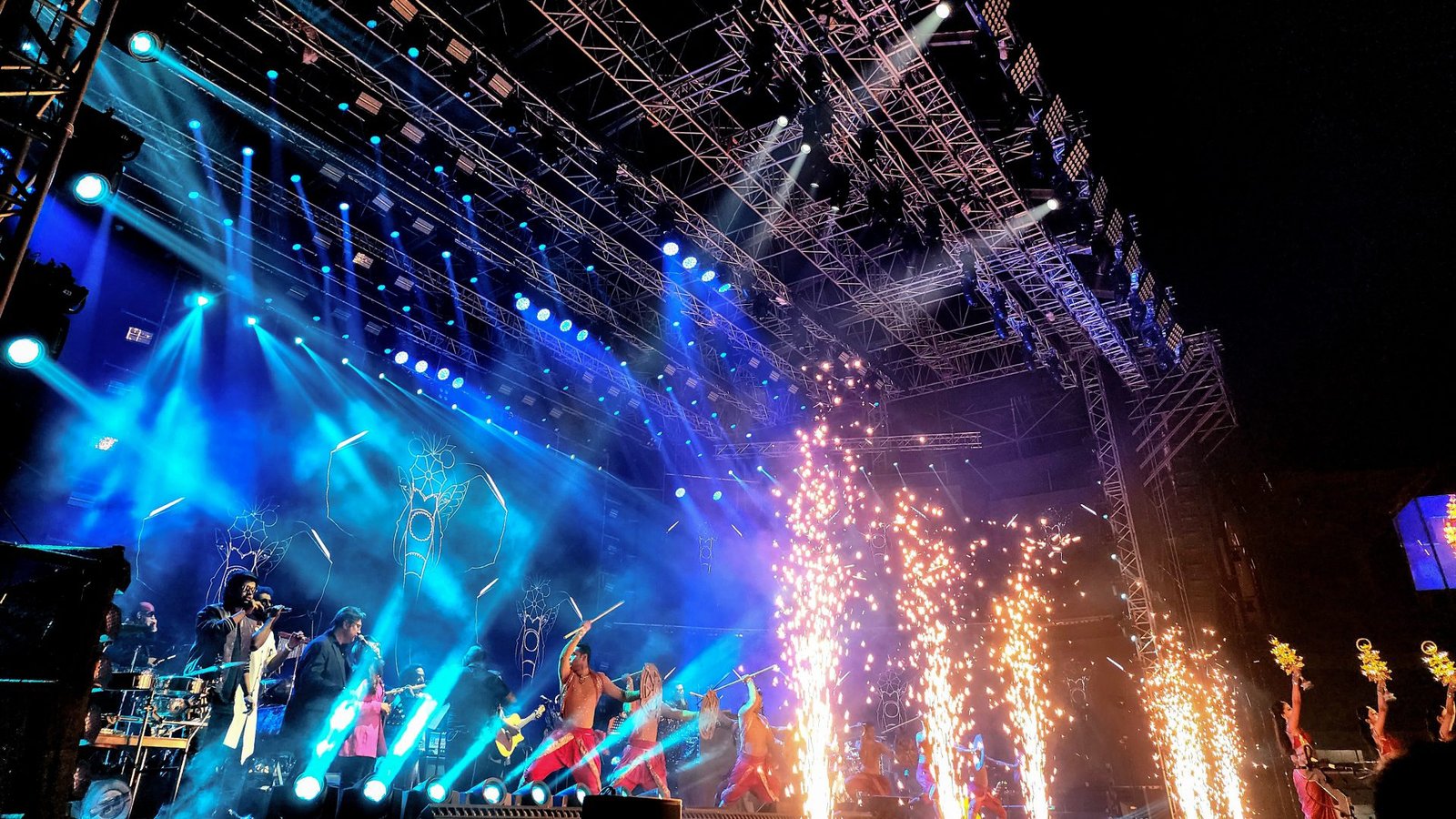

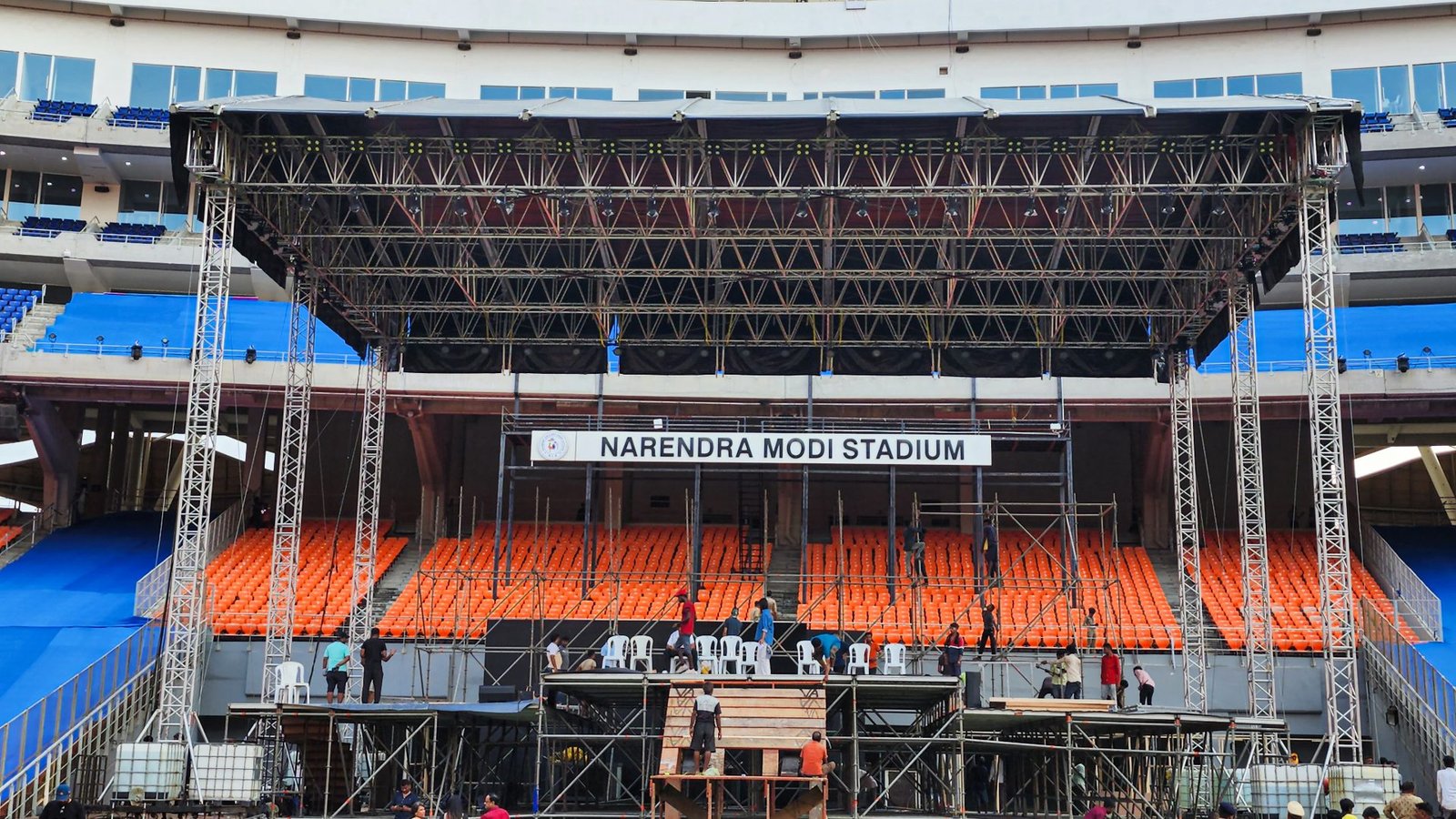

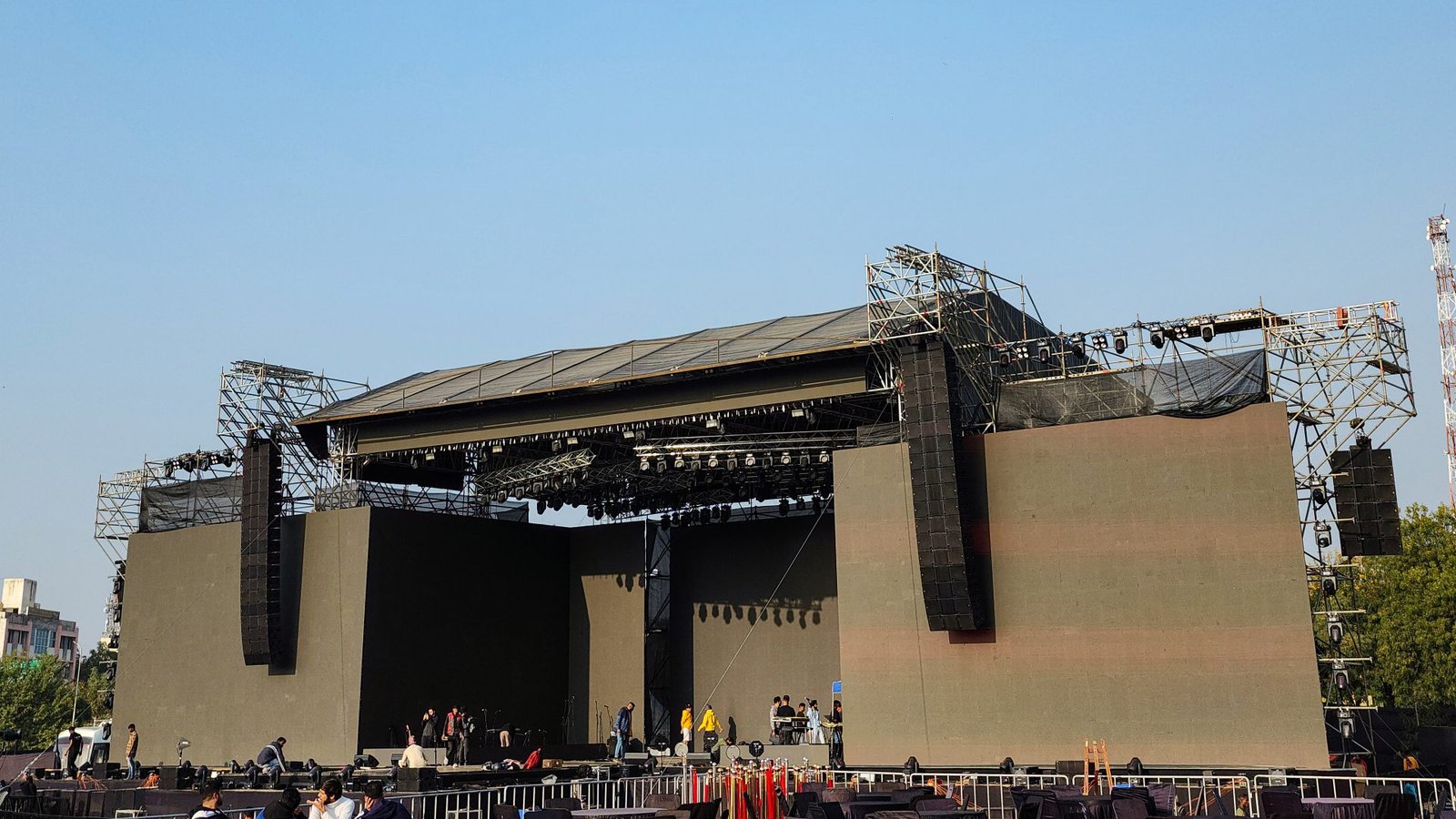

Related Pictures
