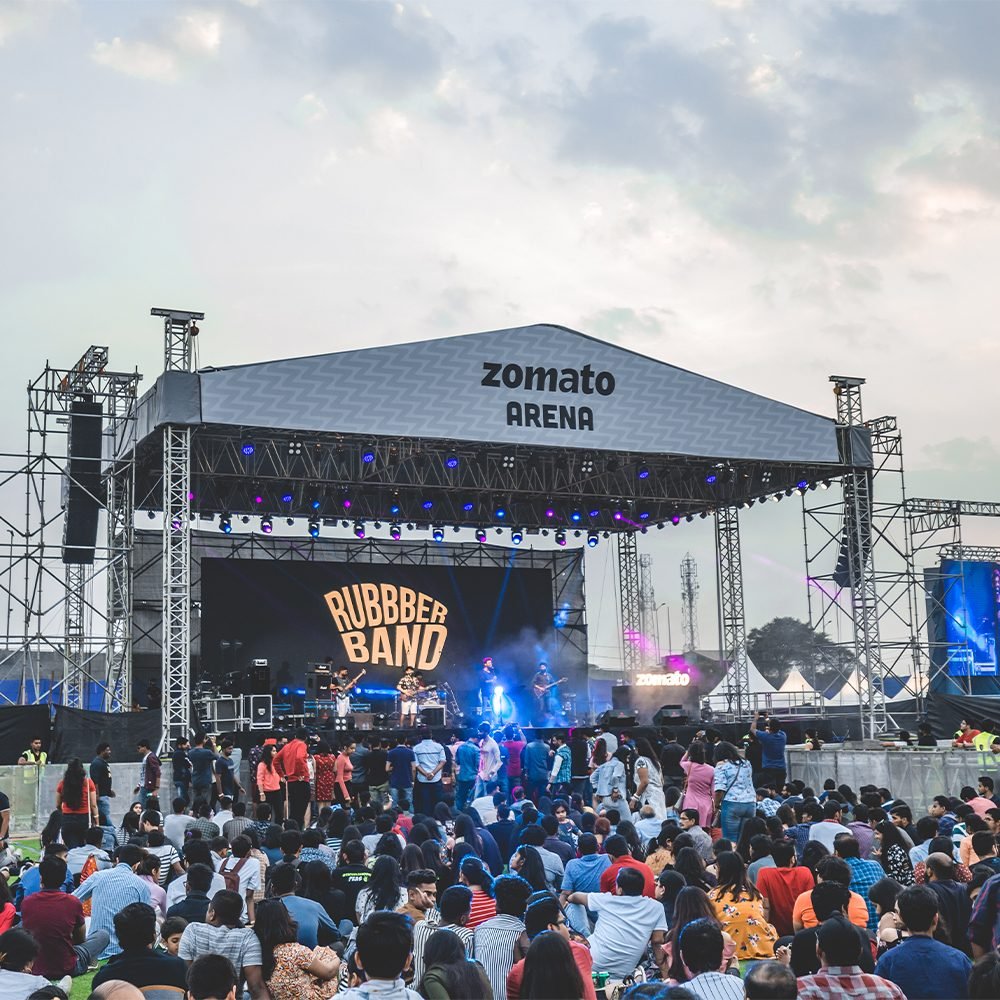

SR-80

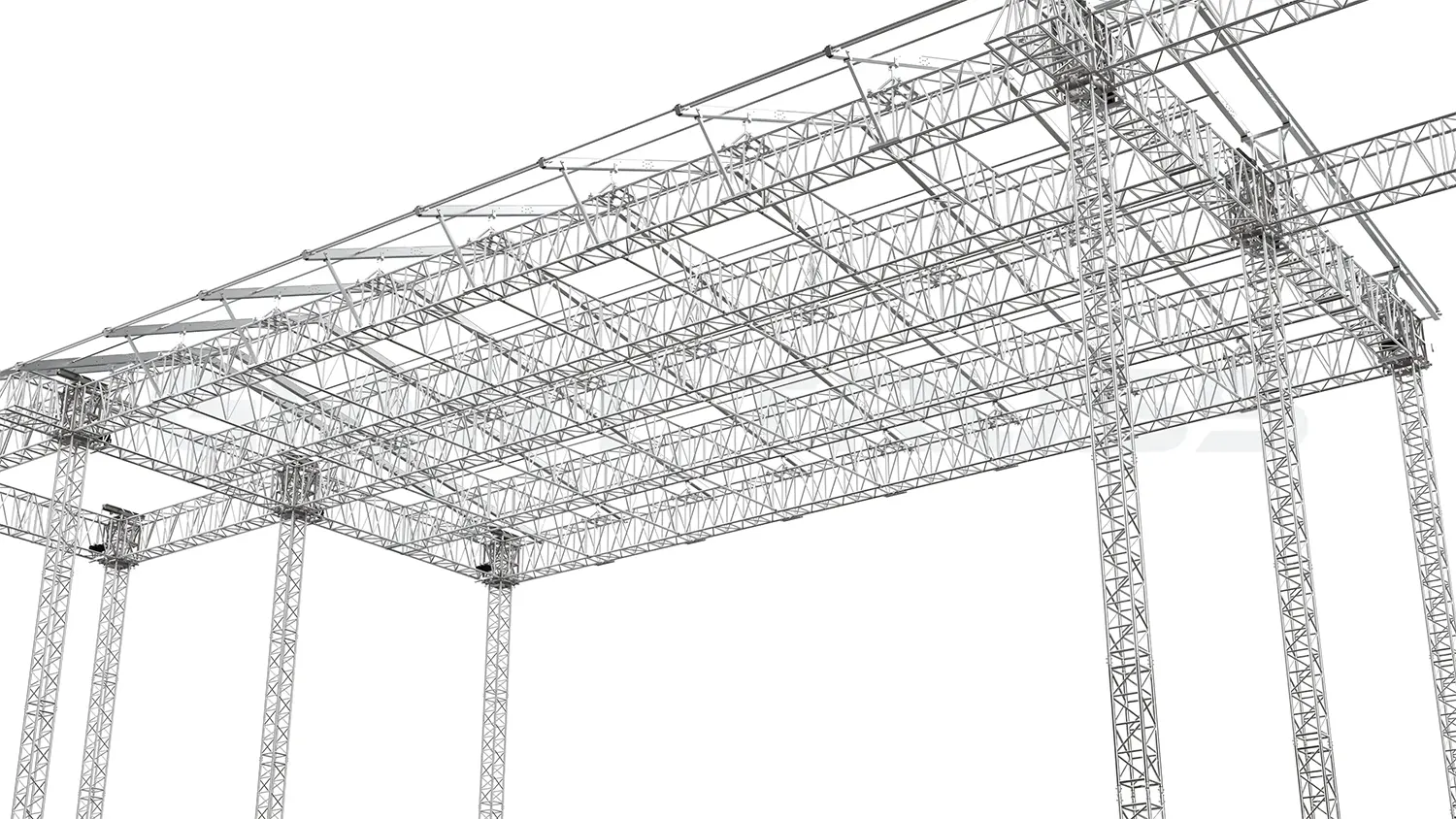

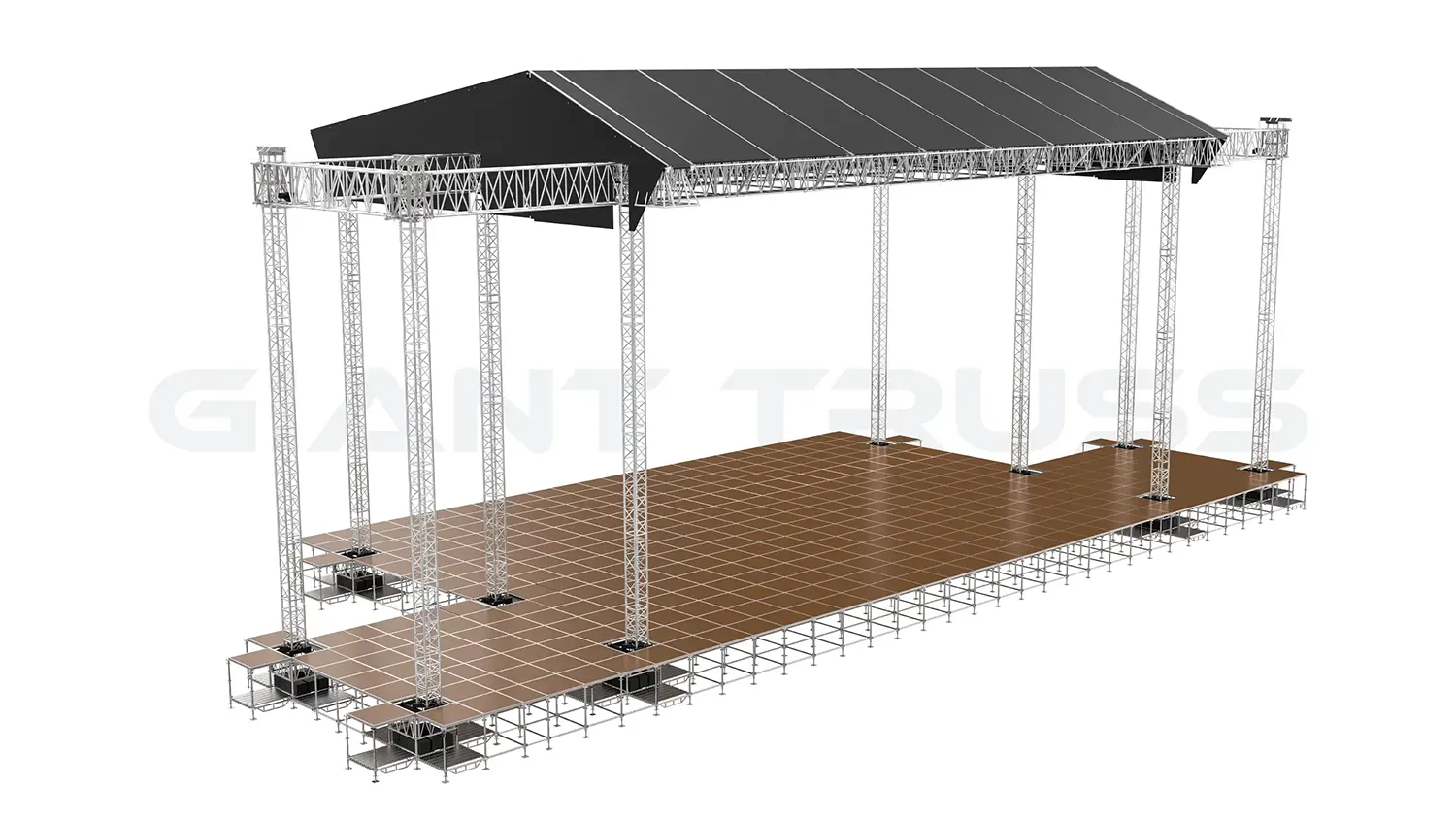

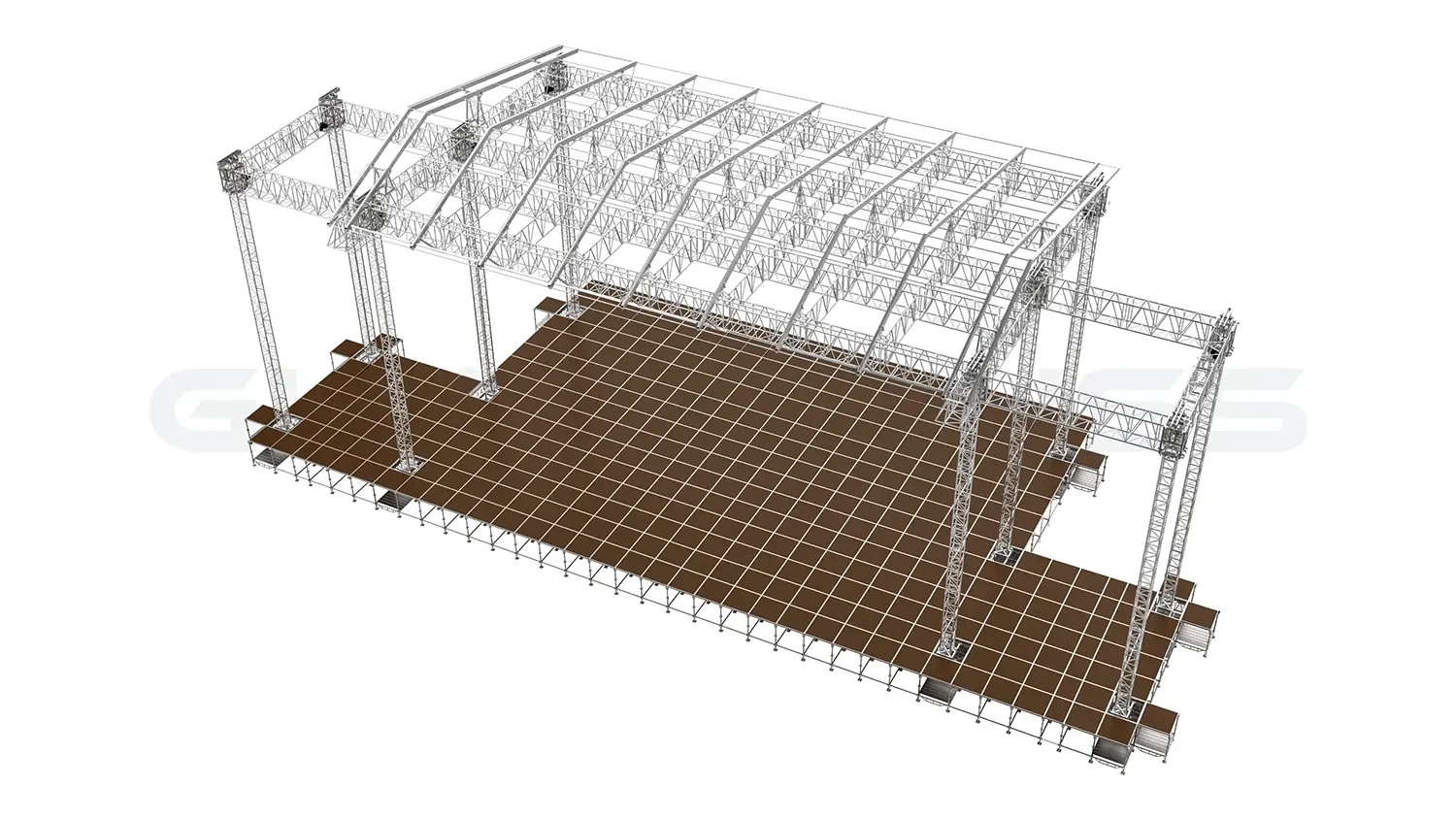

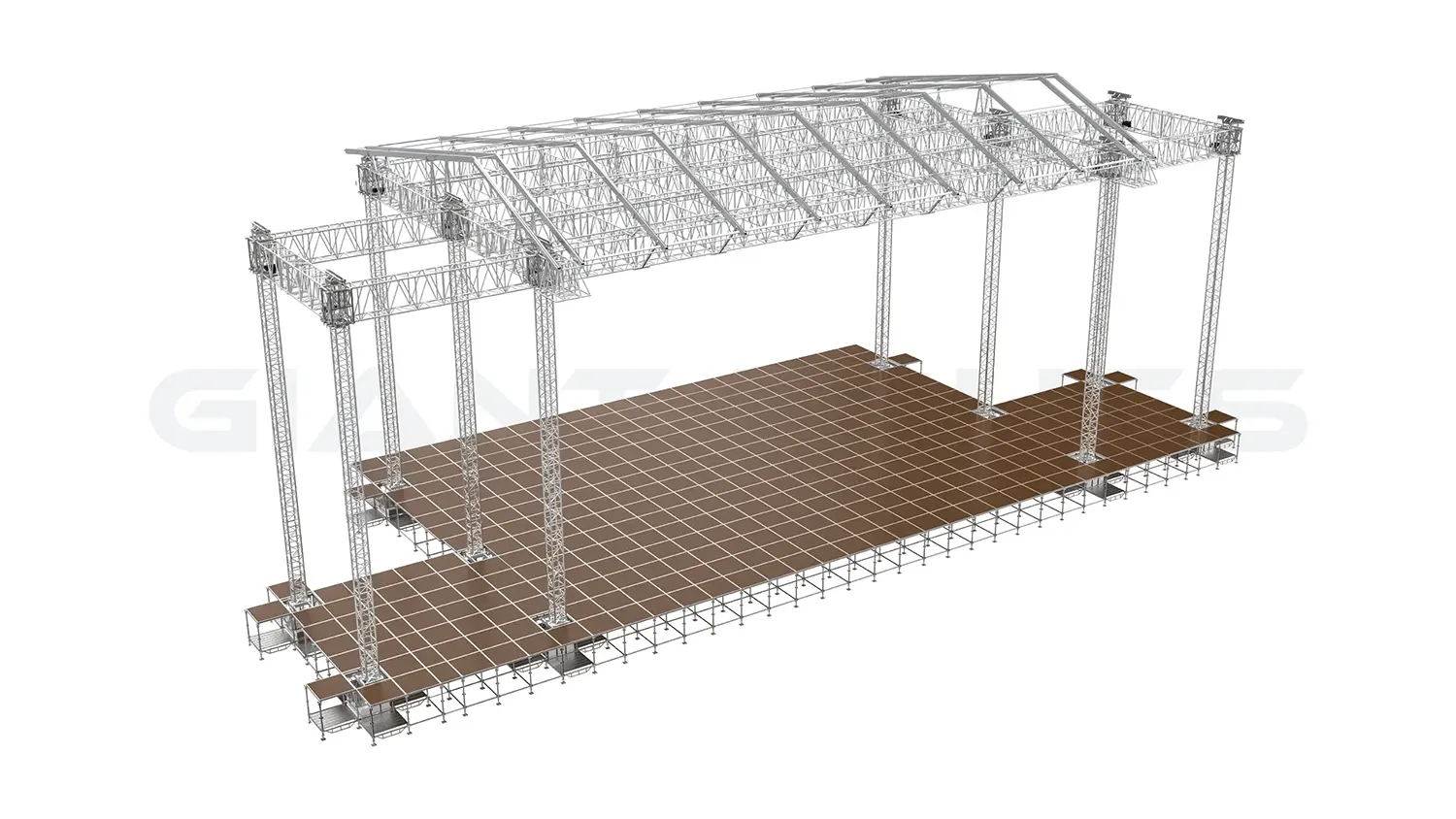

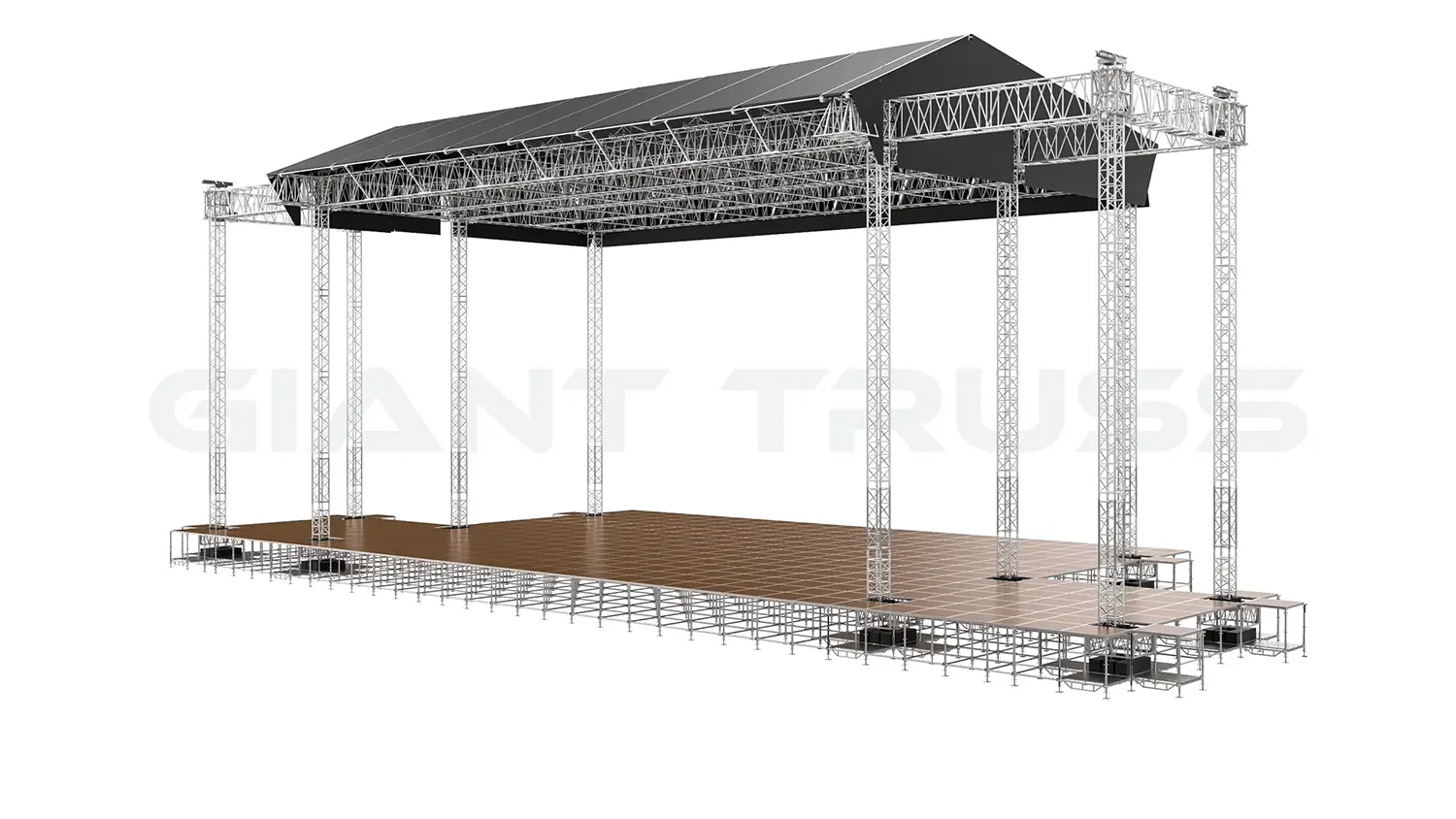

The SR-80 is a tower-based saddle roof that uses DT ground support on six or eight towers. It combines a standard DT main rig that can carry substantial loads with an ST roof structure set at a fixed angle on the four ST gables, allowing customisation in various dimensions. The specified configuration is 24 m wide, 18 m deep and 15 m high, with DT-X horizontal truss and SST48 vertical towers.
Standard SR-80 DT roofs are available in 24 × 16 m, 20 × 16 m and 16 × 12 m sizes, all supported by eight SST48 towers.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – SR-80 | |
|---|---|
| Width | 24 m |
| Depth | 18 m |
| Height | 15 m |
| Horizontal Truss | DT X |
| Vertical Tower | SST48 |
| Standard sizes | 24 × 16 m, 20 × 16 m, 16 × 12 m |
Advantages – SR-80
- Eight SST48 Towers
- DT Ground Support Rig
- Three Standard Sizes
- Compression Beam Ballast Bases
- Structural Report and Manual
- PVC or Mesh Wall Canopies
No downloads are available for this product yet. Contact our sales team for details.
