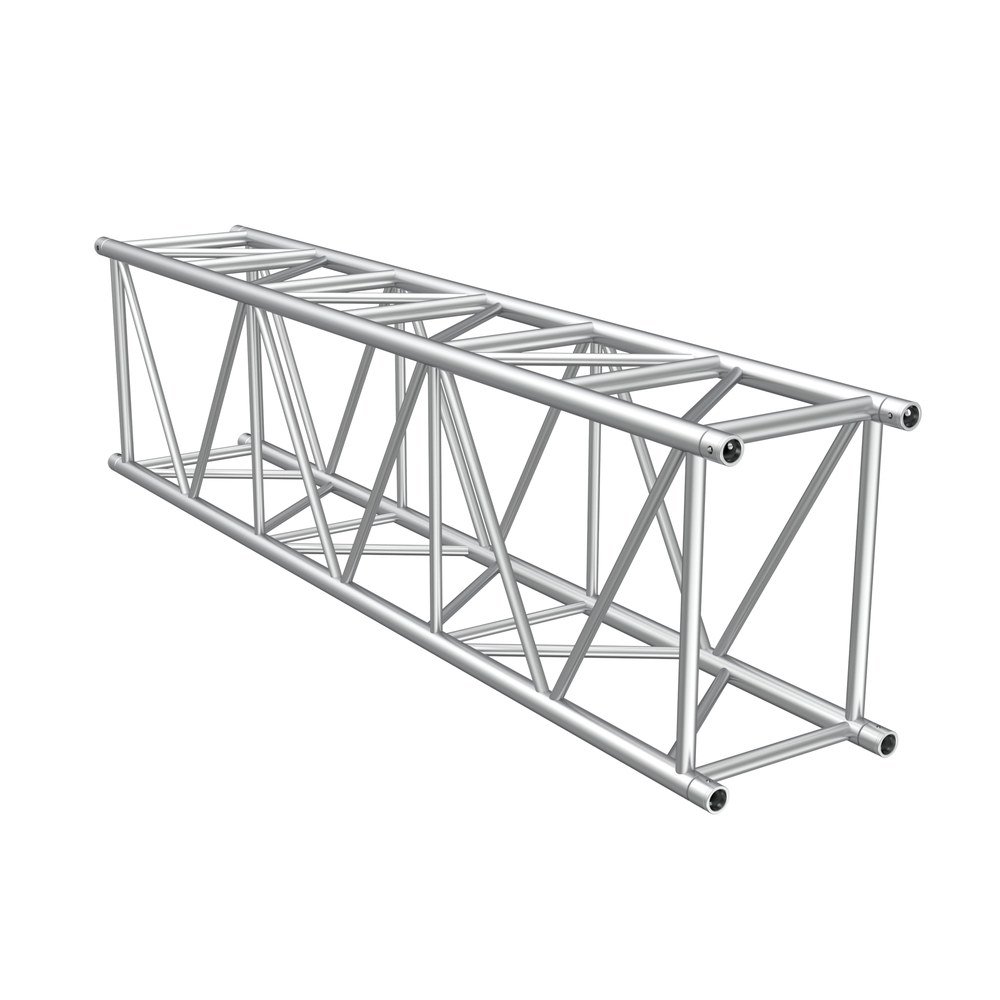

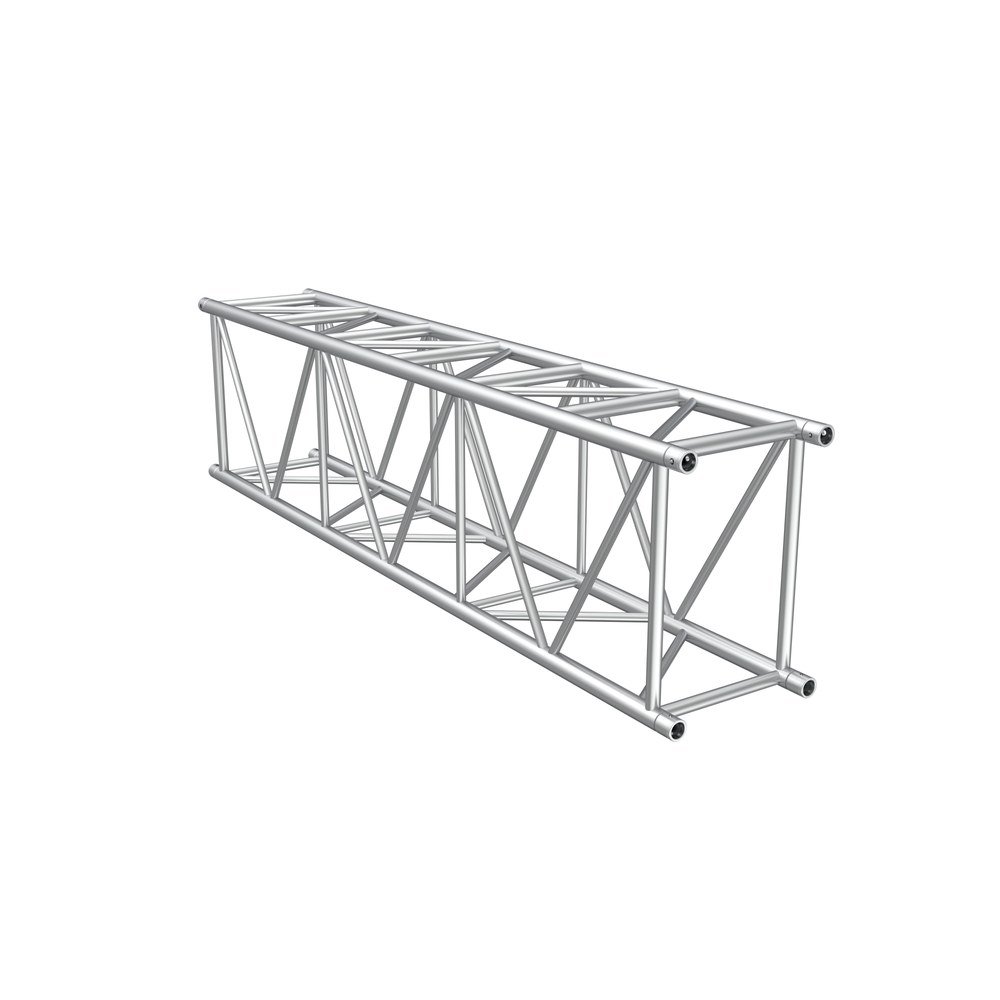

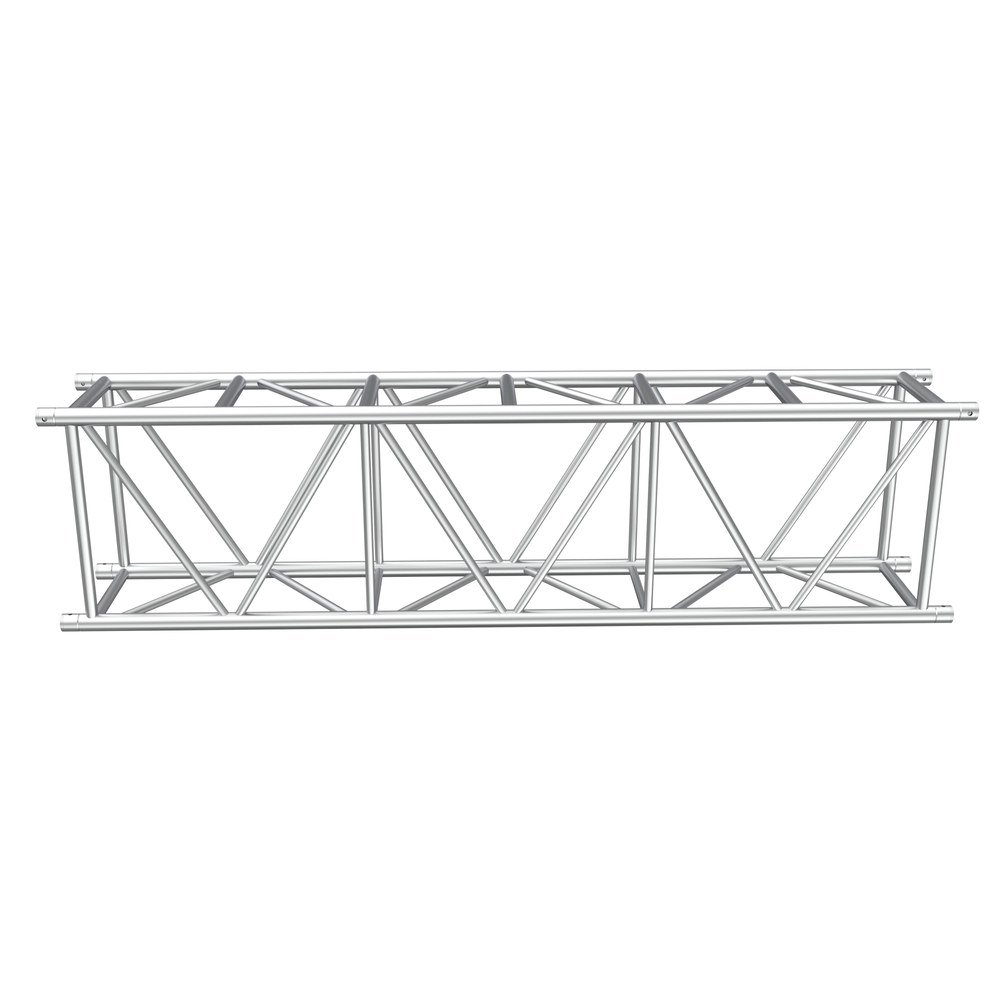

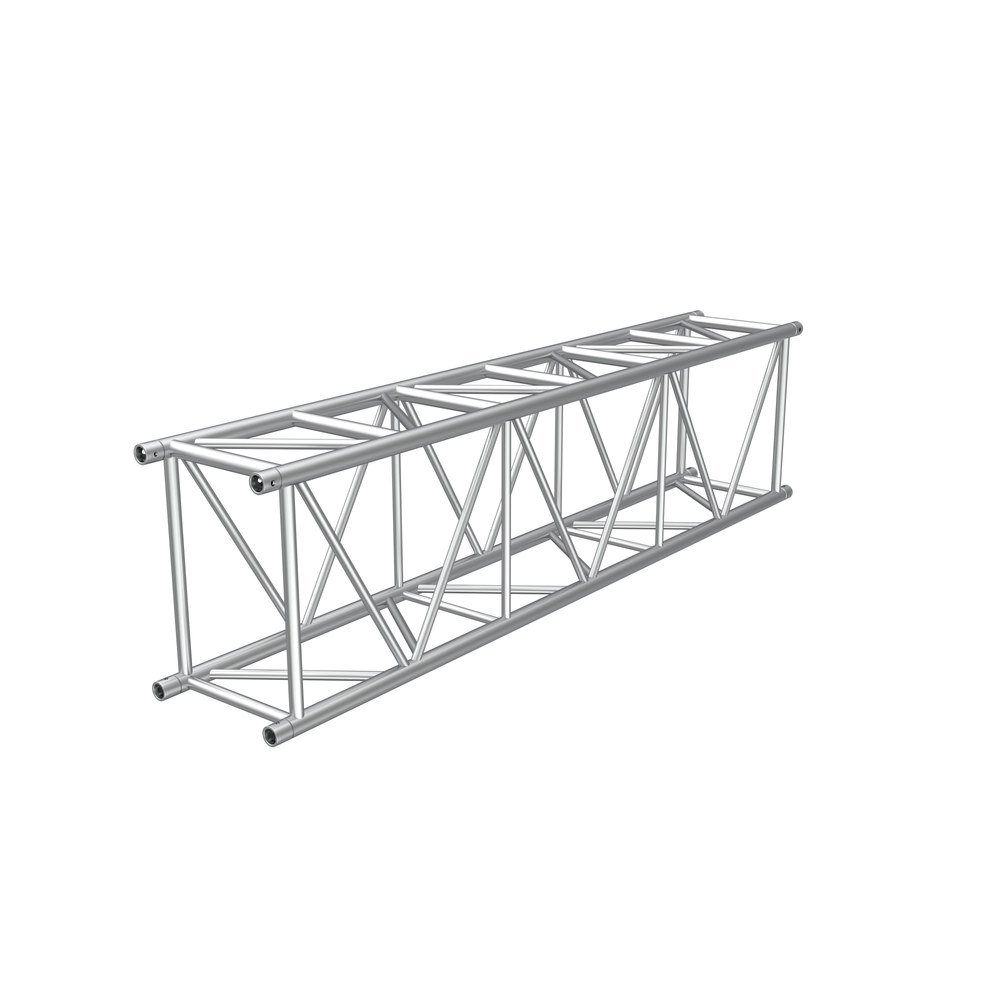

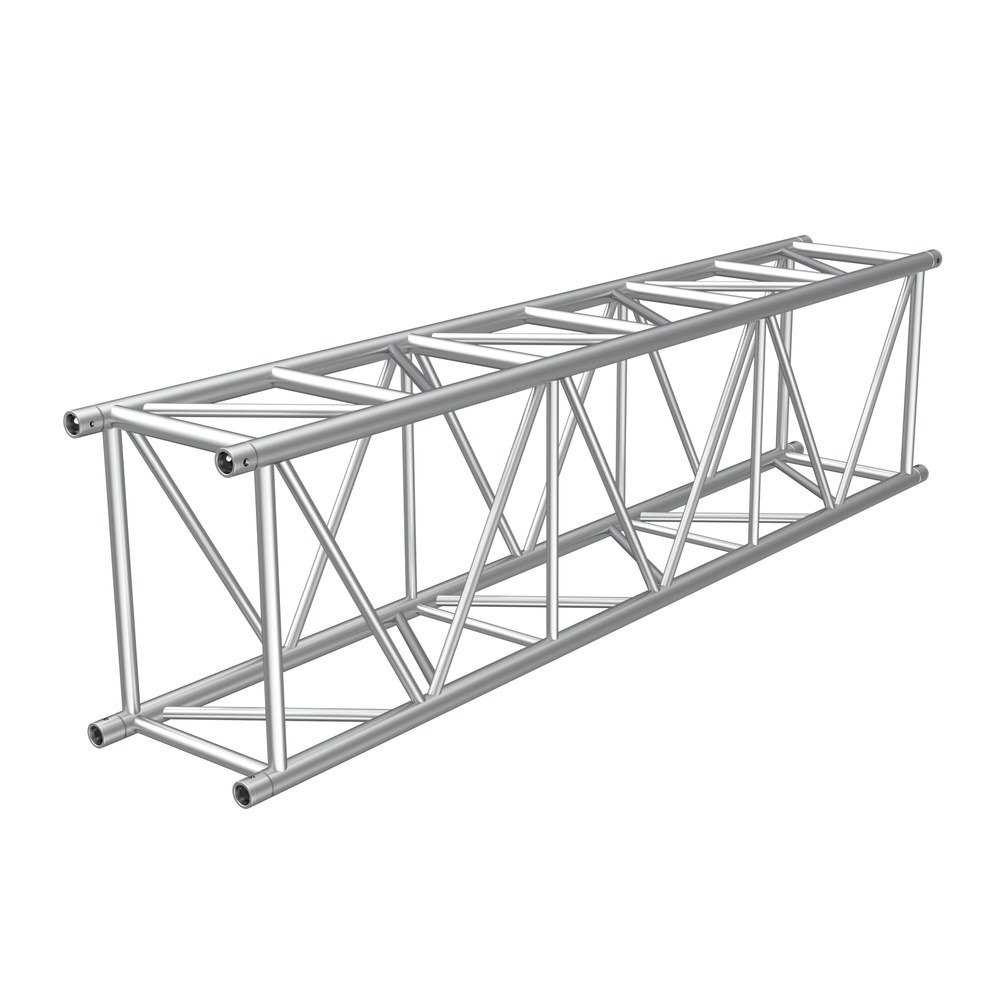

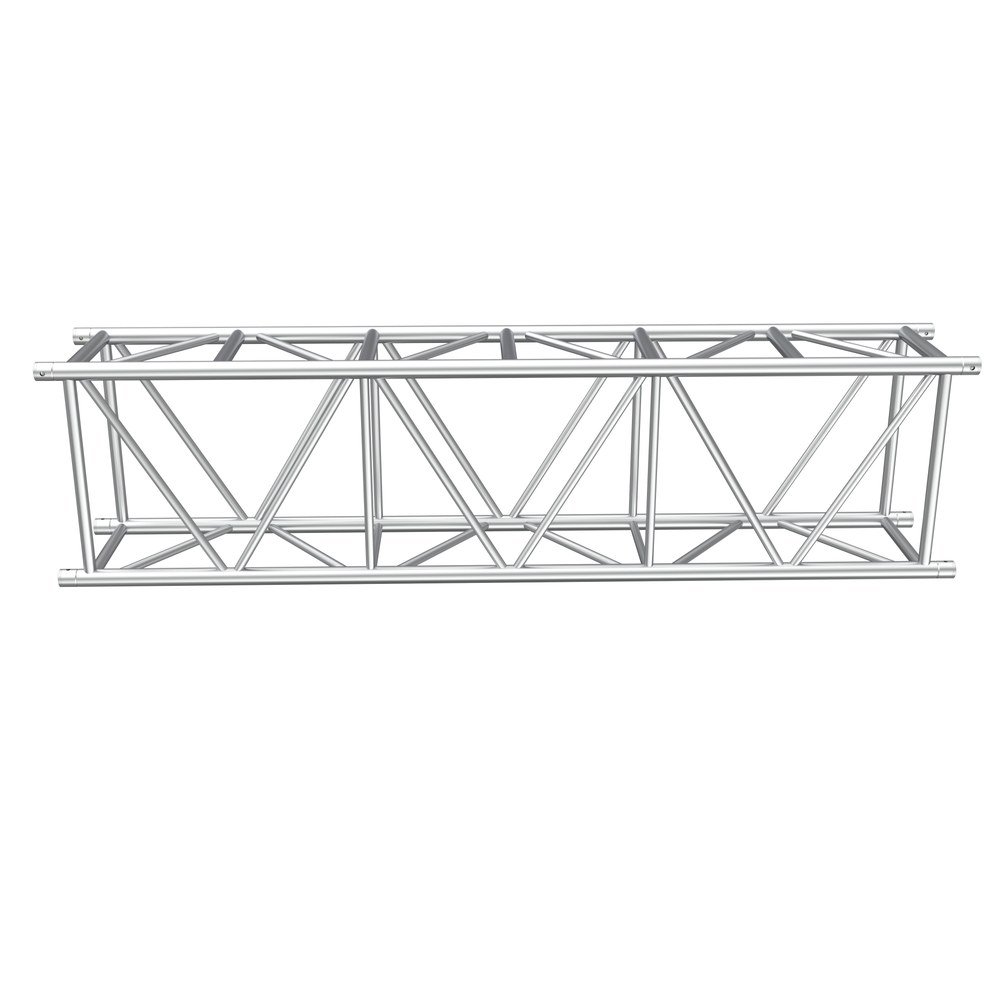

MT-X
The MT-X truss series is an extra heavy-duty aluminium truss system developed for high-load applications across medium spans in professional event structures. It keeps the 770 mm × 530 mm section of the MT family but uses Ø60 mm main tubes with a 4 mm wall thickness and Ø30 × 3 mm diagonal tubes in EN AW-6082 T6 aluminium, at approximately 19 kg/m.
The SG-3 precision conical connection system (60 mm) and a 4-side webbing configuration give efficient load distribution and high rigidity. The 4 mm wall thickness improves structural stiffness, reduces transport damage and supports a long service life.
Download
MT-X product data sheet
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – MT-X | |
|---|---|
| Height | 770 mm |
| Width | 530 mm |
| Weight | ~19 kg/m |
| Main Tube | 60 x 4 mm |
| Braces | 30 x 3 mm |
| Material | EN-AW-6082 T6 |
| Connection | Sg3 (60 mm) |
| Max. clear span | 32 m |
Important Notes
- Load capacities shown are applicable only to the corresponding loading tables.
- Load values are based on static loading conditions unless otherwise specified.
- The published load data applies to single-span configurations with supports at both ends.
- Multi-span systems, custom structures, or special configurations require project-specific structural calculations.
- Self-weight of the truss has already been included in the published load calculations.
- Load ratings are valid only when the truss is installed in the orientation illustrated in the loading tables.
- Connection forces and bending moments at joints are considered within the specified loading data.
- Truss systems can be assembled using different standard section lengths to achieve the required span.
- All installations should be carried out by qualified professionals in accordance with applicable safety standards and local regulations.
- Always inspect truss components before use and replace any damaged parts immediately.
- Refer to the Installation & Assembly Manual before assembly, rigging, or loading the truss.
- For complex structures or critical applications, consult a qualified structural engineer before installation.
Advantages – MT-X
- 32 m Clear Span
- Ø60 × 4 mm Main Tubes
- SG-3 Precision Conical Connection
- 4-Side Webbing for High Rigidity
- Reduced Transport Damage
- Powder Coating in Any RAL Colour
