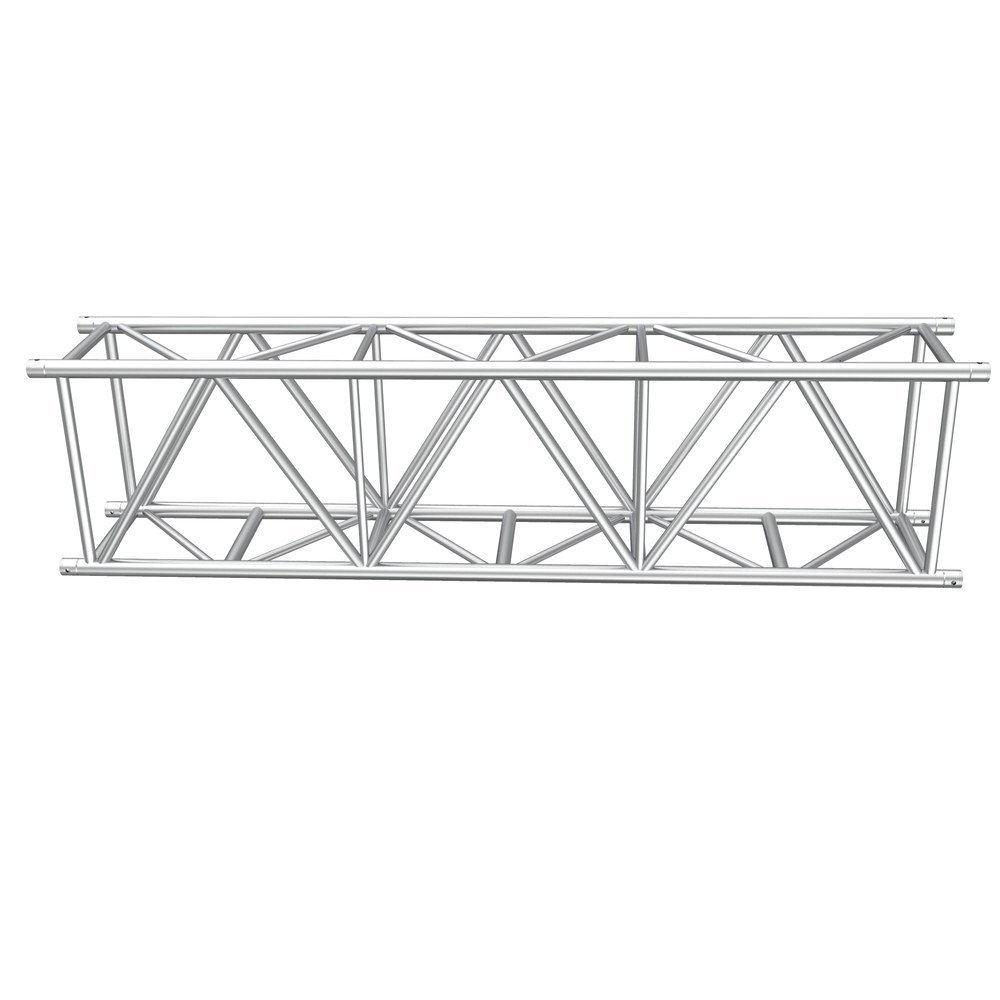

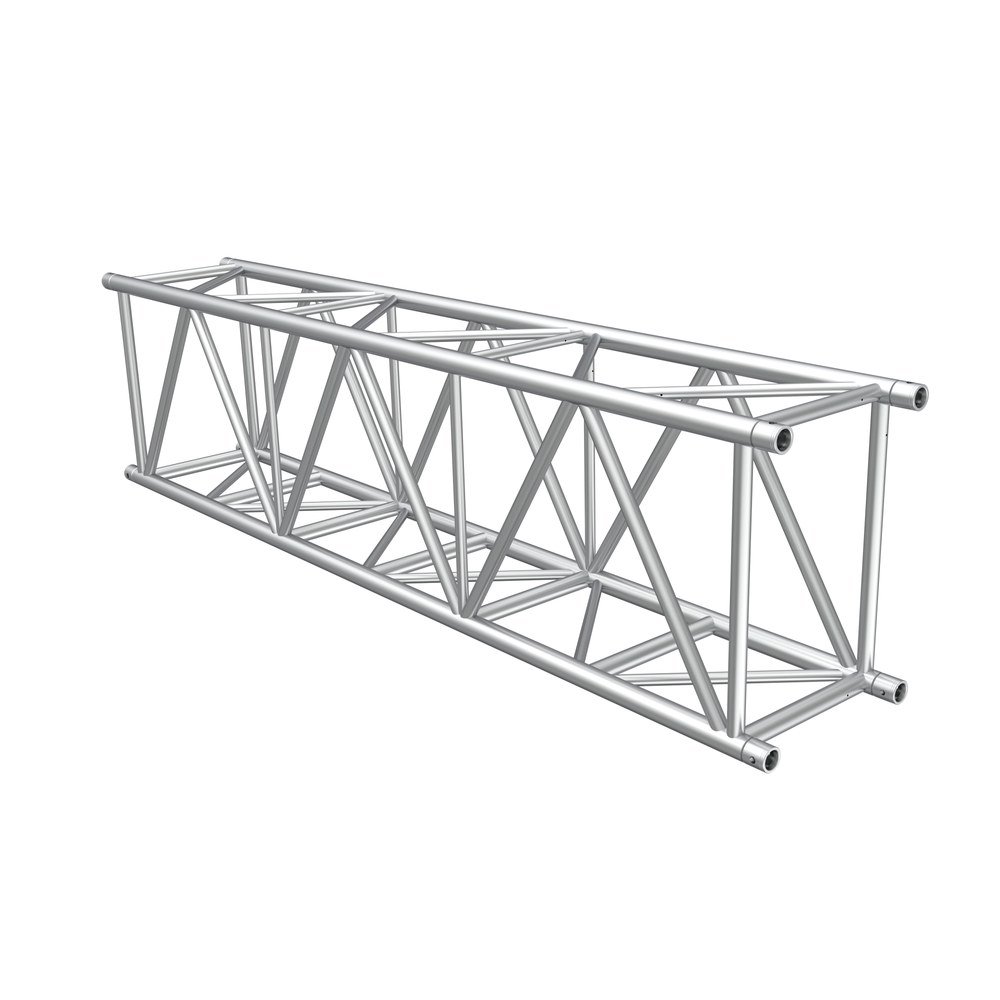

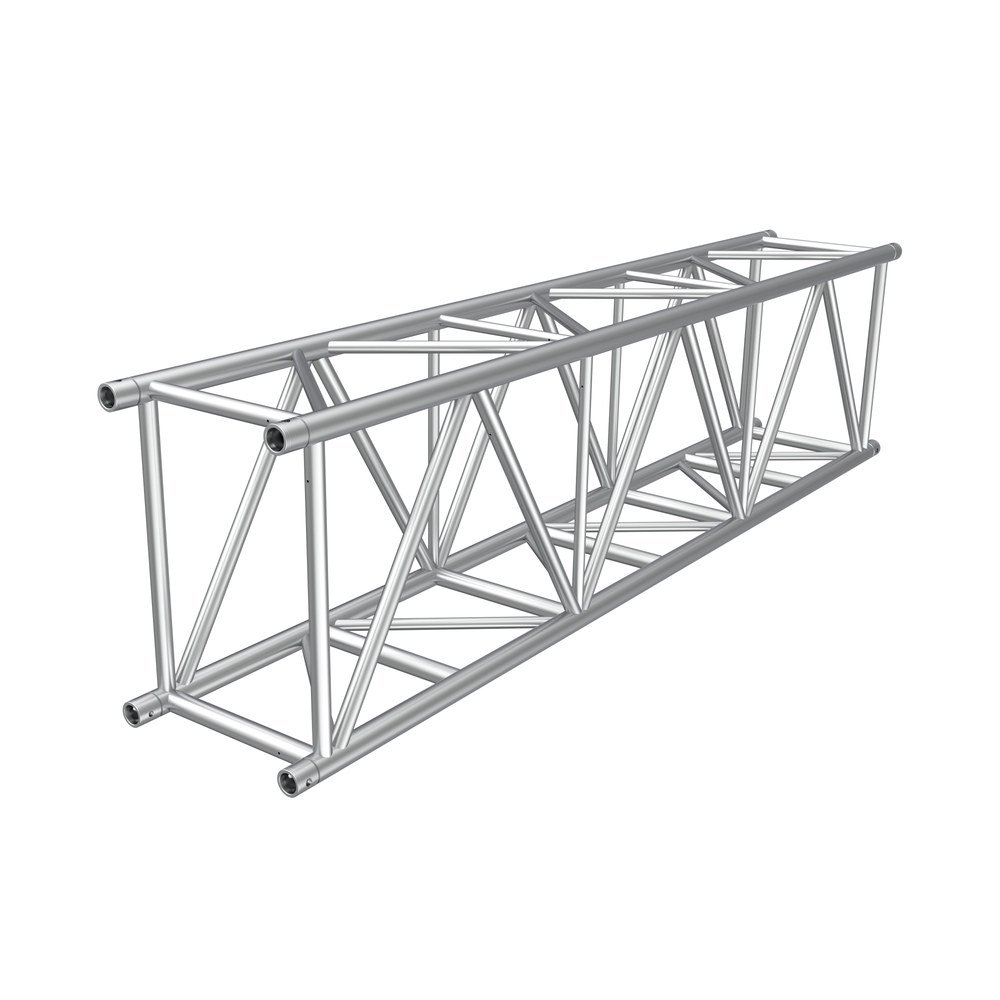

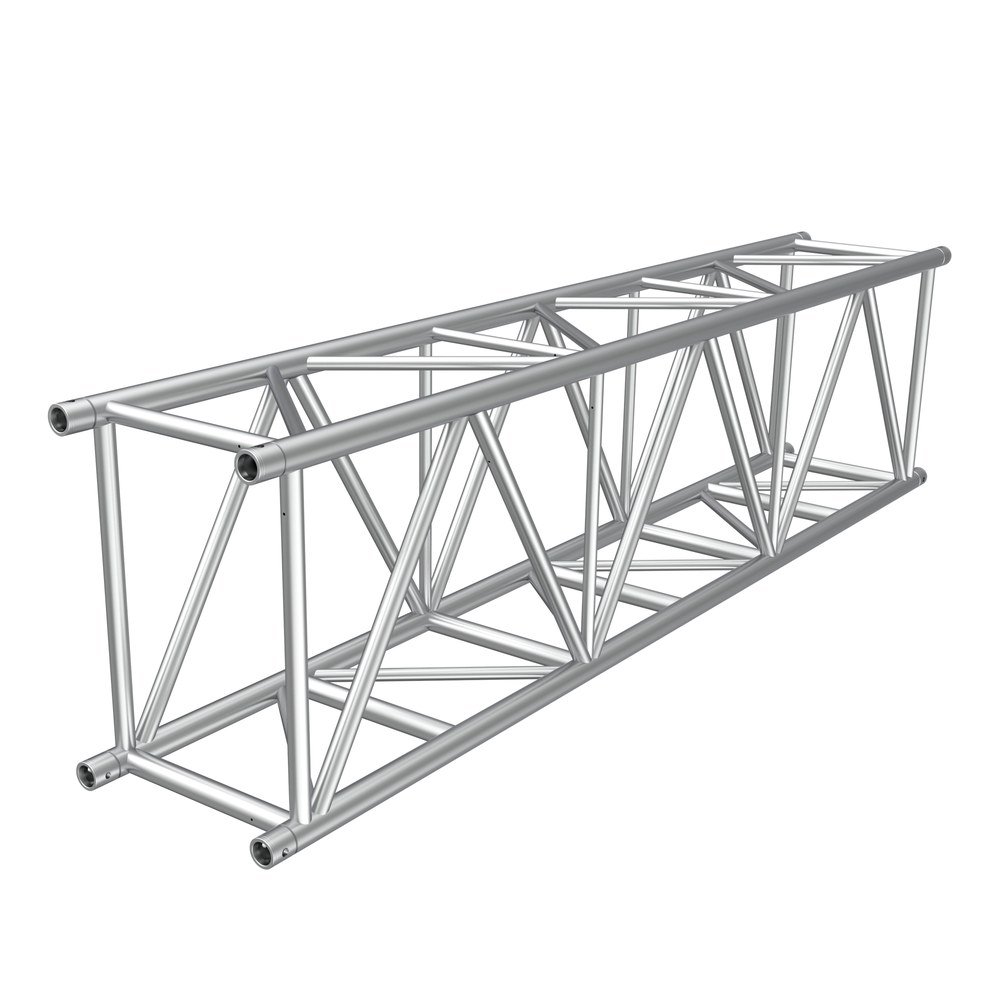

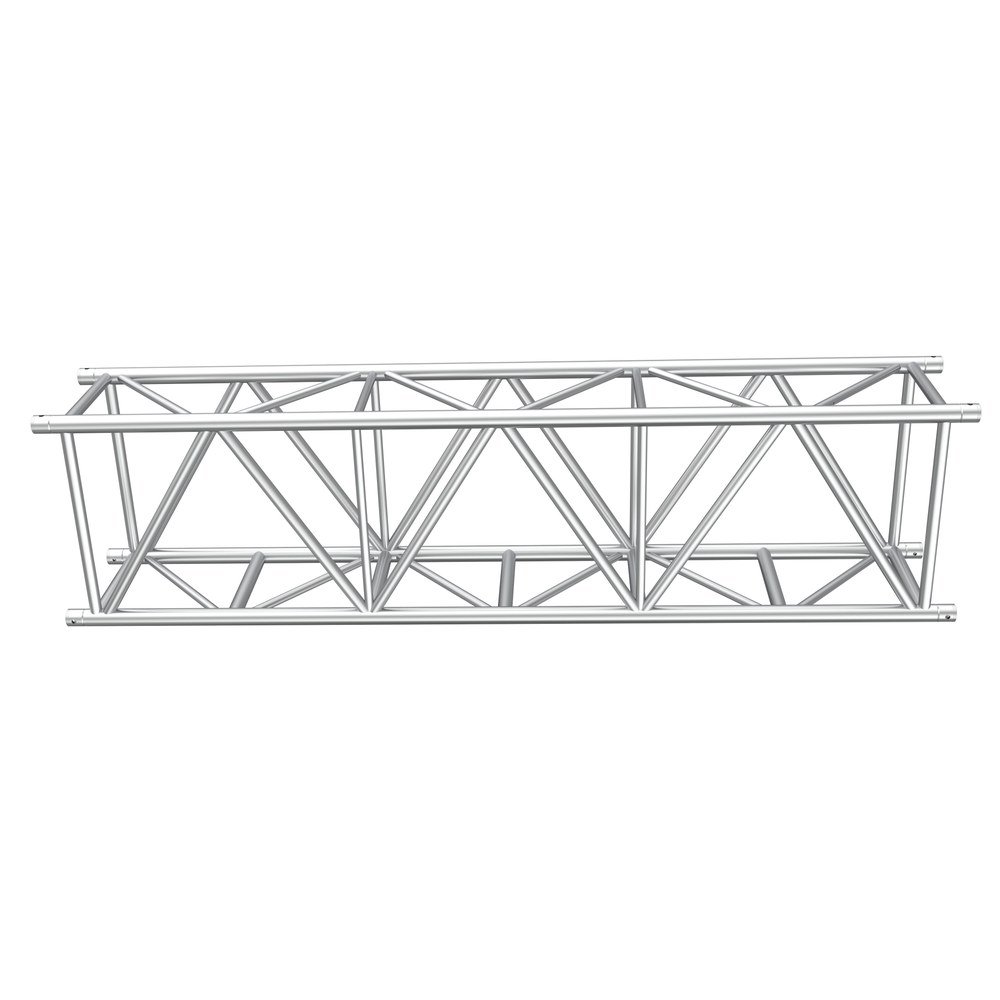

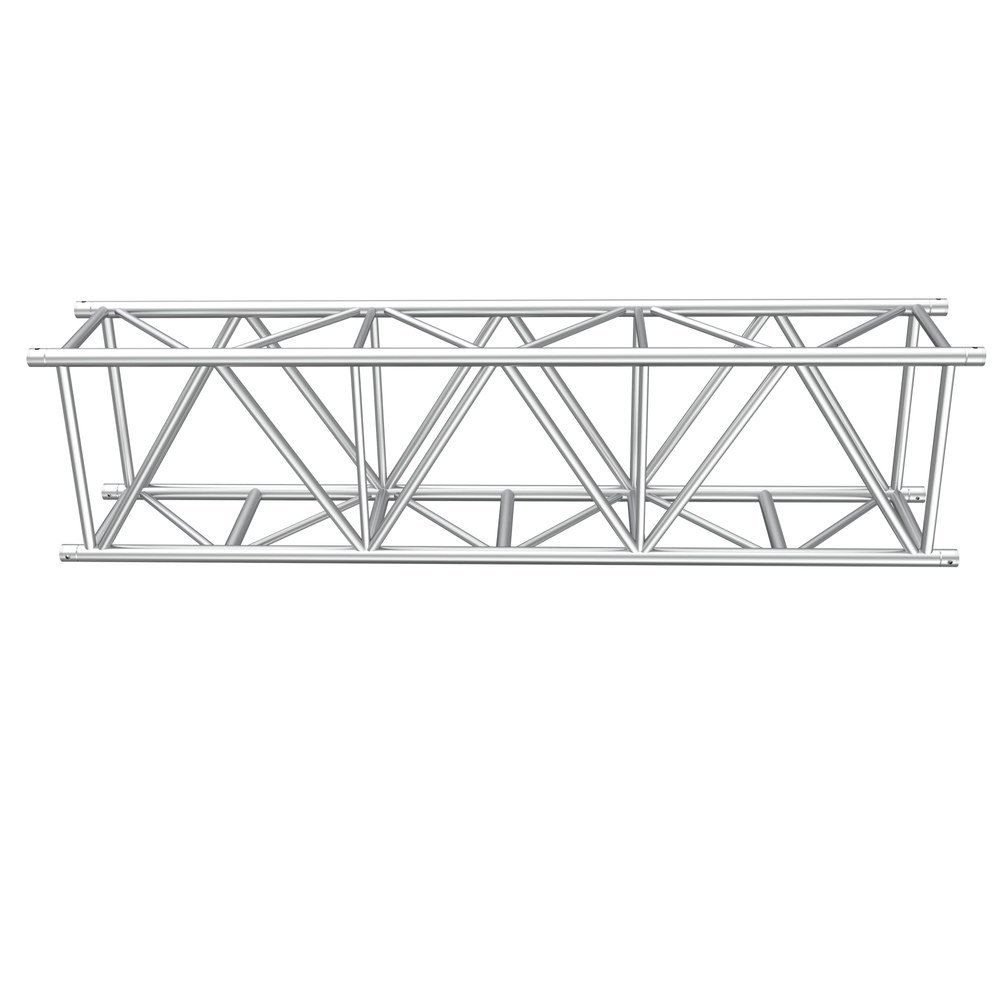

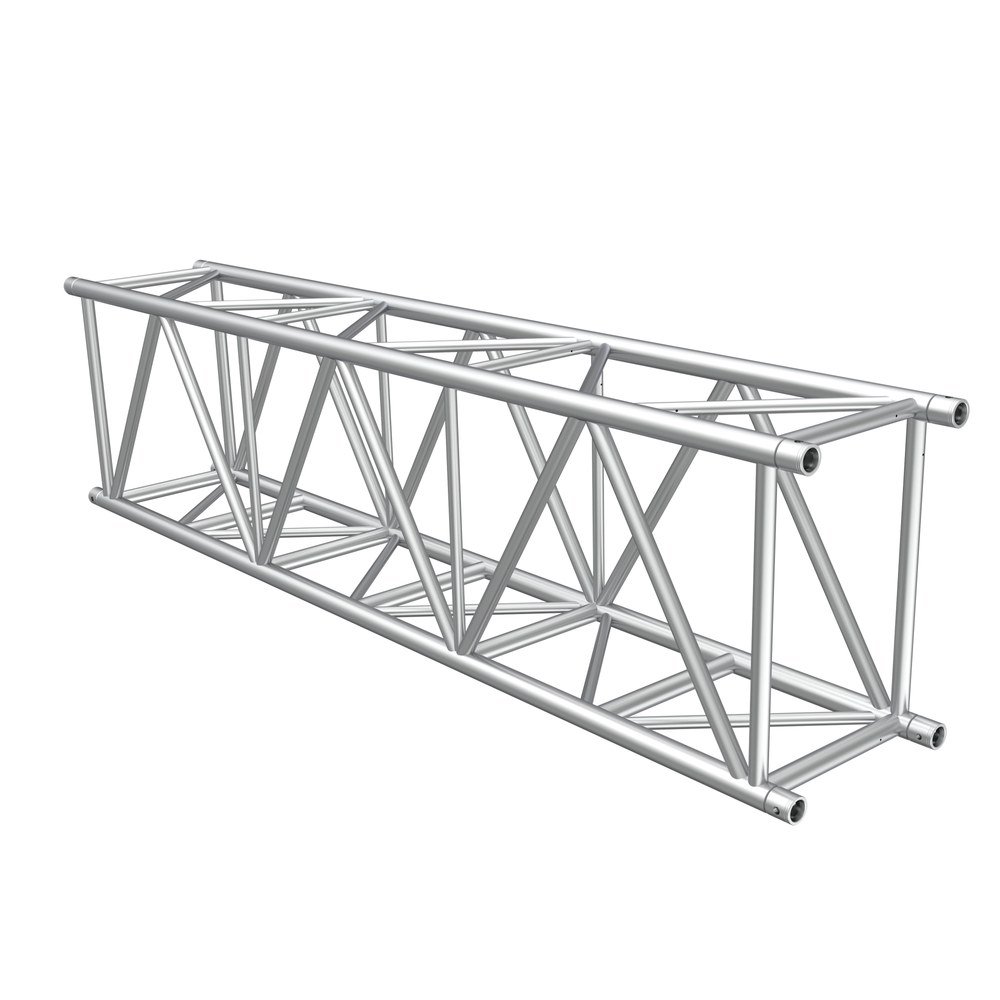

MT-EX is the extreme heavy-duty member of the MT family, engineered for large-scale, high-demand events and for applications that exceed standard heavy-duty truss limits. It keeps the 770 mm × 530 mm section and is built from Ø60 × 6 mm main tubes with Ø40 × 3 mm diagonal and brace tubes in EN AW-6082 T6 aluminium, weighing approximately 22 kg/m.

The SG-3 precision conical connection system (60 mm) and a 4-side diagonal webbing design provide maximum rigidity and efficient load distribution. The 6 mm wall thickness gives durability, resistance to transport damage and a long service life.

Download MT-EX product data sheet

Need help?

Need advice about one of our products or services? Find out contacting our Sales Team.

Contact us
German static reports DVS Zert EN 1090 EXC-3 certified
Technical Specifications – MT-EX
Height770 mm
Width530 mm
Weight~22 kg/m
Main Tube60 x 6 mm
Braces40 x 3 mm
MaterialEN-AW-6082 T6
ConnectionSg3 (60 mm)
Max. clear span36 m

Important Notes

  • Load capacities shown are applicable only to the corresponding loading tables.
  • Load values are based on static loading conditions unless otherwise specified.
  • The published load data applies to single-span configurations with supports at both ends.
  • Multi-span systems, custom structures, or special configurations require project-specific structural calculations.
  • Self-weight of the truss has already been included in the published load calculations.
  • Load ratings are valid only when the truss is installed in the orientation illustrated in the loading tables.
  • Connection forces and bending moments at joints are considered within the specified loading data.
  • Truss systems can be assembled using different standard section lengths to achieve the required span.
  • All installations should be carried out by qualified professionals in accordance with applicable safety standards and local regulations.
  • Always inspect truss components before use and replace any damaged parts immediately.
  • Refer to the Installation & Assembly Manual before assembly, rigging, or loading the truss.
  • For complex structures or critical applications, consult a qualified structural engineer before installation.

Advantages – MT-EX

  • 36 m Clear Span
  • Ø60 × 6 mm Main Tubes
  • Ø40 mm Diagonals and Braces
  • SG-3 Precision Conical Connection
  • Compatible with SST-40R Towers
  • Powder Coating in Any RAL Colour
