HD48R

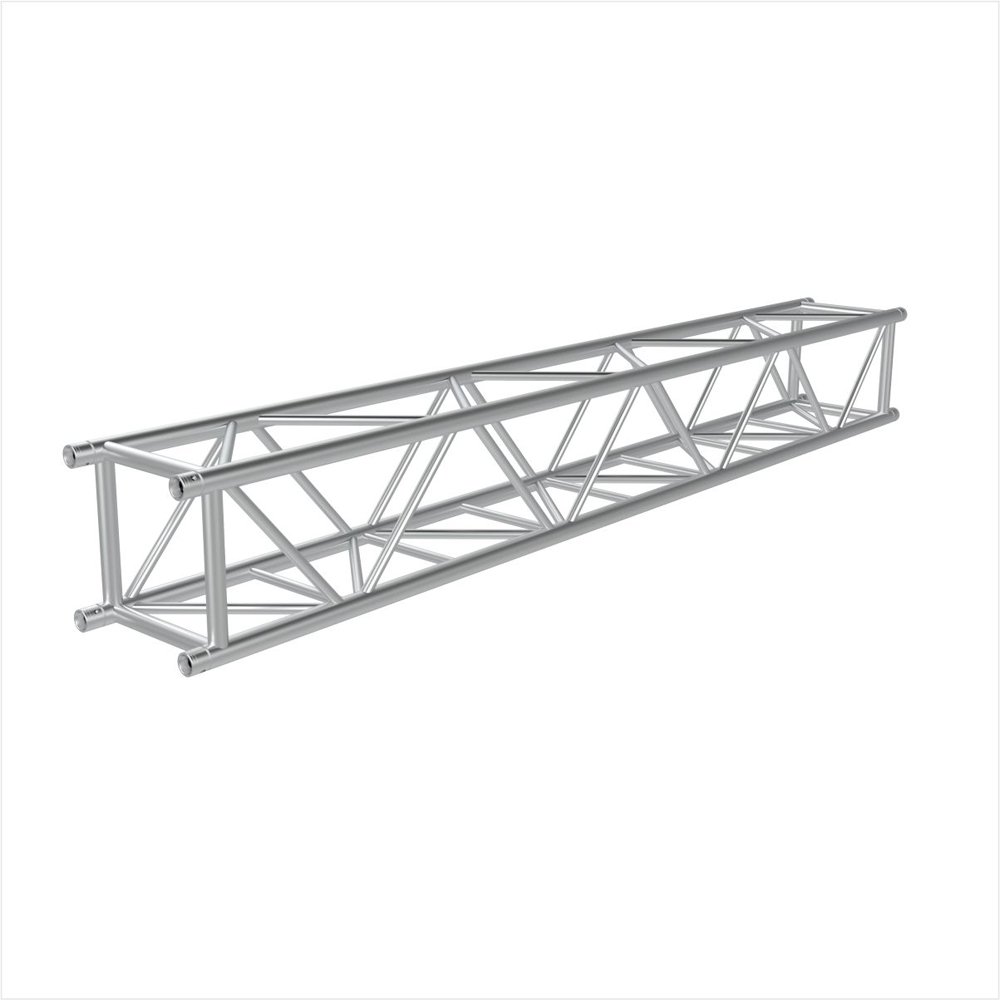

HD48R is the reinforced profile of the HD48 range: a 480 mm square aluminium truss built from Ø60 × 6 mm main tubes with internal bracing and 30 × 3 mm braces in EN AW-6082 T6 aluminium. It weighs approximately 26 kg/m and uses the Sg3 (60 mm) connection system. It is designed for higher-load and reinforced applications such as DT-EX and the DDR86 reinforced roof systems, where the 6 mm wall thickness is used for maximum strength.
The HD48 range covers medium to extra heavy-duty applications with the HD48R, HD48 and LD48 profiles, all 480 mm square with Ø60 mm main tubes and internal bracing.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – HD48R | |
|---|---|
| Height | 480 mm |
| Width | 480 mm |
| Weight | ~26 kg/m |
| Main Tube | 60 x 6 mm |
| Braces | 30 x 3 mm |
| Material | EN-AW-6082 T6 |
| Connection | Sg3 (60 mm) |
Important Notes
- Load capacities shown are applicable only to the corresponding loading tables.
- Load values are based on static loading conditions unless otherwise specified.
- The published load data applies to single-span configurations with supports at both ends.
- Multi-span systems, custom structures, or special configurations require project-specific structural calculations.
- Self-weight of the truss has already been included in the published load calculations.
- Load ratings are valid only when the truss is installed in the orientation illustrated in the loading tables.
- Connection forces and bending moments at joints are considered within the specified loading data.
- Truss systems can be assembled using different standard section lengths to achieve the required span.
- All installations should be carried out by qualified professionals in accordance with applicable safety standards and local regulations.
- Always inspect truss components before use and replace any damaged parts immediately.
- Refer to the Installation & Assembly Manual before assembly, rigging, or loading the truss.
- For complex structures or critical applications, consult a qualified structural engineer before installation.
Advantages – HD48R
- Ø60 × 6 mm Main Tubes
- Internal Bracing
- 480 mm Square Section
- Sg3 (60 mm) Connection
- For Higher-Load Towers
