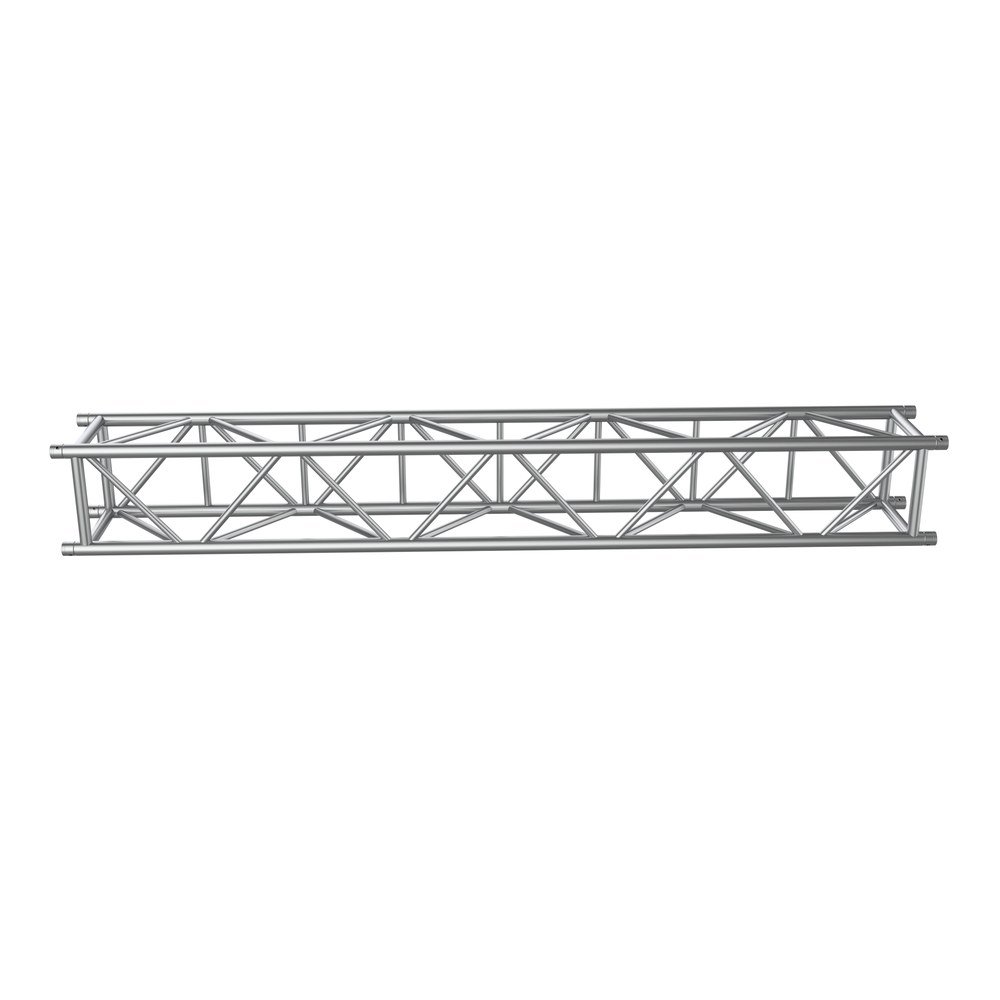

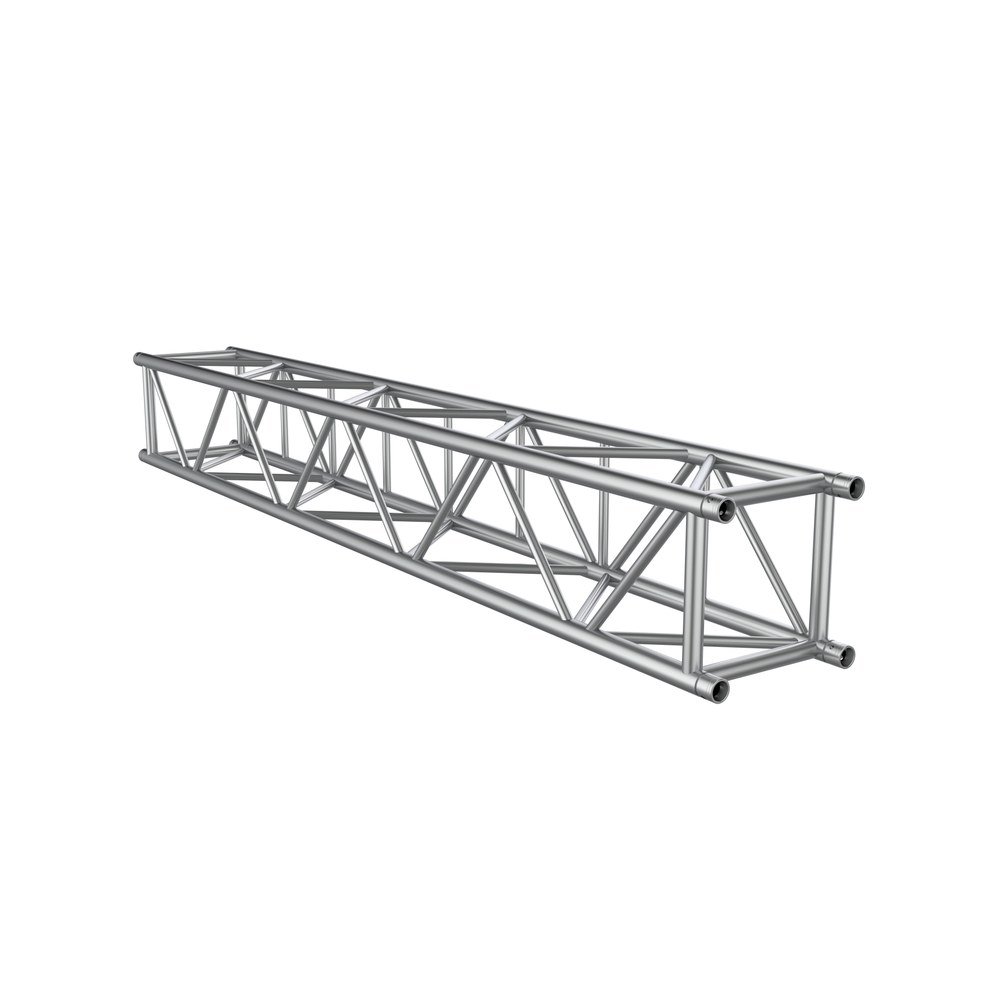

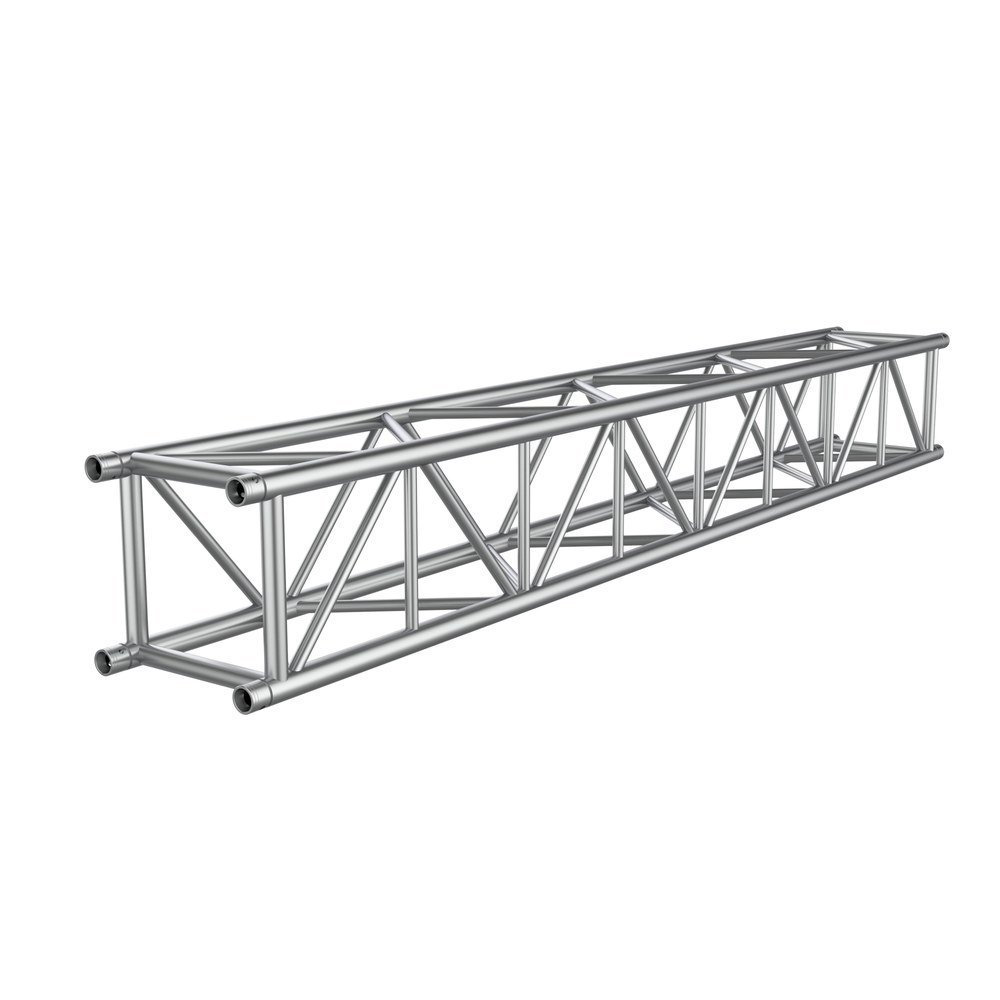

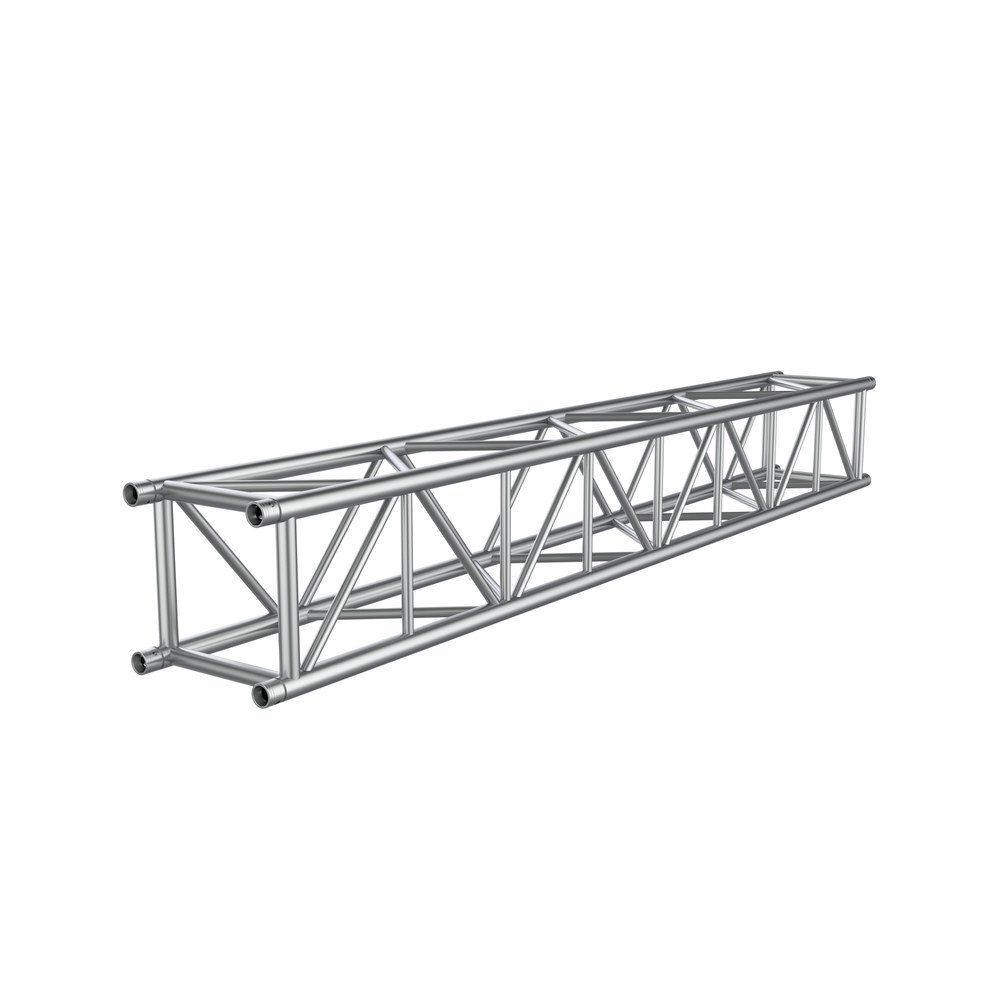

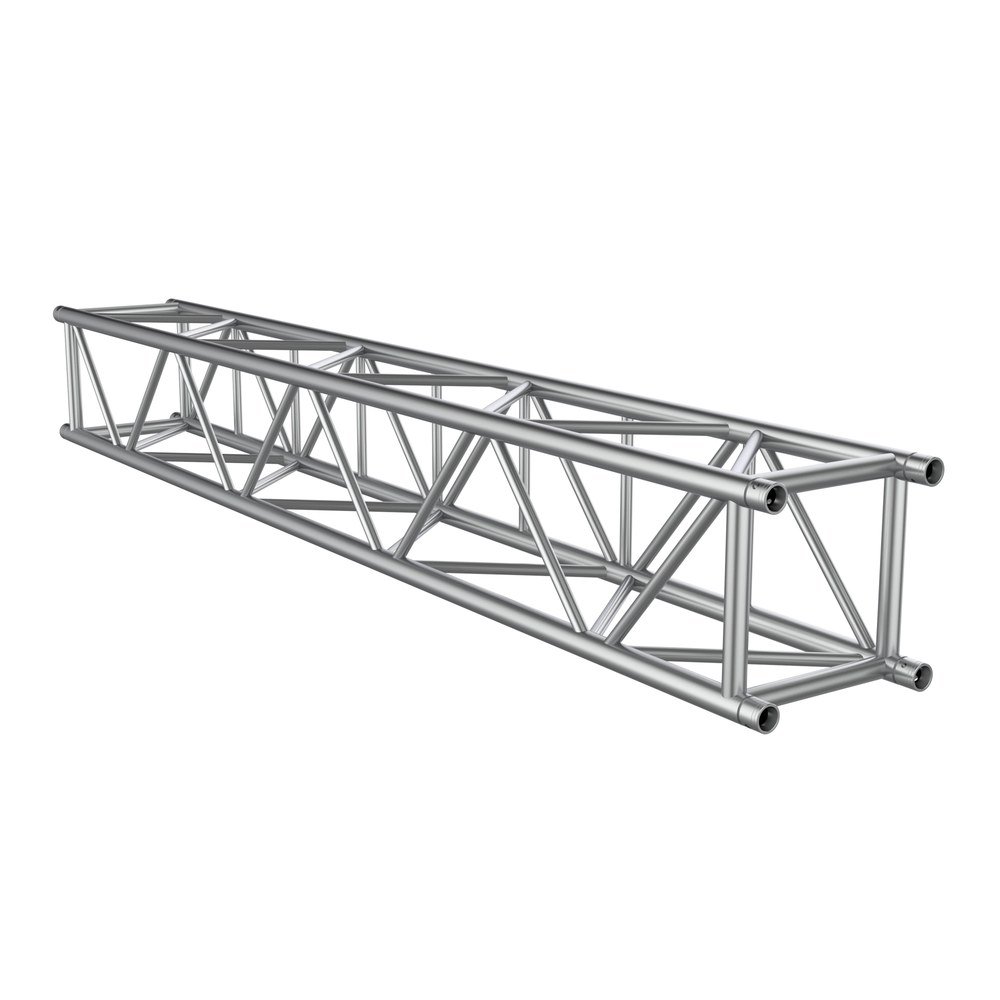

HD40

Important Notes

• Load capacities shown are applicable only to the corresponding loading tables.
• Load values are based on static loading conditions unless otherwise specified.
• The published load data applies to single-span configurations with supports at both ends.
• Multi-span systems, custom structures, or special configurations require project-specific structural calculations.
• Self-weight of the truss has already been included in the published load calculations.
• Load ratings are valid only when the truss is installed in the orientation illustrated in the loading tables.
• Connection forces and bending moments at joints are considered within the specified loading data.
• Truss systems can be assembled using different standard section lengths to achieve the required span.
• All installations should be carried out by qualified professionals in accordance with applicable safety standards and local regulations.
• Always inspect truss components before use and replace any damaged parts immediately.
• Refer to the Installation & Assembly Manual before assembly, rigging, or loading the truss.
• For complex structures or critical applications, consult a qualified structural engineer before installation.
