CBVC-1

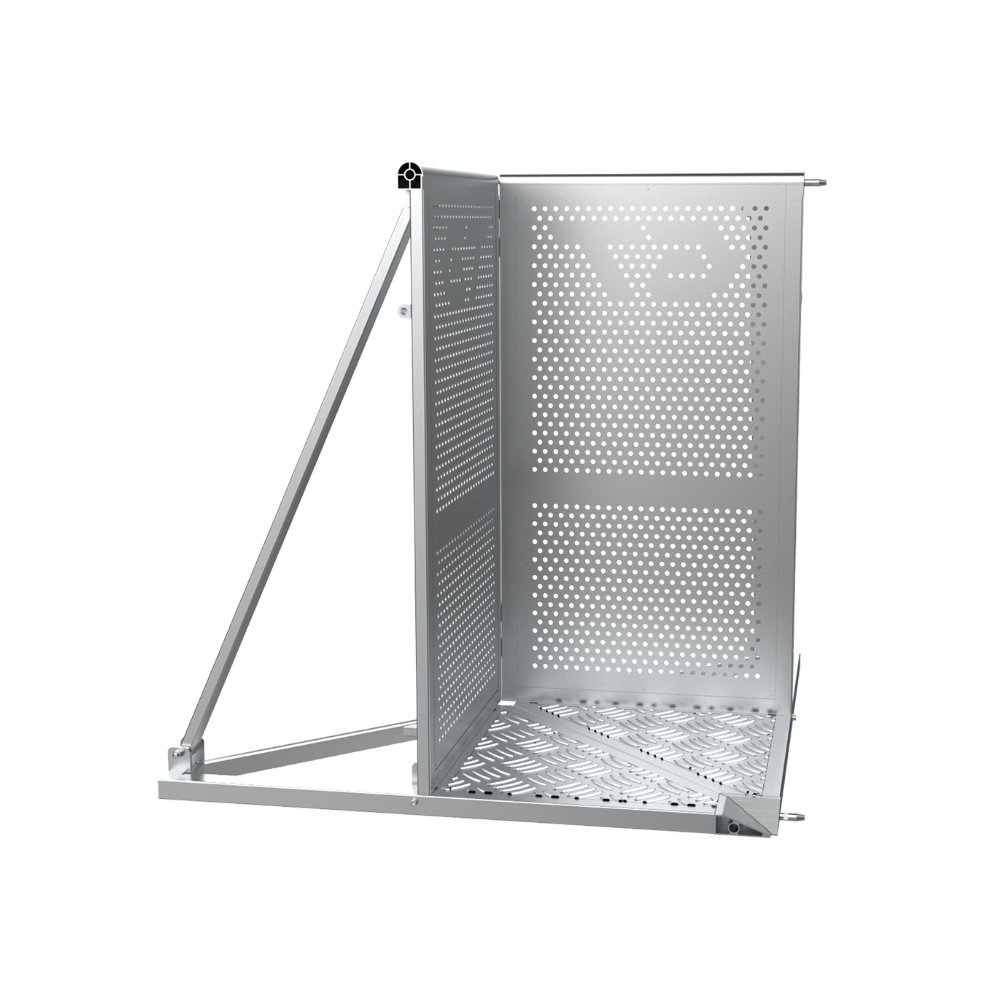

The CBVC-1 Variable Corner Barrier is an adjustable corner solution for changing the direction of a crowd barrier line at any angle from 90° to 270°. It integrates with standard Giant Truss barricade sections and is suitable for both inside and outside corner applications.
Inlay plates are available for fixed 90° and 135° configurations, and the corner can also be used without inlay plates for free-angle positioning. Its heavy-duty construction provides effective load distribution. The CBVC-1 measures 1200 mm high, 1304 mm wide and 1150 mm deep, is made from EN AW-6082 T6 aluminium and connects with a bolt-and-nut connection set.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – CBVC-1 | |
|---|---|
| Height | 1200 mm |
| Width | 1304 mm |
| Depth | 1150 mm |
| Material | EN AW-6082 T6 |
| Connection | Connection set (bolts and nuts) |
Advantages – CBVC-1
- Adjustable 90° to 270°
- Inside and Outside Corners
- Inlay Plates For 90° and 135°
- Free-Angle Positioning
- Heavy-Duty Load Distribution
- Integrates With Standard Sections
