CBS-1

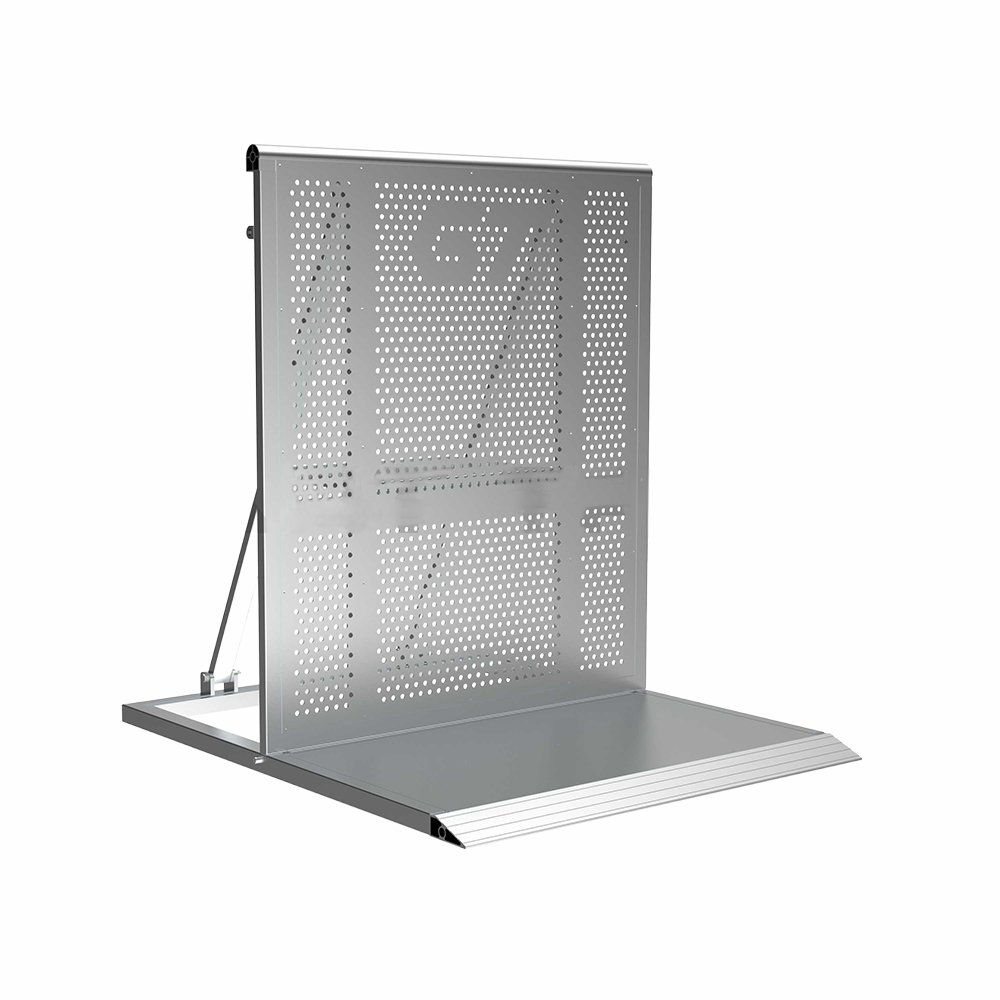

The CBS-1 Straight Crowd Barrier is the standard section of the Giant Truss aluminium crowd control system, designed for concerts, festivals, exhibitions and public events. It has a smooth top rail and rounded profiles for safety and comfort, and a secure interconnection system for fast, stable assembly of long barrier runs.
Each section measures 1200 mm high, 1000 mm wide and 1200 mm deep and is made from EN AW-6082 T6 aluminium, joined with a bolt-and-nut connection set. It is rated for a horizontal load of 300 kg/m applied at the upper horizontal tube and a vertical uniformly distributed load of 750 kg/m².
Download
CBS-1 product data sheet
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – CBS-1 | |
|---|---|
| Height | 1200 mm |
| Width | 1000 mm |
| Depth | 1200 mm |
| Material | EN AW-6082 T6 |
| Connection | Connection set (bolts and nuts) |
| Horizontal load | 300 kg/m applied at the upper horizontal tube |
| Vertical load (UDL) | 750 kg/m² |
Advantages – CBS-1
- 300 kg/m Horizontal Load
- 750 kg/m² Vertical UDL
- Smooth Top Rail, Rounded Profiles
- Secure Interconnection System
- Working Platform For Security
- Folds Flat For Transport
