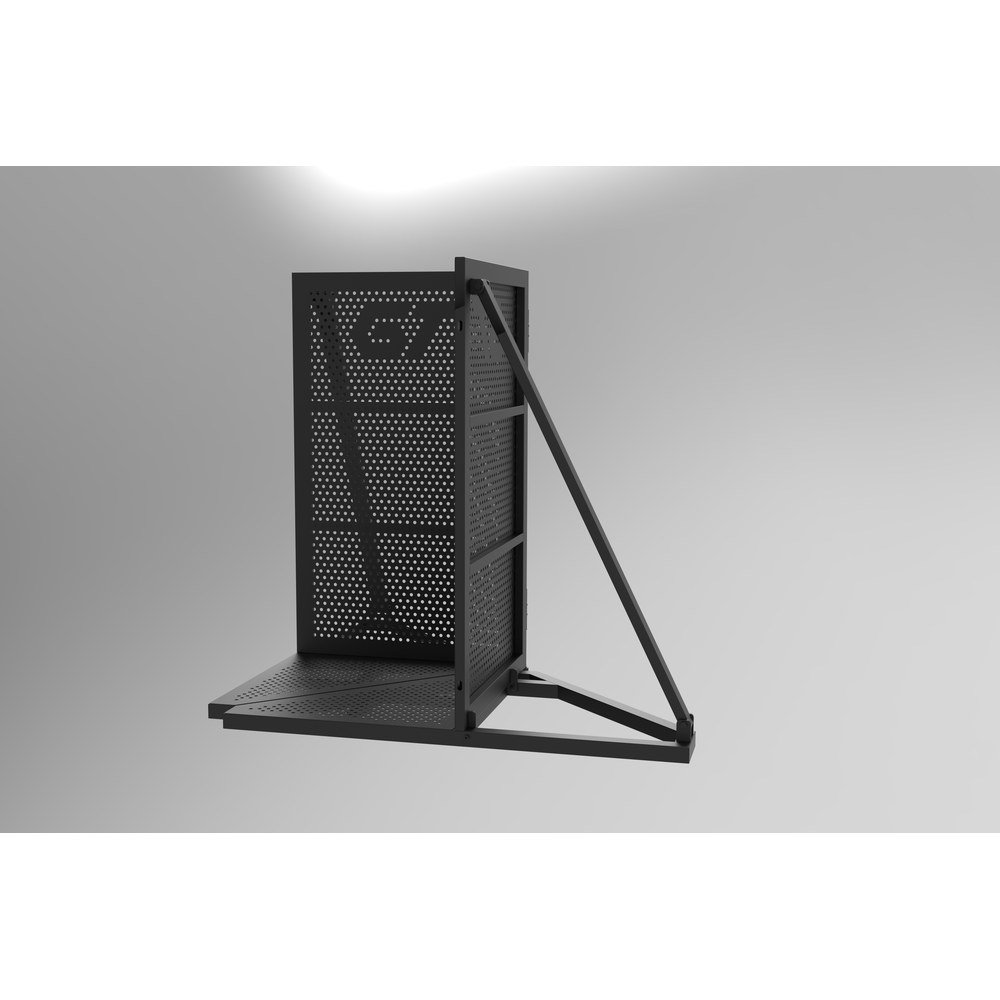

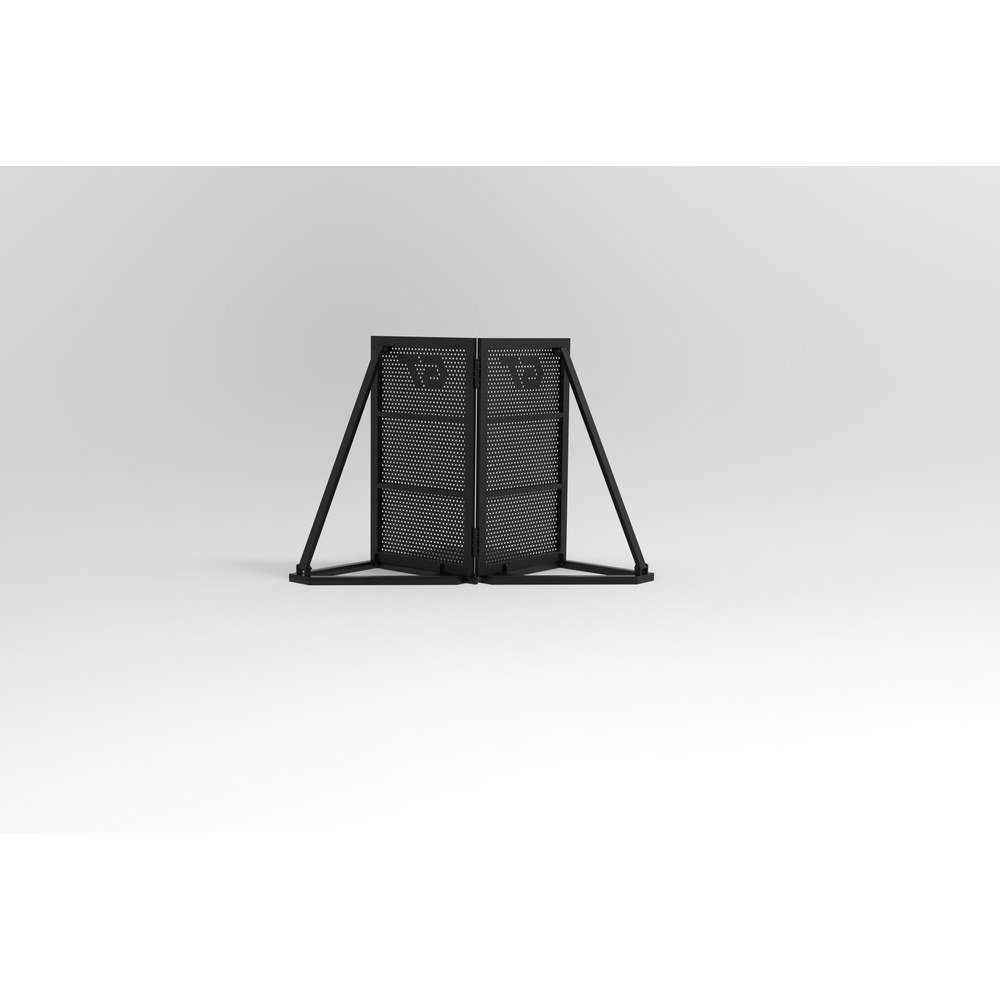

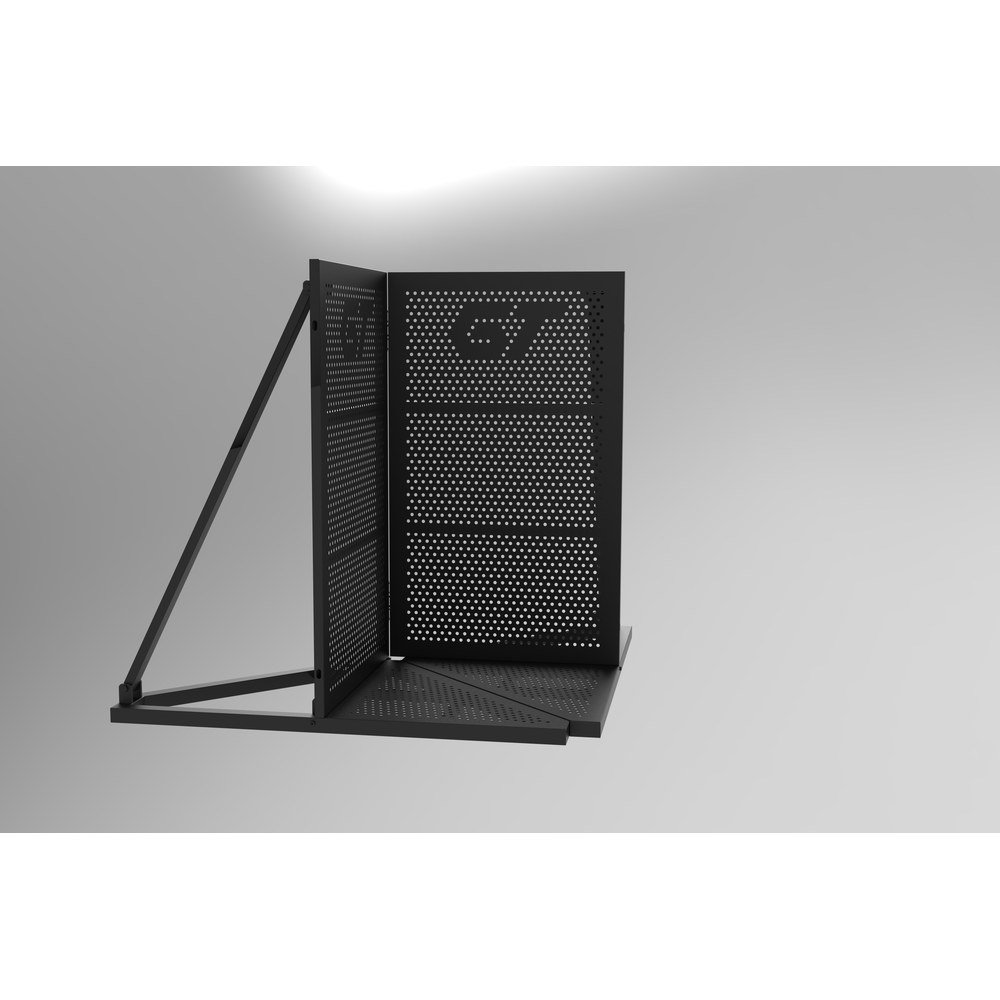

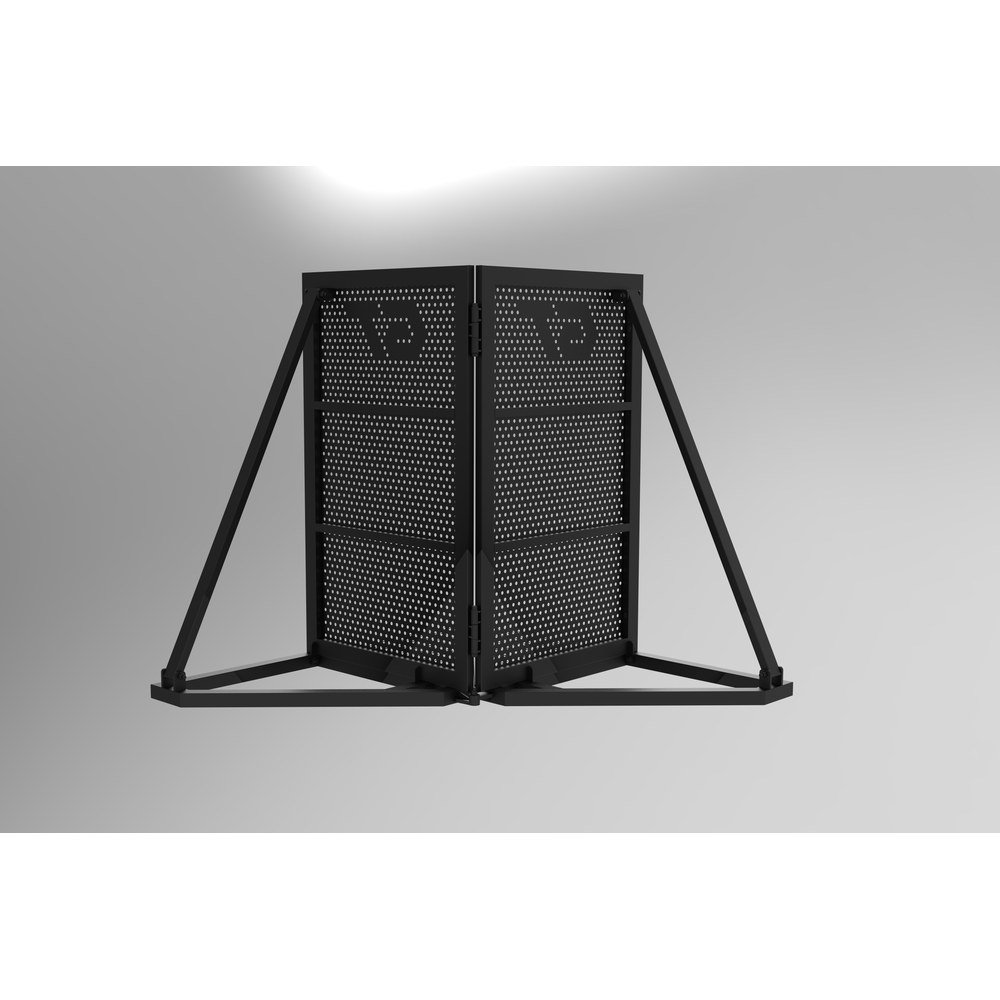

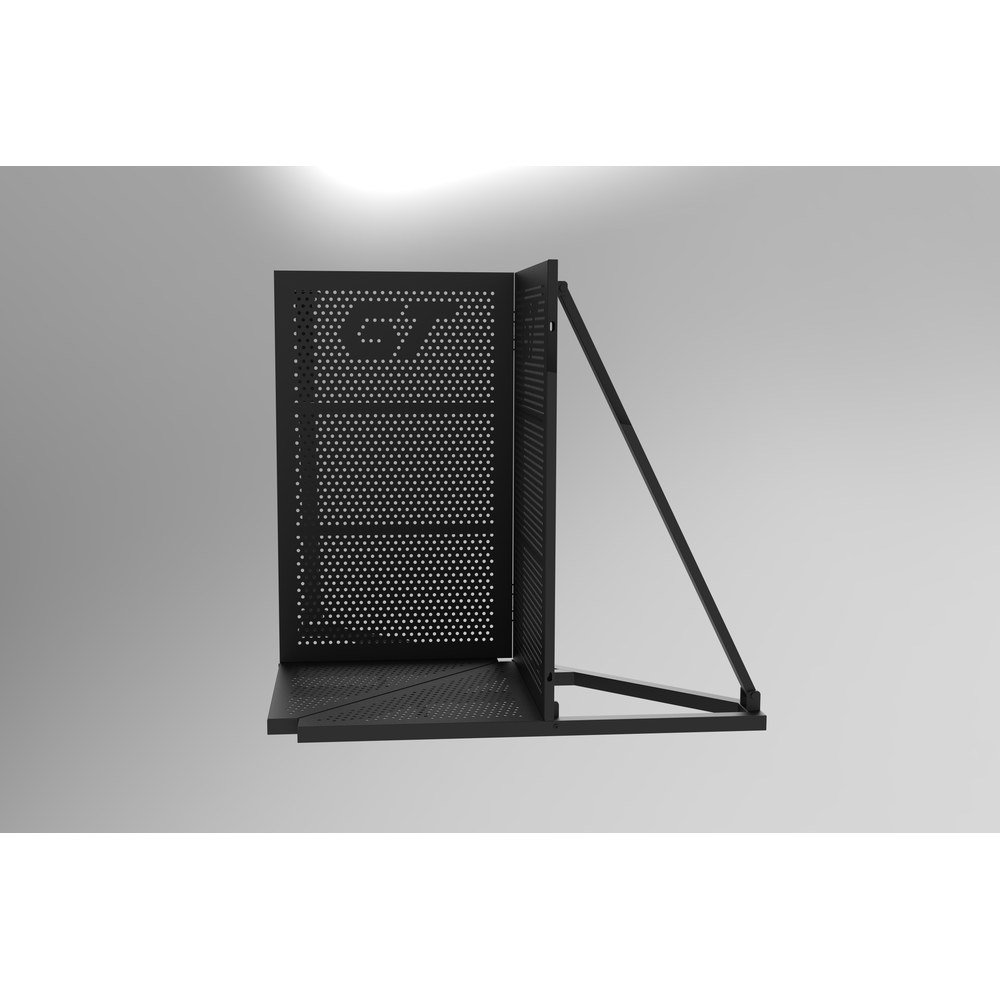

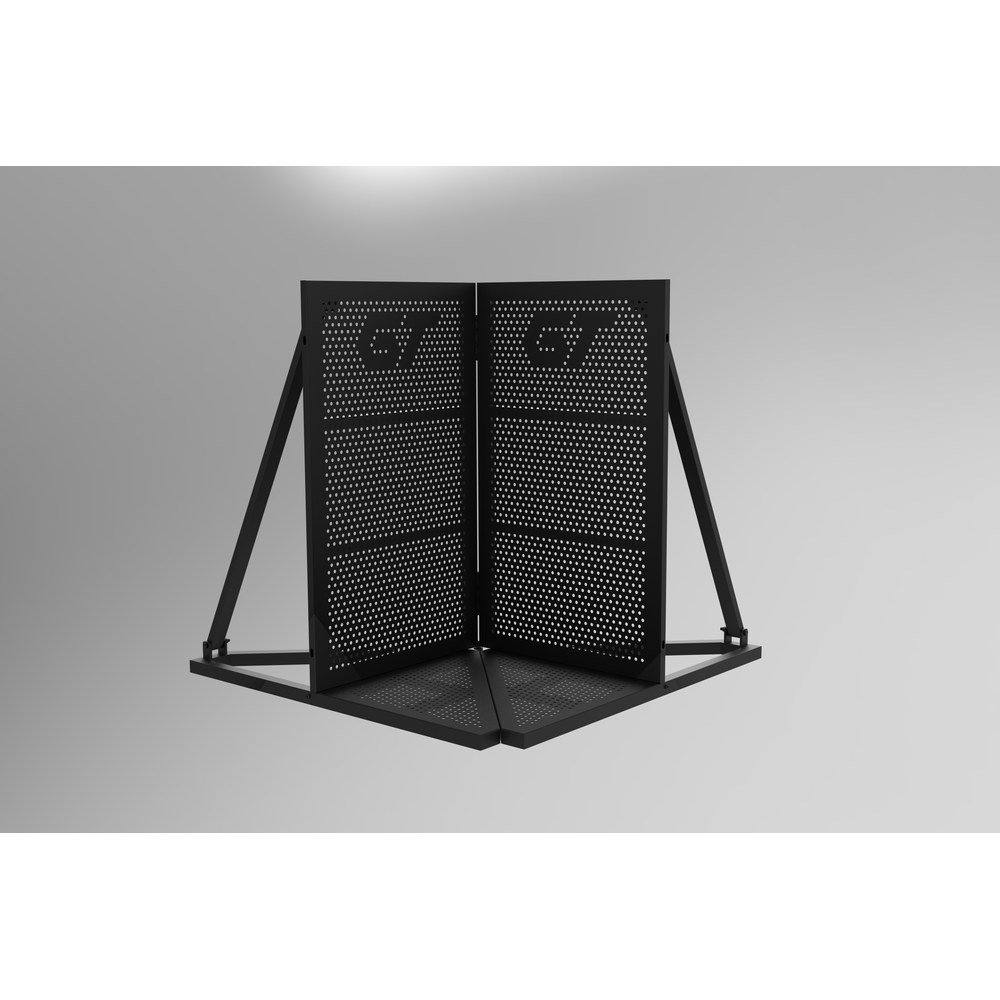

STEEL CORNER 90 TO 270 BARRICADE
The CBVCMS-1 Steel Variable Corner Barrier is an adjustable corner section that turns a crowd barrier line through any angle from 90° to 270°. It integrates with standard Giant Truss barricade sections and is suitable for both inside and outside corners around stages, pits and irregular layouts.
Inlay plates are available for fixed 90° and 135° configurations, and the corner can also be used without inlay plates for free-angle positioning. Heavy-duty construction provides effective load distribution. The section measures 1200 mm high, 1304 mm wide and 1150 mm deep and connects with a bolt-and-nut connection set.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – STEEL CORNER 90 TO 270 BARRICADE | |
|---|---|
| Model | CBVCMS-1 |
| Height | 1200 mm |
| Width | 1304 mm |
| Depth | 1150 mm |
| Material | EN AW-6082 T6 (as printed) |
| Connection | Connection set (bolts and nuts) |
Advantages – STEEL CORNER 90 TO 270 BARRICADE
- Adjustable 90° to 270°
- Inside and Outside Corners
- Inlay Plates For 90° and 135°
- Free-Angle Positioning
- Heavy-Duty Load Distribution
No downloads are available for this product yet. Contact our sales team for details.
