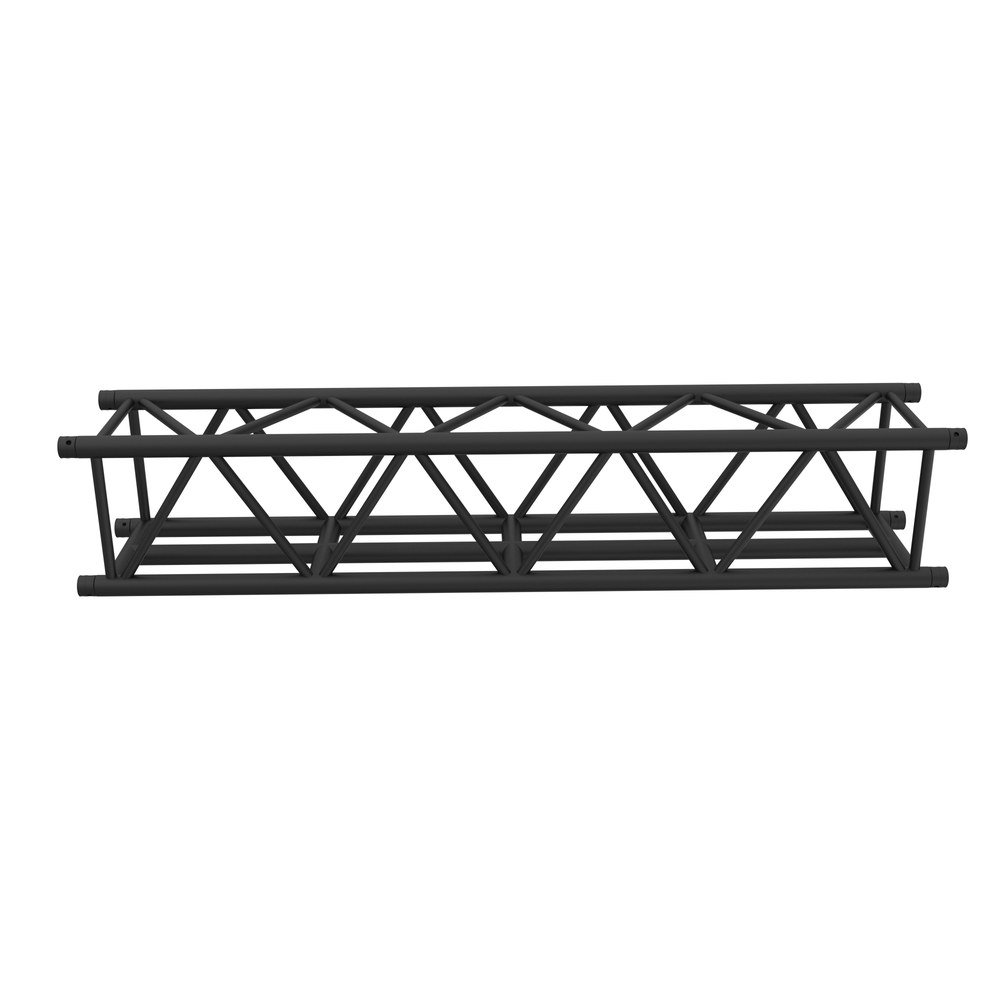

LMTT40

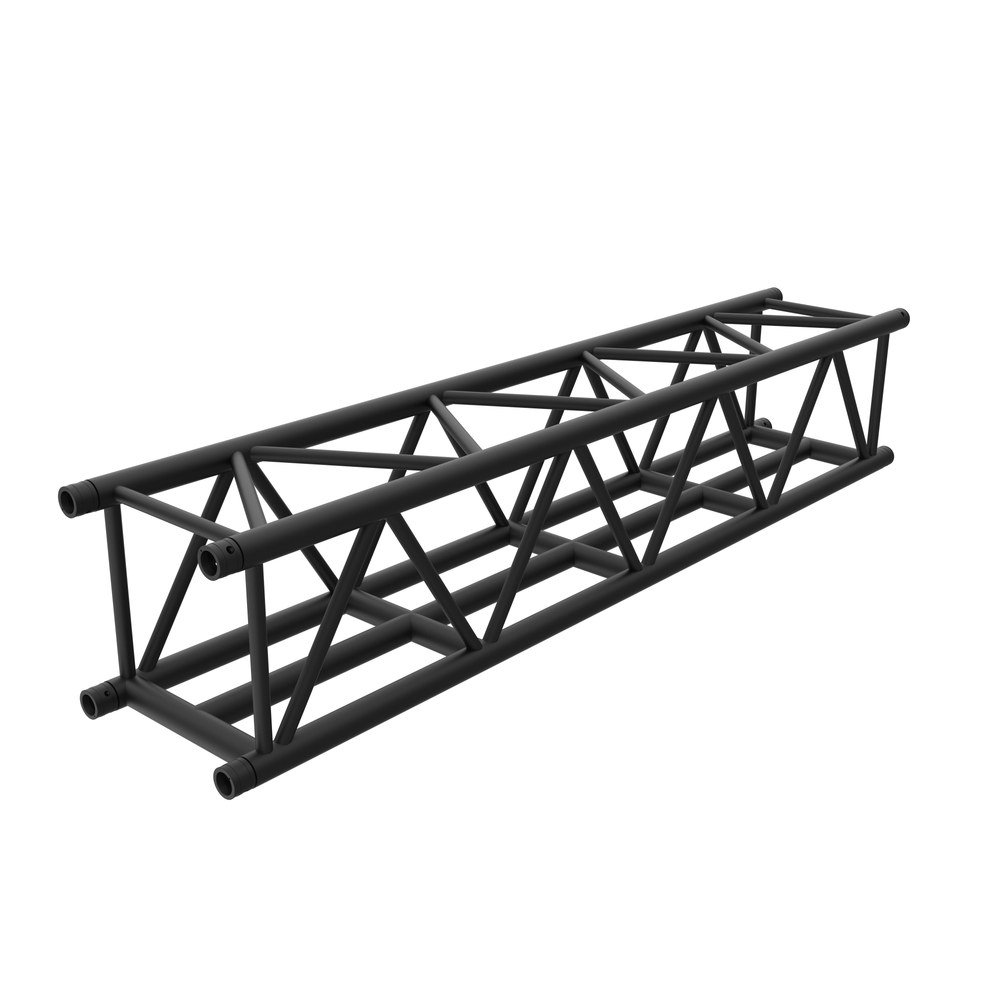

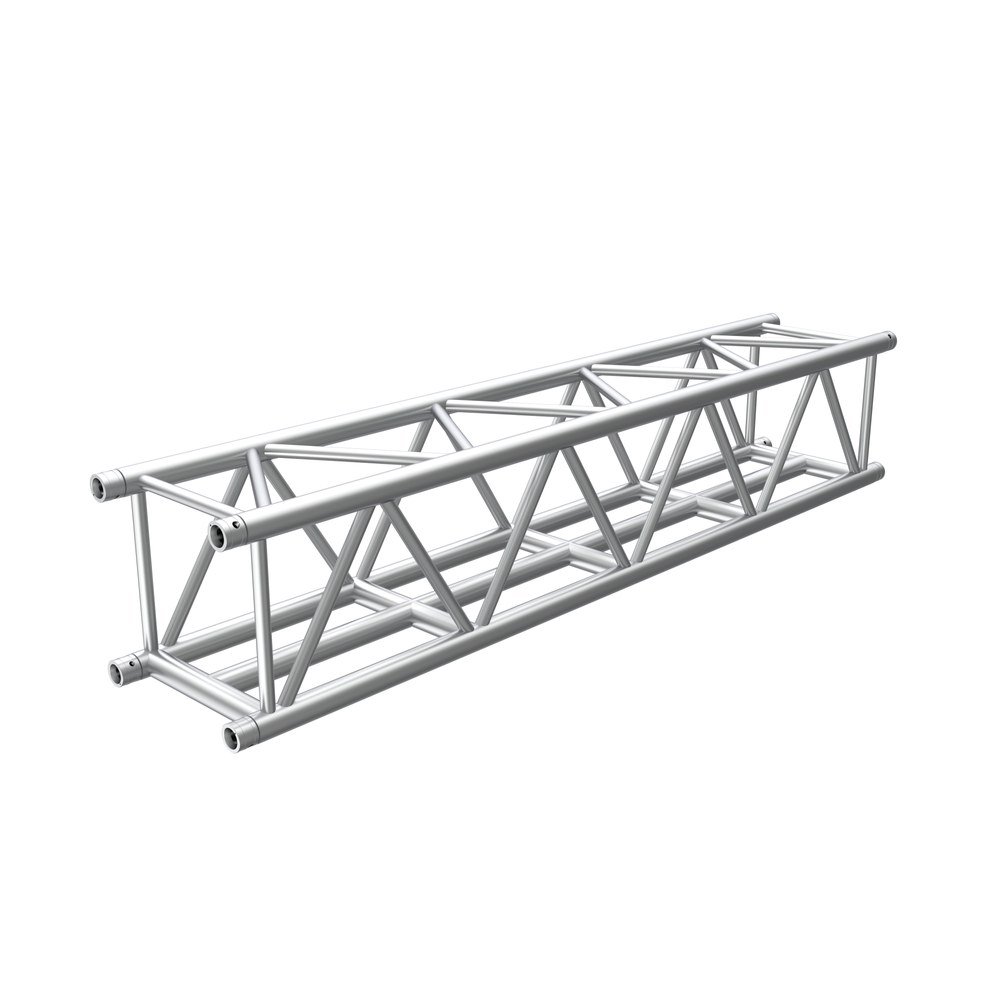

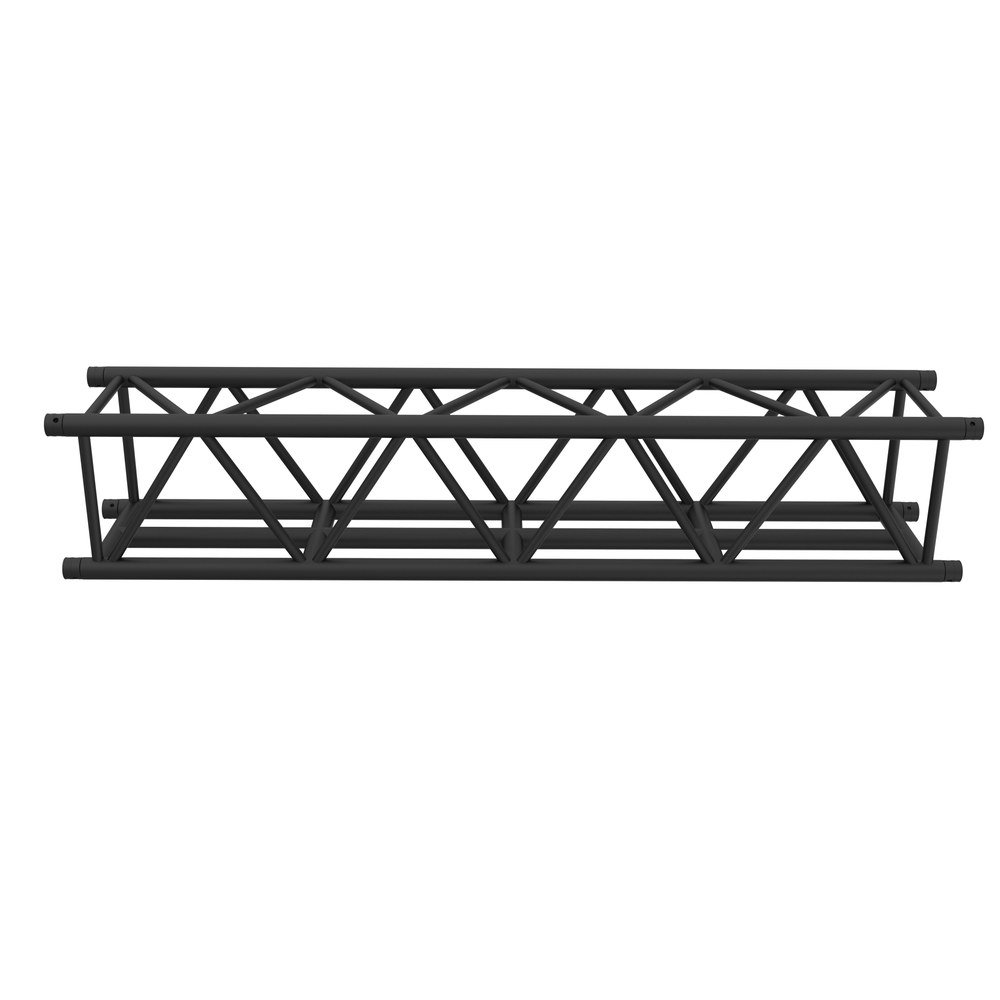

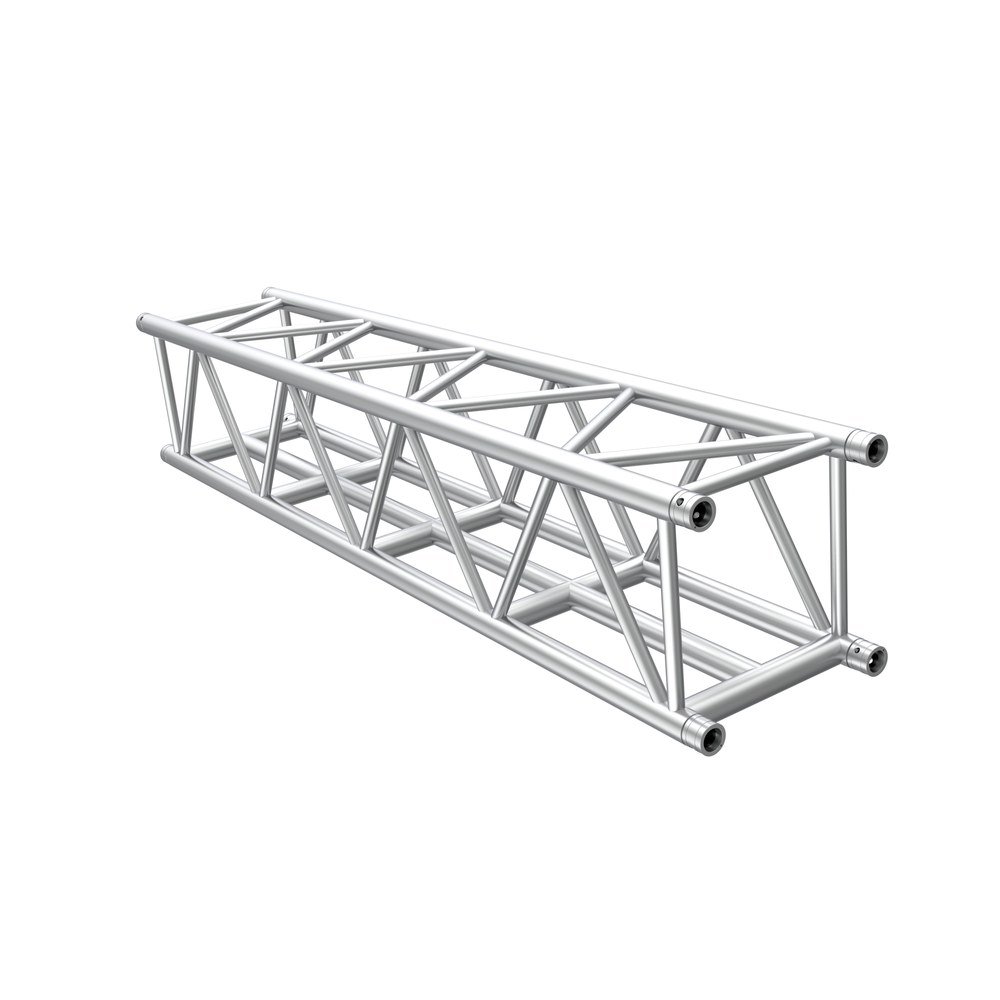

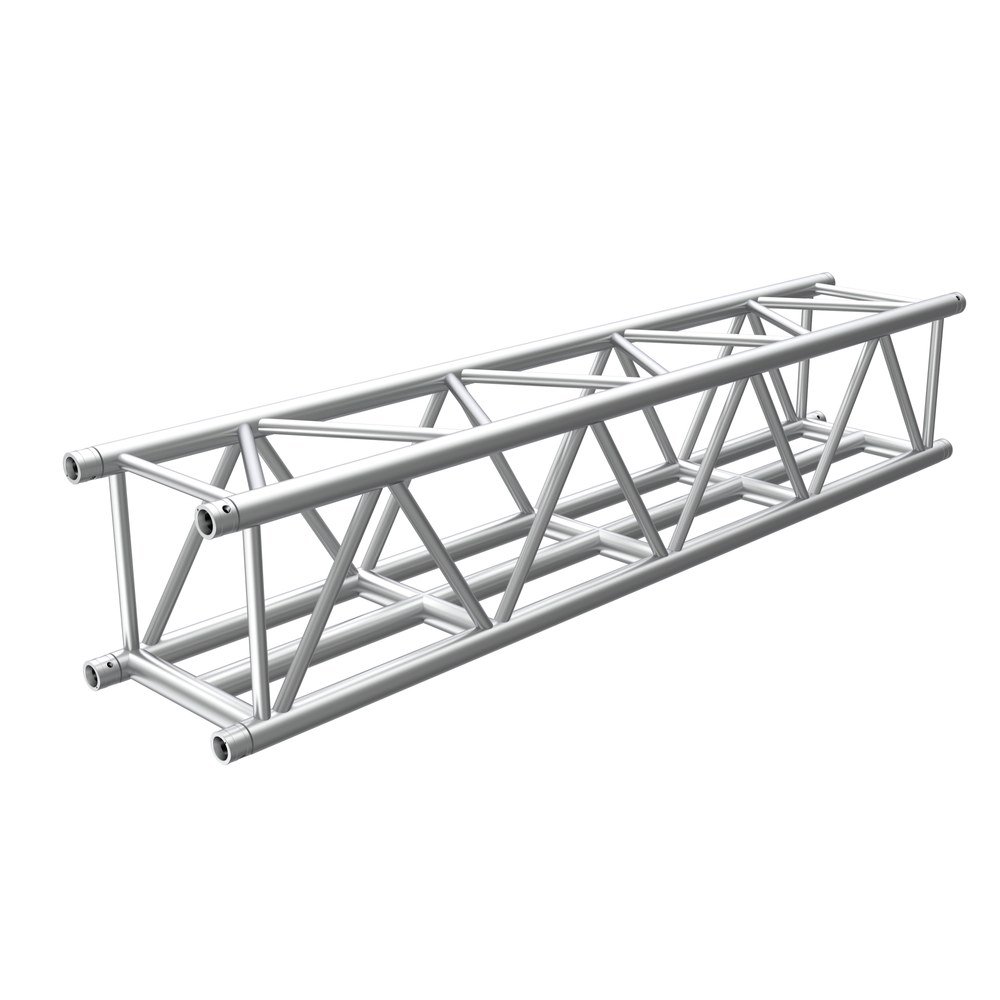

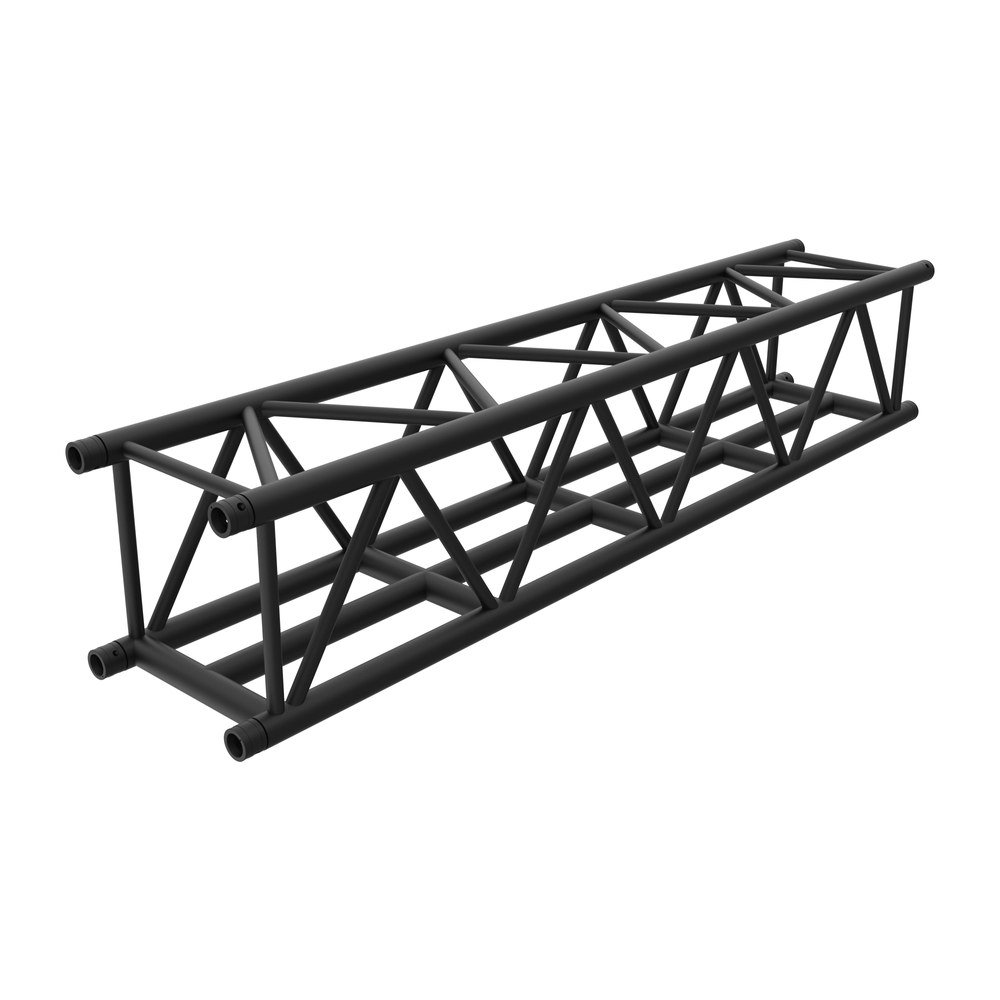

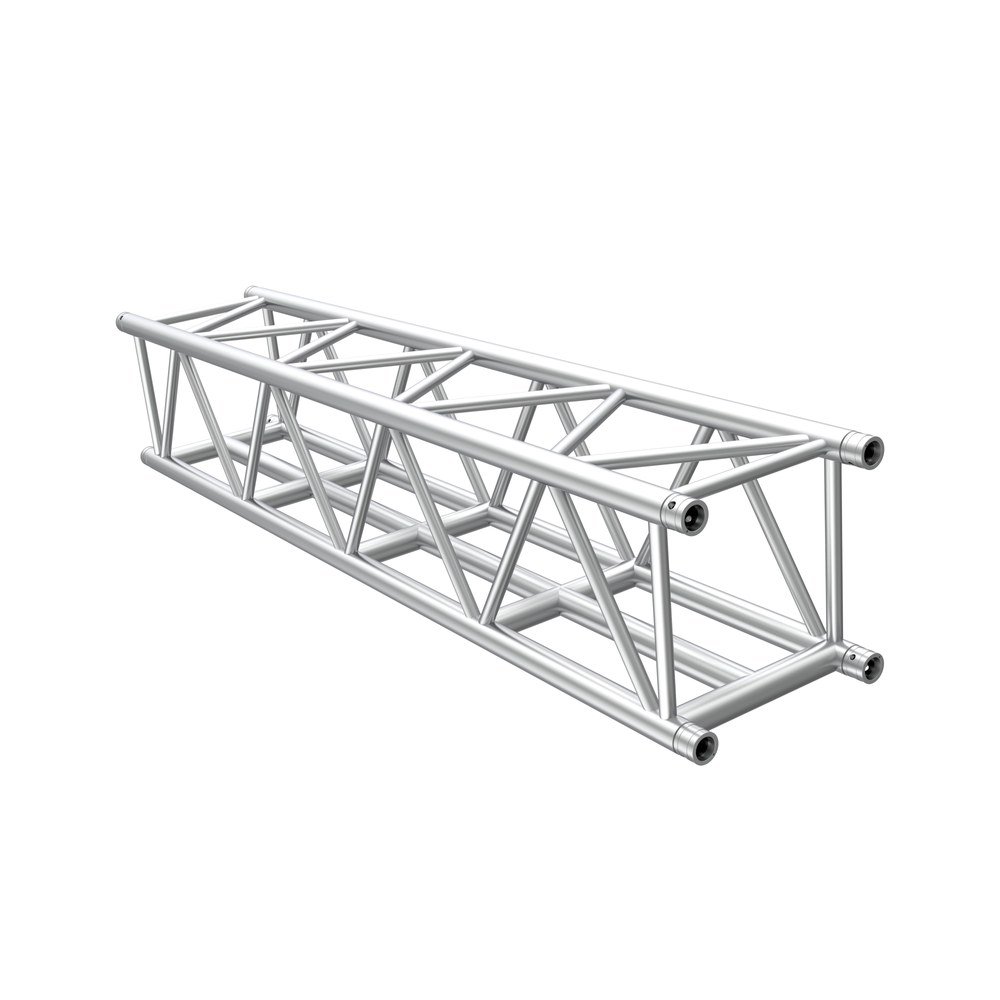

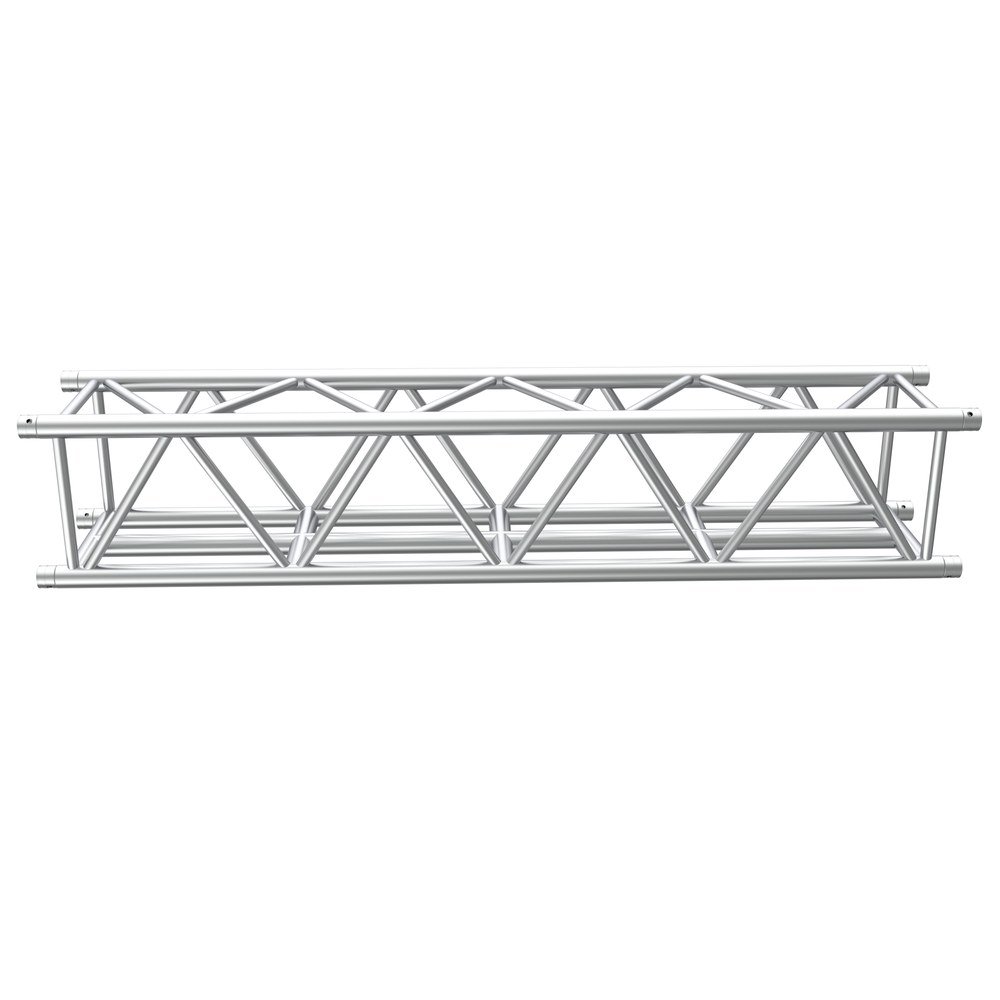

LMTT40 is a five-tube LED suspension truss designed specifically for the safe suspension of LED display systems in professional event and exhibition applications. It has a 400 mm × 400 mm section with 50 × 4 mm main tubes and 25 × 3 mm braces in EN AW-6082 T6 aluminium, weighs approximately 12 kg/m and uses the Sg2 (50 mm) connection with a diagonal pin position.
An integrated central support member allows loads to be applied in a controlled and balanced manner, improving overall structural stability. Keeping the primary load aligned with the centre of the truss helps reduce torsional stress and uneven loading, giving predictable performance under load.
Need help?
Need advice about one of our products or services? Find out contacting our Sales Team.
Contact us
| Technical Specifications – LMTT40 | |
|---|---|
| Height | 400 mm |
| Width | 400 mm |
| Main Tube | 50 x 4 mm |
| Braces | 25 x 3 mm |
| Weight | ~12 kg/m |
| Pin Position | Diagonal |
| Material | EN AW-6082 T6 |
| Connection | Sg2 (50 mm) |
Important Notes
- Load capacities shown are applicable only to the corresponding loading tables.
- Load values are based on static loading conditions unless otherwise specified.
- The published load data applies to single-span configurations with supports at both ends.
- Multi-span systems, custom structures, or special configurations require project-specific structural calculations.
- Self-weight of the truss has already been included in the published load calculations.
- Load ratings are valid only when the truss is installed in the orientation illustrated in the loading tables.
- Connection forces and bending moments at joints are considered within the specified loading data.
- Truss systems can be assembled using different standard section lengths to achieve the required span.
- All installations should be carried out by qualified professionals in accordance with applicable safety standards and local regulations.
- Always inspect truss components before use and replace any damaged parts immediately.
- Refer to the Installation & Assembly Manual before assembly, rigging, or loading the truss.
- For complex structures or critical applications, consult a qualified structural engineer before installation.
Advantages – LMTT40
- Integrated Central Support Member
- Centre-Aligned Load Path
- Reduced Torsional Stress
- Integrates with Standard Truss Grids
- Diagonal Pin Position
No downloads are available for this product yet. Contact our sales team for details.
