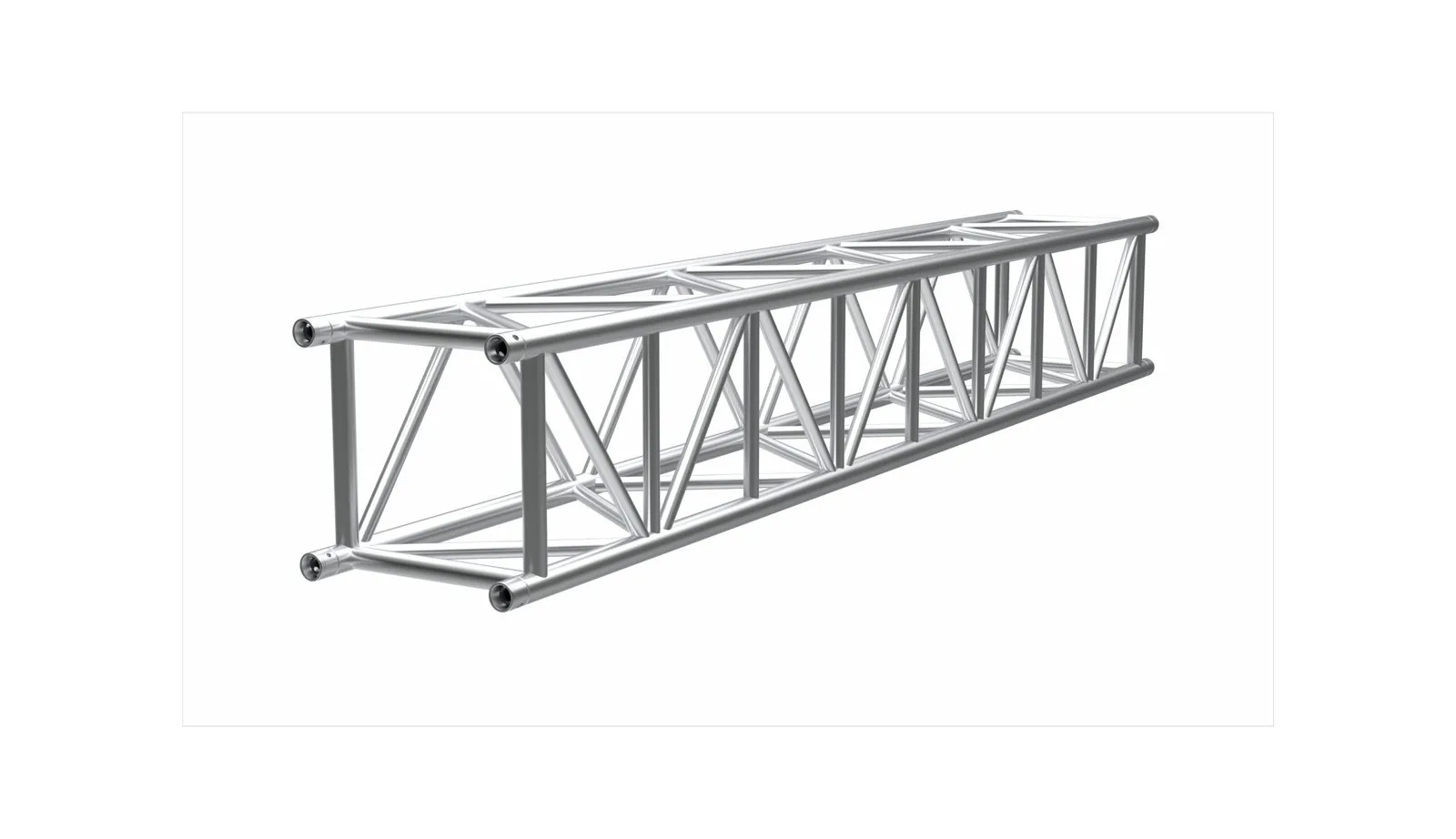

LD 45
⦁ Build for extreme heights and loads
⦁ Up to 20 meters (66ft.)
• Tolerance-free conical connector
• High stability aluminum alloy
• Excellent load-bearing capacity
• Low dead weight
• High wear resistance
• 4mm wall thickness of 50mm main tube
⦁ Extreme strength for extreme circumstances
⦁ Ideal for outdoor or 3-dimensional constructions
⦁ Smart orientation free connection
⦁ Fast and easy to assemble
Giant Truss adds to the existing LD-40 and MT-W Tower System. This tower is designed for extreme heights and high loads.
The LD-40 Tower System in combination with MT-W Truss can go up 20 meters and handle 8000 kg.
Technical Specifications
| Height | 450mm |
| Width | 450mm |
| Weight | 14kg/m |
| Main Tube | 50x4mm |
| Sub Tube | 30x3mm |
| Braces | 30x3mm |
| Material | EN-AW-6082 T6 |
| Connection | SG2 |
Compatibility
Corner Block
Electric Hoist
Base Sheet
Related Pictures
| Color |
Black ,White |
|---|
