JT H
PROFESSIONAL EVENT SYSTEM
JT H is a Giant Truss structural product for professional staging, lighting, rigging and temporary event applications.
- Project-specific platform layouts
- 3D design and engineering support
- Built for professional event workflows
Share your required dimensions, venue details and event date for faster planning.
WHY GIANT TRUSS SYSTEMS
A technical system planned around your project
From the first brief to installation support, Giant Truss helps turn project requirements into a practical, well-coordinated event-system solution.
01
Project-specific layouts
System requirements can be planned around the venue, event format and production workflow.
02
3D design assistance
Detailed layouts help visualise the planned structure and confirm requirements before implementation.
03
Engineering support
Structural reports and static calculations can be supplied with engineering partners where required.
04
Implementation guidance
Support from product planning through to installation guidance for the planned event setup.
GET A FASTER, BETTER QUOTE
Send the key project details with your enquiry
A clear brief helps the Giant Truss team understand the required configuration and respond with a more relevant Giant Truss solution.
Product Overview
JT H is a Giant Truss structural product for professional staging, lighting, rigging and temporary event applications. It is designed to integrate with the compatible Giant Truss system components and the published technical data retained below.

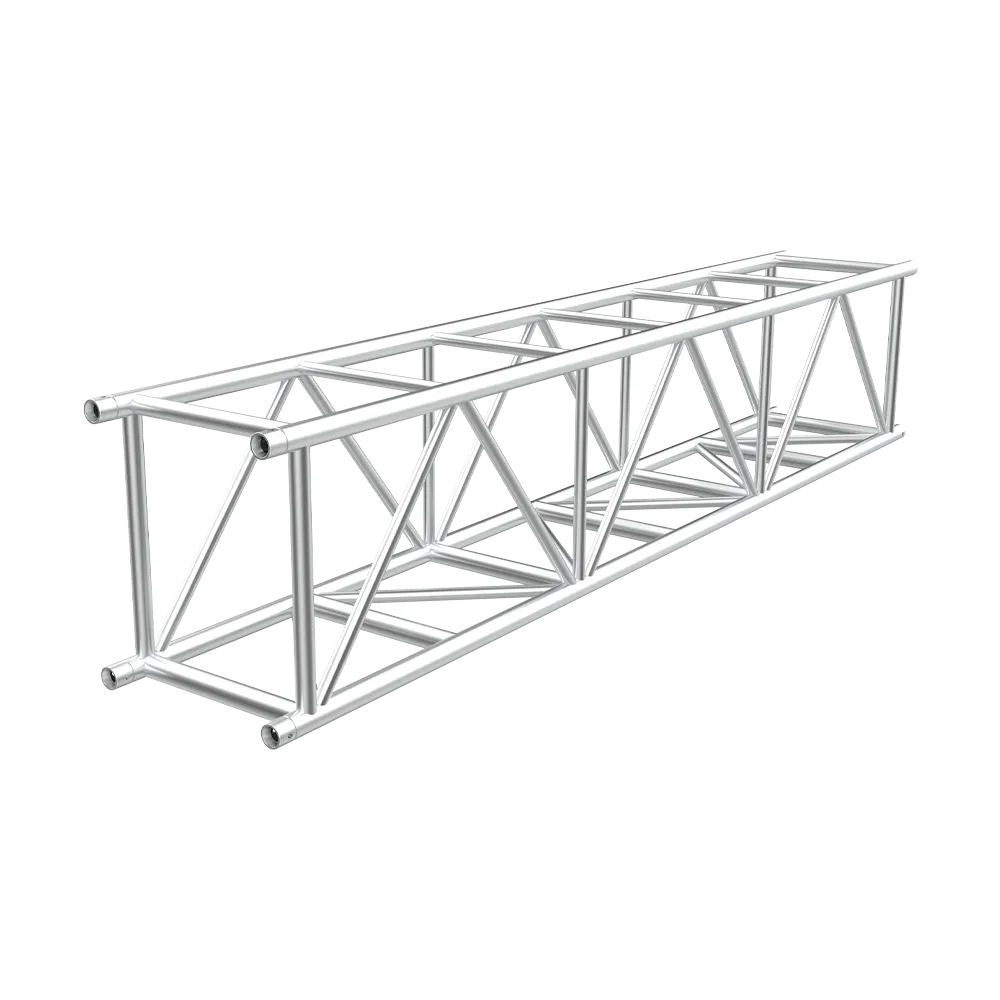

JT-H Truss is constructed of main tube (50mm x 3mm) and diagonals (30mm x 3mm) with uses the SG-2 connections system. Hence it can be used up to 60 ft free span with high load bearing capacity.
JT-H has 3-side diagonal webbing and can hold the weight upto greater strength. The supported tower system (SST-38) along with JT-H allows you to save space while transporting due to standard size variation we considered with the smart placing of the hinges and connection system it reduces the risk of hand and finger injuries. Assembly of truss is easy.
Technical Specifications
Load Chart
Technical Specifications
| Height | 600mm |
| Width | 500mm |
| Weight | 14 KG |
| Main Tube | 50x3mm |
| Sub Tube | 30x3mm |
| Braces | 30x3mm |
| Material | EN-AW-6082 T6 |
| Connection | 50mm (SG2) |
Load Chart
| Length (M) | Length (ft) | UDL (kg/m) | UDL (lb./ft) | UDL (cm) | CPL (kg) | CPL (lb.) | TPL (cm) | TPL (kg) | TPL (lb.) | QPL (kg) | QPL (lb.) | FLP (kg) | FLP (lb.) |
| 6 | 19.69 | 707 | 475 | 1.47 | 1765 | 3891 | 1.07 | 1143 | 2520 | 892 | 1967 | 744 | 1642 |
| 8 | 26.25 | 423 | 282 | 2.42 | 1417 | 3124 | 1.73 | 942 | 2078 | 754 | 1662 | 608 | 1341 |
| 10 | 32.81 | 276 | 185 | 3.6 | 1174 | 2590 | 2.59 | 797 | 1758 | 648 | 1429 | 499 | 1100 |
| 12 | 39.37 | 191 | 128 | 5.05 | 996 | 2197 | 3.69 | 685 | 1511 | 545 | 1201 | 420 | 926 |
| 14 | 45.93 | 139 | 93 | 6.76 | 857 | 1890 | 5.02 | 596 | 1314 | 463 | 1021 | 358 | 791 |
| 16 | 54.49 | 104 | 70 | 8.74 | 745 | 1643 | 6.59 | 523 | 1154 | 399 | 880 | 310 | 684 |
| 18 | 59.06 | 80 | 54 | 11 | 653 | 1439 | 8.42 | 463 | 1020 | 347 | 766 | 270 | 597 |
| 20 | 65.62 | 63 | 42 | 13.54 | 575 | 1268 | 10.54 | 411 | 906 | 304 | 671 | 237 | 523 |
| 22 | 72.18 | 50 | 33 | 16.36 | 508 | 1120 | 12.94 | 365 | 806 | 267 | 590 | 208 | 460 |
| 24 | 78.74 | 40 | 27 | 19.47 | 449 | 991 | 15.66 | 326 | 718 | 235 | 519 | 183 | 404 |
| Color |
Black ,White |
|---|
