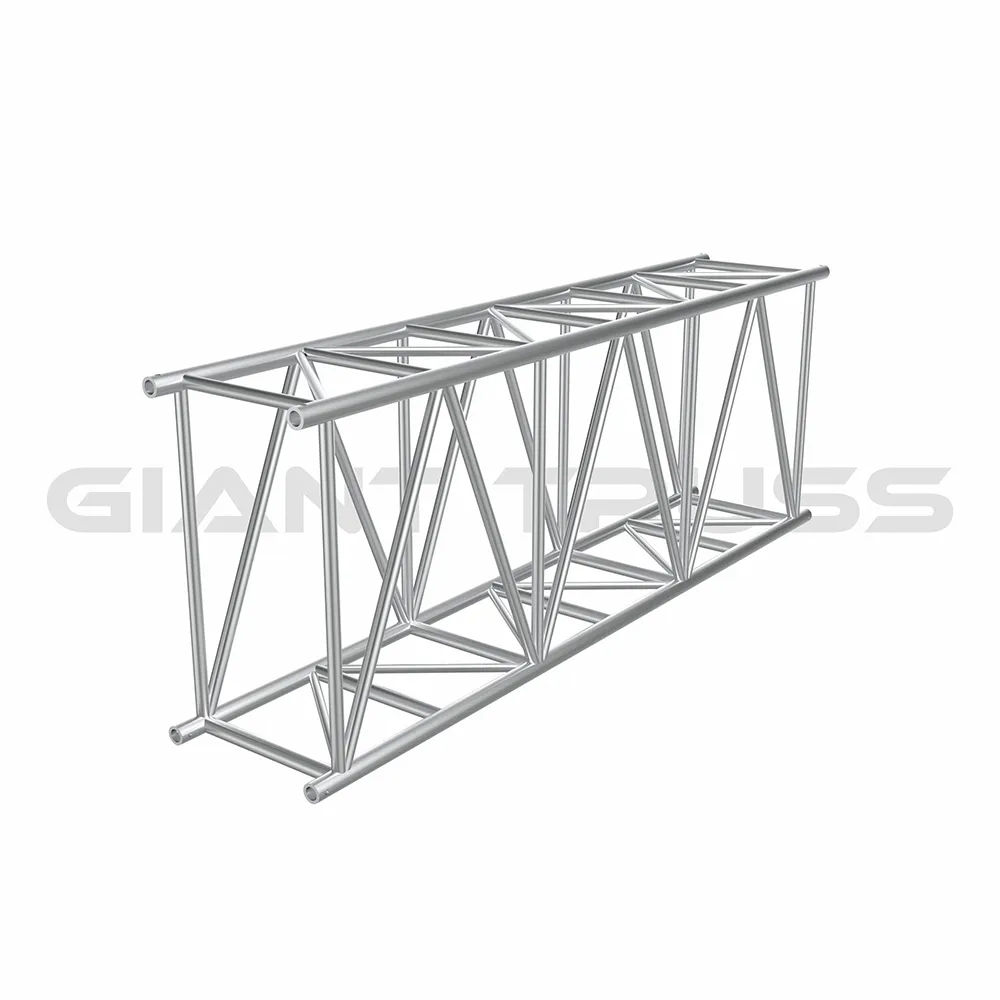

DT
- Tolerance free conical connector system.
- Super-size conical connection for maximum rigidity 4 Side Webbing.
- Can be used upto 44MTR
- High-Strength aluminium alloy.
- Extreme load bearing capacity.
When you need High strength in challenging conditions, our DT truss is the perfect solution. The DT truss series by Giant Truss is a tested and certied truss. Its constructed of main tube (60mm x 6mm) and diagonals (40mm x 3mm) with uses the SG-3 connections system. The supported tower system is (SST-48). The DT is the main rig truss for the big roof systems like Pitch Roof (DDDR85) & Saddle Roof (SR80)
The 4mm wall thickness reduces transportation damage and guarantees extreme durability. This truss and all other Giant Truss series can be powder coated in every RAL colour
| Height | 1100mm |
| Width | 610mm |
| Weight | 26Kg/m |
| Main Tube | 60x4mm |
| Sub Tube | 40x3mm |
| Braces | 40x3mm |
| Material | EN-AW-6082 T6 |
| Connection | SG3(60mm) |
Load Chart
| Span* | UDL | CPL | ||
| M | Kg/m | mm | Kg/m | mm |
| 36 | 46 | 195 | 878 | 218 |
| Color |
Black ,White |
|---|
