HD48
PROFESSIONAL EVENT SYSTEM

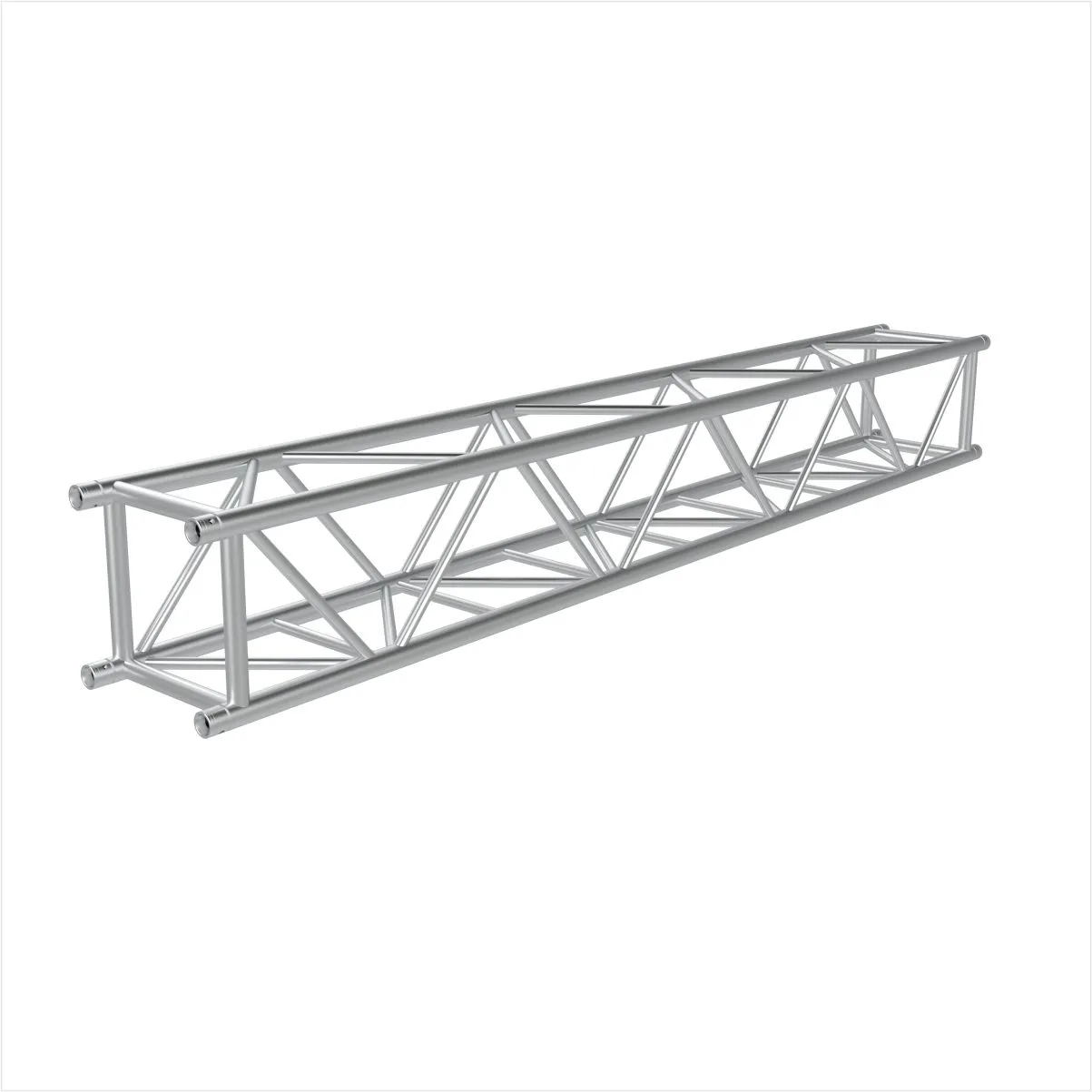

HD48 is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures.
- Project-specific platform layouts
- 3D design and engineering support
- Built for professional event workflows
Share your required dimensions, venue details and event date for faster planning.
WHY GIANT TRUSS SYSTEMS
A technical system planned around your project
From the first brief to installation support, Giant Truss helps turn project requirements into a practical, well-coordinated event-system solution.
01
Project-specific layouts
System requirements can be planned around the venue, event format and production workflow.
02
3D design assistance
Detailed layouts help visualise the planned structure and confirm requirements before implementation.
03
Engineering support
Structural reports and static calculations can be supplied with engineering partners where required.
04
Implementation guidance
Support from product planning through to installation guidance for the planned event setup.
GET A FASTER, BETTER QUOTE
Send the key project details with your enquiry
A clear brief helps the Giant Truss team understand the required configuration and respond with a more relevant Giant Truss solution.
Product Overview
HD48 is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures. Its published chord, bracing and connection specifications support modular assembly across the intended load and application range.
The HD48 truss range is a versatile aluminium truss system covering medium to extra heavy-duty applications, comprising HD48R, HD48, and LD48 proles. It is widely used for vertical tower applications, particularly within the DT series truss systems.
HD48 is commonly used in DTXR structures, while HD48R is designed for higher-load and reinforced applications such as DT-EX and DDR86 front tour–reinforced roof systems, where 6 mm wall thickness is used for maximum strength. LD48 forms the medium-duty option within the same dimensional range.
Construction overview:
• HD48R: Ø60 × 6 mm main tubes with internal bracing
• HD48: Ø60 × 5 mm main tubes LD48: Ø60 × 4 mm
• main tubes
Together, the HD48 family supports a wide range of tower heights, load requirements, and professional event structures.
Height: 480mm
Width: 480mm
Weight: ~22kg/m
Main Tube: 60x5mm
Braces: 30x3mm EN-
Material: AW-6082 T6
Connection: Sg3(60MM)
Need a project configuration for an upcoming event?
Send your project dimensions and venue details to the Giant Truss team for a relevant Giant Truss recommendation.
