HD40
PROFESSIONAL EVENT SYSTEM

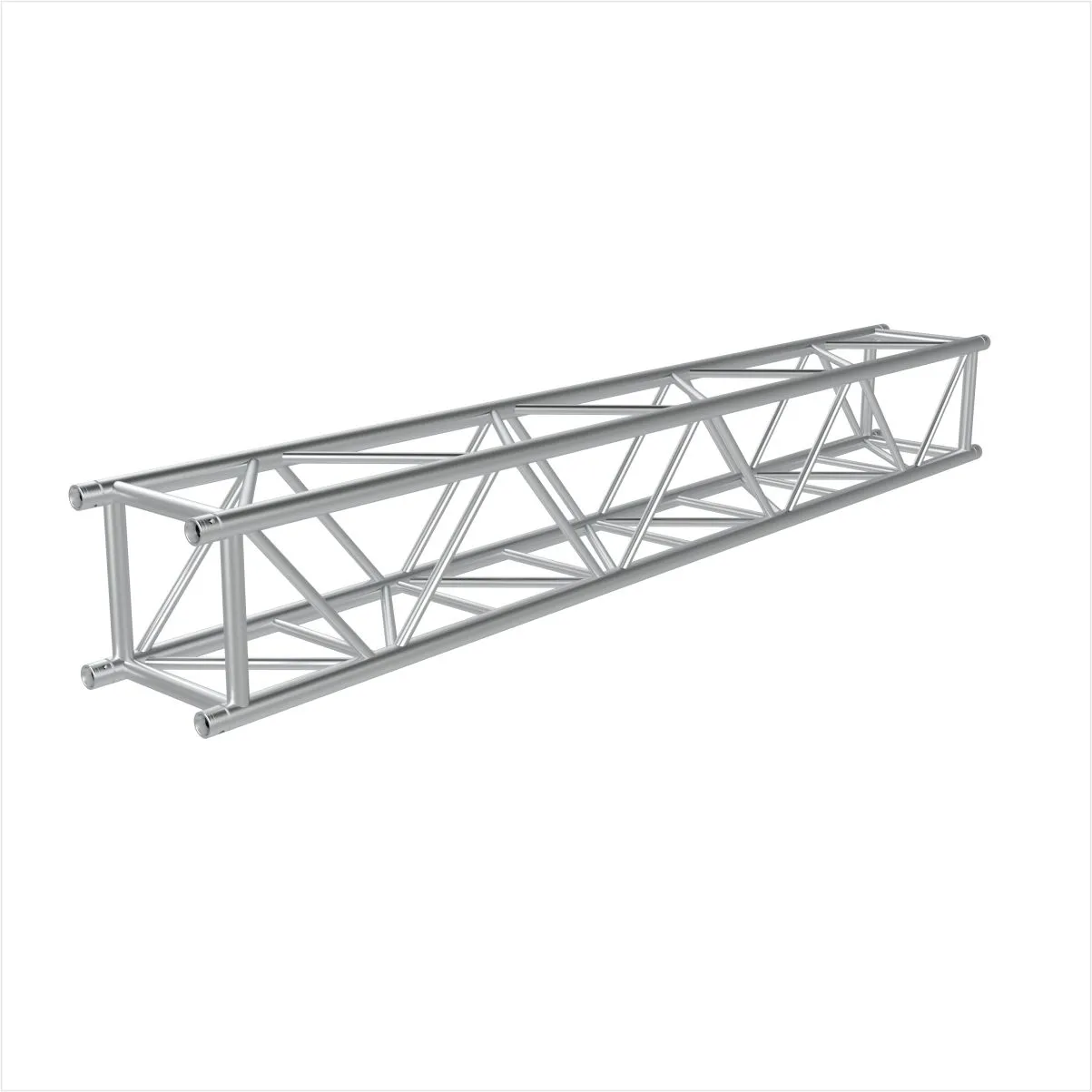

HD40 is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures.
- Project-specific platform layouts
- 3D design and engineering support
- Built for professional event workflows
Share your required dimensions, venue details and event date for faster planning.
WHY GIANT TRUSS SYSTEMS
A technical system planned around your project
From the first brief to installation support, Giant Truss helps turn project requirements into a practical, well-coordinated event-system solution.
01
Project-specific layouts
System requirements can be planned around the venue, event format and production workflow.
02
3D design assistance
Detailed layouts help visualise the planned structure and confirm requirements before implementation.
03
Engineering support
Structural reports and static calculations can be supplied with engineering partners where required.
04
Implementation guidance
Support from product planning through to installation guidance for the planned event setup.
GET A FASTER, BETTER QUOTE
Send the key project details with your enquiry
A clear brief helps the Giant Truss team understand the required configuration and respond with a more relevant Giant Truss solution.
Product Overview
HD40 is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures. Its published chord, bracing and connection specifications support modular assembly across the intended load and application range.
The HD40 truss range is a versatile aluminium truss system covering medium to heavy-duty applications, comprising HD40R, HD40, and LD40 proles. It is widely used for vertical tower applications, particularly within the MT series truss systems.
HD40 is commonly used in MT and MT-X structures, while HD40R is designed for higher-load and reinforced applications such as MT-EX truss systems.
Construction overview:
• HD40R: Ø50 × 4 mm main tubes with internal bracing
• HD40: Ø50 × 3 mm main tubes LD40: Ø50 × 3 mm
• main tubes with lighter diagonals
Together, the HD40 family supports a wide range of tower heights, load requirements, and professional event structures.
TECHNICAL SPECIFICATION
Height: 400mm
Width: 400mm
Weight: ~11kg/m
Main Tube: 50x3mm
Braces: 25x3mm EN-
Material: AW-6082 T6
Connection: Sg2(50MM)
Need a project configuration for an upcoming event?
Send your project dimensions and venue details to the Giant Truss team for a relevant Giant Truss recommendation.
