HD38R
PROFESSIONAL EVENT SYSTEM

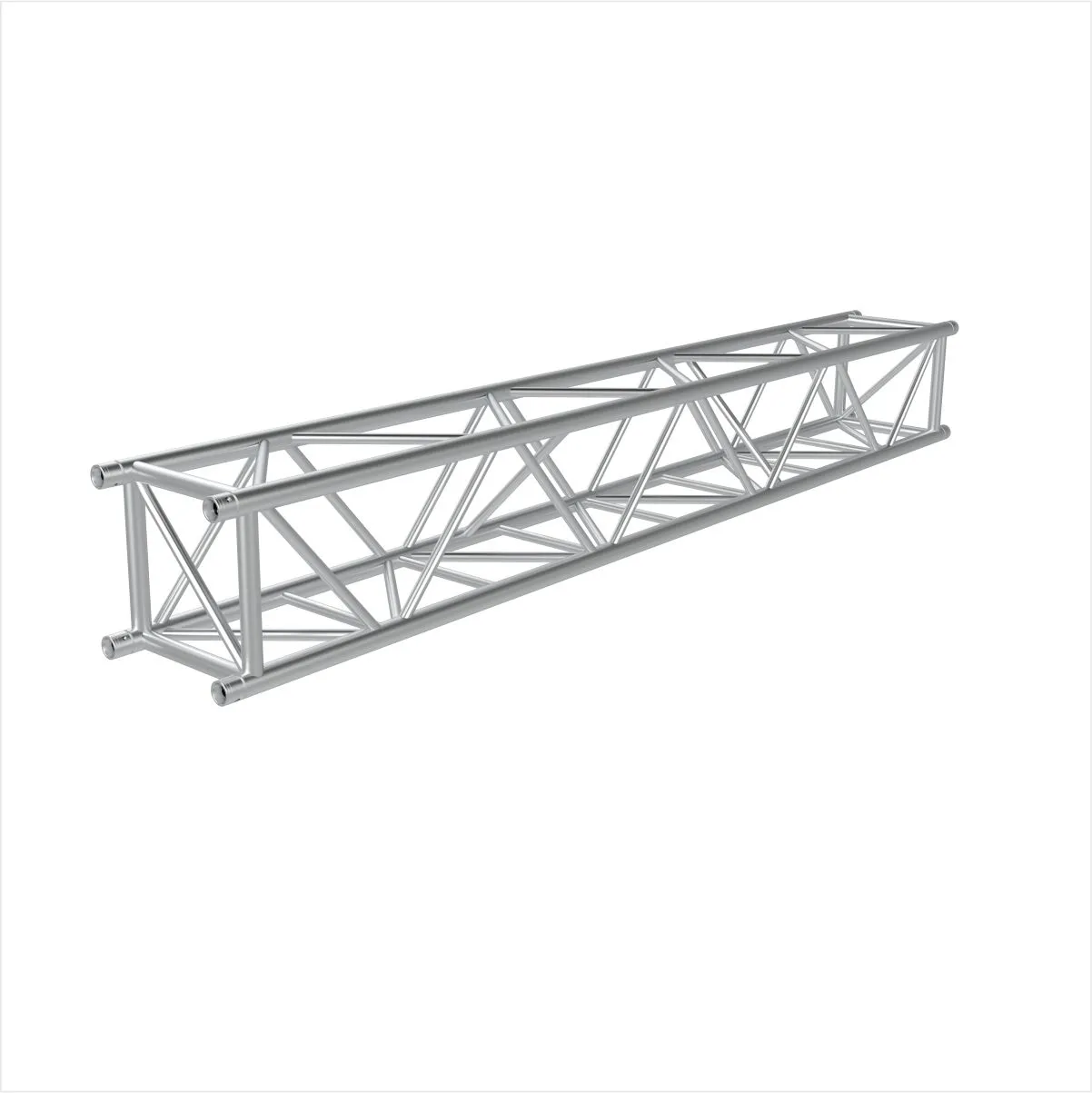

HD38R is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures.
- Project-specific platform layouts
- 3D design and engineering support
- Built for professional event workflows
Share your required dimensions, venue details and event date for faster planning.
WHY GIANT TRUSS SYSTEMS
A technical system planned around your project
From the first brief to installation support, Giant Truss helps turn project requirements into a practical, well-coordinated event-system solution.
01
Project-specific layouts
System requirements can be planned around the venue, event format and production workflow.
02
3D design assistance
Detailed layouts help visualise the planned structure and confirm requirements before implementation.
03
Engineering support
Structural reports and static calculations can be supplied with engineering partners where required.
04
Implementation guidance
Support from product planning through to installation guidance for the planned event setup.
GET A FASTER, BETTER QUOTE
Send the key project details with your enquiry
A clear brief helps the Giant Truss team understand the required configuration and respond with a more relevant Giant Truss solution.
Product Overview
HD38R is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures. Its published chord, bracing and connection specifications support modular assembly across the intended load and application range.
The HD38 truss range is a versatile aluminium truss system covering light to medium-duty applications, comprising HD38R, HD38, and LD38 proles. This range is widely used for vertical tower and support applications, particularly within lightweight roof and ground support systems.
HD38 is commonly used for standard tower and support structures, while HD38R is designed for reinforced and higher-load applications requiring increased strength and stability. LD38 provides a lightweight solution within the same dimensional range for applications with reduced load requirements. Construction overview:
• HD38R: Ø50 × 4 mm main tubes with internal bracing
• HD38: Ø50 × 3 mm main tubes LD38: Ø50 × 3 mm
• main tubes with lighter diagonals
Together, the HD38 family supports a wide range of tower heights, load requirements, and professional event structures.
TECHNICAL SPECIFICATION
Height: 380mm
Width: 380mm
Weight: ~13kg/m
Main Tube: 50x4mm
Braces: 25x3mm EN-
Material: AW-6082 T6
Connection: Sg2(50MM)
