SST-40
PROFESSIONAL EVENT SYSTEM
SST-40 is a Giant Truss modular tower system for lifting and supporting compatible truss grids, PA clusters or production equipment.
- Project-specific platform layouts
- 3D design and engineering support
- Built for professional event workflows
Share your required dimensions, venue details and event date for faster planning.
WHY GIANT TRUSS SYSTEMS
A technical system planned around your project
From the first brief to installation support, Giant Truss helps turn project requirements into a practical, well-coordinated event-system solution.
01
Project-specific layouts
System requirements can be planned around the venue, event format and production workflow.
02
3D design assistance
Detailed layouts help visualise the planned structure and confirm requirements before implementation.
03
Engineering support
Structural reports and static calculations can be supplied with engineering partners where required.
04
Implementation guidance
Support from product planning through to installation guidance for the planned event setup.
GET A FASTER, BETTER QUOTE
Send the key project details with your enquiry
A clear brief helps the Giant Truss team understand the required configuration and respond with a more relevant Giant Truss solution.
Product Overview

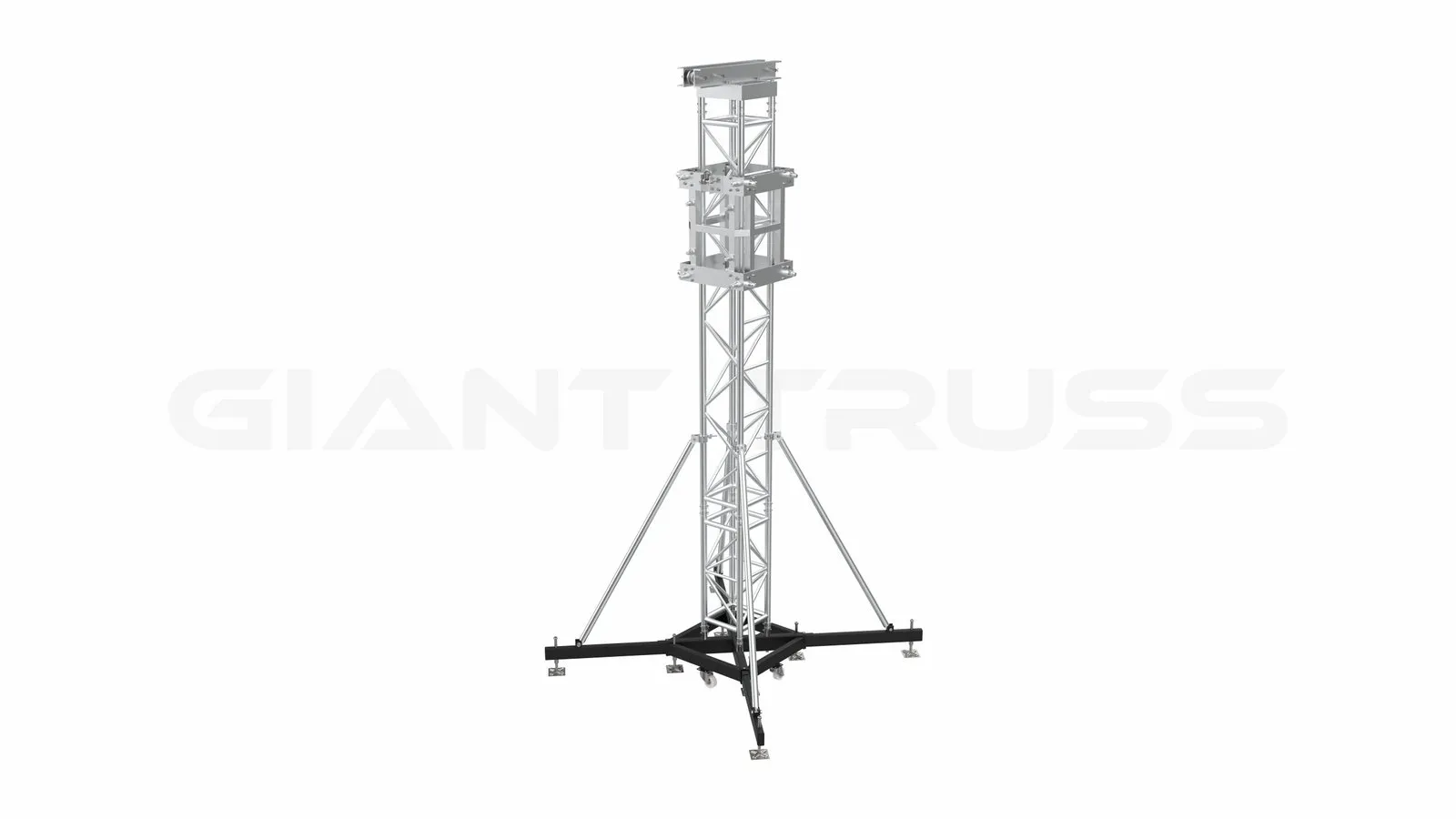

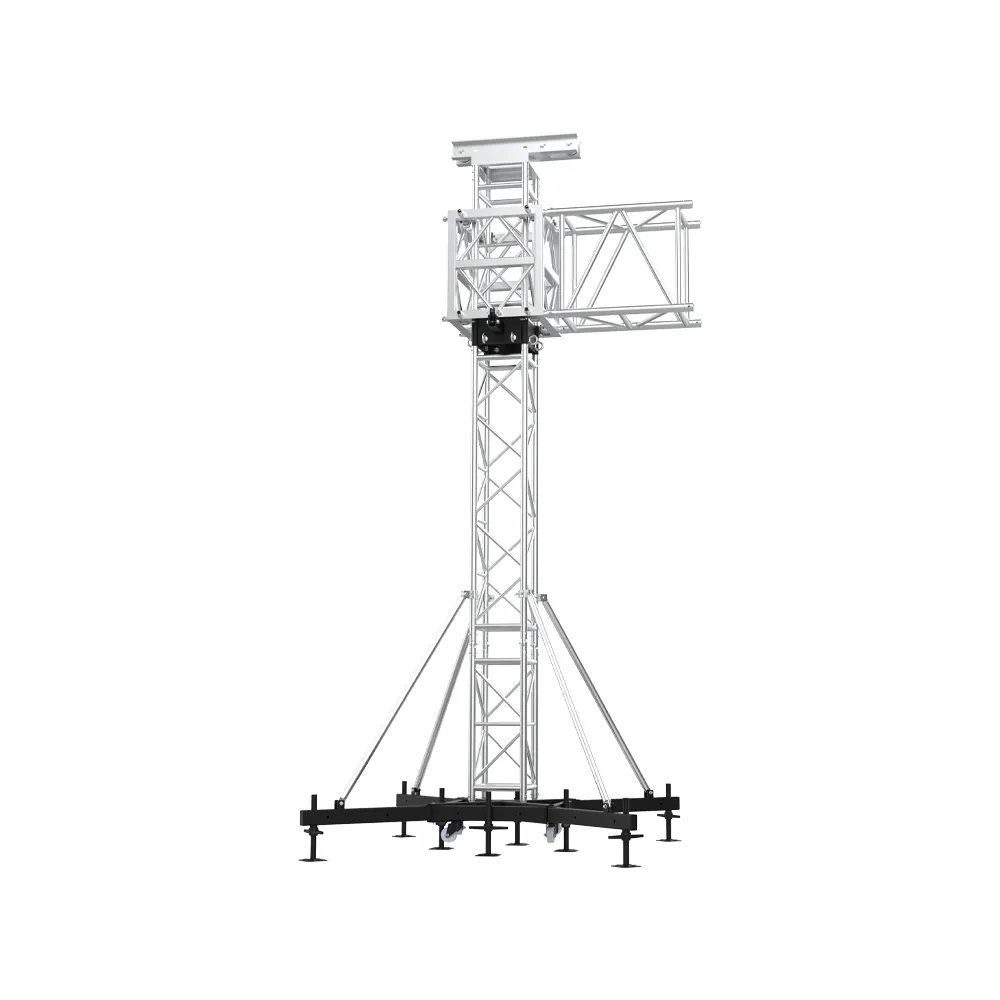

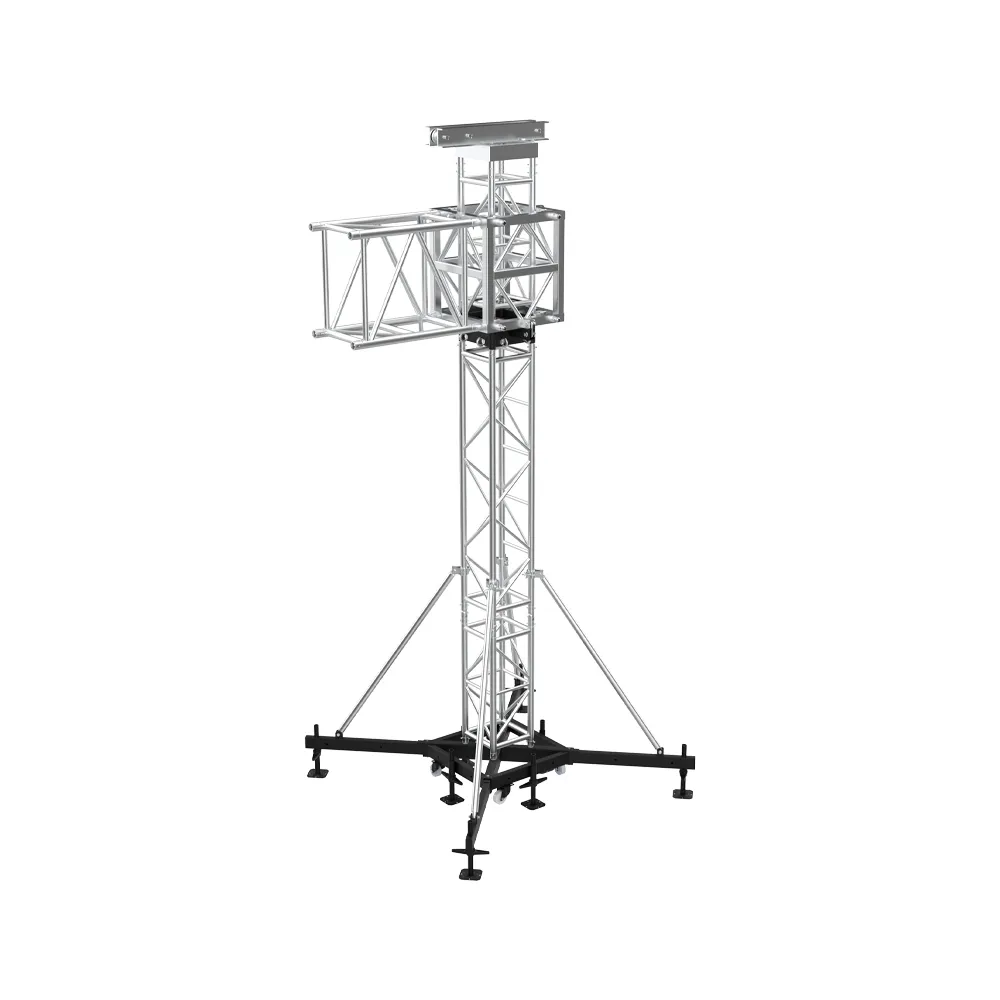

SST-40 is a Giant Truss modular tower system for lifting and supporting compatible truss grids, PA clusters or production equipment. Its mast, base, sleeve and bracing components are designed to work as one engineered system for professional indoor or outdoor applications.
The SST-40 Tower is based on 400mm x 400mm vertical beam that allows the safe, quick lifting of regularly loaded horizontal MT Truss to their service height. In terms of static, the SST-40 Tower is designed for a high exural- and pressure strain. It is provided with
aluminum (EN-AW-6082-T6). Top frame and sleeve block. Base is made of steel to provided maximum ground traction needed due to it’s weights and supports.
Dual height adjusted on each ground support make it very rigid structure
to be used indoor or outdoor.
Technical Specifications
Main Tube50x3mm
| Height | 400mm |
| Width | 400mm |
| Sub Tube | 30x3mm |
| Braces | 30x3mm |
| Material | EN-AW-6082 T6 |
| Connection | SG3(50mm) |
| Color |
Black ,White |
|---|
Need a project configuration for an upcoming event?
Send your project dimensions and venue details to the Giant Truss team for a relevant Giant Truss recommendation.
