LD 40
PROFESSIONAL EVENT SYSTEM
LD 40 is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures.
- Project-specific platform layouts
- 3D design and engineering support
- Built for professional event workflows
Share your required dimensions, venue details and event date for faster planning.
WHY GIANT TRUSS SYSTEMS
A technical system planned around your project
From the first brief to installation support, Giant Truss helps turn project requirements into a practical, well-coordinated event-system solution.
01
Project-specific layouts
System requirements can be planned around the venue, event format and production workflow.
02
3D design assistance
Detailed layouts help visualise the planned structure and confirm requirements before implementation.
03
Engineering support
Structural reports and static calculations can be supplied with engineering partners where required.
04
Implementation guidance
Support from product planning through to installation guidance for the planned event setup.
GET A FASTER, BETTER QUOTE
Send the key project details with your enquiry
A clear brief helps the Giant Truss team understand the required configuration and respond with a more relevant Giant Truss solution.
Product Overview

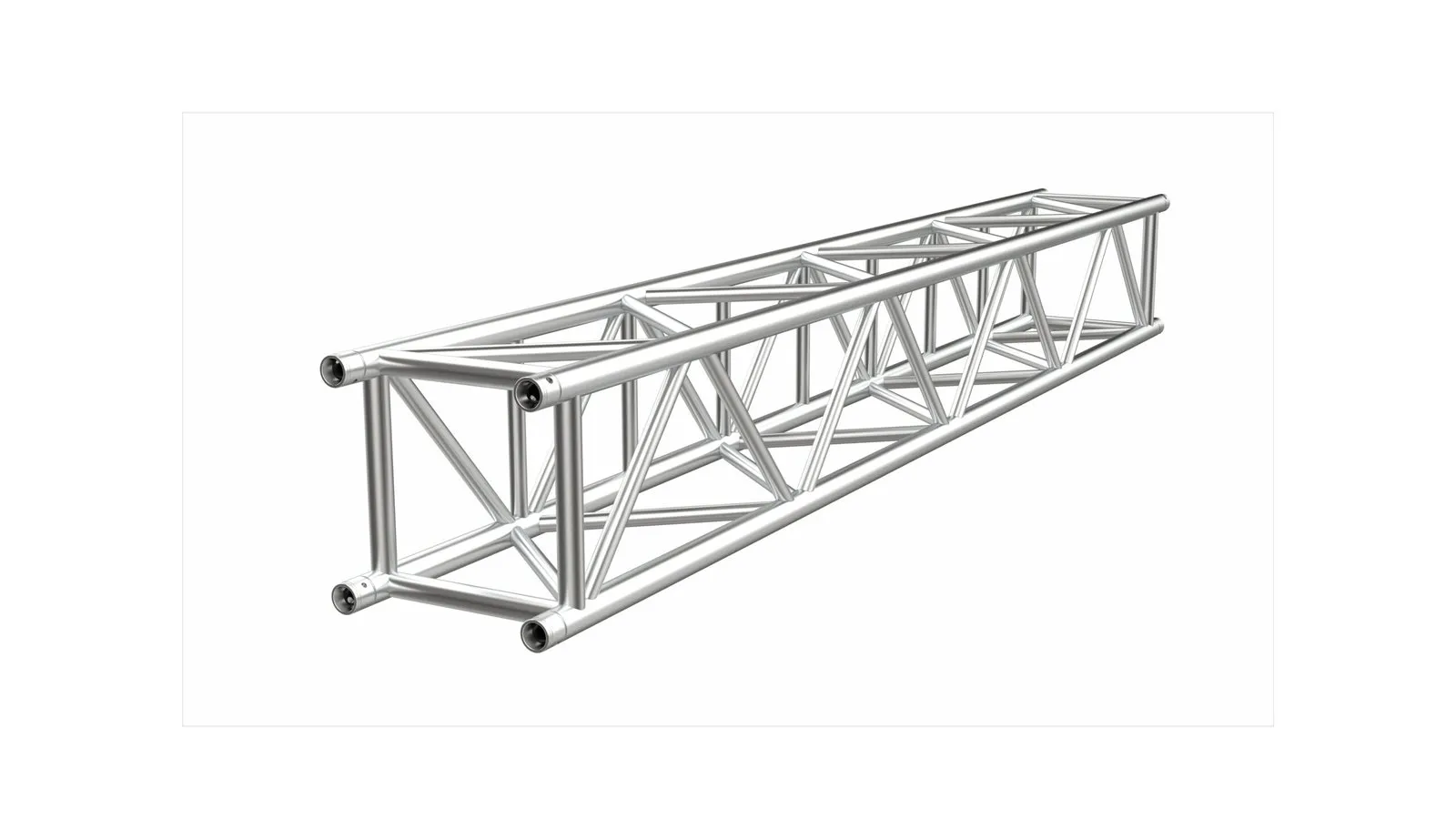

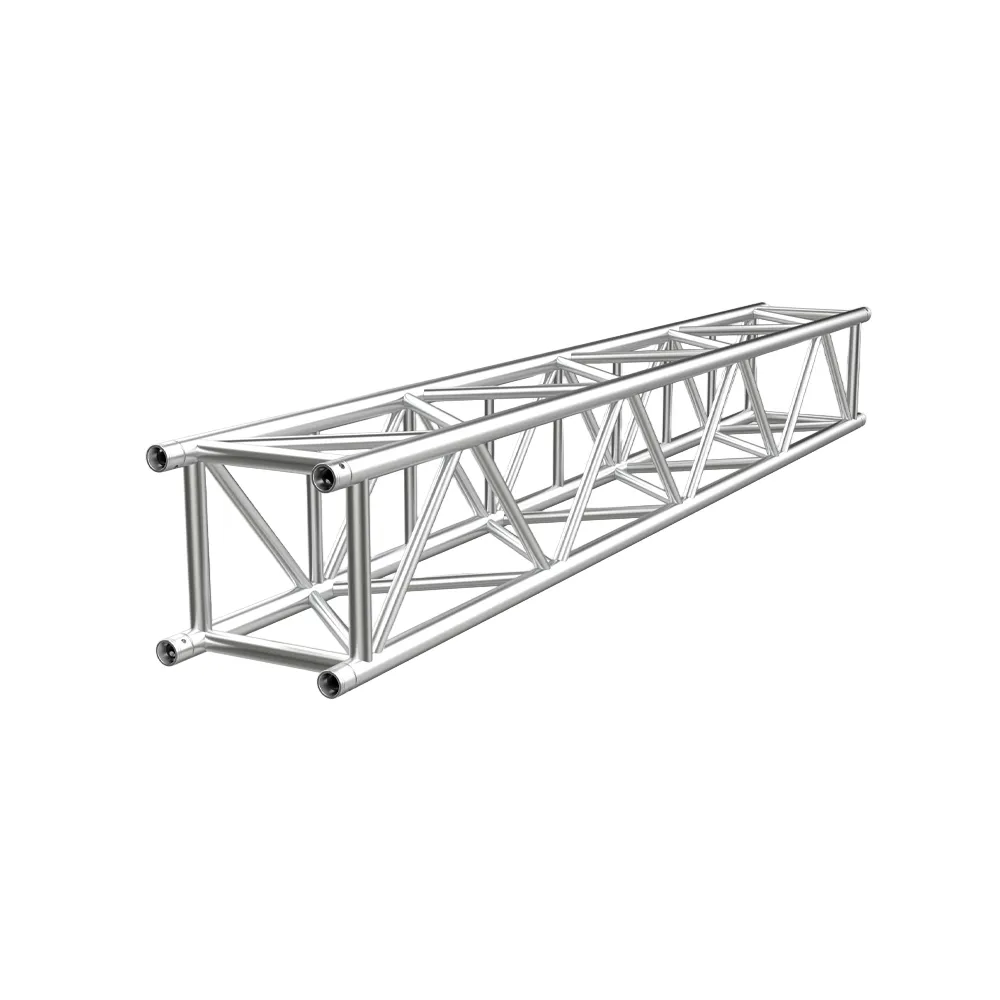

LD 40 is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures. Its published chord, bracing and connection specifications support modular assembly across the intended load and application range.

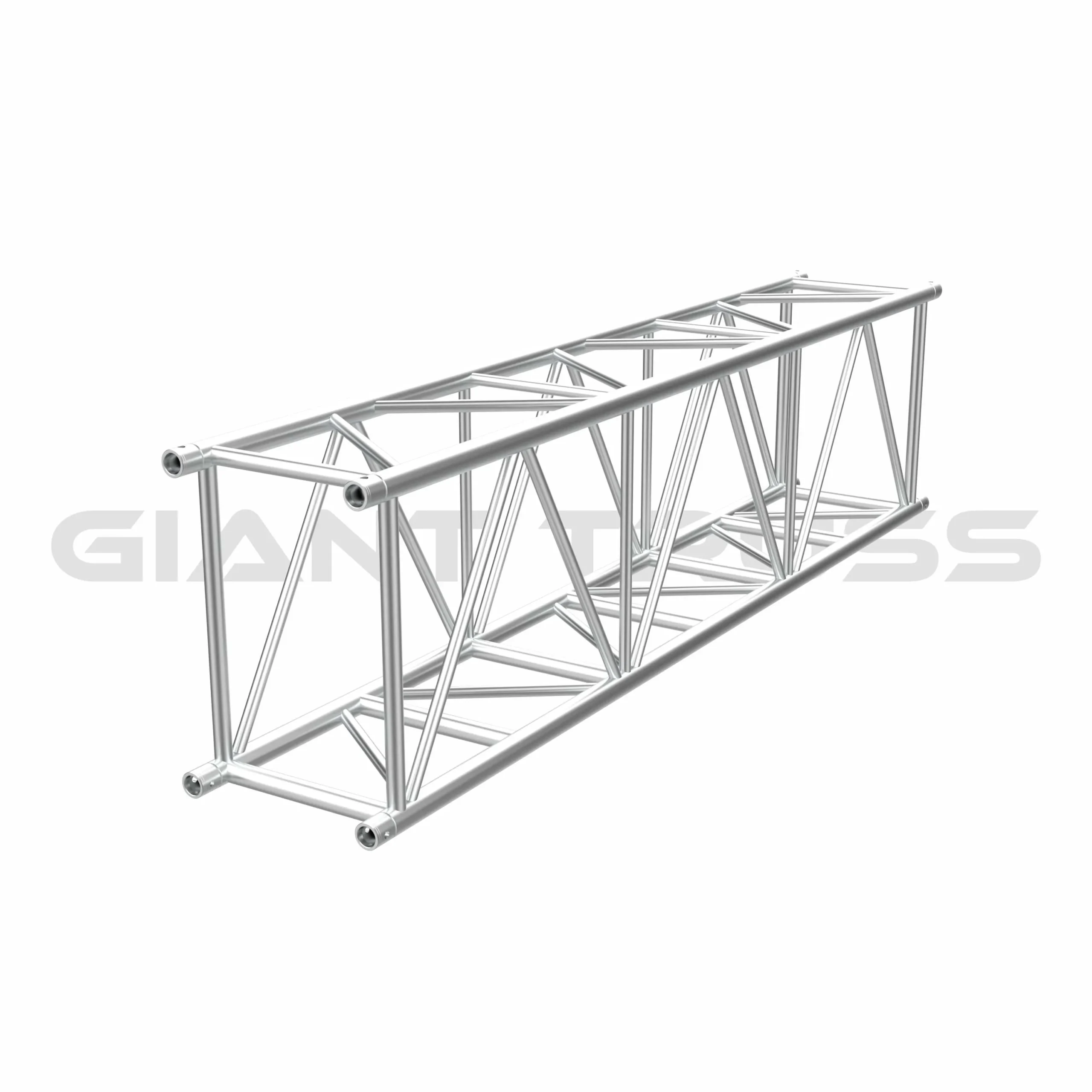

Giant Truss adds to the existing LD-40 and MT Tower System. This tower is designed for extreme heights and high loads.
The LD-40 Tower System in combination with MT Truss can go up 18 meters and handle 8000 kg.
Technical Specifications
| Height | 400mm |
| Width | 400mm |
| Weight | 11.5 KG/M |
| Main Tube | 50×4/3mm |
| Sub Tube | 30x3mm |
| Braces | 30x3mm |
| Material | EN-AW-6082 T6 |
| Connection | SG2 |
| Color |
Black ,White |
|---|
Need a project configuration for an upcoming event?
Send your project dimensions and venue details to the Giant Truss team for a relevant Giant Truss recommendation.
