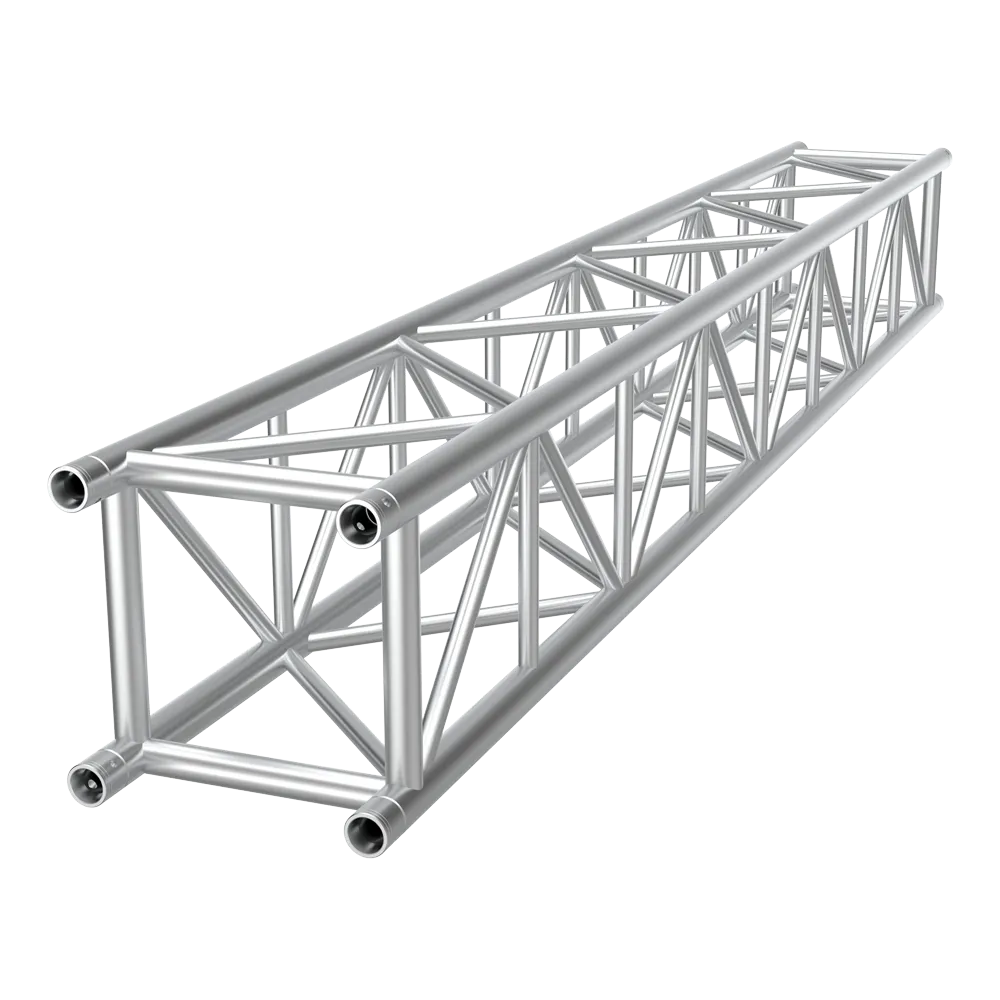

LD 38
₹374.00
⦁ Build for extreme heights and loads
⦁ Up to 14 meters (46ft.)
⦁ Top part with 4 wheels for high load bearing
• Tolerance-free conical connector
• High stability aluminum alloy
• Excellent load-bearing capacity
• Low dead weight
• High wear resistance
• 3mm wall thickness of 50mm main tube
⦁ Extreme strength for extreme circumstances
⦁ Ideal for outdoor or 3-dimensional constructions
⦁ Smart orientation free connection
⦁ Fast and easy to assemble
Giant Truss adds to the existing LD-38 and JT-X Tower System. This tower is designed for extreme heights and high loads.
The LD-38 Tower System in combination with JT-X Truss can go up 14 meters and handle 8000 kg.
Technical Specifications
| Height | 380mm |
| Width | 380mm |
| Weight | 11.5 KG/M |
| Main Tube | 50x3mm |
| Sub Tube | 30x3mm |
| Braces | 30x3mm |
| Material | EN-AW-6082 T6 |
| Connection | SG2 |
Compatibility
JTH
JTX
JTEX
| Color |
Black ,White |
|---|
