LD 30
PROFESSIONAL EVENT SYSTEM

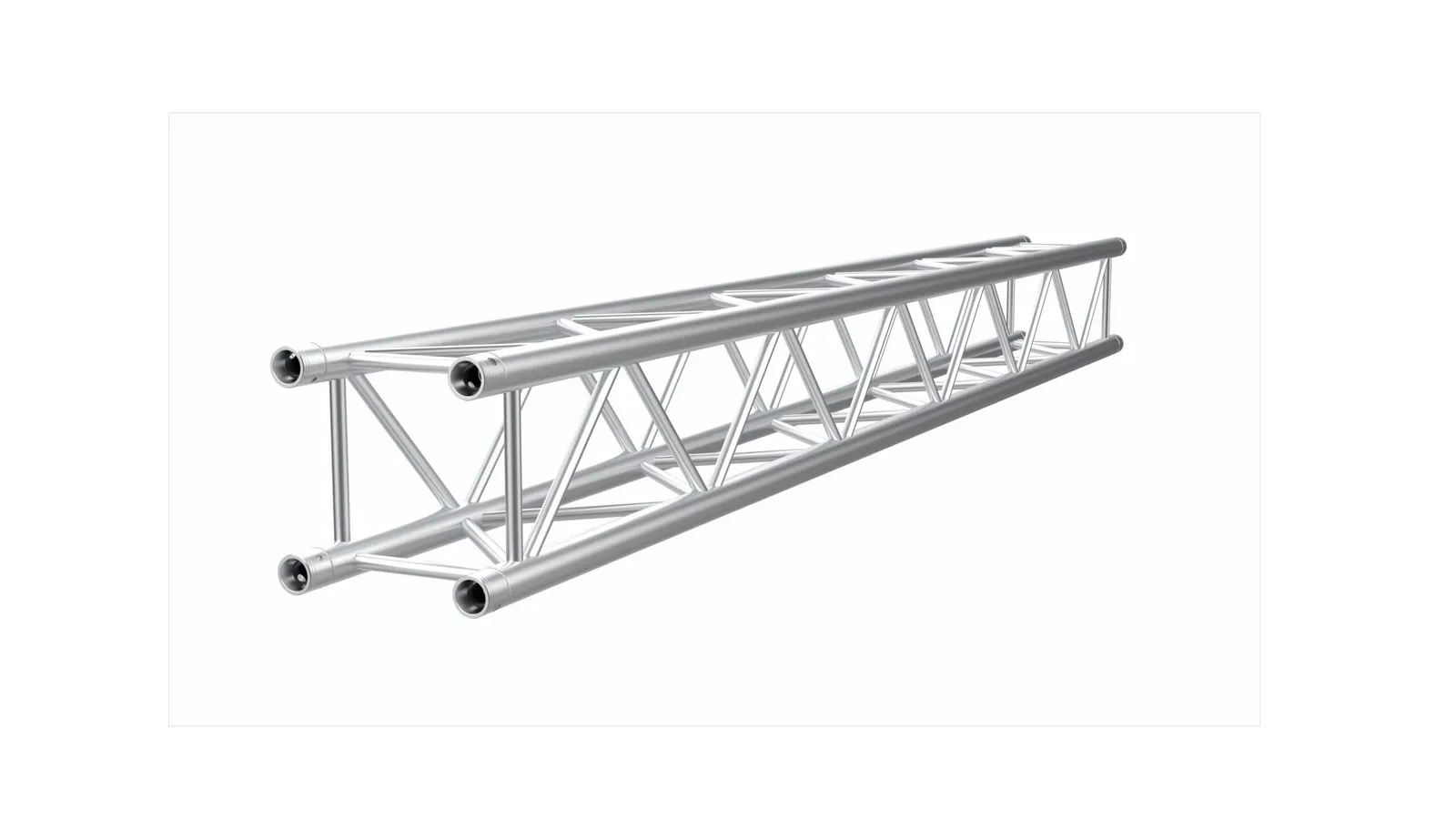

LD 30 is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures.
- Project-specific platform layouts
- 3D design and engineering support
- Built for professional event workflows
Share your required dimensions, venue details and event date for faster planning.
WHY GIANT TRUSS SYSTEMS
A technical system planned around your project
From the first brief to installation support, Giant Truss helps turn project requirements into a practical, well-coordinated event-system solution.
01
Project-specific layouts
System requirements can be planned around the venue, event format and production workflow.
02
3D design assistance
Detailed layouts help visualise the planned structure and confirm requirements before implementation.
03
Engineering support
Structural reports and static calculations can be supplied with engineering partners where required.
04
Implementation guidance
Support from product planning through to installation guidance for the planned event setup.
GET A FASTER, BETTER QUOTE
Send the key project details with your enquiry
A clear brief helps the Giant Truss team understand the required configuration and respond with a more relevant Giant Truss solution.
Product Overview

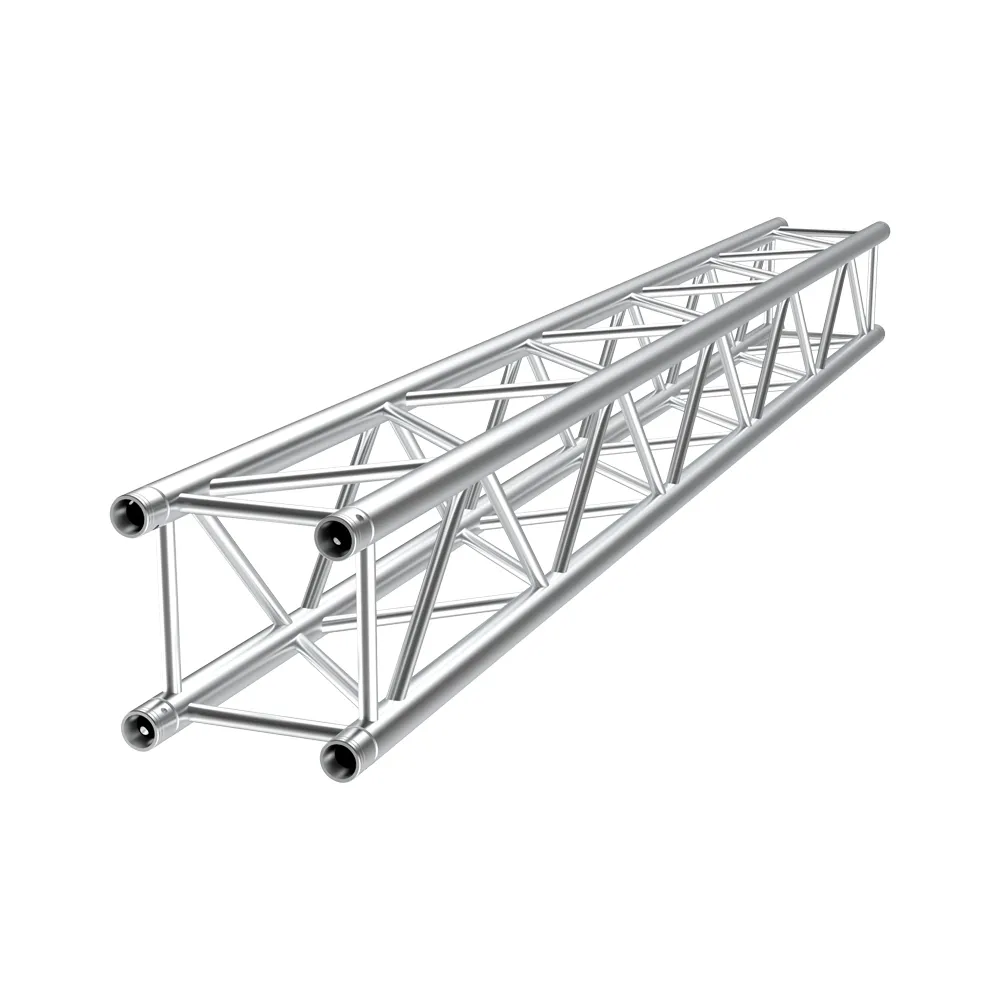

LD 30 is a Giant Truss square aluminium truss for professional staging, lighting and temporary event structures. Its published chord, bracing and connection specifications support modular assembly across the intended load and application range.
The ground support tower LD-30 makes for an excellent vertical truss that allows the safe, quick lifting of regularly loaded horizontal truss constructions (Riggs) and small to medium-sized platform roofs to their service height. The straight elements of the tower consist of LD-30 Standard Truss, allowing a variety of combinations.
In terms of statics, ground support towers, and indoor applications, are exposed to negligible flexural strain but primarily to pressure strain.
In outdoor use, on the other hand, the tower is exposed to very high flexural strain due to the covering
Technical Specifications
| Height | 300mm |
| Width | 300mm |
| Weight | 9 KG/M |
| Main Tube | 50×3(2)mm |
| Sub Tube | 25x2mm |
| Braces | 25x3mm |
| Material | EN-AW-6082 T6 |
| Connection | SG2 |
| Color |
Black ,White |
|---|
