JT-H2

Description

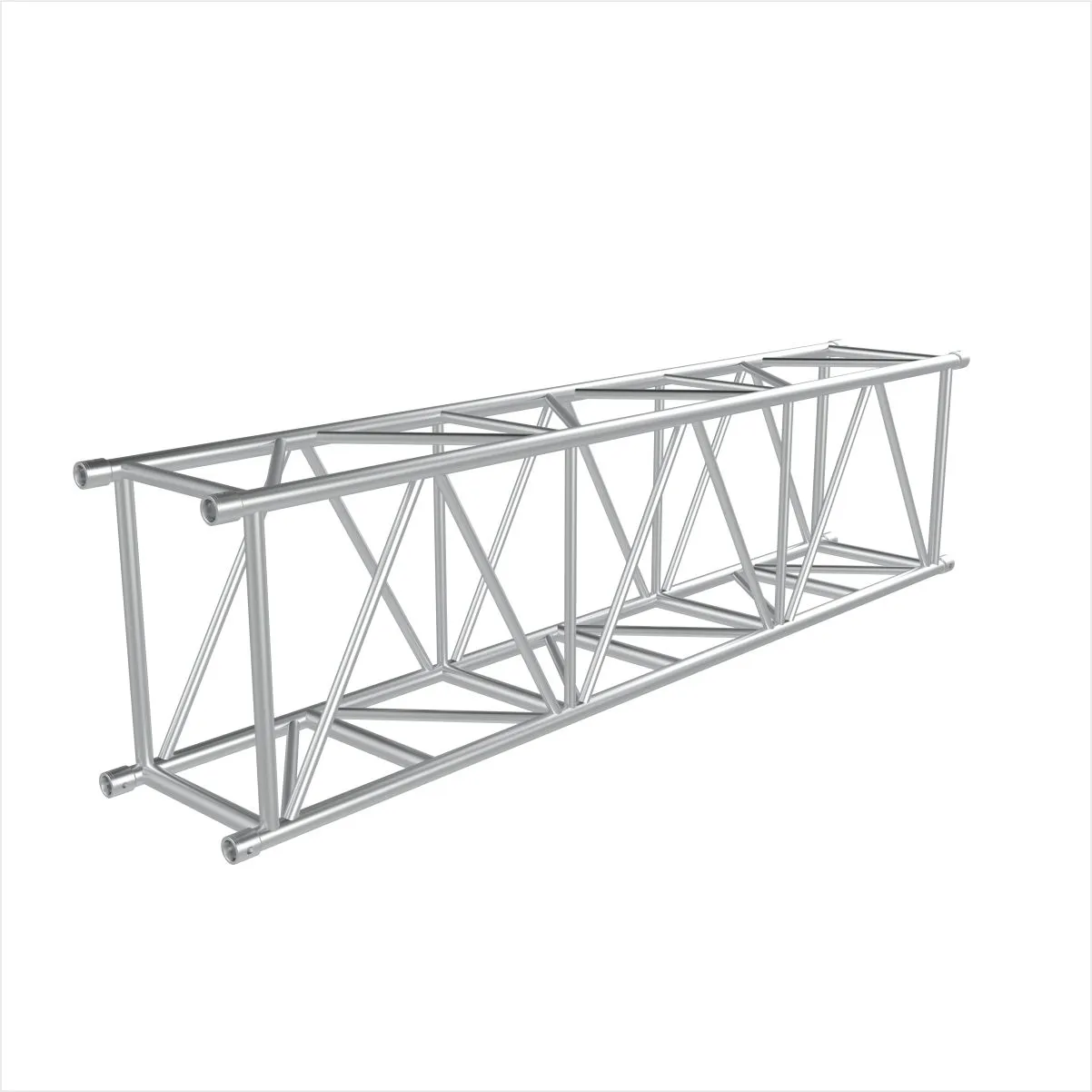

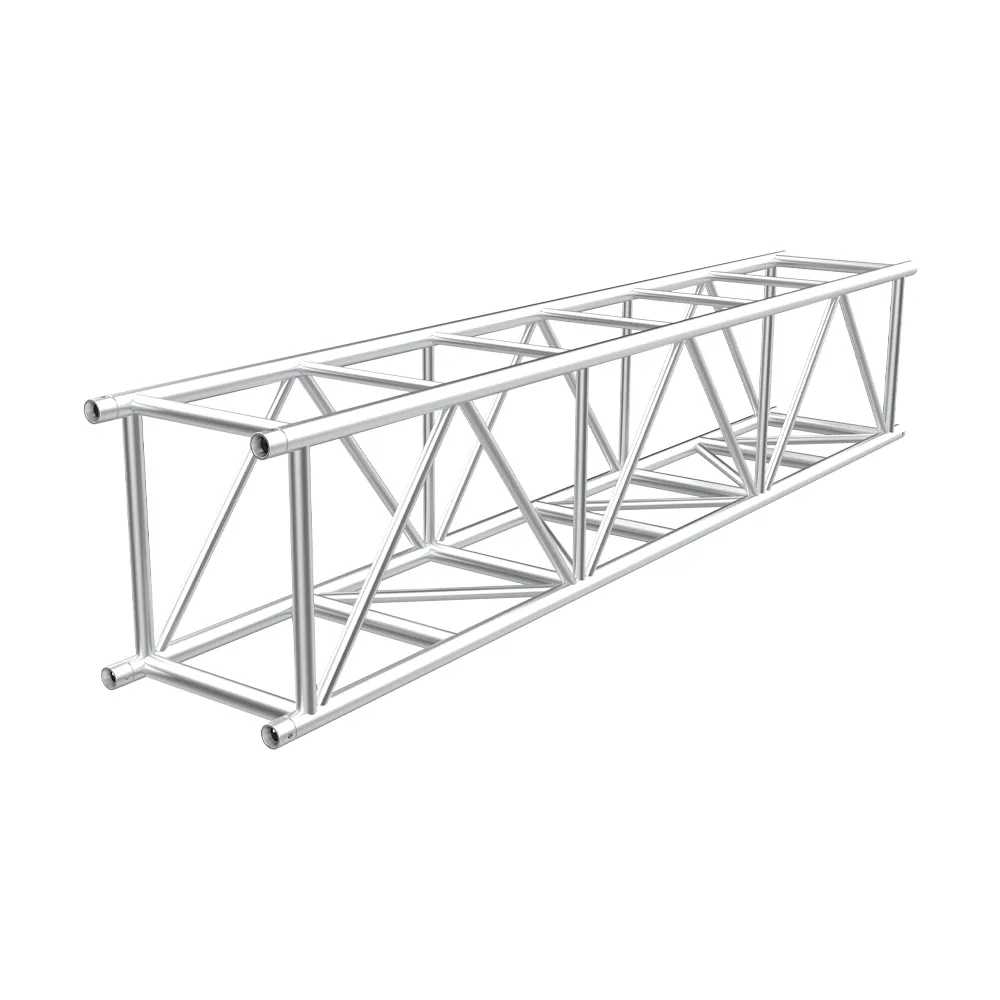

The JT-H2 truss series by Giant Truss is an upgraded jumbo truss system engineered for medium-load and medium-span applications, offering enhanced strength and reliability for frequent professional use.

Constructed with Ø50 mm main tubes and Ø30 mm diagonal and brace tubes, JT-H2 utilises the SG-2 precision conical connection system for accurate alignment and effcient assembly. The reinforced chord conguration—50 × 3 mm top chords and 50 × 4 mm bottom chords—improves load capacity and structural rigidity.

Designed as a versatile, everyday solution for indoor and outdoor event applications, JT-H2 features a 3-side diagonal webbing conguration for dependable load distribution. It supports free spans of up to 24 metres (80 ft) and is compatible with the SST-38 supported tower system for space-effcient transport and safer handling.

TECHNICAL SPECIFICATION

Height: 600mm

Width: 500mm

Weight: ~14kg/m

Main Tube: 50×4/3mm

Braces: 30x3mm EN-

Material: AW-6082 T6

Connection: Sg2(50MM

METRIC LOADING CHART | LOAD CHART JT-H

Length m	ft	UDL			CPL			TPL		QPL		FLP
Length m	ft	kg/m	lb/ft	cm	kg	lb	cm	kg	lb	kg	lb	kg	lb
6	19.69	707	475	1.47	1765	3891	1.07	1143	2520	892	1967	744	1642
8	26.25	423	282	2.42	1417	3124	1.73	942	2078	754	1662	608	1341
10	32.81	275	185	3.60	1174	2590	2.59	797	1758	648	1429	499	1100
12	39.37	191	128	5.05	996	2197	3.69	685	1511	545	1201	420	926
14	45.93	139	93	6.76	857	1890	5.02	596	1314	463	1021	358	791
16	54.49	104	70	8.74	745	1643	6.59	523	1154	399	880	310	684
18	59.06	80	54	11.00	653	1439	8.42	463	1020	347	766	270	597
20	65.62	63	42	13.54	575	1268	10.54	411	906	304	671	237	523
22	72.18	50	33	16.36	508	1120	12.94	365	806	267	590	208	460
24	78.74	40	27	19.47	449	991	15.66	326	718	235	519	183	404

CANTILEVER

Length m	ft	UDL			EPL
Length m	ft	kg/m	lb/ft	cm	kg	lb	cm
1	3.28	2001	1345	0.17	2029	4475	0.36
2	6.56	805	541	0.38	1322	2916	0.69
3	9.84	441	296	0.68	970	2139	1.16
4	13.12	278	187	1.11	758	1672	1.82
5	16.40	190	128	1.68	617	1361	2.66
