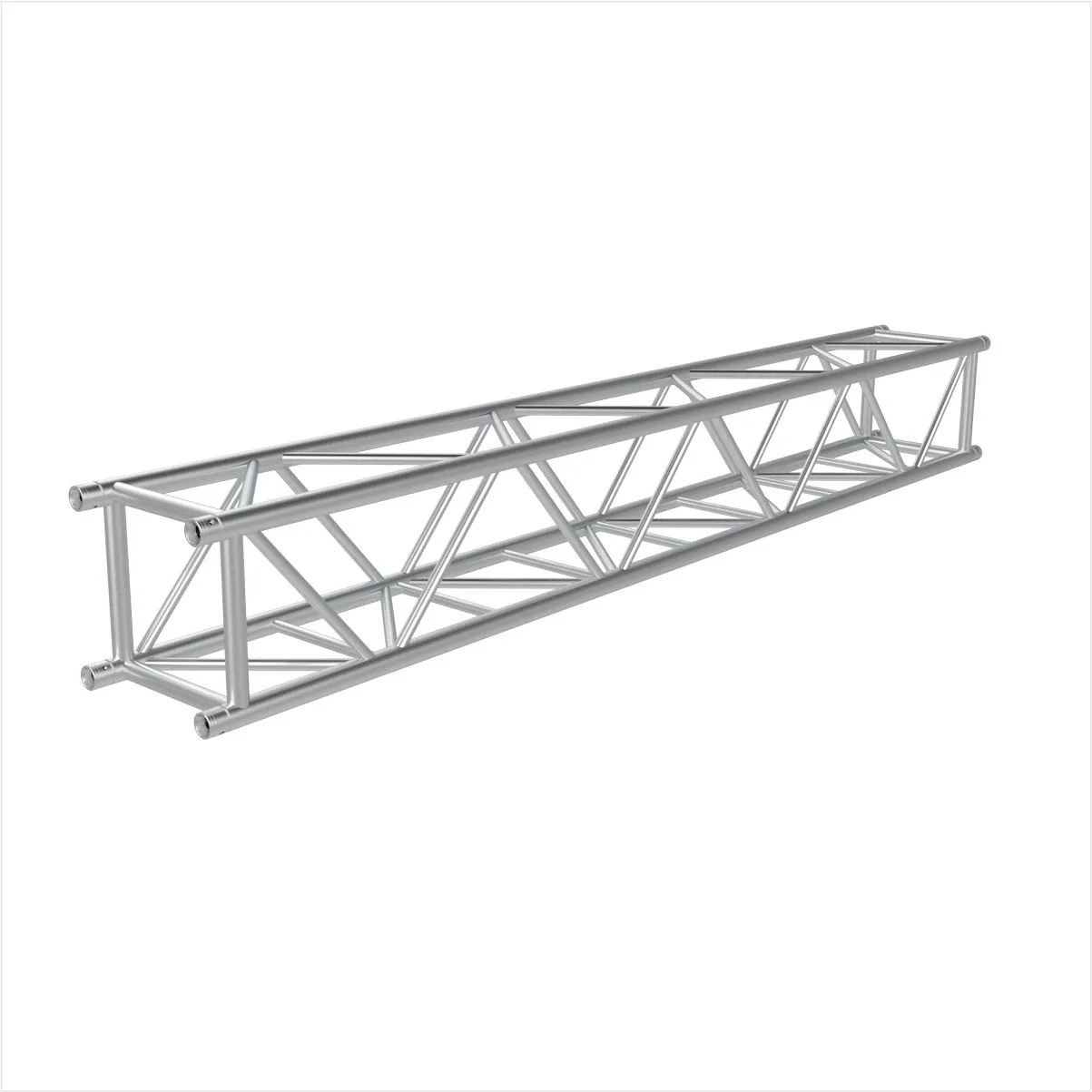

HD48R

The HD48 truss range is a versatile aluminium truss system covering medium to extra heavy-duty applications, comprising HD48R, HD48, and LD48 pro les. It is widely used for vertical tower applications, particularly within the DT series truss systems.

HD48 is commonly used in DTXR structures, while HD48R is designed for higher-load and reinforced applications such as DT-EX and DDR86 front tour–reinforced roof systems, where 6 mm wall thickness is used for maximum strength. LD48 forms the medium-duty option within the same dimensional range.

Construction overview:

•  HD48R: Ø60 × 6 mm main tubes with internal bracing

•  HD48: Ø60 × 5 mm main tubes LD48: Ø60 × 4 mm

•  main tubes

Together, the HD48 family supports a wide range of tower heights, load requirements, and professional event structures.

TECHNICAL SPECIFICATION

Height:                  480mm

Width:                  480mm

Weight:                ~26kg/m

Main Tube:          60x6mm

Braces:                  30x3mm EN-

Material:              AW-6082 T6

Connection:        Sg3(60MM)
