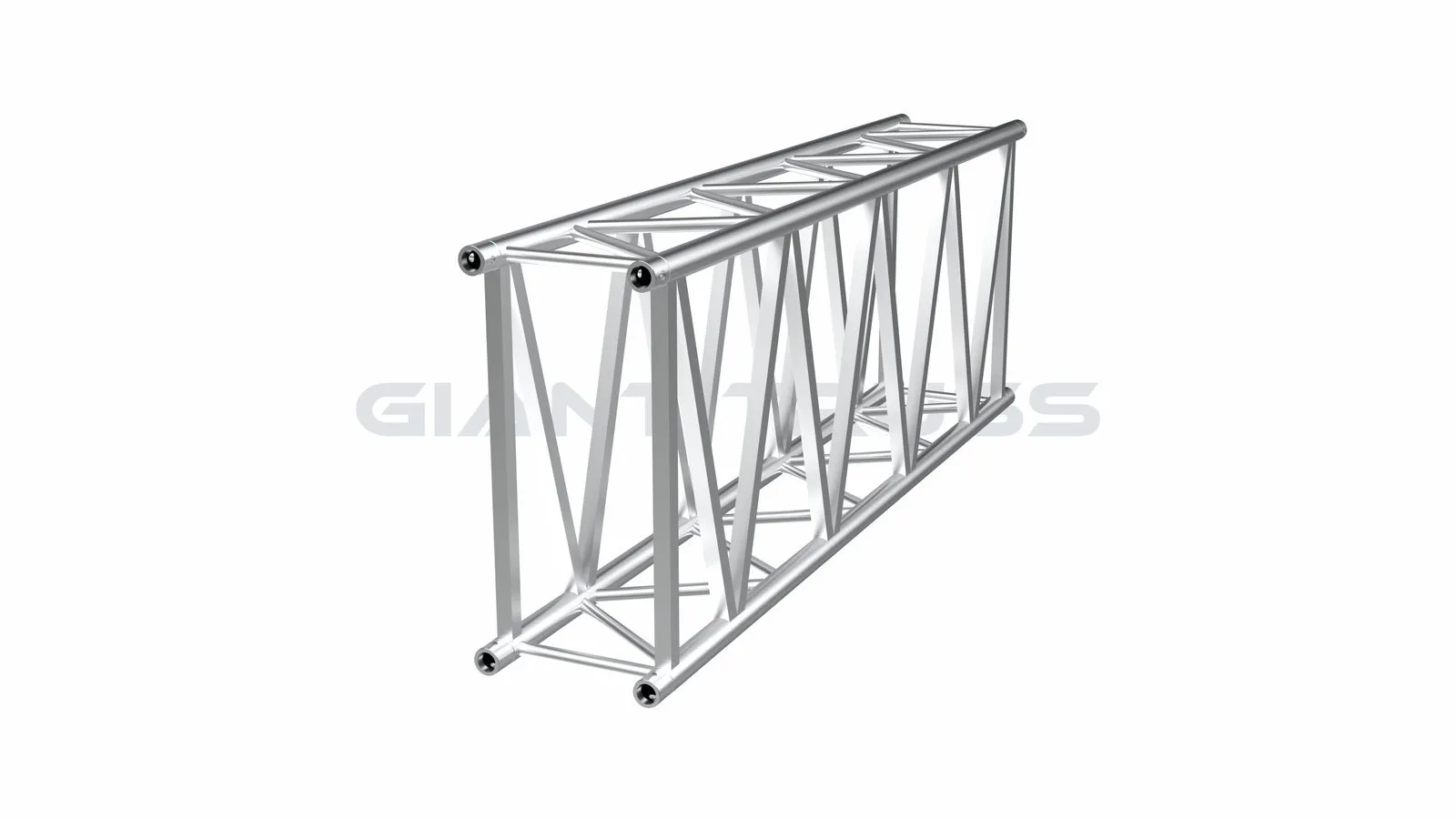

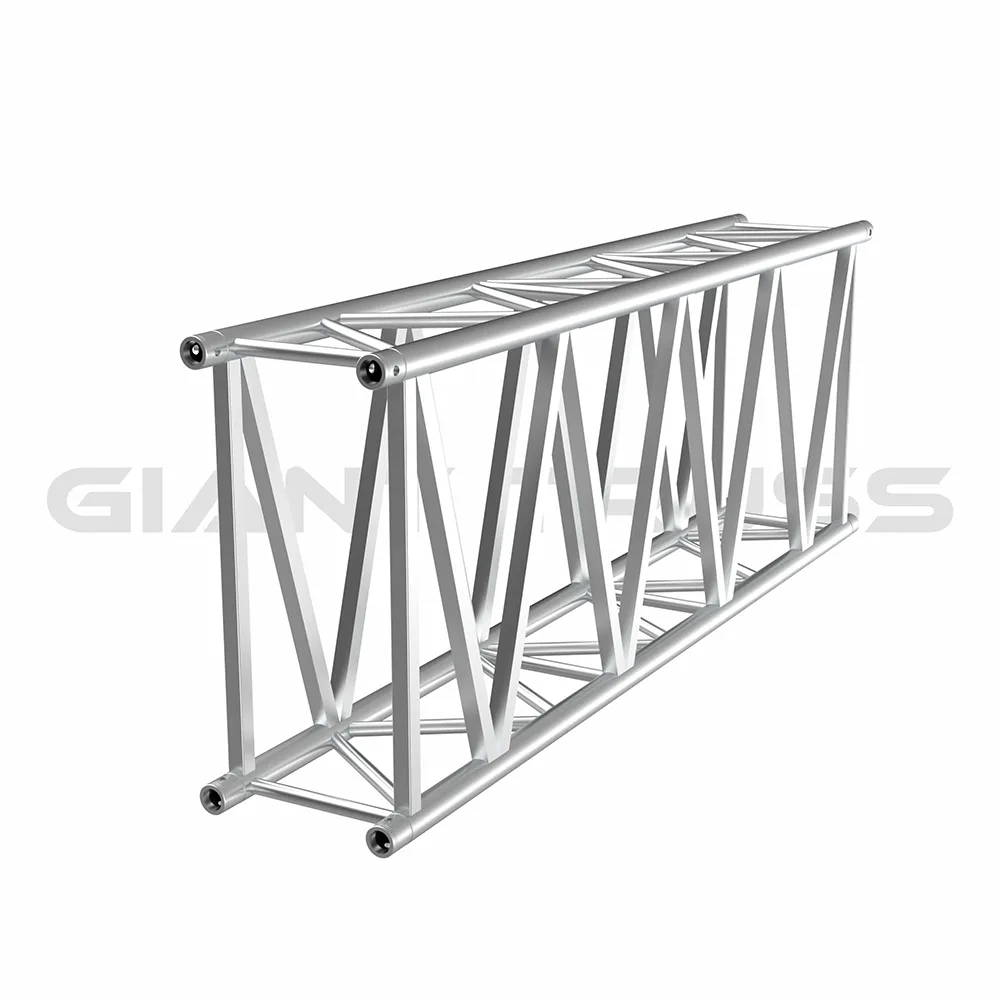

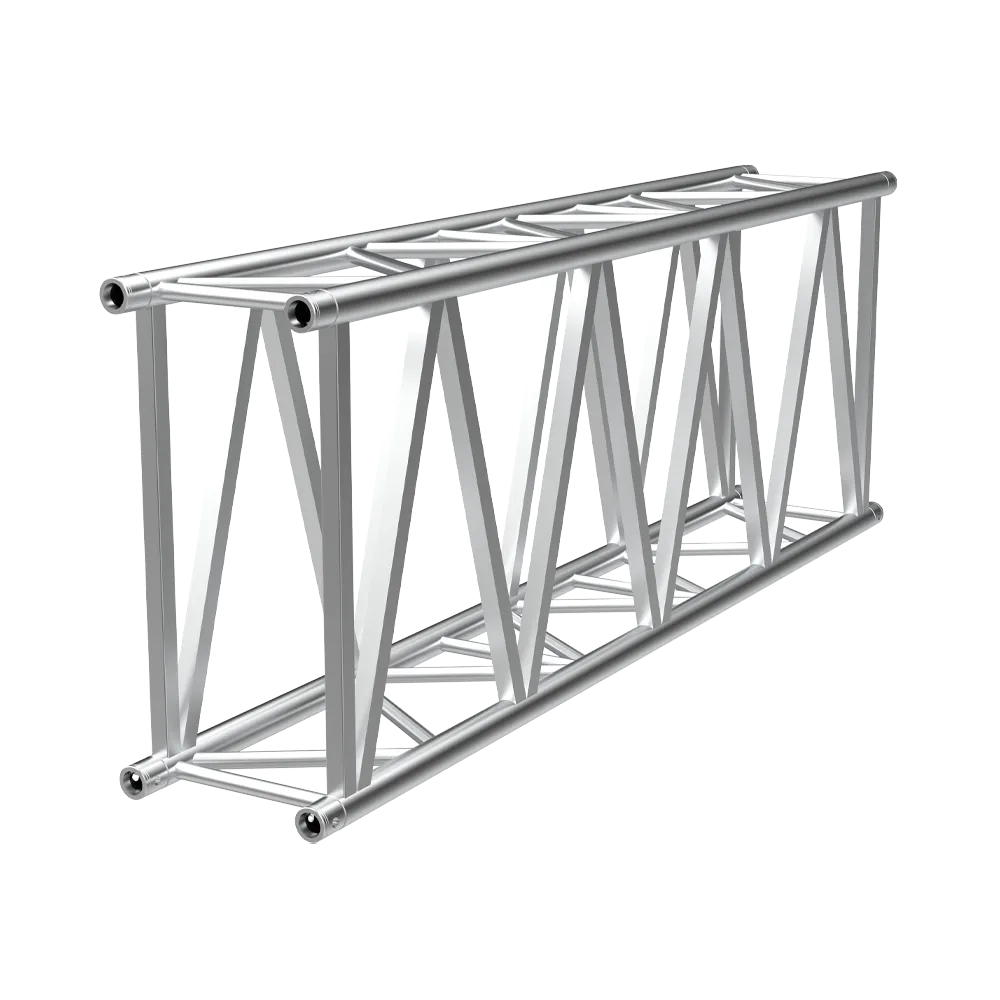

GT – 15
GT 15 your next GIANT TRUSS investment Looking for new constructions designed to meet the requirements of the largest aluminum structure? The Giant truss 15 truss is developed for special applications where extreme loads or conditions require enormous strength, look no further than our GT15 truss.
The whole system can be used with our Titan Tower (TT75) Ground Support System. Built to withstand extreme conditions and heavier loads, our GT15 pre-rig truss is the perfect solution for spans up to 60 meters. The GT 15 is the mother grid truss of our DDR100 pitch roof system which is one of the biggest and strongest aluminum pitch roof truss in the world.*
GT 15 your next GIANT TRUSS investment Looking for new constructions designed to meet the requirements of the largest aluminum structure? The Giant truss 15 truss is developed for special applications where extreme loads or conditions require enormous strength, look no further than our GT15 truss.
The whole system can be used with our Titan Tower (TT75) Ground Support System. Built to withstand extreme conditions and heavier loads, our GT15 pre-rig truss is the perfect solution for spans up to 60 meters. The GT 15 is the mother grid truss of our DDR100 pitch roof system which is one of the biggest and strongest aluminum pitch roof truss in the world.*
Technical Specifications
Load Chart
Downloads
Technical Specifications
| Proudly designed in Germany and Made in India. | |||
| Metric | Imperial | ||
| Height | 1460 mm | 57.48 in | |
| Width | 700 mm | 27.55 in | |
| Weight | 65 kg | 43.6 lbs/ft | |
| Main Tube | 100 x 8 mm | 3.94 x 0.31 in | |
| Braces | 50 x 3 mm | 1.97 x 0.12 in | |
| Braces | 60 x 60 x 4 mm | 2.36 x 2.36 x 0.16 in | |
| Material | EN-AW-6082 T6 | ||
| Pin Position | Vertical & Horizonta | ||
| Connection | Sg5 | ||
Load Chart
| SPAN | SPAN | DISTRIBUTED LOAD | DISTRIBUTED LOAD | DEFLECTION | CENTER POINT LOAD | CENTER POINT LOAD | DEFLECTION | 1/3 THIRD POINT LOAD | 1/3 THIRD POINT LOAD | 1/4 POINT LOAD IN | 1/4 POINT LOAD IN | 1/5 POINT LOAD IN | 1/5 POINT LOAD IN |
| M | ft | kg/m | Ib/ft | cm | kg/m | Ib/ft | cm | kg/m | Ib/ft | kg/m | Ib/ft | kg/m | Ib/ft |
| 24 | 78,74 | 646 | 434 | 11,89 | 6231 | 13738 | 8,22 | 4225 | 9316 | 3445 | 7596 | 2619 | 5774 |
| 28 | 91,86 | 463 | 311 | 15,55 | 5362 | 11823 | 11,08 | 3681 | 8116 | 2937 | 6476 | 2234 | 4926 |
| 32 | 104,99 | 344 | 231 | 19,8 | 4657 | 10268 | 14,49 | 3228 | 7118 | 2524 | 5565 | 1924 | 4243 |
| 36 | 118,11 | 262 | 176 | 24,65 | 4067 | 8966 | 18,48 | 2848 | 6279 | 2187 | 4821 | 1669 | 3679 |
| 40 | 131,23 | 204 | 137 | 30,1 | 3562 | 7853 | 23,08 | 2515 | 5545 | 1903 | 1496 | 1451 | 3200 |
| 44 | 144.36 | 160 | 108 | 36,18 | 3127 | 6894 | 28,35 | 2226 | 4907 | 1659 | 3657 | 1263 | 2784 |
| 48 | 157,48 | 127 | 85 | 42,89 | 2738 | 6037 | 34,3 | 1968 | 4340 | 1447 | 3191 | 1098 | 2422 |
| 52 | 170,6 | 102 | 68 | 50,25 | 2397 | 5279 | 41,03 | 1736 | 3827 | 1260 | 2777 | 952 | 2099 |
| 56 | 183,73 | 82 | 55 | 58,28 | 2081 | 4588 | 48,53 | 1524 | 3361 | 1092 | 2408 | 820 | 1808 |
| 60 | 196,85 | 65 | 44 | 66,99 | 1796 | 3961 | 56,9 | 1331 | 2935 | 939 | 2071 | 700 | 1543 |
Downloads
No Downloads Available
