DT X
₹1,450.00
- Tolerance free conical connector system.
- Super-size conical connection for maximum rigidity 4 Side Webbing.
- Can be used upto 44MTR
- High-Strength aluminium alloy.
- Extreme load bearing capacity.

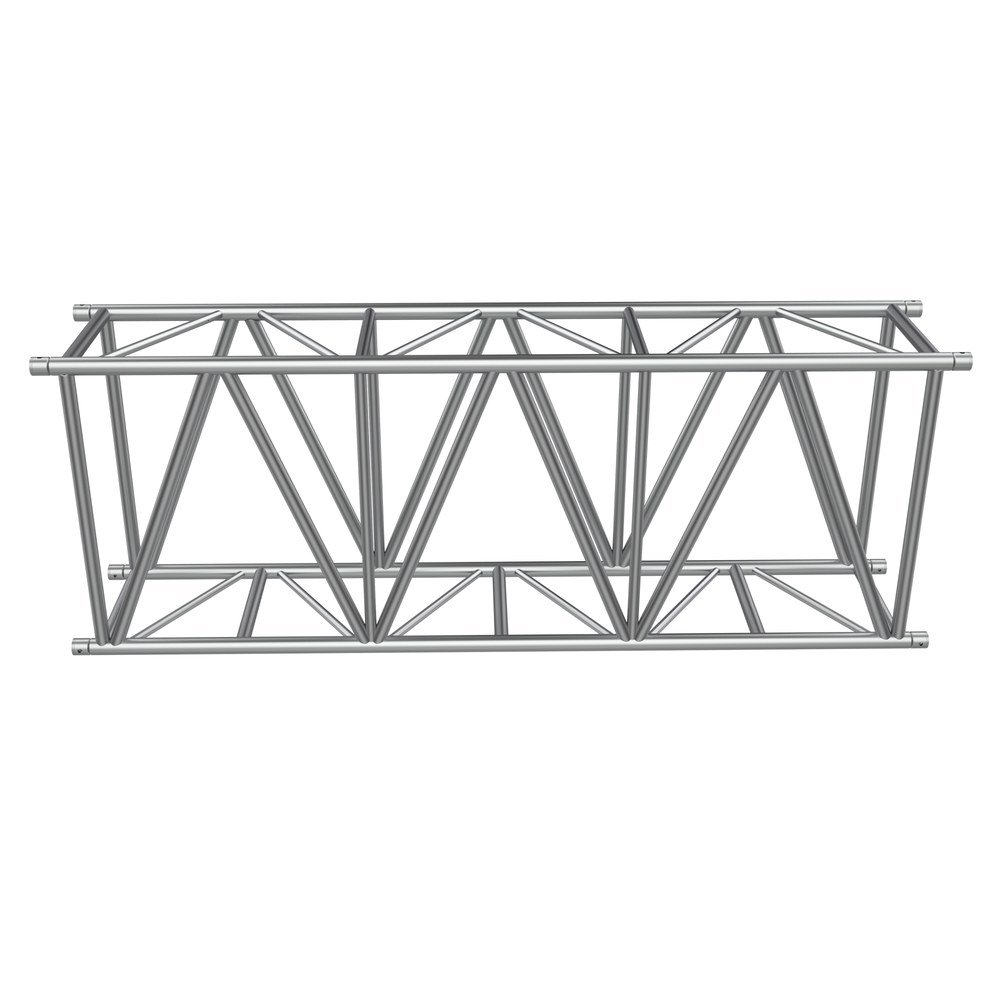

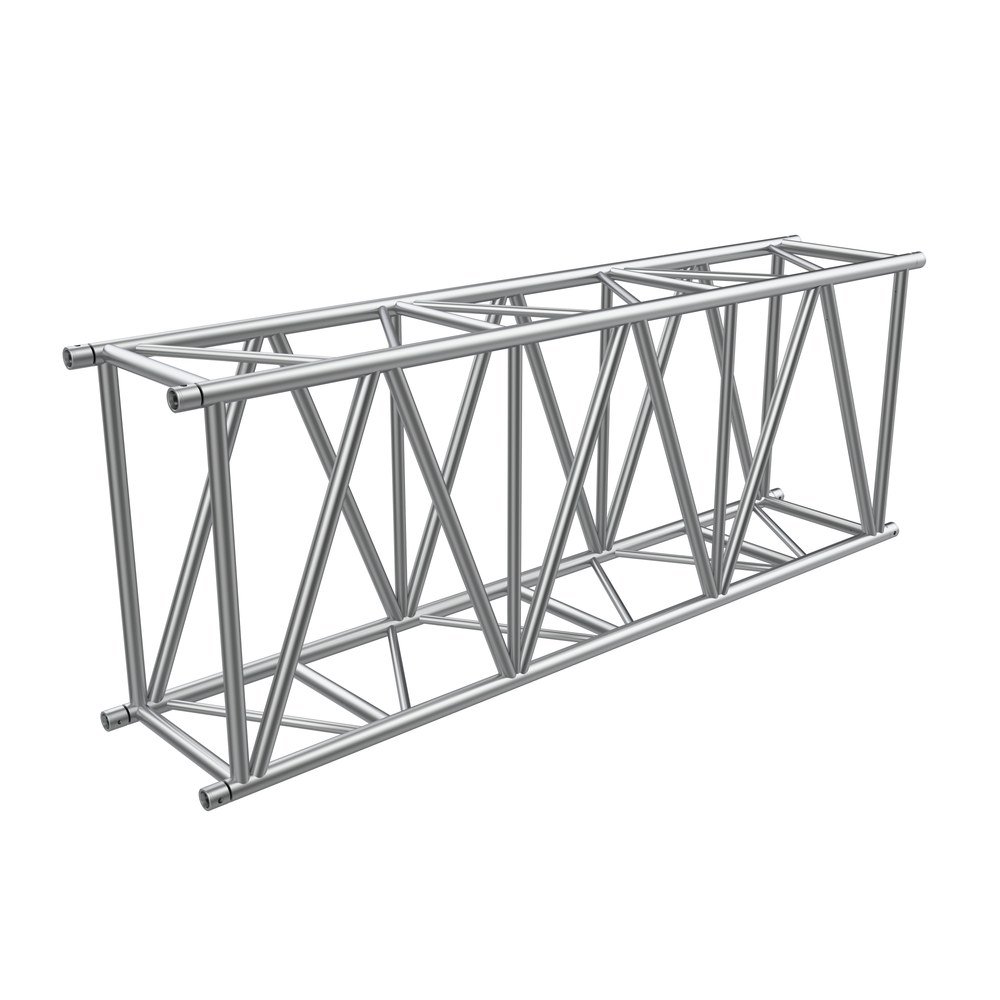

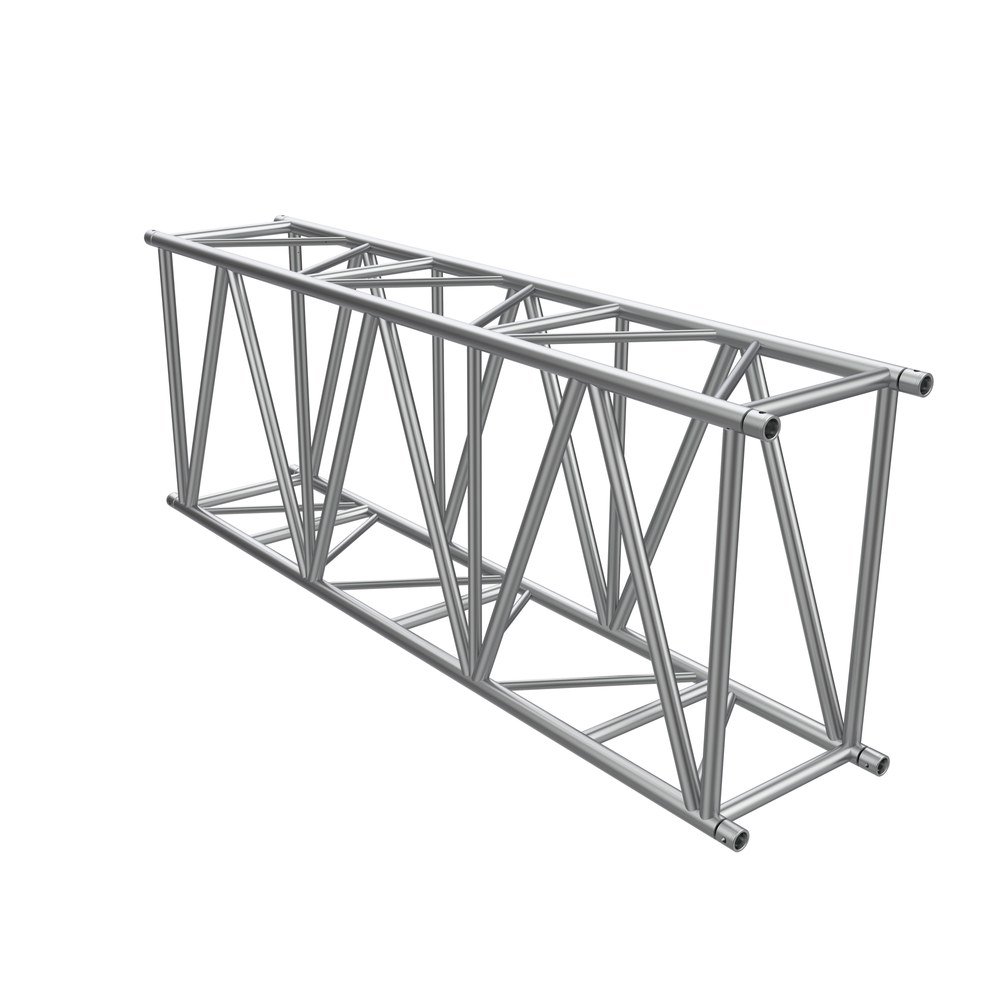

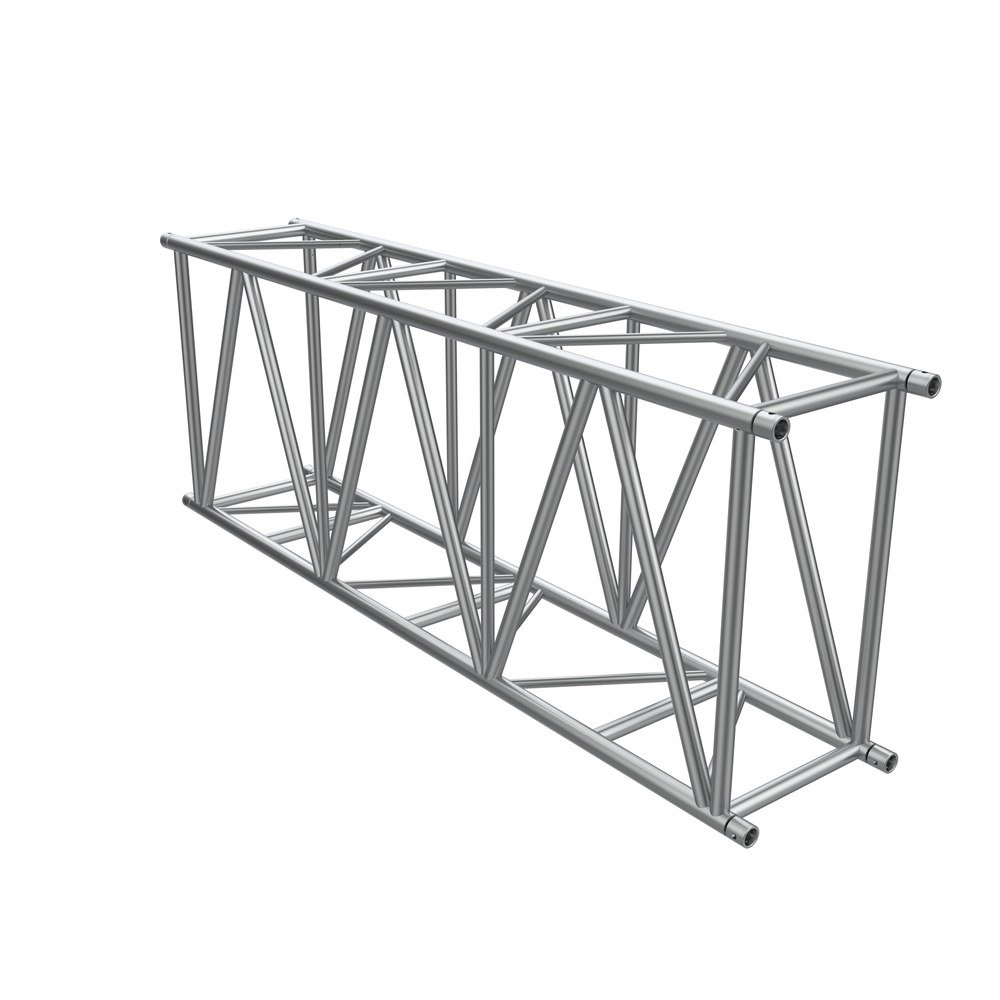

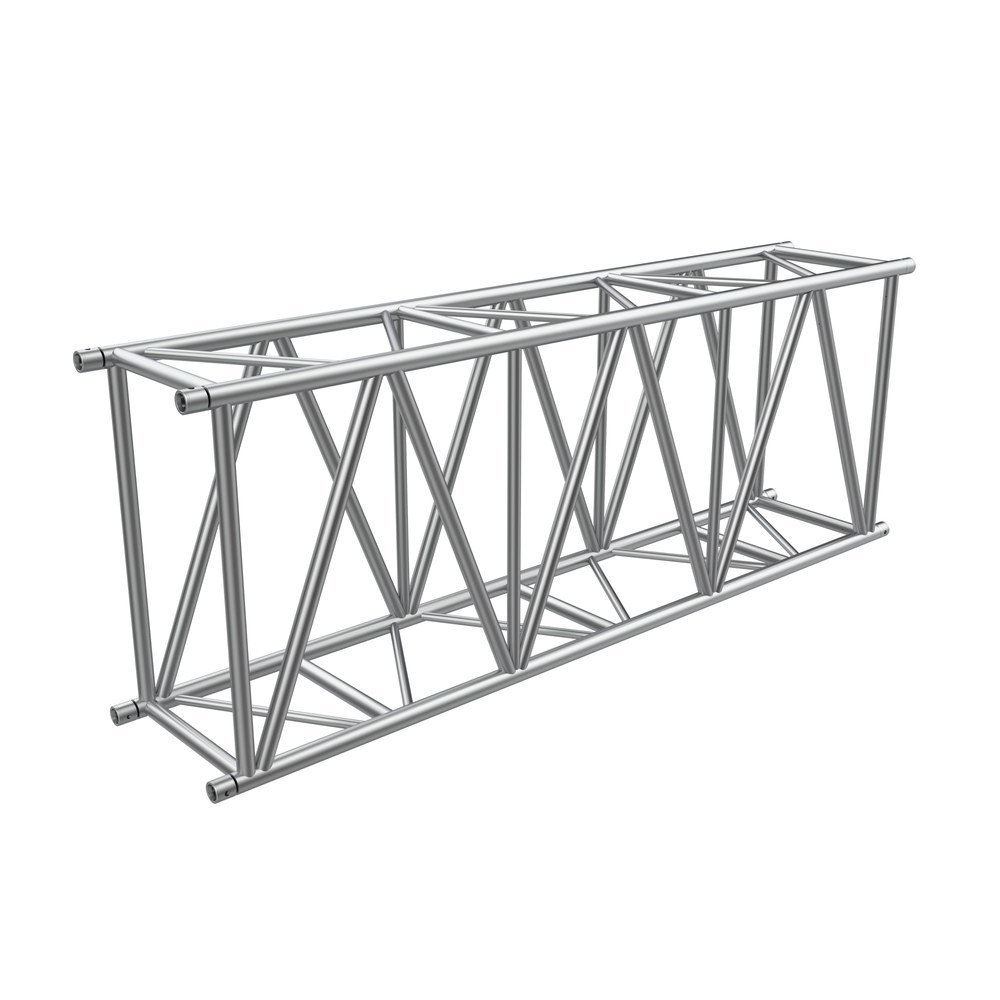

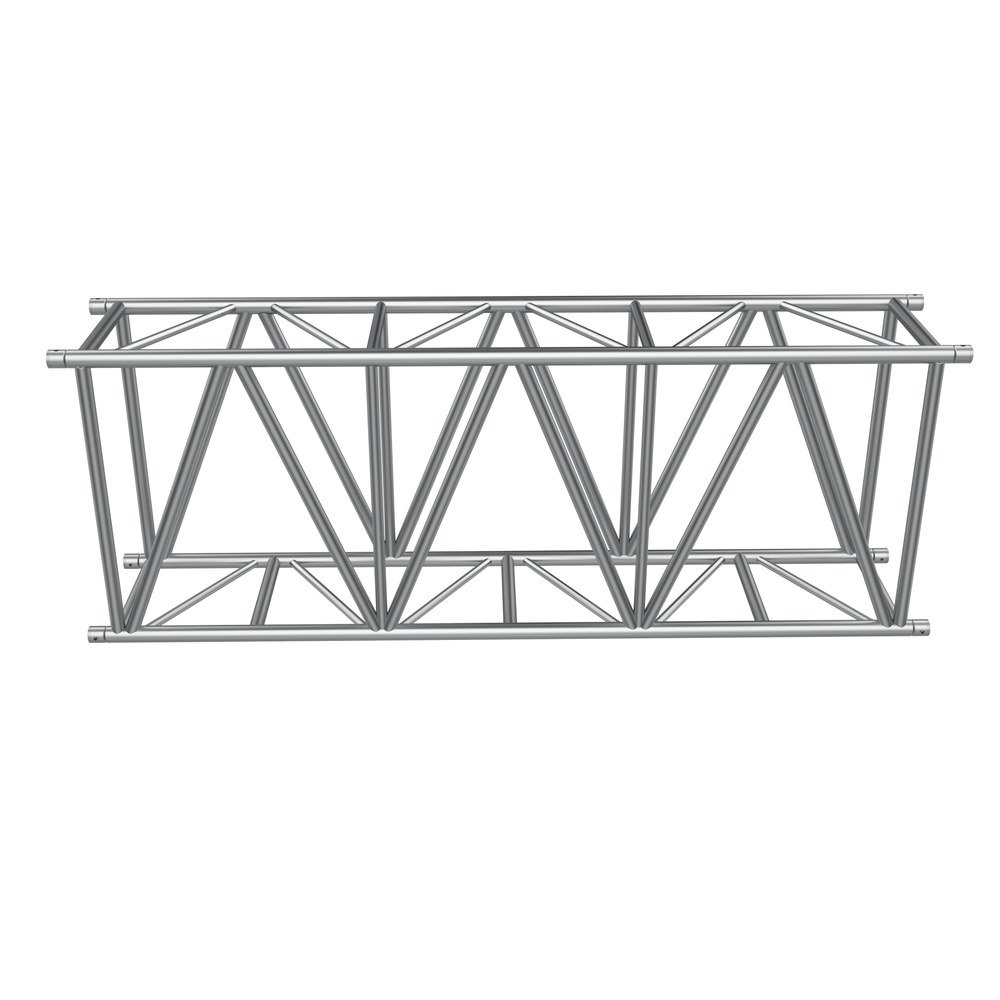

The DT X truss series by Giant Truss is a tested and certified truss.Its constructed of main tube (60mm x 6mm) and diagonals (40mm x 3mm) with uses the SG-3 connections system. the supported tower system is (SST-48). The DT X is the main rig truss for the big roof systems like Pitch Roof (DDDR85) & Saddle Roof (SR80. The DT X truss is a high-performance solution for special applications that demand extreme strength. This versatile truss is engineered to meet the toughest challenges and exceed expectations. The 6mm wall thickness reduces transportation damage and guarantees extreme durability.
This truss and all other Giant Truss series can be powder coated in every RAL colour.
Technical Specifications
Load Chart
Downloads
Technical Specifications
| Height | 1100mm |
| Width | 610mm |
| Weight | ~26Kg/m |
| Main Tube | 60x6mm |
| Sub Tube | 40x3mm |
| Braces | 40x3mm |
| Material | EN-AW-6082 T6 |
| Connection | SG3(60mm) |
Load Chart
| Metric Loading Chart | |||||||||||
| Load chart DT-X | |||||||||||
| Span | UDL | Deft | CPL | Deft | TPL | Deft | QPL | Deft | FLP | Deft | FLP |
| M | kg/m | mm | kg | mm | kg | mm | kg | mm | kg | mm | kg |
| 8 | 741 | 8 | 4871 | 12 | 2967 | 12 | 1978 | 11 | 1483 | 6 | 156 |
| 12 | 488 | 23 | 3752 | 25 | 2401 | 26 | 1858 | 28 | 1466 | 21 | 234 |
| 16 | 362 | 49 | 3019 | 43 | 1988 | 47 | 1576 | 51 | 1291 | 45 | 312 |
| 20 | 266 | 85 | 2499 | 67 | 1680 | 75 | 1330 | 82 | 1056 | 74 | 390 |
| 24 | 179 | 119 | 2109 | 98 | 1440 | 111 | 1076 | 114 | 882 | 110 | 468 |
| 28 | 127 | 160 | 1780 | 134 | 1246 | 155 | 890 | 154 | 741 | 153 | 546 |
| 32 | 93 | 208 | 1491 | 175 | 1085 | 207 | 745 | 199 | 621 | 200 | 624 |
| 36 | 69 | 262 | 1259 | 222 | 944 | 268 | 629 | 252 | 524 | 255 | 702 |
| 40 | 53 | 323 | 1067 | 277 | 800 | 330 | 533 | 311 | 444 | 316 | 780 |
| 44 | 41 | 391 | 903 | 339 | 677 | 399 | 451 | 378 | 376 | 385 | 858 |
Downloads
No Downloads Available
Compatibility
SST 48
Clamps
Hoists
Related Pictures
| Color |
Black ,White |
|---|
